86 дюймовая обучающая доска
- Категория: Интерактивная доска >>>
- Поставщик: Leadingtouch,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.79 $* | 0.85 $* |
| Aug-17-2025 | 0.38 $* | 0.63 $* |
| Jul-17-2025 | 0.93 $* | 0.84 $* |
| Jun-17-2025 | 0.10 $* | 0.58 $* |
| May-17-2025 | 0.83 $* | 0.16 $* |
| Apr-17-2025 | 0.7 $* | 0.64 $* |
| Mar-17-2025 | 0.43 $* | 0.11 $* |
| Feb-17-2025 | 0.90 $* | 0.62 $* |
| Jan-17-2025 | 0.7 $* | 0.3 $* |
Характеристики
Product Description
Integrated touch

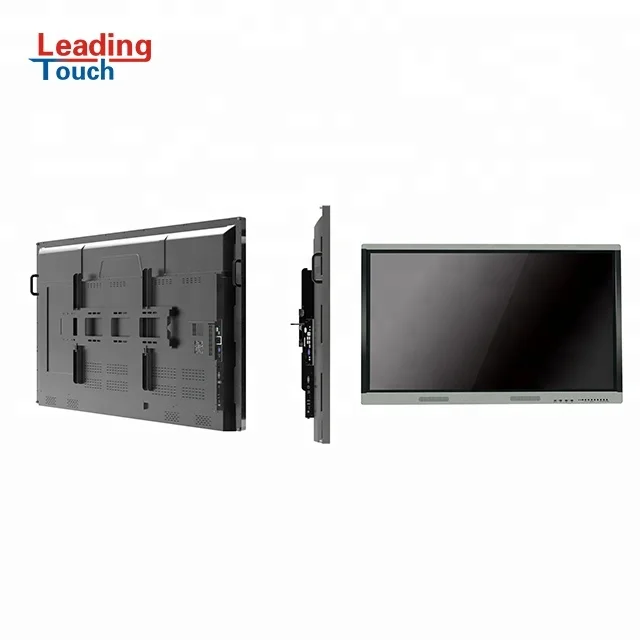

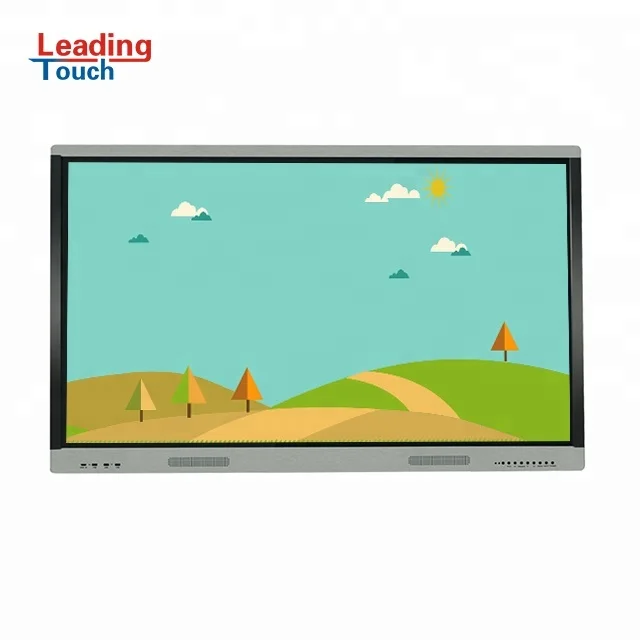

LeadingTouch’s products are factory-built touch systems with durability built in, not snapped on, touchscreen embedded in the high strength aluminum front frame, and housed in a highly durable steel chassis for a long life of reliable performance with a pure-glass touchscreen designed to deliver crystal-clear images. Available with infrared 10point multitouch touchscreen technology with a traditional bezel construction, the TC-series delivers a sensitive multi-touch response with any input device that can be easily integrated into kiosks, Hanging on the wall or Install to bracket.
Processing power

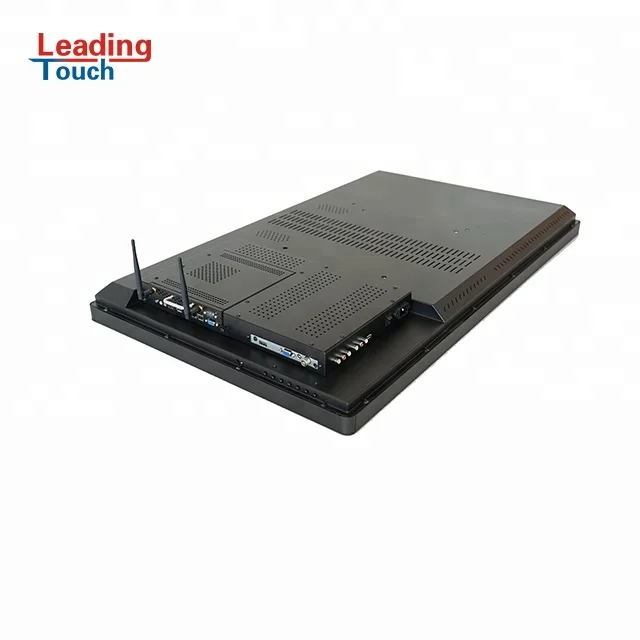

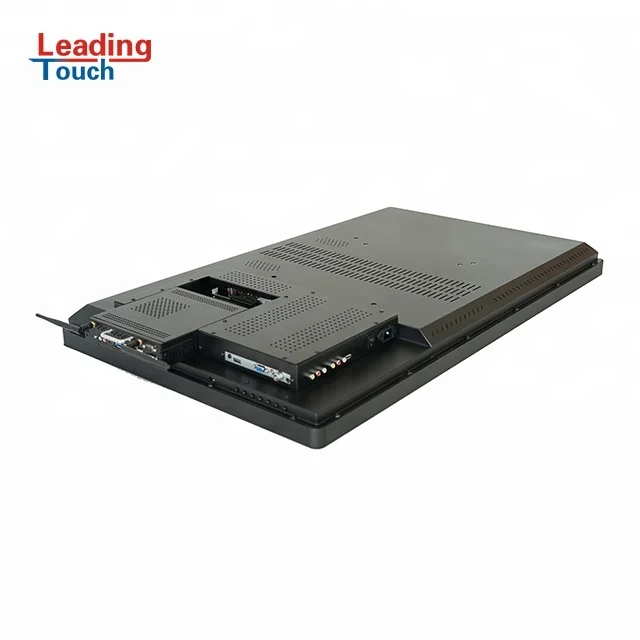

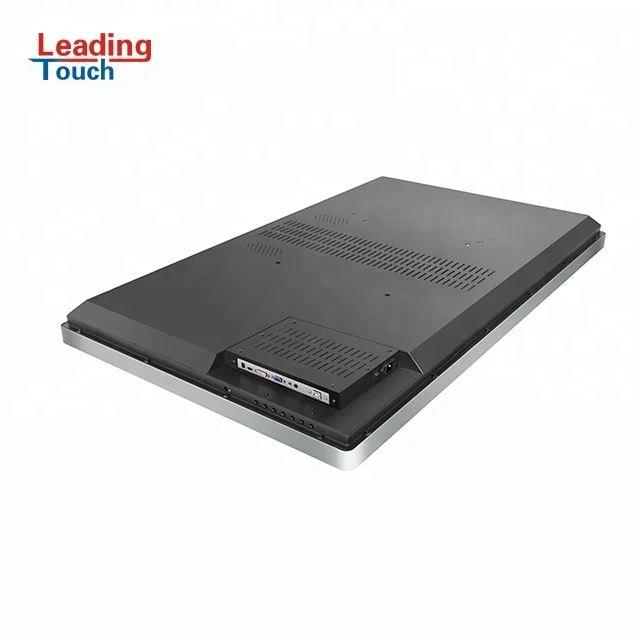

Optional, high-performance computer modules are available to turn the TC-series into a completely integrated all-in-one windows and Android dual-system OPS computer without the need for any cables or additional mounting hardware. The commercial-grade computer modules, available with Microsoft Windows with Intel Core and Android, make the display into a reliable platform that is interoperable with most content management servers and supports optimal partitioning of locally cached and network streamed content.
Features
Economy choice,Reliable quality, Easy operation
Embedded touchscreen in the aluminum front frame
10point Multitouch infrared touch technology
Flexible mounting in portrait, landscape and table-top orientation
Power Intel I3,I5,I7 OPS Windows and OPS Android Dual-Systems
Super cosmetic, slim housing
UHD 3840 x 2160 4K-display
Anti-Vandal 4mm tempered cover glass
Combinations of features indicate that LeadingTouch Infrared Dual-System All in one Interactive Digital Signage is the best choice for you.
Product Model | TC-8668-G41UV | ||
Product Description | 86” Infrared Dual-System AIO Interactive Digital Signage | ||
DISPLAY | Display | 16:9 4K Active Matrix TFT LCD | |
Useful Screen Area | 1895mm x 1066mm | ||
Optimal Resolution | 3840 x 2160 | ||
Number of colors | 16.7 million | ||
Brightness | 500 cd/m² | ||
Contrast Ratio | 3000:1 (Typical) | ||
Response Time | 4ms (Typically) | ||
Viewing Angle | Horizontal: ±89°or 178°total | ||
Vertical: ±89°or 178°total | |||
OPS COMPUTER BOX | CPU | Intel i3 4137 (i5,i7 Options) | |
Mainboard | H81 OPS_Mainboard | ||
RAM | 4G | ||
Hard disk | 500G SATA or 128G SSD | ||
USB and COM Port | 2 x USB 3.0, 2 x USB 2.0,1 x COM(RS232) port | ||
Ethernet Port | 1 x LAN RJ45(Gigabit) | ||
Additional Video Out | 1 x HDMI and 1 x VGA out | ||
Wireless | Wi-Fi 802.11 a/b/g/n/ac | ||
Bluetooth | Bluetooth 4.0 | ||
Audio and Microphone | 1 x 3.5mm line out, and 1 x microphone out | ||
Speaker | 2x 12W internal speakers | ||
OPS Android System | Android OS | 5.1 | |
CPU | ARM Contex-A53 x 4 1.4G | ||
GPU | Mali450MP4(4+2) 600MHz | ||
RAM | 2G DDR3 | ||
FLASH | 4GB Build in | ||
SD and SIM Card | SD Card Stoch:1,(Max 32G) SIM Card Socket:1 | ||
TV | ATV: NTSC.PAL.SECAM DTV:DTMB | ||
Video Input | HDMI x 2 | ||
Network Interface | Gibabit Wired Network,2.4G Wireless Lan | ||
Bluetooth,3G/4G Model | |||
TOUCH | Touch Technology | Infrared 10point multitouch | |
Response Time | 3ms | ||
Touch Resolution | 32767 x 32767 | ||
Touch Point | Ture 10point multitouch | ||
Sealability | Touchscreen sealed to Aluminum alloy-bezel | ||
Touchscreen sealed to LCD | |||
MTBF | 50,000 hours demonstrated | ||
Mounting Options | VESA Mount 600 x 1200mm , Back bracket option | ||
Power Supply | 100-240VAC, 50-60Hz | ||
Temperature Range | Operating: 0℃ to 50℃; Storage: -20℃ to 60℃ | ||
Humidity Range (no condensing) | Operating: 20%-80%; Storage: 10%-90% | ||
Product Dimension | 1997.2mm x 1206.7mm x 99.5mm | ||
Package Dimension and Weight | 2110mm x 1307mm x 200mm 155KG | ||
Warranty | 1 year | ||
Agency Approvals | FCC, CE, RoHS | ||
Packing & Delivery
Related Products
AIO PCAP Interactive Digital Signage
Android All-in-one Touch Computer
Windows All-in-one Touch Computer
Certifications
Our Company
Founded in 2001, LeadingTouch, the global leader in touch technology, develops, manufactures and markets a complete line of touch screen and touch monitor products, with PCAP, SAW, Infrared, Resistive touch technology. LeadingTouch offers the largest selection of touch screen technologies and LCD touch monitors and carefully designs each product for the demanding requirements of diverse applications, such as Industrial, Medical, POS, Kiosks, Retail, Hospital, Transportation, Office Automation, and Gaming.
FAQ
Q: How to calibrate touchscreen
1. Finish driver installation and click LeadingTouchSetup icon in desk, then select calibration menu and do
4points calibration.
2. Enter "Start"-"Program"-“leadingtouch”—“touchsetup”— “Caliberate”, then touch the 4points shown in
screen to finish calibration.
Q: How to uninstall driver?
1. Enter “Start”----“programmer”----“Leadingtouch” ----“Uninstall” to uninstall driver and restart computer
to effective your operation.
2. Enter “Start”----“Settings”----“Control panel” ----“Add/Delete Program”----“Leadingtouch Driver for
windows” to uninstall driver and restart computer to effective your operation.
