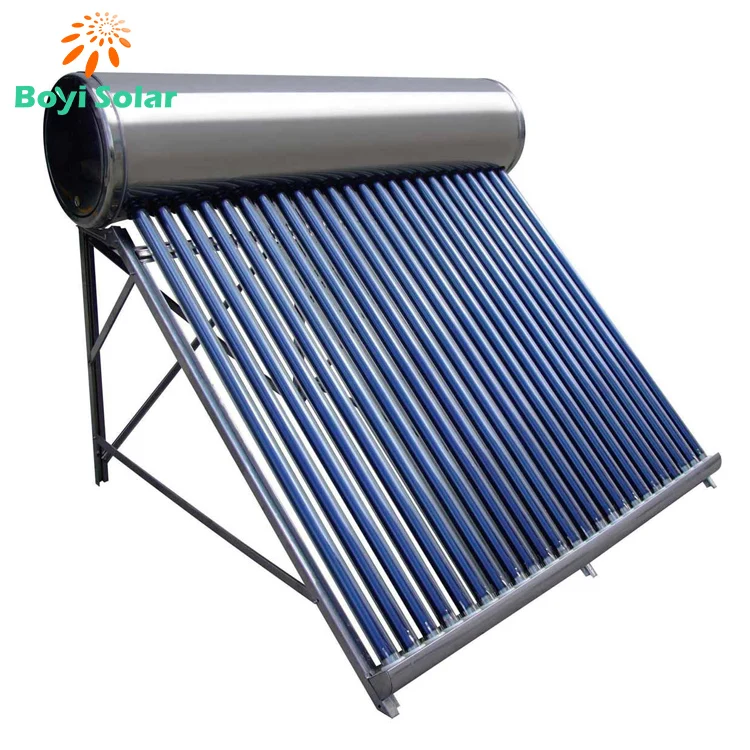

Compactg non pressure solar water heater relies on the nature circulation of the water between solar tubes  and the water tank.
Thermosyphon systems work on principal of heat rising. The water enters in the bottomof the collector and rises to the tank as it warms.
The advantage of this system is that solar heat is storedin a well-insulated tank, so hot water can be used at any time without the penalty of overnight losses.
Moreover the insulation of the tank can protect heat during 3 days without heat loss.



Descripition	Compact non solar water heater Galvanized steel
Material of out tank	Galvanized steel 0.4mm
Material of inner tank	0.31-0.5mm thickness SUS304 stainless steel
Tank insulating layer	55mm 45kg/m³ high-density polyurethane foamed
Inlet and outlet hole	Male G 1/2, 3/4
Max pressure	0.05 Mpa
Solar collector tube	3.3 Borosilicate glass with Cu-SS-ALN/ANL. coating
Thickness of glass tube	1.6mm
Vacuum tube tightness	P≤0.005 Pa
Absorption	AS=0.93-0.96(AM1.5)
Emission ratio	εh=0.04-0.06(80C±5C)
Idle sunning  property parameters	Y=220~260m2.C/KW
Average heat  loss coefficient	ULT=0.6~0.7W/(m2.C)
Bracket:	1.4mm thickness Galvanized steel with paint
Structure of tank:	5 holes for air vent,overflow,water inlet  outlet,electric heater.
Welding:	Argon arc welding
Fastening pieces:	Made of stainless steel screw
Tube quantity	18 tube 58x1,800mm
Tank capacity	180L
Afford for house	3-4persons
