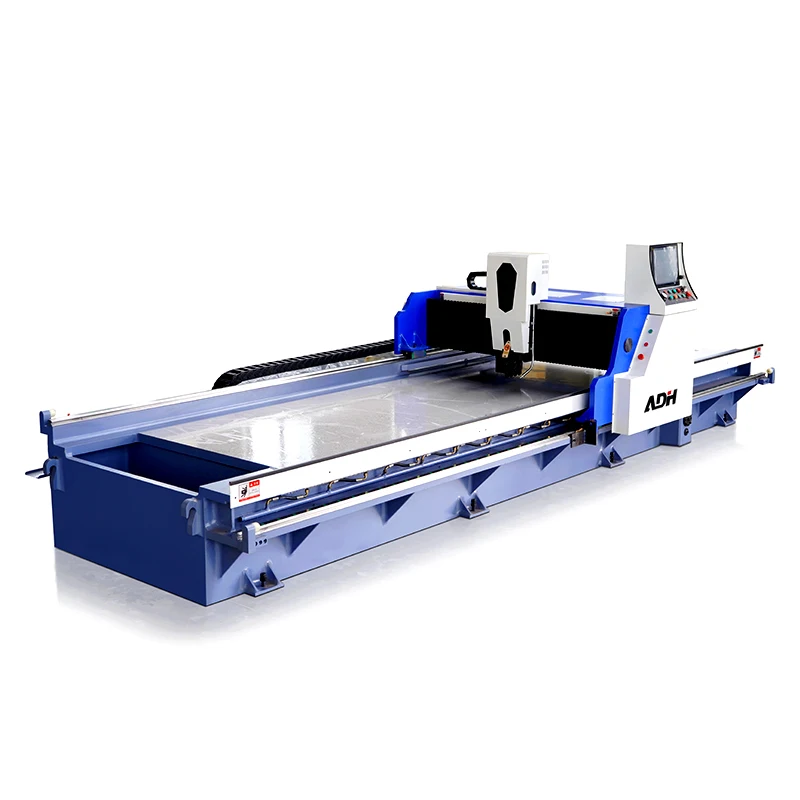

Бренд ADH листовой станок из нержавеющей стали CNC V канавочная
- Категория: Шпунтовочный станок с ЧПУ >>>
- Поставщик: Anhui,Donghai,Machine,Tool,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 2391978.16 $* | 2439818.0 $* |
| Jul-16-2025 | 1939950.97 $* | 1978749.33 $* |
| Jun-16-2025 | 2354309.25 $* | 2401395.84 $* |
| May-16-2025 | 2335474.68 $* | 2382183.93 $* |
| Apr-16-2025 | 1864613.51 $* | 1901905.77 $* |
| Mar-16-2025 | 2297805.82 $* | 2343761.74 $* |
| Feb-16-2025 | 2278971.30 $* | 2324550.95 $* |
| Jan-16-2025 | 2260136.87 $* | 2305339.89 $* |
Характеристики
General Features
Convenient materials loading and unloading. Air cooling without environment pollution. 3+1 axis CNC servo control to realize fully automatic operation.
High pressure, reliable firmly tight force, low noise and small energy consumption. Adopt tin bronze helical gear made by #45 forging steel.
QH silent guide rail transmission, the movement speed can be adjusted. The worktable has self-healing function. NC program design.
- 3+1 axis CNC servo control
- QH silent guide rail
- self-healing worktable
STANDARD COMPONENTS
- CNC system - Japan
- Hydraulic system - Taiwan
- Frequency converter - Mitsubishi
- Servo motor - Mitsubishi
- Seal ring - VALQUA,Japan
- Motor - SEW
- Air switch - Schneider
- Contactor - Schneider
- Breaker and button - Schneider
- Relay - Schneider
- Blades - KORLOY,Korea
- Linear guide - HINWIN, Taiwan
- Wire - IGUS, Germany
Technical Spec.
| Grooving Plate Width | 1250mm | 1250mm | 1250mm | 1250mm |
| Grooving Plate Length | 3200mm | 4000mm | 5000mm | 6000mm |
| Grooving Plate Thickness | 0.50-4.00mm | 0.50-4.00mm | 0.50-4.00mm | 0.50-4.00mm |
| V-Groove Margin | 6-8mm | 6-8mm | 6-8mm | 6-8mm |
| X-axis Max moving Speed | 70m/min | 70m/min | 70m/min | 70m/min |
| X-axis Max. Return Speed | 80m/min | 80m/min | 80m/min | 80m/min |
| Y-axis Max Moving Speed | 20m/min | 20m/min | 20m/min | 20m/min |
| Y.Z-axes Repositioning Accuracy | ±0.01mm | ±0.01mm | ±0.01mm | ±0.01mm |
| X-axis Motor power | 5.5KW | 5.5KW | 5.5KW | 5.5KW |
| Y.Z-axes Motor Power | 1KW | 1KW | 1KW | 1KW |
| Dimension (mm) | 5250x2300x1560 | 6050x2300x1560 | 7050x2300x1560 | 8050x2300x1560 |
| Weight | 8T | 8.5T | 9T | 11T |
