Автоматическая машина для гибки труб fender guard автомобильной


Поделиться:


Цена:27 000,00 $ - 28 000,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-15-2025 32130.50 $* 33737.17 $*
Aug-15-2025 31860.71 $* 33453.50 $*
Jul-15-2025 26730.76 $* 28067.21 $*
Jun-15-2025 31320.99 $* 32886.13 $*
May-15-2025 27270.49 $* 28634.22 $*
Apr-15-2025 30780.71 $* 32319.30 $*
Mar-15-2025 30510.95 $* 32036.19 $*
Feb-15-2025 30240.92 $* 31752.1 $*
Jan-15-2025 29970.46 $* 31469.63 $*

Характеристики



Product Description


 Adapted material:steel pipe, stainless steel, copper pipe, aluminum pipe;







Recommended application industry:

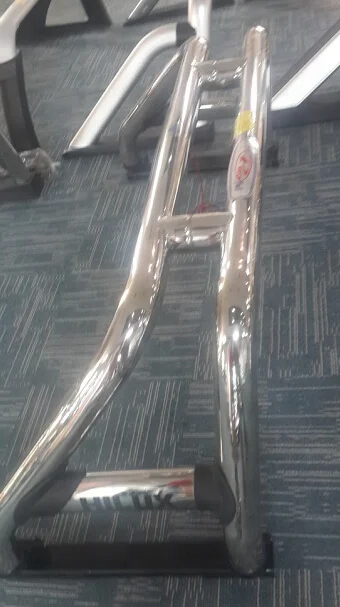

automobile fittings ( oil pipe for brake, muffler, seats), motorcycle, healthy equipment, air-conditioning,bicycle, steel furniture, sanitary wares and so on.





Main specification


1. Automatic recognition of power in machine and work piece, the processing is both quick and good
2. Slow returning core, boosted by barrow, imporving the apprearance of the angle.
3. The whole operation is in the computer, simple, quick and correct
4. Picturized programming system: draw and modify on the stereo pipe image on the screen, makes the operation simple, quick and correct
5. Rebound test: comparison test on the features of lots of pipe materials
6. Single-step debugging function- a careful observe on the deformation of the pipe material during the trail manufacture of dies.
7. Automatic drawing of the graphics of dies-clear help to develop new products
8. Over-all inspection: hydraulic/electrical circuit/ driving systems, adsence of phase in motors/inversion, voltage, temperature, oil pressure, and automatically diagnose the troubles
9. Passwords, keys, working hours/ recordings of quantities, are applied to management of production





Technical parameter






























































Specification/Model



DW89CNC



Max bending diameter of tube



88.9mm



Max bending wall thickness of tube



2.0mm



Max bending radius



3000mm



Min bending radius



depend on the tube diameter



Max bending angle



190°



Max feeding length



3000mm



feeding method



direct feeding / clamping feeding



Bending speed



Max 25°/s



Rotary speed



Max 180°/s



Feeding speed



Max 600mm/s



Bending accuracy



±0.1°



Rotary accuracy



±0.1°



Feeding accuracy



±0.1mm







About us

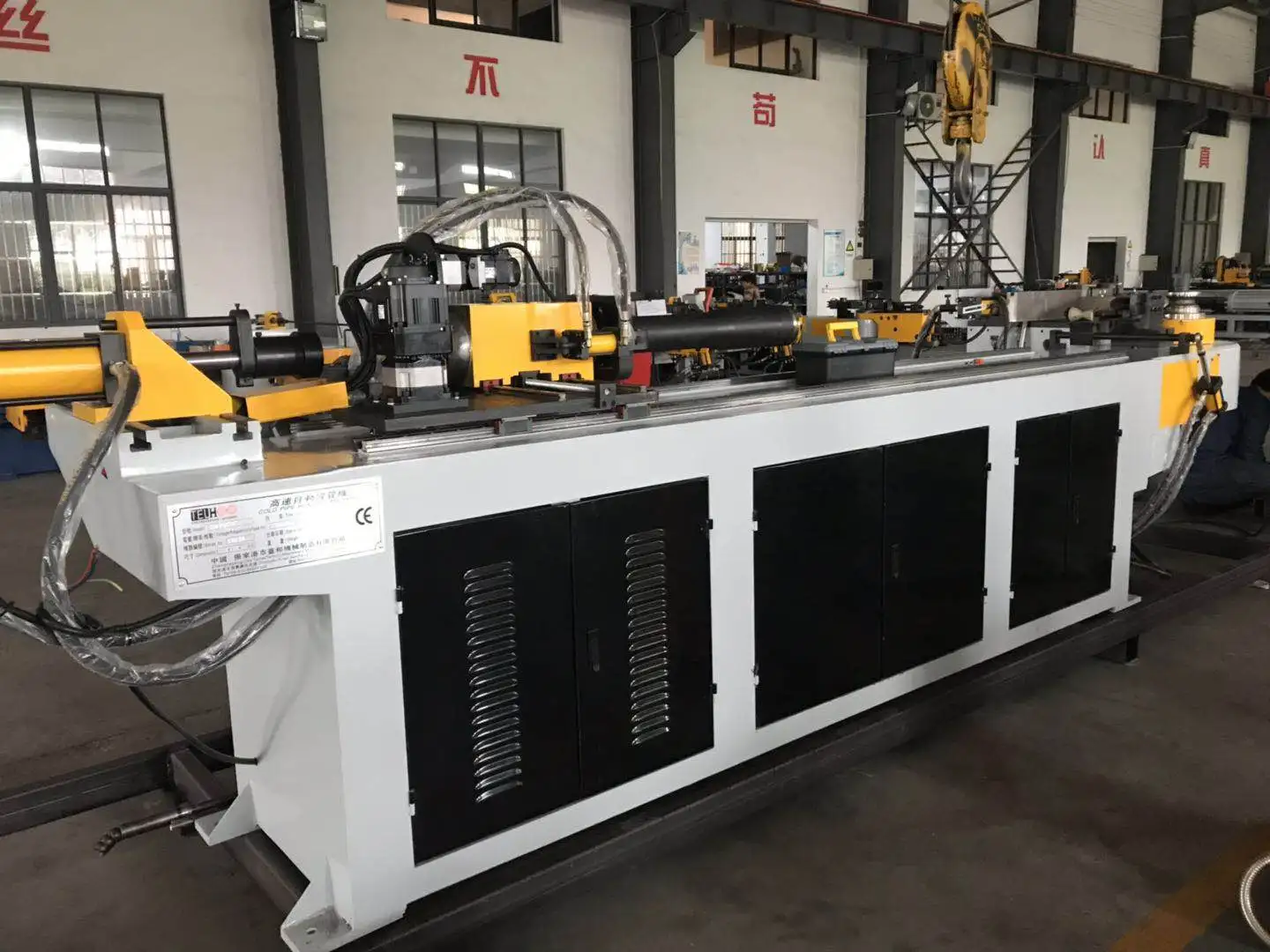

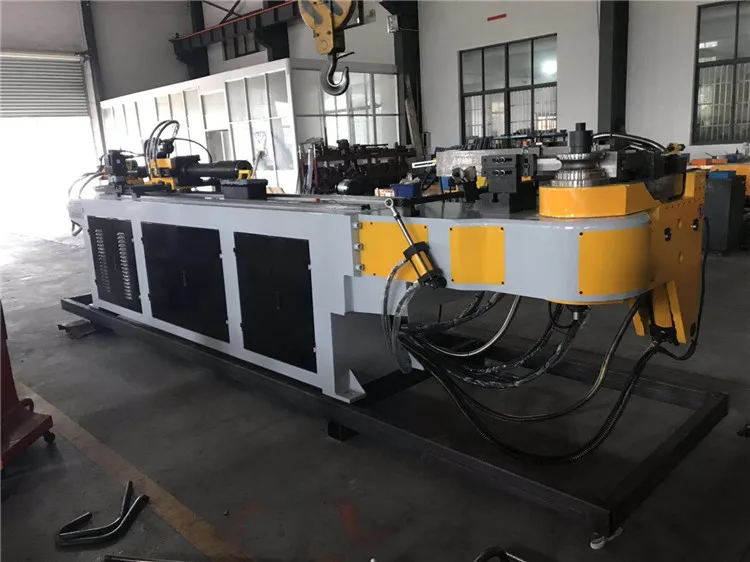

Detailed Images


 IMG_1122.JPG_20190626142351.jpg_20190626142352.jpg_201906261423512.jpg_201906261423521.jpg








Packaging & Shipping







Our Services


1.Warranty period: We guarantee machine quality for one year, during this year, if spare parts of the machine were damaged, we can send the component to the customer by DHL, TNT freely.


2.Our factory can send our engineer to the customer’s factory install, commission and training freely. The customer provide the double trip tickets, food and accommodation for our engineer. The customer also can send the engineer to our factory to learn the operation and maintains freely.


3.Our factory provide the service for the customer forever, if the customer need operation help, can contact us by Skype, Email and Telephone at any time, we provide 24 hours on-line service.





Scope of Application







Certifications







FAQ


 1. Are you ,Manufacturer or Trading company?


A: Yes, we are manufacturer.We are focuse on metal Pipe processing machinery since 1991,Headquarter in Hongkong.Factory in China.


2. How to choose pipe bending machine?


A: You have to inform us following details:


- Outer diameter range


- Wall thickness range


- Bending radius (Centre Line of Radius)


- Material of Pipe


- Provide product drawings is better


3. What is the control system of the machine?


A: Standard control is Mitsubishi PLC(windows system), Special is IPC controls.





4. What is the difference between NC and CNC machines?


A: NC is standard hydraulic pipe bending machine, feeding and rotation by manual, and bending is hydraulic automatic.


CNC is fully automatic pipe bending machine, servo motor for feeding and rotation, and hydraulic or servo motor for bending, multiple tooling stack are available for two and more different bending radius (CLR).





5. What is the biggest bending capacity you can offer?


A: As of now our biggest bending capacity is 325mm outer diameter for cold bending.





6. Where is your factory located?


A: Our factory is located in Zhangjiagang City, near from Shanghai and wuxi.
