Резистор с нейтральным заземлением кв
- Категория: Resistors >>>
- Поставщик: Guangdong,Fullde,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.69 $* | 0.73 $* |
| Aug-18-2025 | 0.42 $* | 0.28 $* |
| Jul-18-2025 | 0.13 $* | 0.76 $* |
| Jun-18-2025 | 0.55 $* | 0.61 $* |
| May-18-2025 | 0.6 $* | 0.7 $* |
| Apr-18-2025 | 0.74 $* | 0.33 $* |
| Mar-18-2025 | 0.85 $* | 0.55 $* |
| Feb-18-2025 | 0.48 $* | 0.66 $* |
| Jan-18-2025 | 0.39 $* | 0.96 $* |
Характеристики
Neutral Grounding Resistors(NGRs) - sometimes called Neutral Earthing Resistors - are employed in medium-voltage AC distribution networks to limit the current that would flow through the neutral point of a transformer or generator in the event of an earth fault. NGRs limit fault currents to a value that does not cause any further damage to swetchgear, generators or transformers beyond what has already been caused by the fault itself.

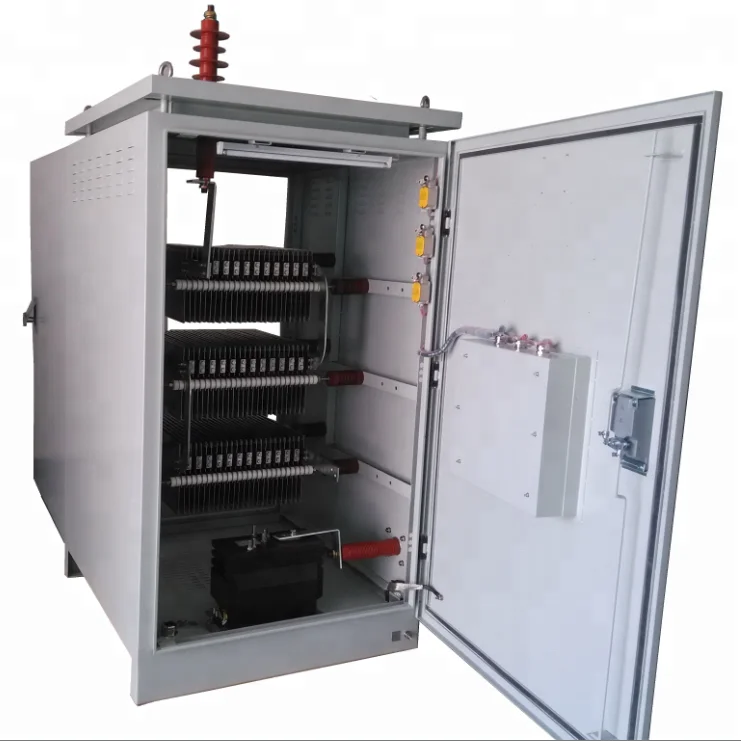

Pictures of Neutral Grounding Resistors:
Products Description
FNGR10.5KV-200A-132Ω-10S-IP23 Neutral grounding resistors are designed to absorb a large amount of energy without exceeding temperature limitations. These resistors are used for grounding of generators and transformers in wye configurations for ground fault, overvoltage, and short circuit protection.
- Technical Data
--System voltage(line to line voltage): 10.5kV;
--Resistance value(ambient Temp. 20°c): 132ohm;
--Fault current: 200A;
--Continous time: 10s;
--Protection Degree: IP23;
--Accessories: Current Transformer.
- System Characteristics
--Hign thermal capacity toy absorb high currents;
--Rugged shock resistanct IP23 rated enclusures available environmental protection;
--Lifting eye allow easy moving for installation;
--Stainless steel resistive elements;
- Dimension (mm)
NOTE: Customerized neutral grounding resistor are available. Please let me know the electrical parameters for a suitable design.
- Packaging & Shipping
We use export wooden case to ensure a a safe delivery for neutral grounding resistors.
Our company
FULLDE specializes in the custom design and manufacture of ancillary devices and instruments for electric power equipment such as Load banks, neutral grounding resistor, brake resistors, aluminum housed resistors, wirewound resistors, steel grid resistors.
We are fully equipped and capable of manufacturing many other types of power-related equipment to customer specifications with high quality level is achieved by following rules edited by ISO 9001, RoHS, CE.
Other products
| High Voltage Resistor | Aluminium Resistor | Golden Resistor | Steel Grid Resistor |
| Crowbar Resistor | Wirewound Resistor | Brake resistor | Load bank |
Certificate
Time Schedule
1. Quantities: negotiation;
2. Leading time: 20-25days;
3. Delivery: by sea.
Guaranty
1. One year warranty;
2. Strict test before shipment.
