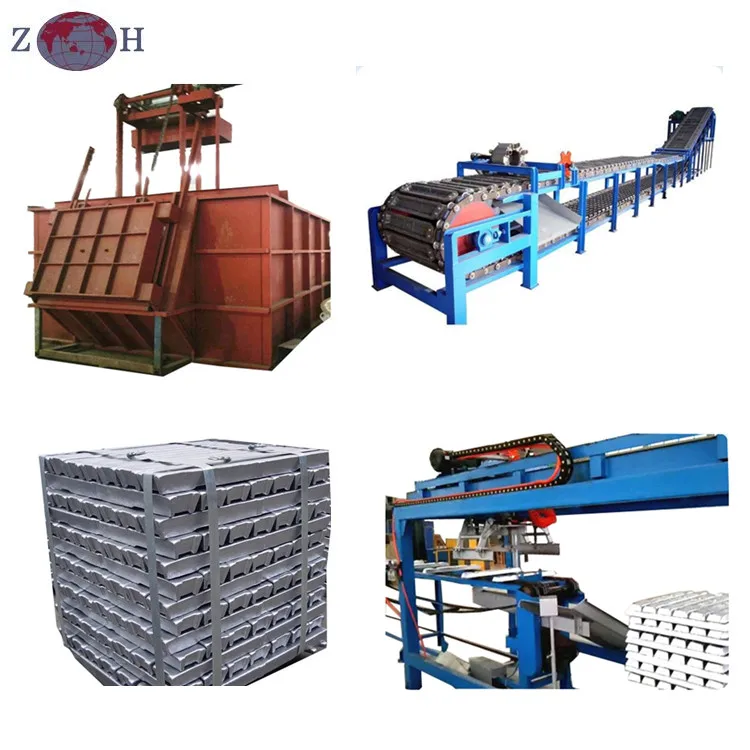

Aluminum Ingot Production Line

Aluminum ingot manufacturing machine



I    5 TONS  aluminum melting furnace



1. Usage

This machine is used for melting nonferrous metals (aluminum).

2. Feature

1- The capacity is 5 tons, the door is lifted by electric.

2- The shell of furnace is 6mm steel plate, furnace wall is 12# channel steel.

3- The thickness of fireproofing of furnace wall is 500mm. The thermal insulation material is silicate insulation board and high strength light-weight insulating brick.

4- Supply range: the drawing of civil foundation, layout chart, furnace body, furnace door, and lifting device. And foundation, oven , oven materials and draught fan are outside of offer

3. Main technical parameters

Name	Data
Furnace type	Rectangular stationary type
Capacity	More than 5 tons
Number of furnace door	1
Door operation	Electric driven
Max. temperature	860℃
Normal operation temperature	720-800℃
Al water discharge type	Manual
Discharge hole diameter	About 50mm

4 Fireproofing







II Chain type aluminum alloy ingot casting machine



1 Usage

This machine is used for casting aluminum alloy ingot continuously.

2 Feature

1- High speed, AC motor, frequency conversion stepless speed regulation, automatic.

2- The ingot die is cast iron with Mn, longer life.

3- Cooling type of die is water cooling, which can promise longer life.

4- Pouring groove is made of steel structure shell and refractory castable.

5- This equipment is made of mold holding device, demoulding device, rack, transmission, water cooling device, distribution device and so on.

3 Main technical parameters

Name	Data
Machine dimension	20 x 1 x 2m (L,W, H)
Ingot take off type	Single pneumatic hammer
Power	7.5kW, frequency motor
Scraping belt pitch	152.4mm
Number of ingot die	262pcs, High-Mn heat resisting iron
Distribution parts	High-Mn heat resisting iron, 8 pcs nozzles
Output	4-6 seconds per ingot
Cooling type	Water and air cooling
Weight of each ingot	About 6kg
Air supply pressure	0.63Mpa



III STacker Unit



1 Feature

1- Conveyor: power is 2.2kW, working speed is 10m/min, load capacity of oil cylinder is 1500kg, material of bearing block is UCP208, material of chain roller is 45# with heating treatment.

2- Hydraulic system: power is 7.5kW, pressure is 16MPa (Max.), flow is 40L/min (max.)

3- Air-operated system: air supply pressure is more than 0.5MPa, pipe diameter is 6 min,

gas consumption is 3m3/min.

4- Electric control system: PLC Mitsubishi, Japanese. Relay is Schneider or Omron.

5- 380V, 3phase, 50Hz.



Name	Data
Total power	13kW
Lifting height	150mm
Lifting weight	100kg
Rotation angle	0~ 90 degree
Moving speed for trolley	About 14m/min
Number of ingot for moving	7pcs/each time



We also provide ROBOT STACKER
