TK-7Y регулятор солнечного нагрева воды под давлением
US $10.00-$30.00
Горячая Распродажа солнечный водонагреватель под давлением с плоской пластиной разработанный для
- Категория: >>>
- Поставщик: Haining,Jinneng,Water,Heater,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 155.77 $* | 163.61 $* |
| Aug-17-2025 | 153.23 $* | 161.88 $* |
| Jul-17-2025 | 129.2 $* | 135.14 $* |
| Jun-17-2025 | 151.0 $* | 159.11 $* |
| May-17-2025 | 131.68 $* | 138.84 $* |
| Apr-17-2025 | 148.87 $* | 155.56 $* |
| Mar-17-2025 | 147.58 $* | 154.43 $* |
| Feb-17-2025 | 146.78 $* | 153.43 $* |
| Jan-17-2025 | 144.81 $* | 151.3 $* |
Характеристики
Product Description

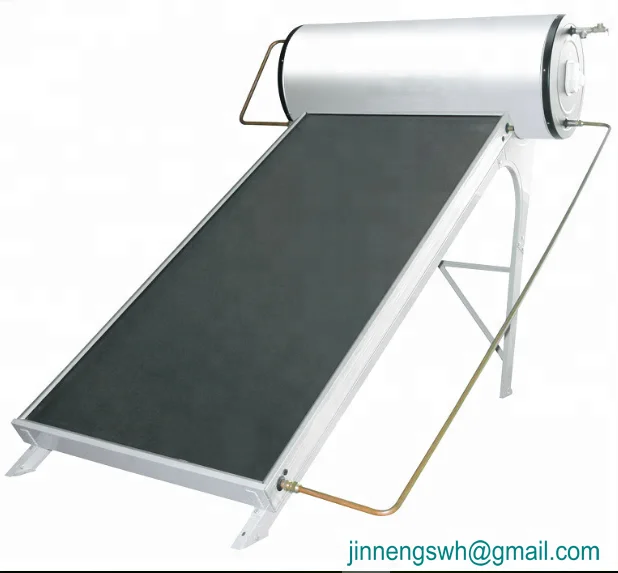

hot sell pressurized solar water heater with flat plate designed for Chile
solar water tank and structure
| outer tank | galvanized steel 0.4mm thick, different color is avaliable |
| inner tank | stainless steel 304 2B 1.2mm thick, available SS 316 |
| working pressure | 4 bar |
| testing pressure | 12 bar |
| structure | galvanized steel 1.5mm thick, & 1.8mm thick aluminum alloy & stainless steel |
| structure angle | 20/28/25/45 degrees and adjustable |
| spare parts | PT valve,mg rod, electric backup,solar controller, brass fitting and connecting |
| tank capacity | from 50 to 500 liters available |
| insulation layer | 50/55/60/70mm thick foaming polyurethane |
| warranty | 6 years |
flat plat specifications:
| model number | FP-QR2.0-10 |
| Dimensions | 2000X1000X80mm |
| Casing | aluminum alloy 6063-T5/white or black |
| Cross area | 2.0m2 |
| Aperture area | 1.823m2 |
| Absorber Material | selective Coating |
| Absorptance | ≥95% |
| Emittance | ≤5% |

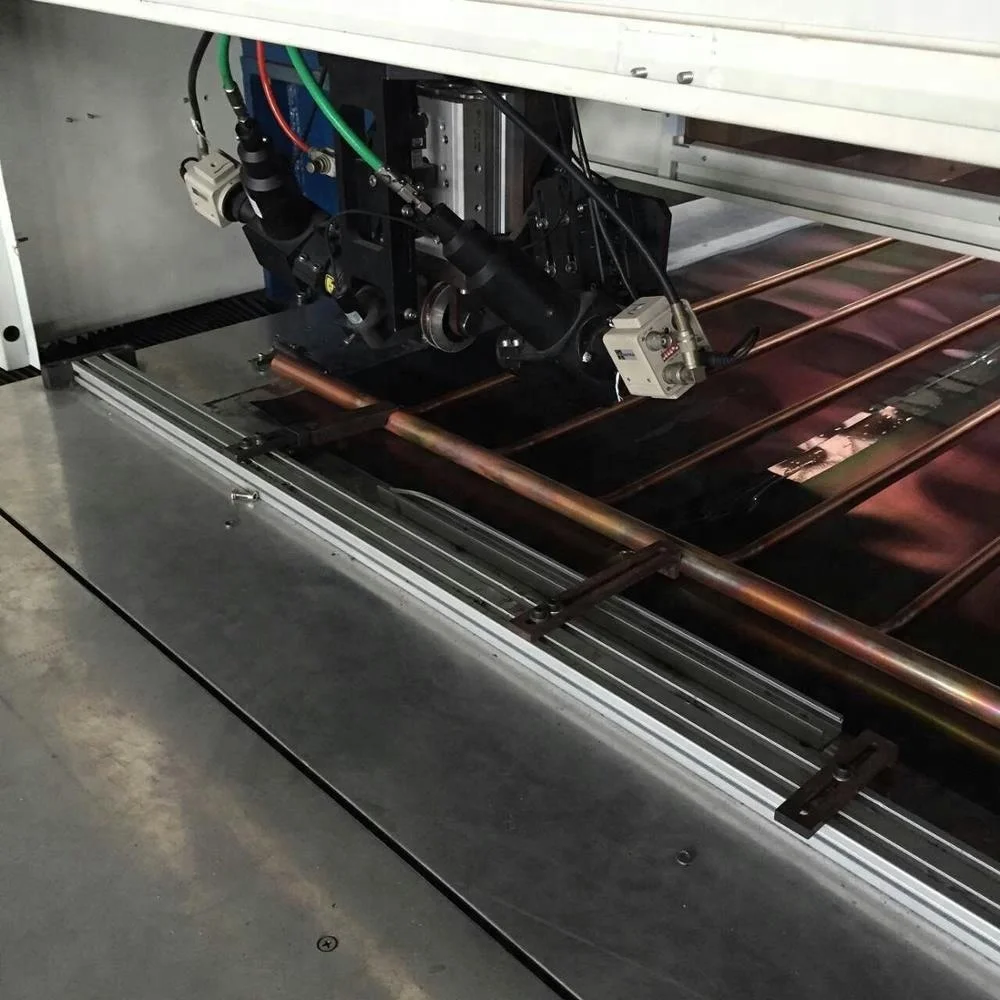

| Welding Method | laser welding |
| Heat carrier volume | 1.0L |
| Head tube | diameter:φ22mm,thickness:δ0.6mm |
| Head tubes number | 2 |
| Branch tube | diameter:φ8mm,thickness:δ0.6 |
| Branch tube number | 7 or as per clients' requirement |
| Branch tubes of pitch | 110mm |
| weight | 34kg |
| insulation material | fiber glass,thickness,30mm |
| Density of fiber glass | 60KG/M3 |
| glass cover | low iron tempered,thickness:3.2 |
| Efficiency(η) | 0.77 |
| heat loss | 3.5W/m2.℃ |
| Recommend heat media | 70%glycol+30%water |
| Stagnation temperature | 175℃ |
| test pressure | 1.2Mpa |
| normal pressure | 0.7Mpa |
| Recommend flow rate | 70-80L/H |
| Recommend connecting number | ≤8 |
| packing | corrugated cartons |
| warranty | 3 years |
| 40feet container number | 320 pcs |
Packaging & Shipping
for full container -standard export carton.
samples-wooden box.
Our Services
We produce different models of solar water heater and OEM for different clients and market demands,
same as others we produce non pressure model because it is cheap and popular model, our other big advantage is to produce presurized solar water heaters, we are new in alibaba but we are specialist in producing pressurized inner tank to supply all Haining factories more than 10 years, as soon as you find us that means you find real factory and get factory price
Tube model Non pressure solar water heater
Tube model compact pressurized solar water heater
Tube model split pressurized solar water heater
Tube model solar collector for hot water project
Flat model no pressure solar water heater
Flat model compact pressurized solar water heater
Flat model split pressurized solar water heater
Flat plate
OEM insulated tank
