DELIXI аппарат для дуговой сварки ZX7-400I (MMA-400I) IGBT воздухопровода Изолированная Лучшая цена машины Mig Mag

DELIXI аппарат для дуговой сварки ZX7-400I (MMA-400I) IGBT воздухопровода Изолированная Лучшая цена машины Mig Mag

Цена:3 442,96 ₽ - 34 429,59 ₽*

Количество:

Product Description

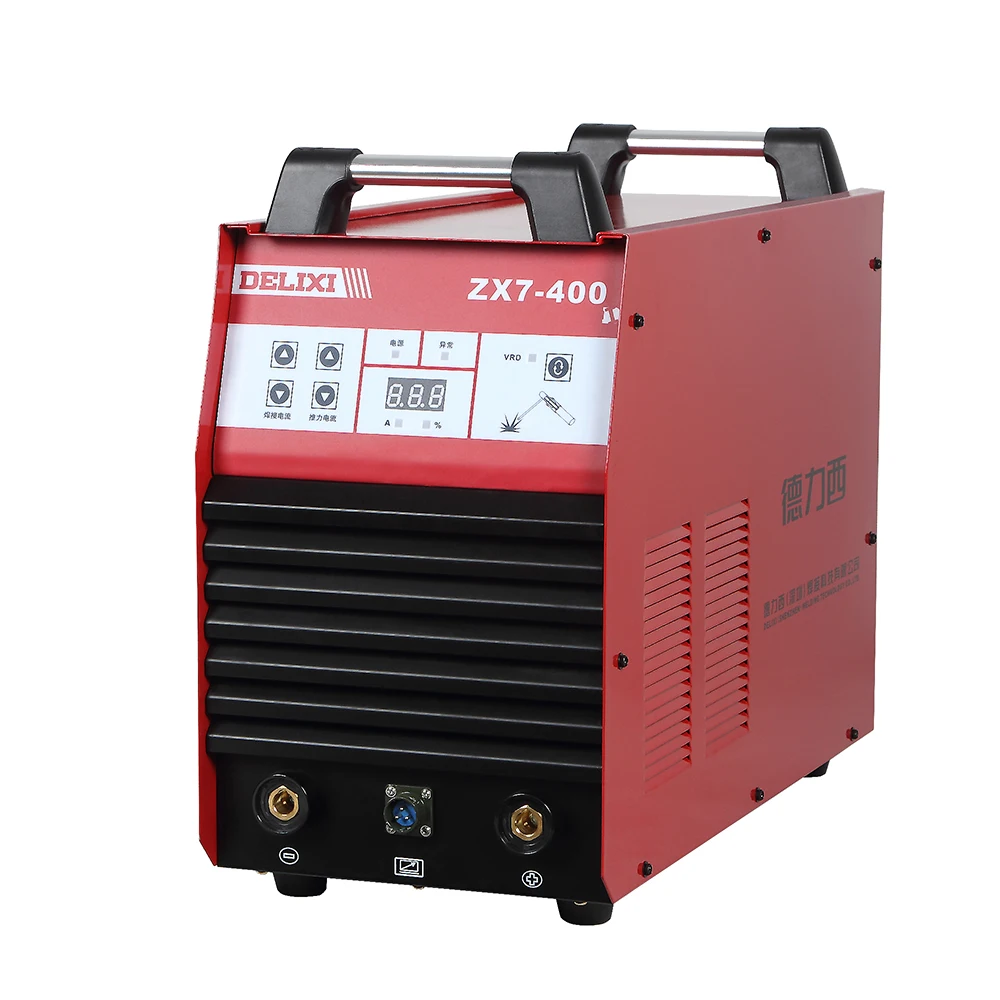

1.Pictures of Triple Phase Machine Mig Mag Welding

2.Features of Triple Phase Machine Mig Mag Welding

1. Advanced IGBT inverter technology, low consumption and high output

2. Digital control improves the reliability

3. All kinds of acid, alkalic electrodes are applicable

4. Wide range of power grid adaptation(AC187-253V)

5. High no load voltage, smooth and stable welding performance with minimal spatter

6. High speed fan brings effective dissipation and high duty cycle

7. Over-current, over-voltage and over-heat protection

3.Specifications of IGBT Triple Machine Mig Mag Welding

Item	ZX7-400I (MMA-400I)	Accessories
Input voltage	380V±15%	1. Electrode holder with 2m cable, 50mm2; 2. Earth clamp with 2m cable,50mm2;
Frequency(HZ)	50HZ
Rated input power(KVA)	17.2
Output current(A)	30-400
Current at 60% duty cycle(A)	400
Current at 100% duty cycle(A)	310
No-load voltage(V)	64
Efficiency(%)	85
Power factor	0.93
Insulation class	F
Protection class	IP21S
Usable electrode(mm)	2.5-5.0
Weight(KG)	6
Measurement(MM)	445265340
