Автоматическая машина для прокатки

Категория: Thread Rolling Machines >>>
Поставщик: Shijiazhuang,Aisen,Machinery,Co.,Ltd.

Цена:10 500,00 $ - 11 500,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	12495.6 $*	13120.54 $*
Aug-16-2025	12390.72 $*	13010.68 $*
Jul-16-2025	10395.64 $*	10915.53 $*
Jun-16-2025	12180.48 $*	12789.34 $*
May-16-2025	10605.27 $*	11135.51 $*
Apr-16-2025	11970.22 $*	12569.86 $*
Mar-16-2025	11865.78 $*	12458.20 $*
Feb-16-2025	11760.10 $*	12348.44 $*
Jan-16-2025	11655.55 $*	12238.85 $*

Характеристики

Product Description

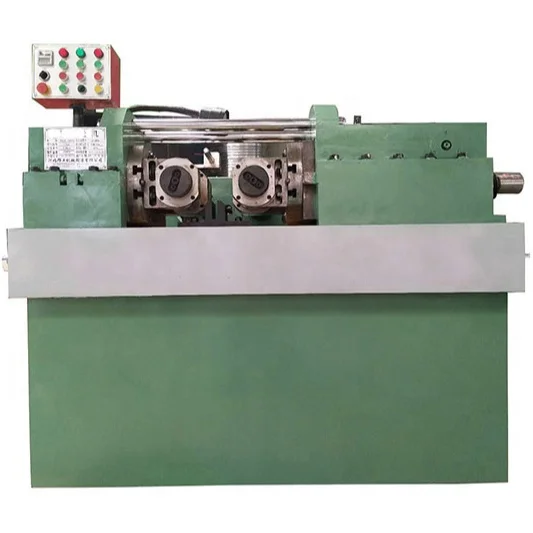

Hydraulic Thread rolling machine

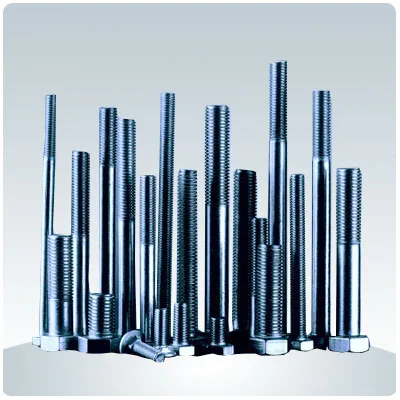

This model mainly is used for pressing precision standard parts of external thread and high strength, including regular thread, trapezoid thread and modulax thread. the objective material to be processed inchcde carbon steel, alloy steel and nonferrous metl with elongation over 10% and tensile strength less than 100kgf/mm2.

Specification:

Pressure of roller max:	200KN	Rotary speed of main shaft:	20,25,41,51,64(r/min)
Max. working dia:	64mm	Dip angle of min shaft:	+ 10^o
Max. roller outside diameter:	220mm	Cooling power:	90w
Roller inside diameter:	75mm	Main power:	11kw
Roller width max:	150mm	Hydraulic power:	5.5kw
Max.thread pitch:	8mm	Weight:	3000kg
Center distance of main shaft( stroke):	150-300mm	Size:	179017301430mm
