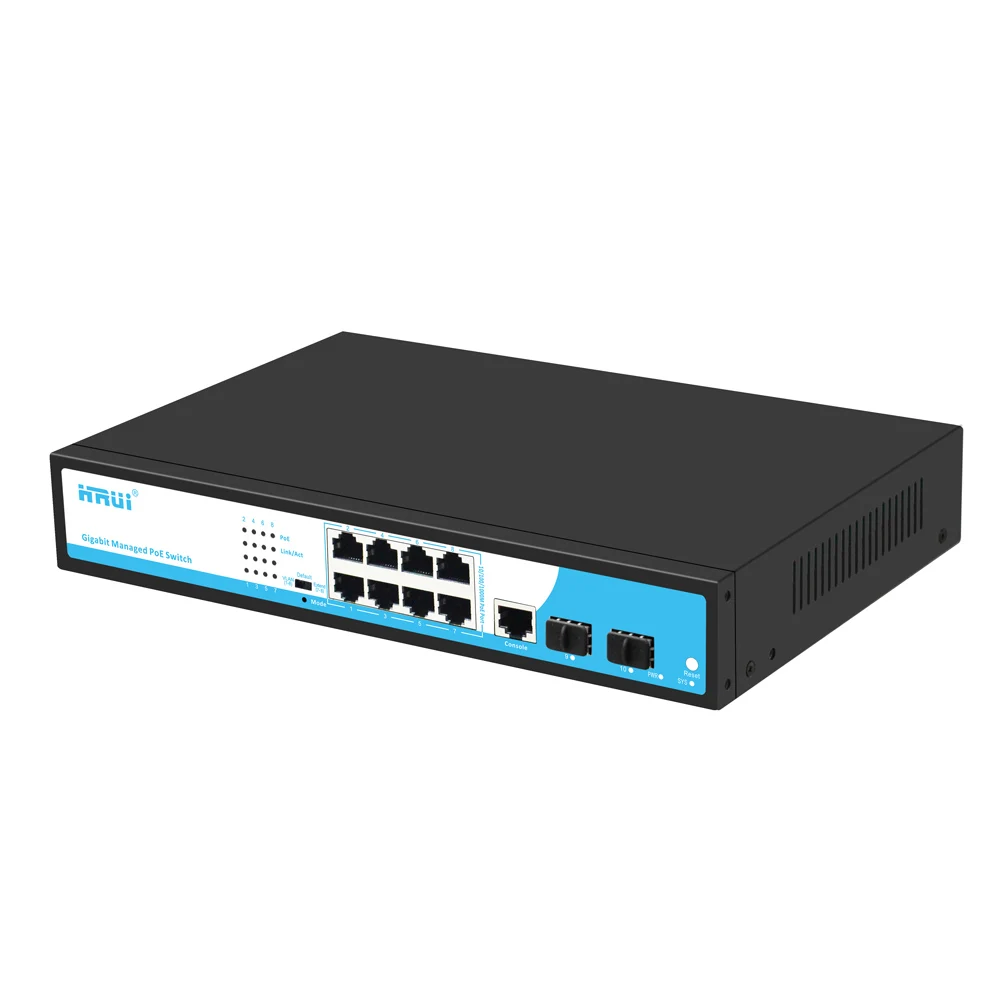

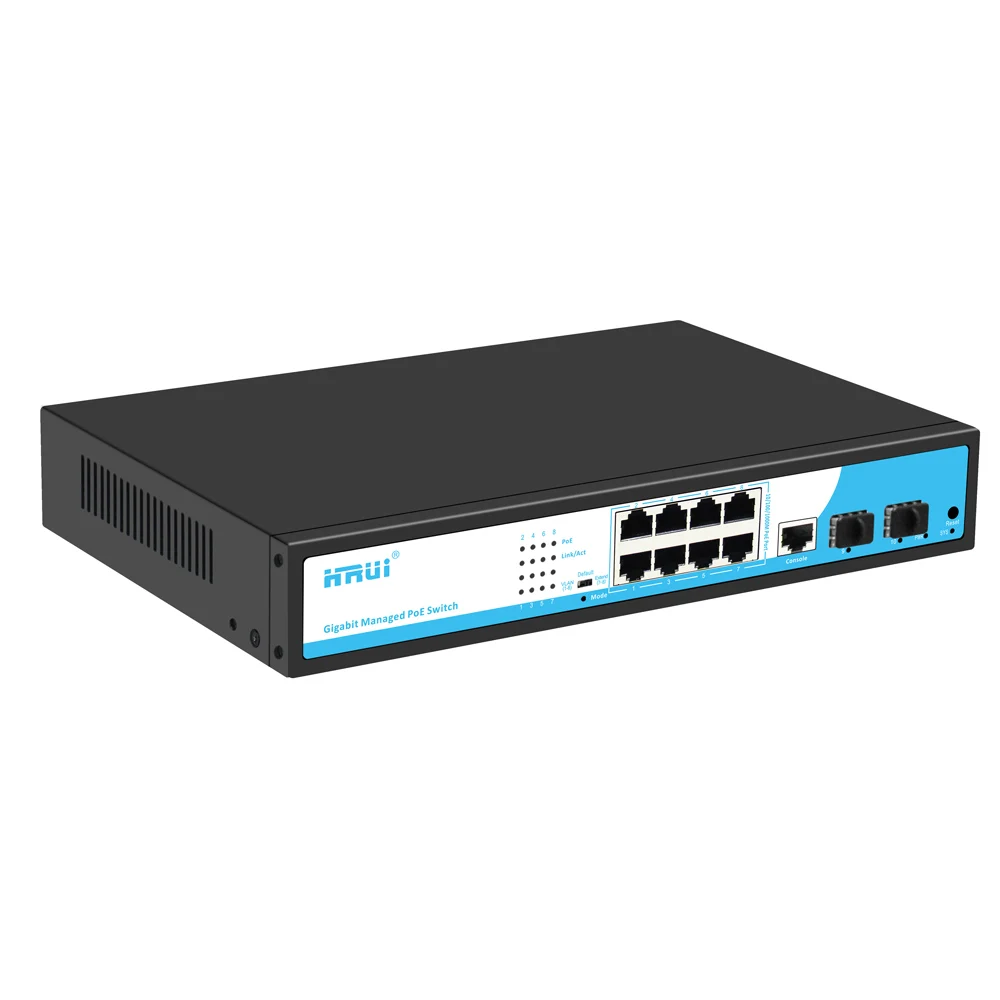

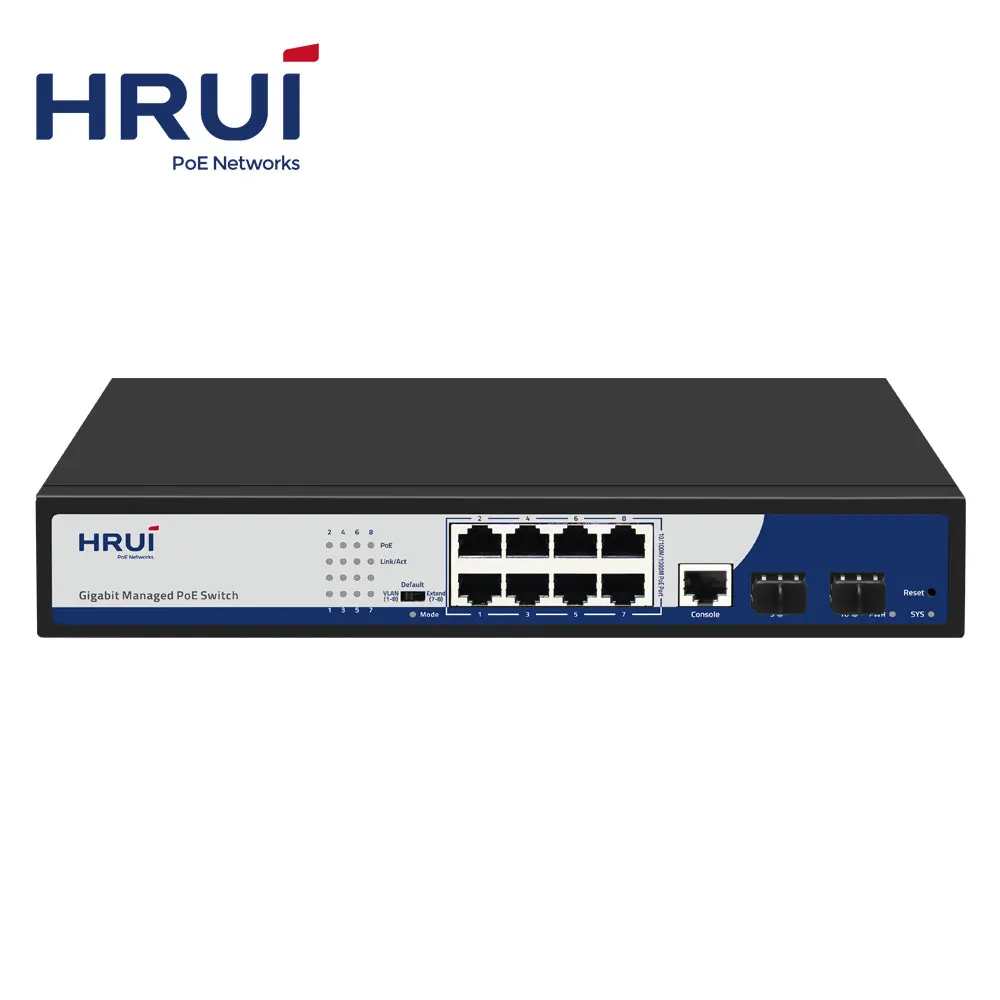

10-портовый гигабитный коммутатор HongRui 10 / 100 1000M Layer 2 управляемый

General Performance Indicator

Product Name

10 Port Gigabit Managed POE Switch

Product Model

HR-AFGM-82NS

Interface

8*10/100/1000M POE Ports + 2*Gigabit SFP Ports + 1*Console Port

Network Protocols

IEEE802.3

IEEE802.3u

IEEE802.3ab

IEEE802.3x

IEEE802.3z

PoE Parameters

PoE Standard: IEEE802.3at (30W) and IEEE802.3af (15.4w)

PoE compatibility: IEEE 802.3af/at adaptive

POE port output: DC48-55V

Power Pin Assignment: Power over spare pairs 1/2(+) and 3/6 (-)

Port Lightning Protection

General Mode 6KV,

Differential Mode 4KV,

ESD 15KV.

Network Transmission Medium

10BASE-T: Cat3, 4, 5 UTP (≤ 100 m)

100BASE-TX: UTP (≤100 m) above Cat5

1000BASE-TX: UTP (≤100 m) above Cat5

Optical

MultiMode Fiber: 850nm, 1310nm,  Transmission Distance: 550m/2Km

Single-Mode Fiber: 1310nm, 1550nm,  Transmission Distance: 20/40/60/80/100/120km

DIP Definition

VLAN: 1-8 ports are isolated from each other, and only connect Uplink with 9,10 Port;

Default: 1-10 port is standard, all ports can communication;

Extend: 7-8 port supports 250m link extension at a rate of 10M.

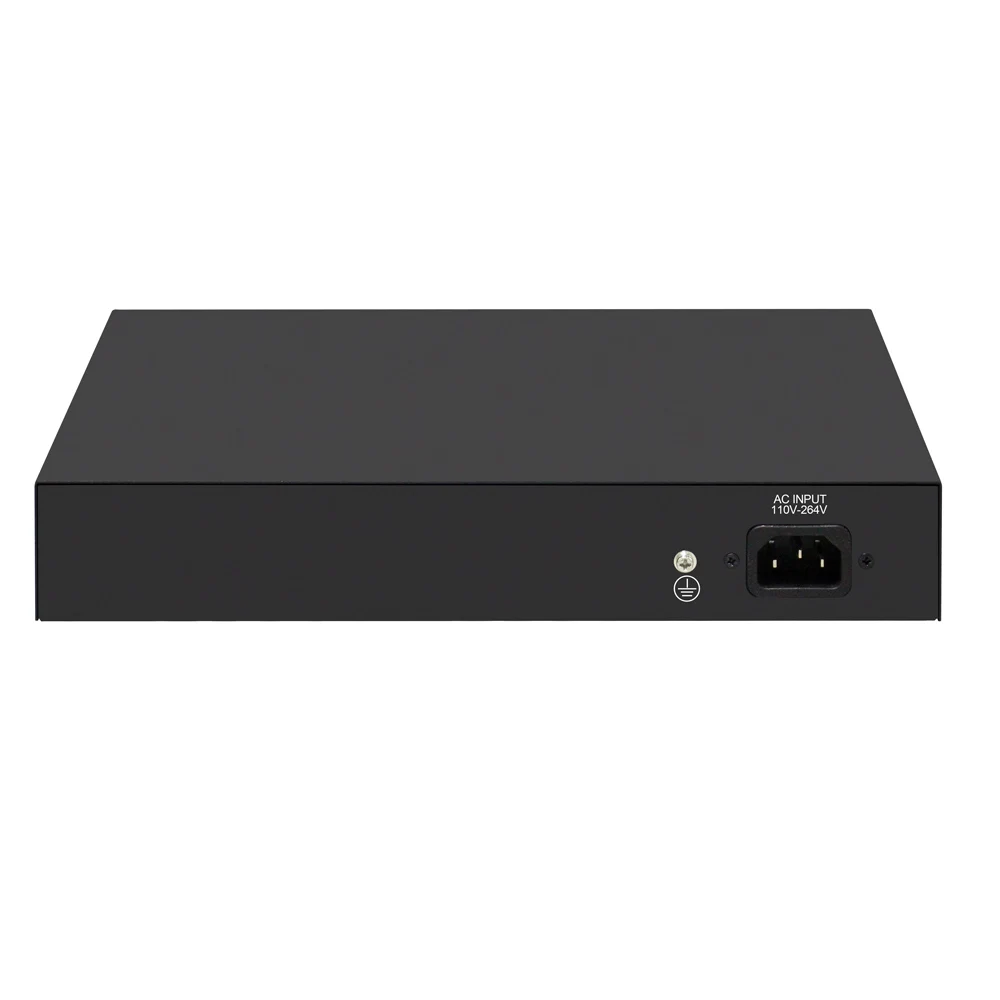

Power Supply

Input Voltage: AC100~-240V;

Output: DC 52V2.3A

Total power: 120W

LED indicator

Physical Dimension

Product size (L×W×H): 270mm× 180mm× 45mm

Package size (L × W × H): 312mm × 260mm × 84mm

Working Environment

Operating Temperature: -20℃ ~ 50℃;

Storage Temperature: -40℃ ~ 85℃;

Operating Humidity: Max 90%, non-condensing

Storage Humidity: Max 95%, non-condensing

Working Height: Max to 10,000 feet (3,000 meters)

Storage Height: Max to 10,000 feet (3,000 meters)

Package Contents

1. Switch: 1 set

2. Instruction manual: 1

3. Certificate of conformity: 1

4. Warranty card: 1

5. Power Supply 1

6. A pair of hanging ears

Certification

CE, FCC, RoHs, 3C

MTBF:

100,000 hours

Warranty

2 years warranty

Technical Indicators

Bandwidth

20Gbps

Packet Forwarding rate

14.88Mpps

Packet Buffer Memory

4M

Memory Capacity

128MB

Flash Capacity

16MB

Jumbo frame

9.6Kbytes

VLANs

4096

MAC

8K

Forwarding Mode

Store-And-Forward

Layer 2 Software Function

Port Management

Enable/Disable Port

Speed,Duplex,MTU Setting

Flow-control

Port Information Check

Port Mirroring

Supports both side-way port mirroring

Port Speed Limit

Supports port speed limit, speed limit granularity 32Kbps

Port Isolation

Support the downlink port isolation, and can communicate with the uplink port

Storm Suppression

Supports unknown unicast, multicast, unknown multicast,

broadcast type storm suppression

Storm suppression based on bandwidth regulation and storm filtering

Link Aggregation

Support static manual aggregation

Support LACP dynamic aggregation

VLAN

Access

Trunk

Hybrid

Support port, protocol, MAC-based VLAN partitioning

Support GVRP dynamic VLAN registration

Voice  VLAN

MAC

Support static addition, deletion

MAC address learning limit

Support dynamic aging time setting

Spanning tree

Support STP spanning tree protocol

Supports RSTP Rapid Spanning Tree Protocol

Supports MSTP Rapid Spanning Tree Protocol

Multicast

Support static addition, deletion

IGMP-snooping

Support MLD-Snooping

Support v1/2/3 dynamic multicast monitor

DDM

Support SFP/SFP+DDM

Extended Function

ACL

Based on source MAC, destination MAC, protocol type, source IP, destination IP, L4 port

Qos

Based on 802.1p (COS) classification

Based on DSCP classification

Classification based on source IP, destination IP, and port number

Support SP, WRR scheduling strategy

Support flow rate limit CAR

LLDP

Support LLDP link discovery protocol

User settings

Add / delete users

Log

User login, operation, status, events

Anti-attack

DOS defense

Support CPU protection and limits the rate of sending cpu packets

ARP binding (IP, MAC, PORT binding)

Certification

Support 802.1x port authentication

Support AAA certification

Network diagnosis

Support ping,telnet,trace

System Management

Device reset, configuration save/restore, upgrade management, time setting, etc.

Management function

CLI

Support serial port command line management

SSH

Support SSHv1/2 remote management

TELNET

Support telnet remote management

WEB

Support Layer 2 settings, Layer 2 and Layer 3 monitor

SNMP

SNMP V1/V2/V3

Support trap:ColdStart,WarmStart,LinkDown,LinkUp

RMON

Support RMON v1

Other functions

Support POE configuration, POE scheduling management, etc

Support DHCP  Snooping,Option82

Support Ring-Network Protection

Support dynamic ARP detection

Support TACACS+ certification

Support DNS certification

Support port security settings

Support MVR protocol

Support cable detection VCT function

Support UDLD protocol
