Машина для выдувания пластиковых бутылок
Высокоскоростная полуавтоматическая выдувная формовочная машина для пэт бутылок/Выдувная

Высокоскоростная полуавтоматическая выдувная формовочная машина для пэт бутылок/Выдувная

Категория: Машина для выдувания пластиковых бутылок >>>
Поставщик: Zhengzhou Glory Enterprise Development Corporation

Цена:339 020,55 ₽*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-15-2025	403434.68 $*	423606.25 $*
Aug-15-2025	400044.18 $*	420046.9 $*
Jul-15-2025	335630.21 $*	352412.22 $*
Jun-15-2025	393263.30 $*	412926.30 $*
May-15-2025	342410.20 $*	359531.51 $*
Apr-15-2025	386483.92 $*	405807.52 $*
Mar-15-2025	383093.78 $*	402248.78 $*
Feb-15-2025	379702.30 $*	398687.35 $*
Jan-15-2025	376312.29 $*	395128.5 $*

Характеристики

Product Description

The instroduction of GL-S2 bottle molding machine

1,Infrared lamps adoped in the pre-heater ensures PET preforms being heated evenly.

2,Mechanical-double-arm calmping ensures mould being tightly closed under hight pressure and high temperature.

3,Pneumatic system consists of two parts. pneumatic acting part and bottle blowing part in order to meet different requirements for both acting and blowing. It provides sufficient steady high pressure to blowing. It provides sufficient steady high pressure to bloww large irregular shape bottles.

4,Equipped with silencer and oiling system to lubricate the mechanical pars of the machine.

5,Operated step-by-step and in semi-auto maode.

6,Wide-mouth jar and hot-fill bottles can also be made.

Pet Bottle Blowing Machine

The specification of GL-S2 bottle molding machine

Theoretical output: 1800~ 2000pcs
Container volume:1L
Perform inner diameter: 70mm
Max bottle height:280mm
Cavity:2pcs
Main machine size:2.4X1.75X1.9M
Machine weight:1800kg

Feeding machine dimension	2.1X1.0X2.5m
Feeding machine height	250kg
MAx heating power	21KW
Installation power	22KW

The advantage of our bottle molding machine

1. Stable and fine performance .

2. Conveying perform automatically with conveyor.

3. Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the rails simultaneously in the infrared preheater.

4. Well adjustability to enable the preheater to preheat preform in shapes by adjusting the light tube and the length of the reflecting board in the preheating area, and eternal temperature in the preheater with an automatic thermostatic apparatus.

5.High safeties with security automatic-locking apparatus in each mechanical action, which will make the procedures turn into a state of safety in case of a breakdown in certain procedure.

6.No contamination and low noise with the air cylinder to drive the action instead of the oil pump.

7. Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.

8. Strong clamping force with high pressure and double crank links to lock the mold.

9. Low cost, high efficiency, easy operation, good interchangeability, easy maintenance, etc, with automatic technological process.

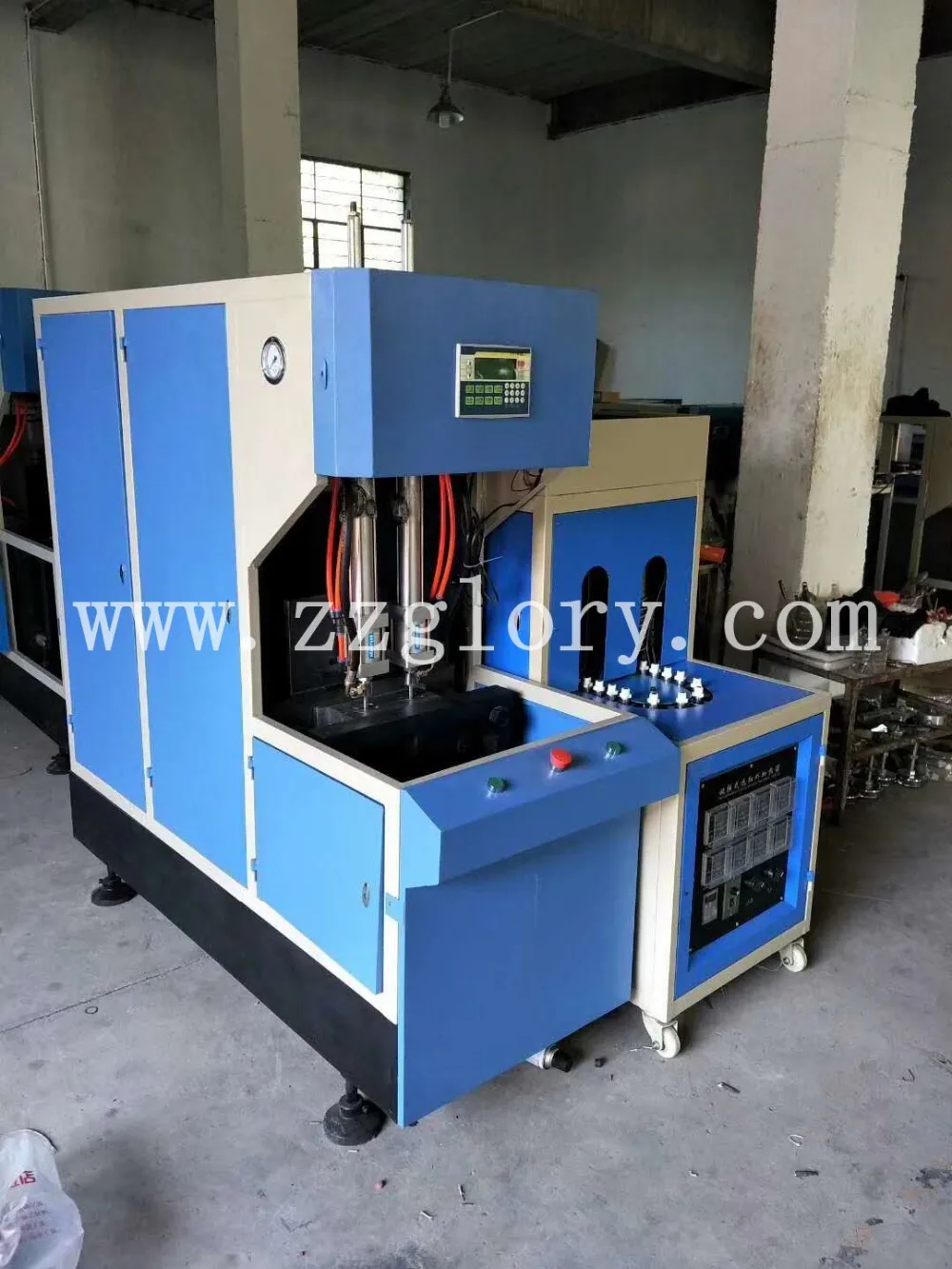

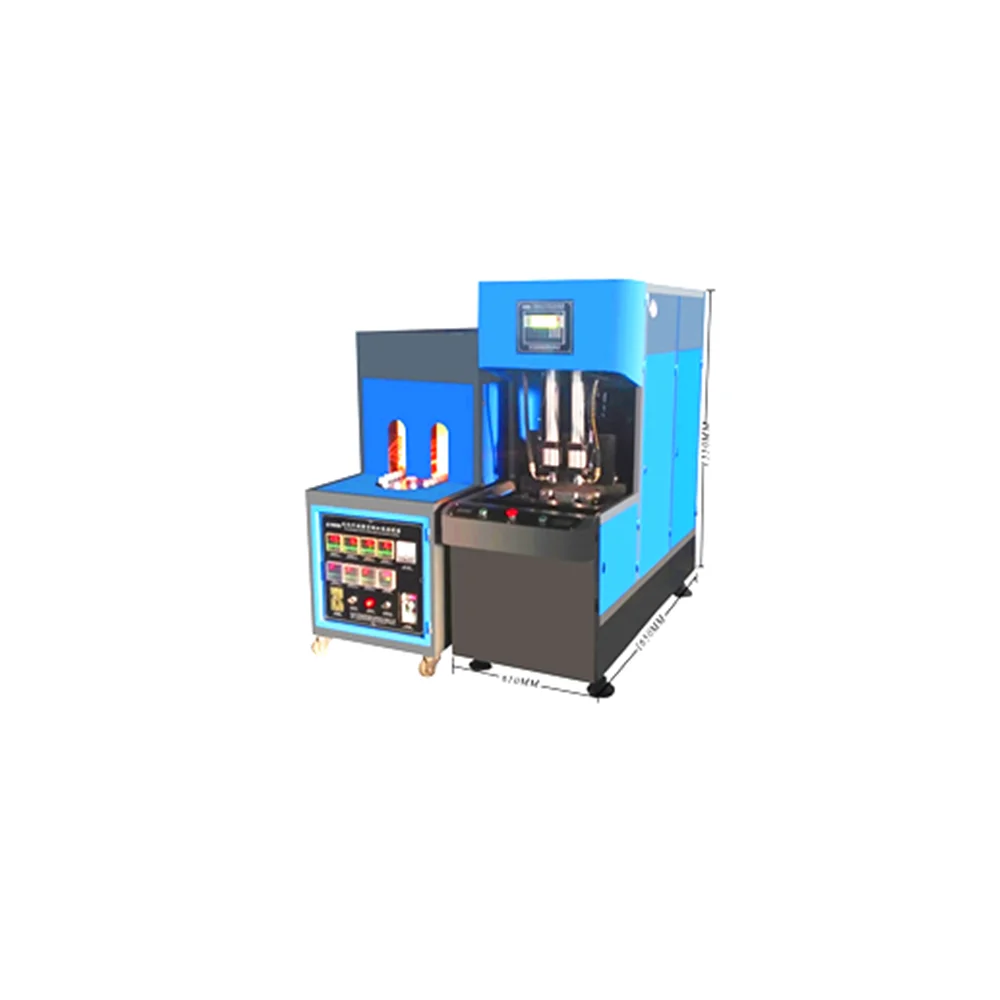

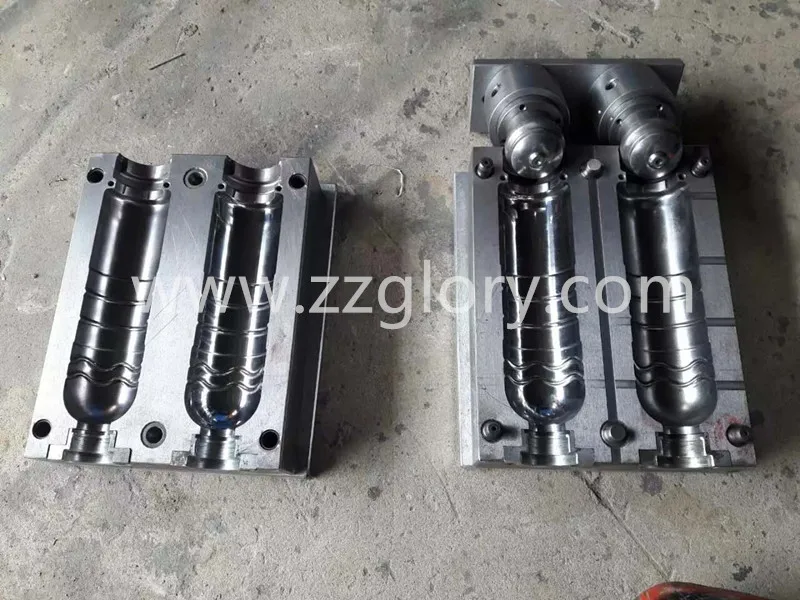

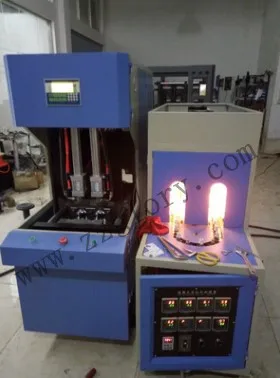

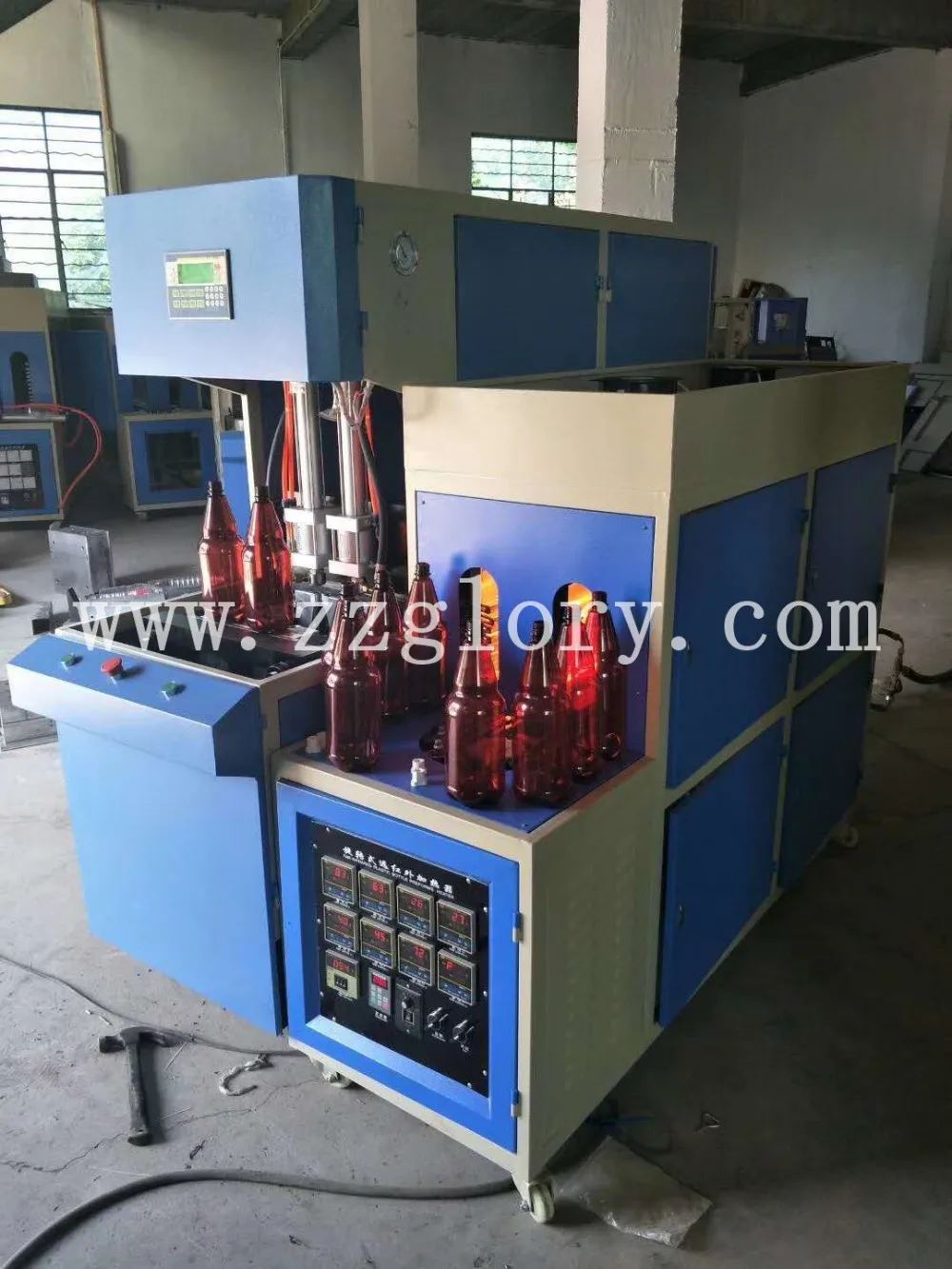

Detailed Images

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc. Beverage bottle, cosmetic bottle, medicine bottle, jar etc.
