Product Description

conveyor rollers introduction

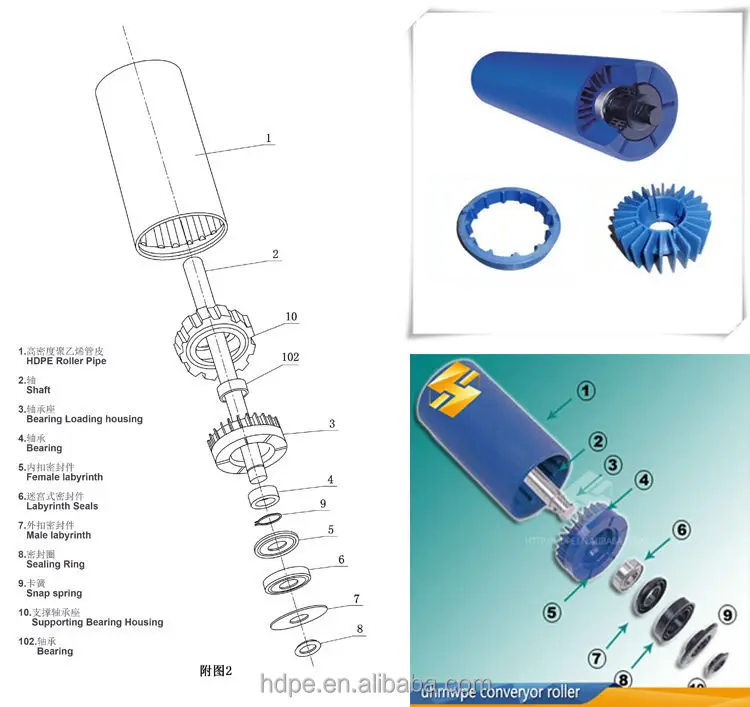

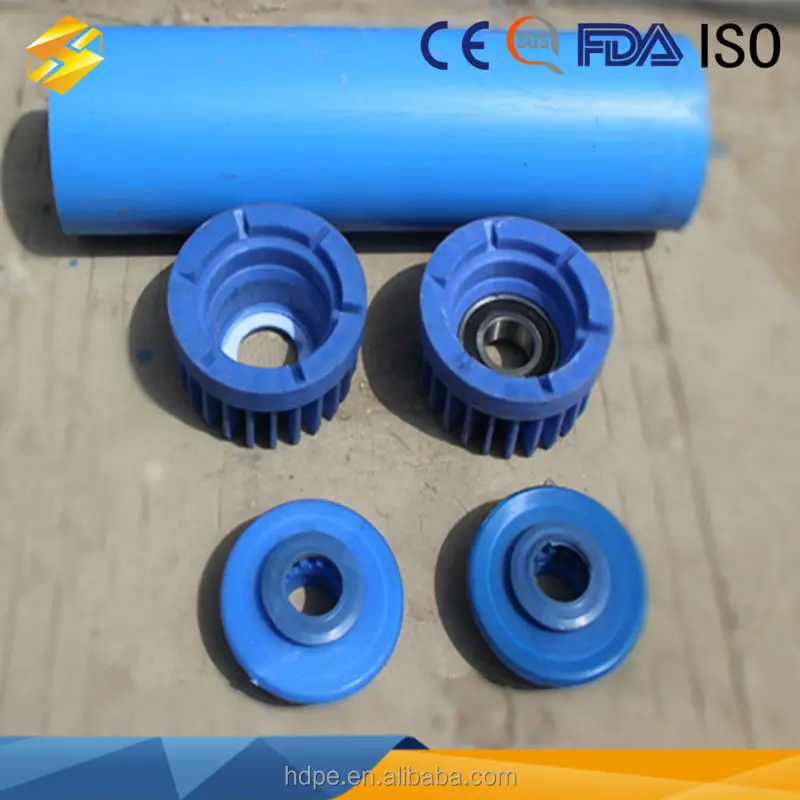

Ultra-high molecular weight polyethylene (UHMWPE) belt conveyor roller is a high-tech product, which consists of uhmwpe pipe,metal bearing, metal shaft , plastic bearing housing , sealing ring and so on . Compared with metal roller , uhmwpe plastic roller has many obvious advantages in performance.

Performance of belt conveyor rollers

1.Good performance of self-lubrication , wear resistance and no caking. The surface of roller is not easy to scale .
2.Low friction coefficient and it is good for belt.
3.Flexible and smooth movement , and low driving power consumption .
4.Light weight , easy installation and replacement . Reduce the labor intensity and maintenance.
5.The labyrinth seals makes waterproof and dustproof effect more significant.

Application of belt conveyor rollers

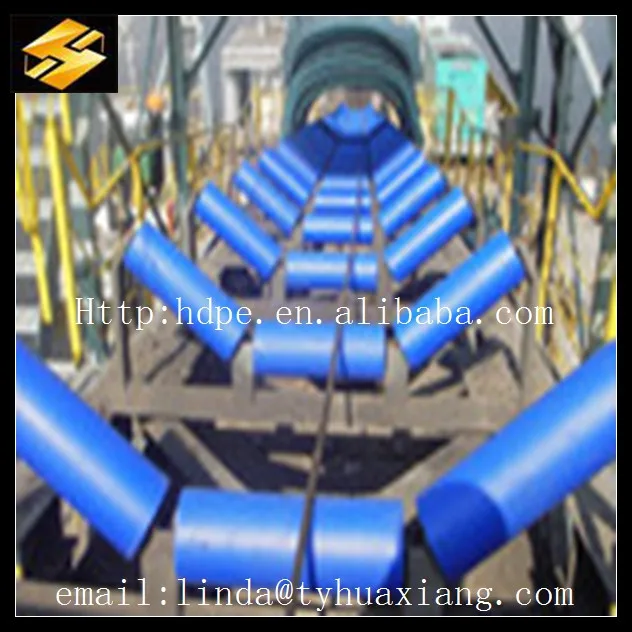

This product is widely used in the original dock transporting places where dust is bigger and the environment has high corrosive , such as mining , power , steel , stone materials factory , cement and coking plant , coal washing factory , salt plant , alkali plant , fertilizer factory , dock and so on .

Product Parameters
\t
SN
\t
ITEM
\t
UNIT
\t
INDEX
\t
1
\t
Radial circular run-out
\t
MM
\t
≤0.50
\t
2
\t
Axial drifting
\t
MM
\t
≤0.70
\t
3
\t
Rotation resistance
\t
N
\t
≤2.50
\t
4
\t
 After-falling off axial displacement
\t
MM
\t
≤1.50
\t
5
\t
After-falling off rotation resistance
\t
N
\t
≤3.75
\t
Shell Diameter
\t
Shaft Diameter at the
\t
Bearing Series
\t
Material
\t
89(3.5'')
\t
17mm/20mm
\t
6204
\t
HDPE/UHMWPE
\t
102(4'')
\t
20mm/25mm
\t
6204/6205
\t
HDPE/UHMWPE
\t
108(4.25'')
\t
20mm/25mm
\t
6204/6205
\t
HDPE/UHMWPE
\t
114(4.5'')
\t
20mm/25mm
\t
6204/6205
\t
HDPE/UHMWPE
\t
127(5'')
\t
20mm/25mm/30mm
\t
6204/6205/6305/6206
\t
HDPE/UHMWPE
\t
133(5.2'')
\t
20mm/25mm/30mm
\t
6204/6205/6305/6206
\t
HDPE/UHMWPE
\t
140(5.5'')
\t
20mm/25mm/30mm
\t
6205/6305/6206
\t
HDPE/UHMWPE
\t
152(6'')
\t
25mm/30mm/35mm
\t
6305/6206/6306/6207
\t
HDPE/UHMWPE
\t
159(6.25'')
\t
30mm/35mm/40mm
\t
6306/6207/6308
\t
HDPE/UHMWPE
\t
165(6.5'')
\t
35mm/40mm/45mm
\t
6206or6306/6207/630
\t
HDPE/UHMWPE
\t
Applications:Suitable for use in a wide variety of applications and products such as cement, coal, gravel,
fertilisers, ports, chemicals, quarrying, zinc mining and grain.
\t
Shaft:(mild steel/stainless steel)
Seal:Triple Labyrinth Seal
Bearing Type: SKF,FAG,NTN.(other brands available on request.)
