KAYAL 7 кВт колонка типа EV Солнечная зарядная станция для электромобилей
US $315.00-$330.00
Номинальная 750V постоянного тока для зарядки электромобиля разъемы/Dostar 125A 9 штырей разъем электрический
- Категория: Напольные зарядные станции >>>
- Поставщик: Changsha,Deligreen,Power,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 79.32 $* | 83.1 $* |
| Aug-16-2025 | 78.61 $* | 82.33 $* |
| Jul-16-2025 | 65.31 $* | 68.58 $* |
| Jun-16-2025 | 77.3 $* | 81.80 $* |
| May-16-2025 | 67.92 $* | 70.41 $* |
| Apr-16-2025 | 75.81 $* | 79.27 $* |
| Mar-16-2025 | 75.54 $* | 79.11 $* |
| Feb-16-2025 | 74.12 $* | 78.29 $* |
| Jan-16-2025 | 73.33 $* | 77.72 $* |
Характеристики
Rated 750V DC EV Charging Connectors/Dostar 125A 9 Pins Charging Socket for Electric Bus :
Related Products:
Features of DC Inlet socket:
Meet GB/T 20234.3-2015 regulations and requirements
Rated current: 80A or 125A or 200A or 250A
Nice appearance, hand-held ergonomic design, easy plug
>2000MQ(DC1000V
Insulation resistance: 2000MQ2(DC1000V)Safety pins insulated head design to prevent accidental direct·
Rated current: 80A or 125A or 200A or 250A
Nice appearance, hand-held ergonomic design, easy plug
>2000MQ(DC1000V
Insulation resistance: 2000MQ2(DC1000V)Safety pins insulated head design to prevent accidental direct·
<50K
contact with staff
Terminal temperature rise: <50K
Excellent protection performance, protection grade IP55
Withstand voltage: 5000V
(working condition)
contact with staff
Terminal temperature rise: <50K
Excellent protection performance, protection grade IP55
Withstand voltage: 5000V
(working condition)
U94V-0Mechanical life: no-load plugin/pull out> 5000 times
Case Material: Thermoplastic, flame retardant grade UL94-0
Impat of external force: can afford 1m drop and 2t vehicle run
Iver thermoplastic on the topover pressure
Environmental performance-30℃~+50°℃C
Operating temperature:-30℃~+50℃
Model Selection and the standard wiring :
Model | Number of inserts | Cable Spec. |
NV3-DSD-EV80P | 80A | 2P(2*0.75mm)2+2P(2*0.75mm)2+3*16mm2+2*4mm2 |
NV3-DSD-EV125P | 125A | 2*35mm2+2P(4*0.75mm)2+2P(2*0.75mm)2+1*16mm2+2*4mm2 |
| NV3-DSD-EV250P | 250A | 2*80mm2+2P(4*0.75mm)2+2P(2*0.75mm)2+1*16mm2+2*4mm2 |

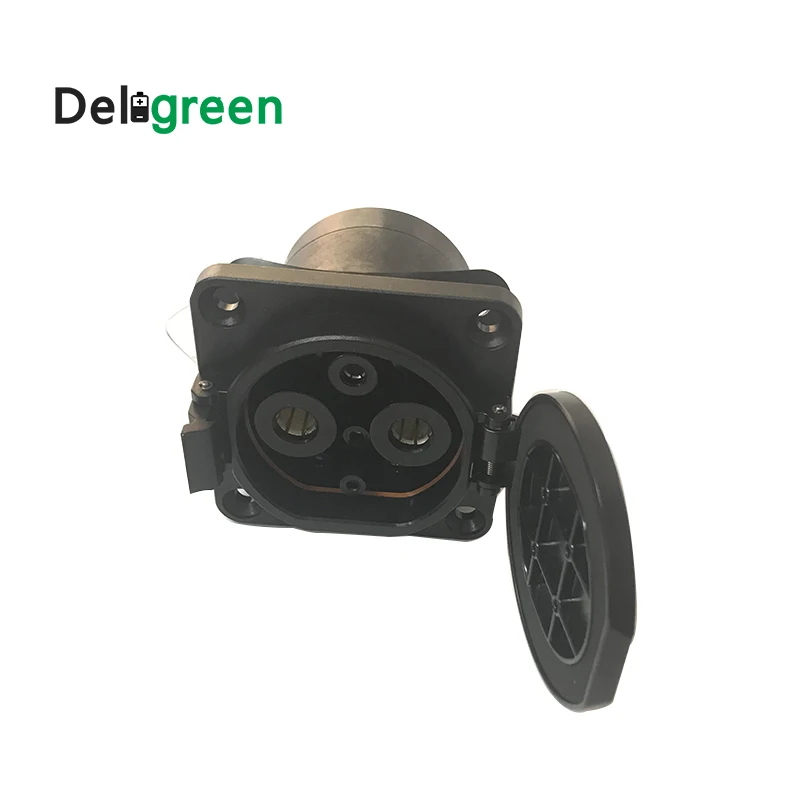

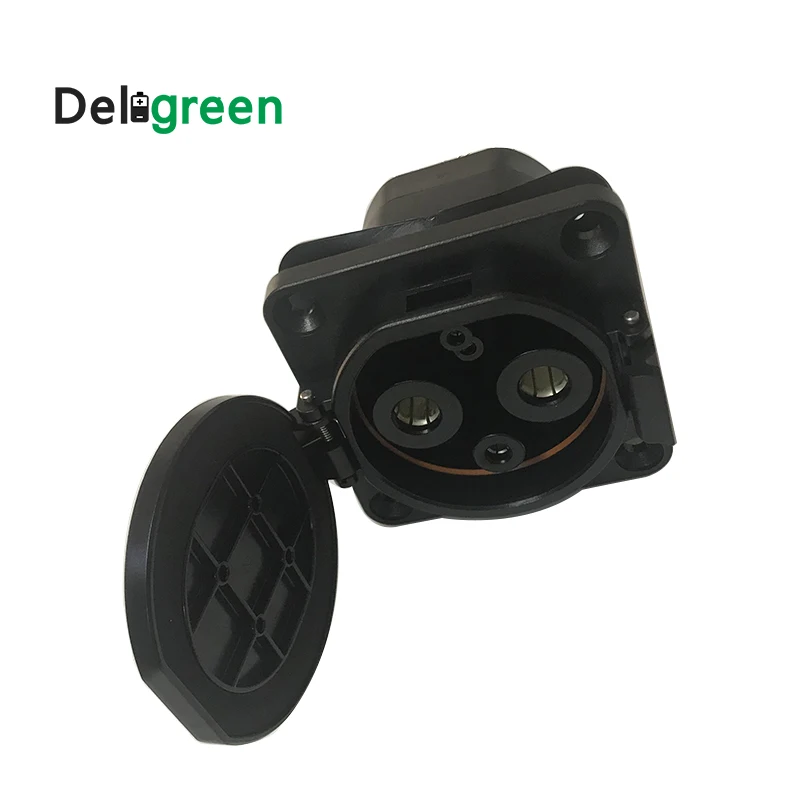

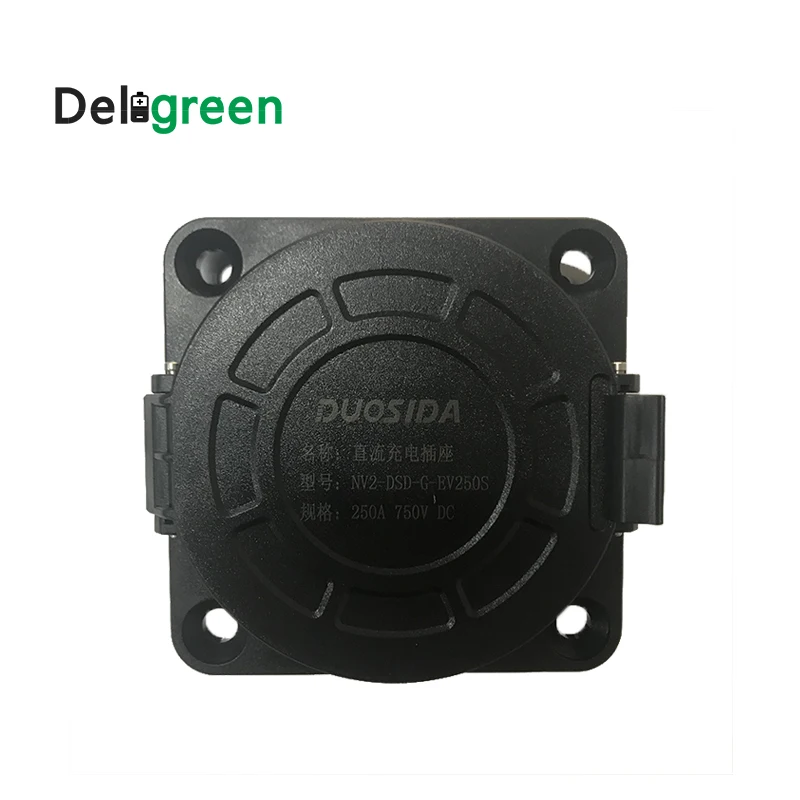

Products Image of DC Socket:
Products Certification & Application:
