Коммутатор HRUI 16 POE Port 100M 48V VLAN 250 м с портом Gigabit
- Категория: Сетевые коммутаторы >>>
- Поставщик: Shenzhen,Hongrui,Optical,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.91 $* | 0.23 $* |
| Aug-16-2025 | 0.1 $* | 0.63 $* |
| Jul-16-2025 | 0.71 $* | 0.51 $* |
| Jun-16-2025 | 0.74 $* | 0.60 $* |
| May-16-2025 | 0.7 $* | 0.21 $* |
| Apr-16-2025 | 0.4 $* | 0.6 $* |
| Mar-16-2025 | 0.43 $* | 0.43 $* |
| Feb-16-2025 | 0.28 $* | 0.19 $* |
| Jan-16-2025 | 0.31 $* | 0.71 $* |
Характеристики

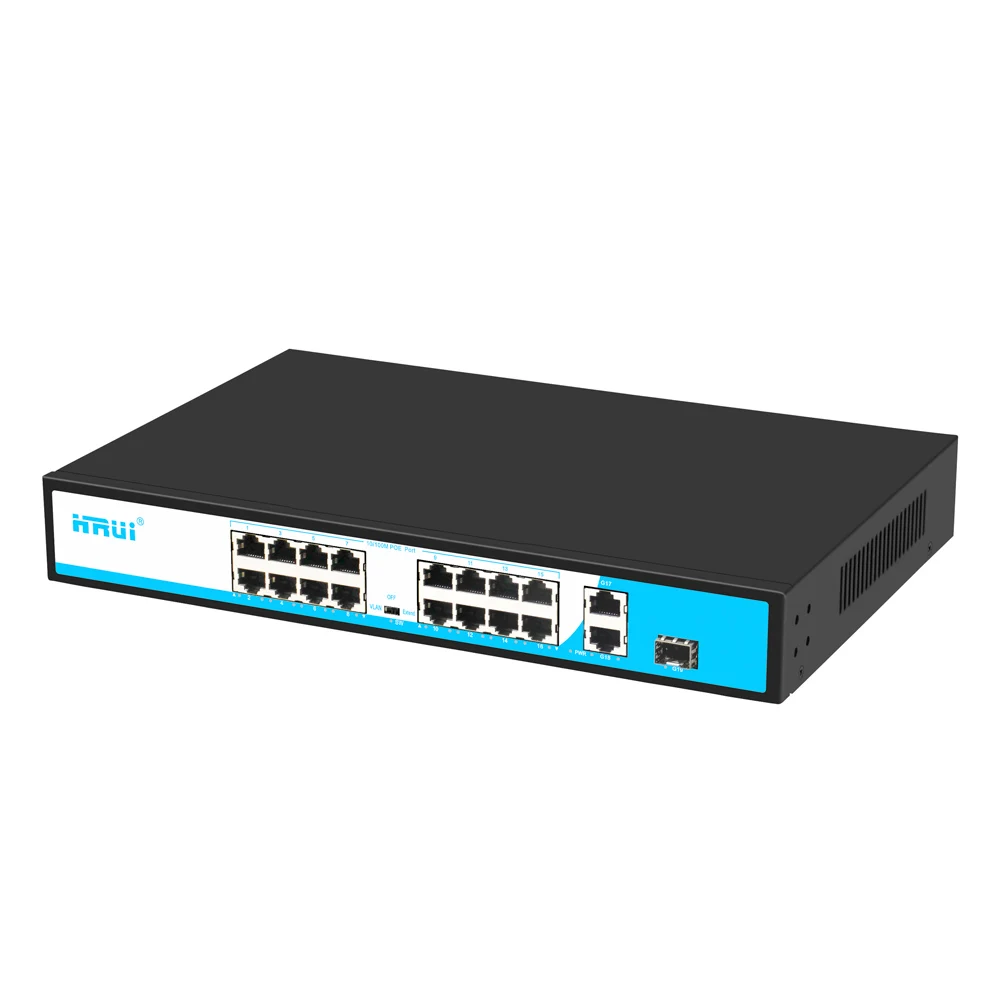

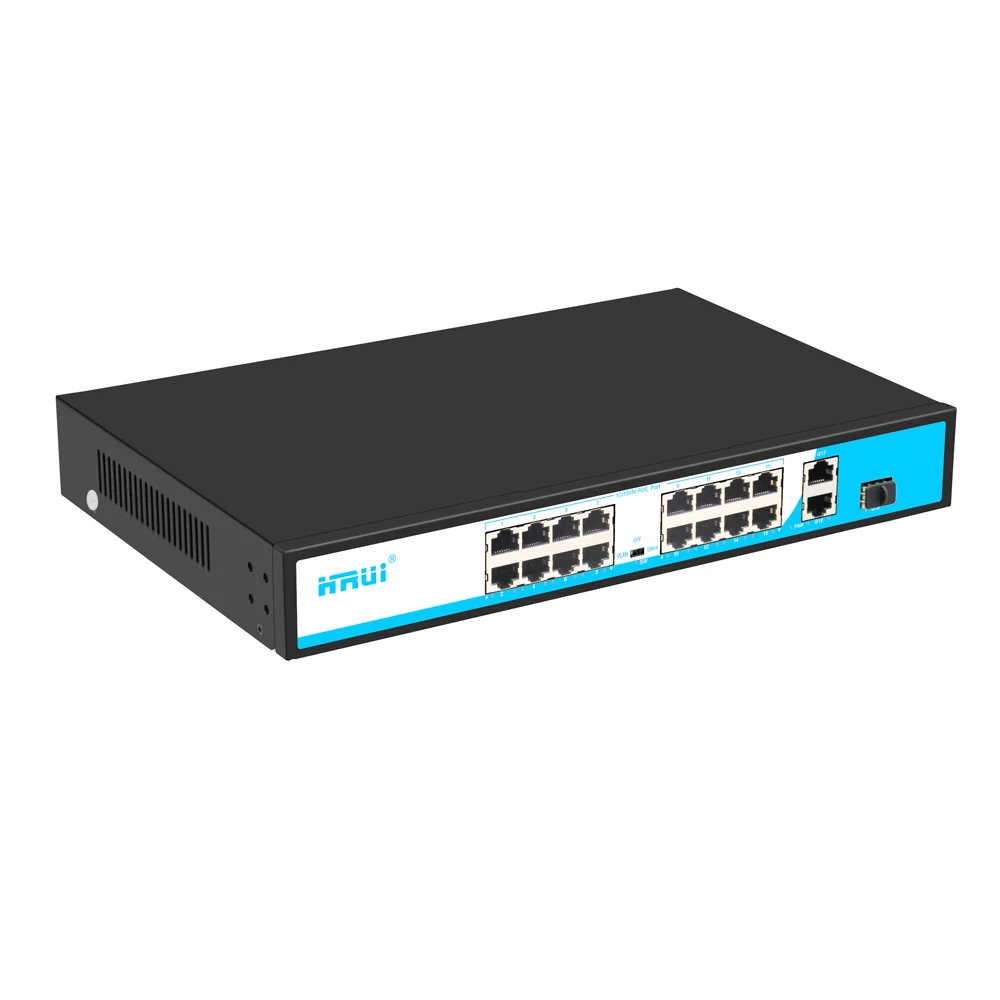

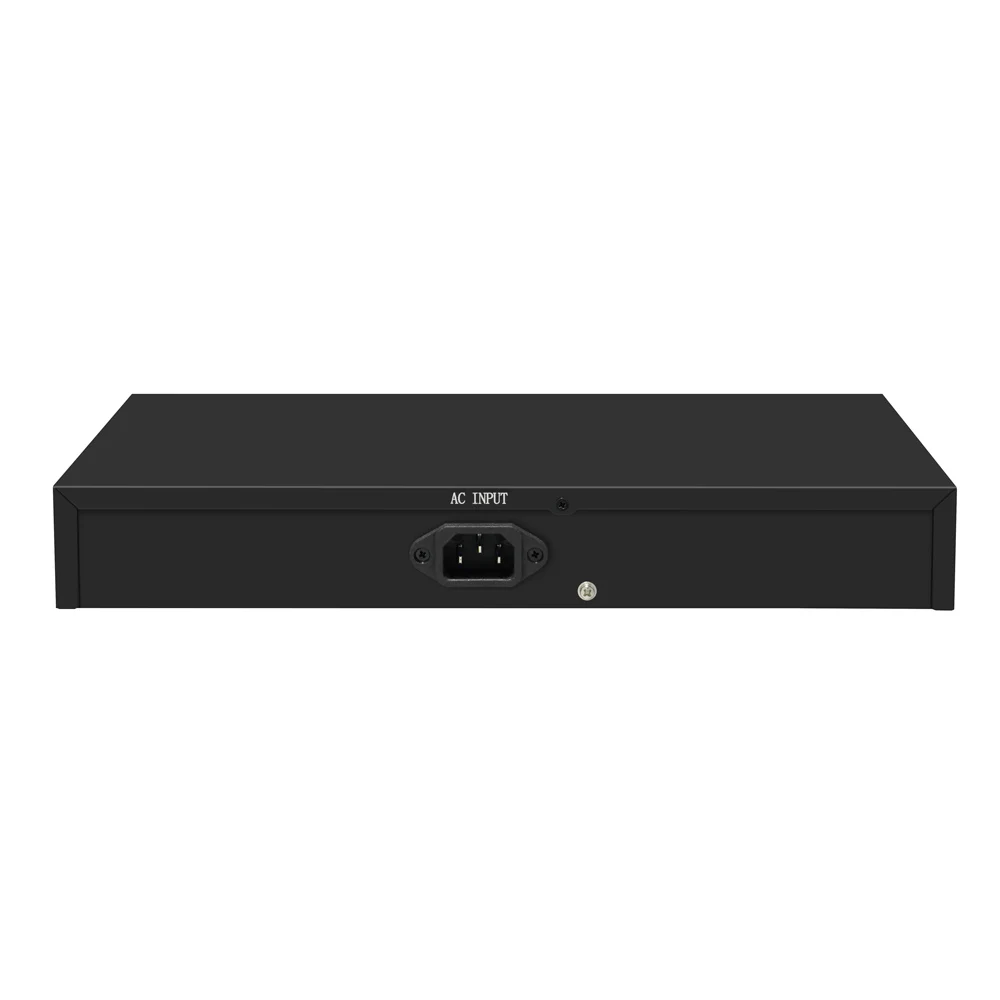

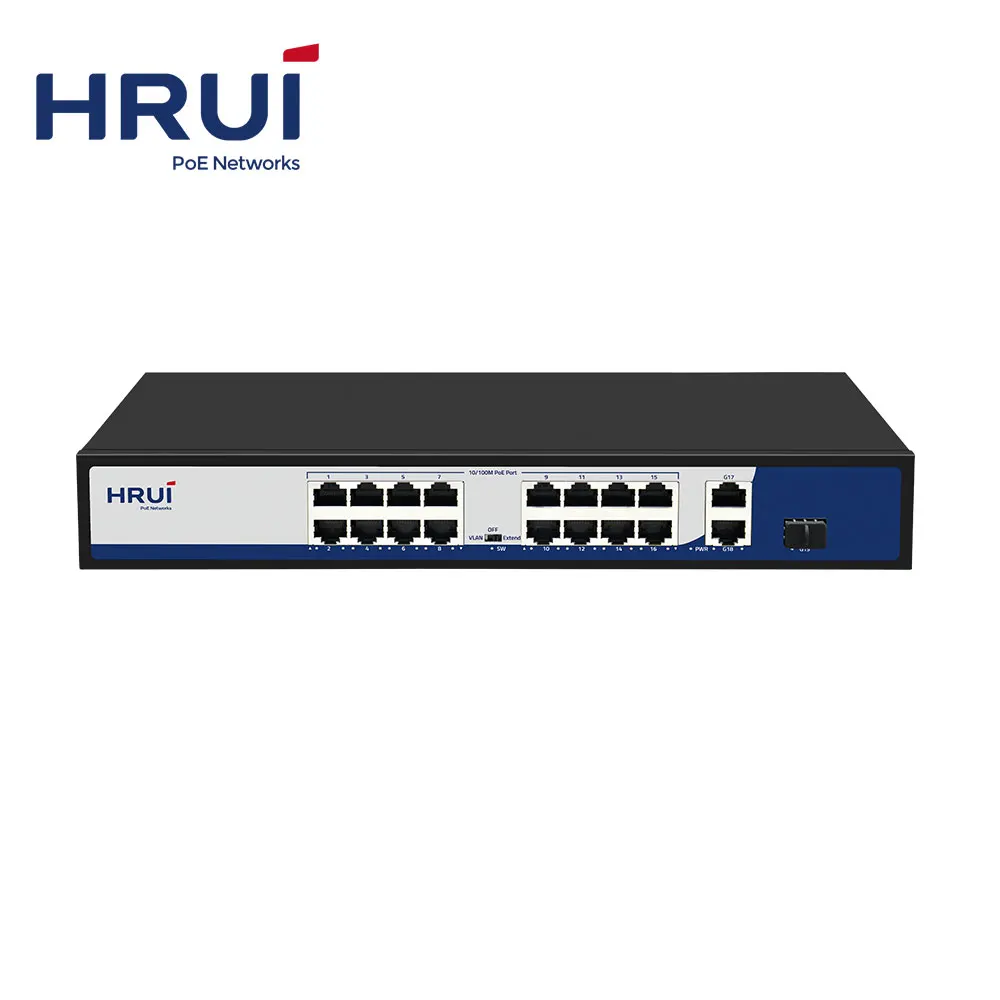

HongRui 16 POE Port 100M 48V VLAN 250 Meters POE Switch with Gigabit Ethernet Port
poe switch poe switch 16 port SWITCH NETWORK
Technical parameter list | ||||||||||
Product Name | 19-Ports10/100M PoE Switch | |||||||||
Model | HR901-AF-1621GS | |||||||||
Connector Type | 16*10/100M PoE Ports + 2*Gigabit EthernetUplink Ports +1*Gigabit SFP Uplink Port | |||||||||
Network Protocols | IEEE802.3 IEEE802.3u IEEE802.3x IEEE802.3ab IEEE802.3z | |||||||||
PoE Parameters
| PoE Standard: IEEE802.3af /IEEE802.3at | |||||||||
Max each port: 15.4W (IEEE 802.3af) Max each port:30W (IEEE 802.3at) | ||||||||||
PoE compatibility: IEEE 802.3af/at adaptive | ||||||||||
PoE port output: DC48-55V | ||||||||||
Power Pin : Power over spare pairs 1/2(+) , 3/6 (-) | ||||||||||
Network Media | 10BASE-T: Cat 6 UTP(≤250 meter) 100BASE-TX: Cat5 or more UTP (≤100 meter) 1000BASE-TX: Cat5 or more UTP (≤100 meter) | |||||||||
Optical | MultiMode Fiber: 850nm, 1310nm, Transmission Distance: 550m/2Km Single-Mode Fiber: 1310nm, 1550nm, Transmission Distance: 20/40/60/80/100/120km | |||||||||
PerformanceSpecification | Bandwidth: 9.2Gbps | |||||||||
MAC: 2K | ||||||||||
Packet Buffer Memory: 1M | ||||||||||
Packet Forwarding Rate: 6.8Mpps | ||||||||||
Power Supply | Power input: AC100-240V 50/60Hz, Output: 52V5.76A, Power Budget: 300W,200W | |||||||||
|
| |||||||||
Working Environment | Operating Temperature: -20℃ ~ 50℃; Storage Temperature: -40℃ ~ 85℃; Operating Humidity: Max 90%, non-condensing Storage Humidity: Max 95%, non-condensing Working Height: Max to 10,000 feet (3,000 meters) Storage Height: Max to 10,000 feet (3,000 meters) | |||||||||
Physical Parameter | Product Dimension (L*W*H): 320mm*210mm*46mm Package Dimension (L*W*H): 370mm*275mm*85mm N.W: 1.8KG G.W: 2.3KG | |||||||||
Package Contents | 1.Ethernet Switch:1 unit 2.User Guide:1 unit 3.Warranty Card:1 unit 4.Power Cord:1unit 5.1U Rack Mount: 1 pair | |||||||||
MTBF | 100,000 hours | |||||||||
Certification | CE ,RoHS, FCC, CCC | |||||||||
Warranty | 2 years | |||||||||
HongRui 16 POE Port 100M 48V VLAN 250 Meters POE Switch with Gigabit Ethernet Port
poe switch poe switch 16 port SWITCH NETWORK
