PRODUCT DESCRIPTION

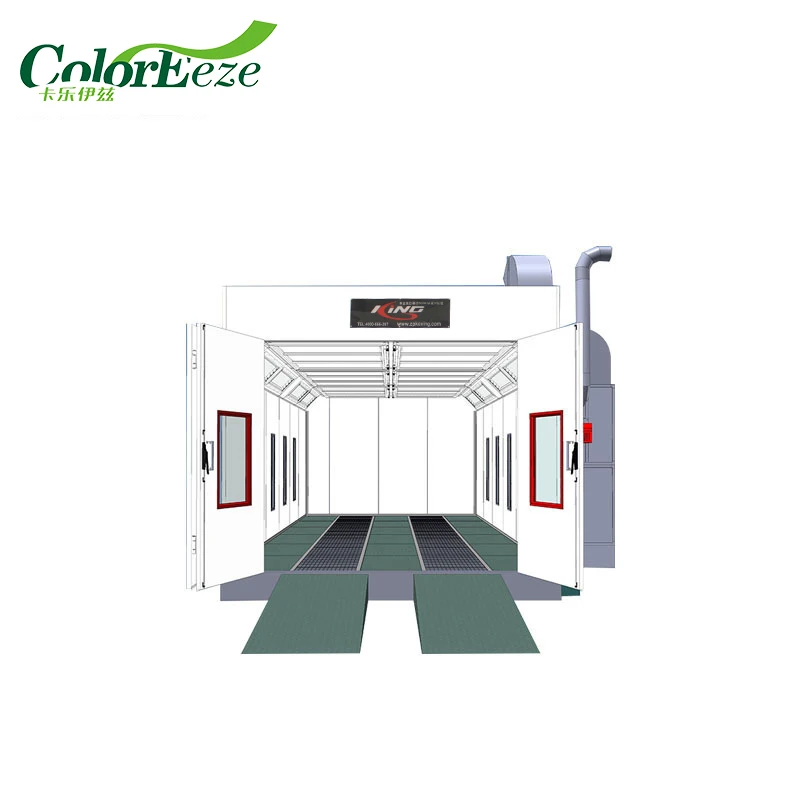

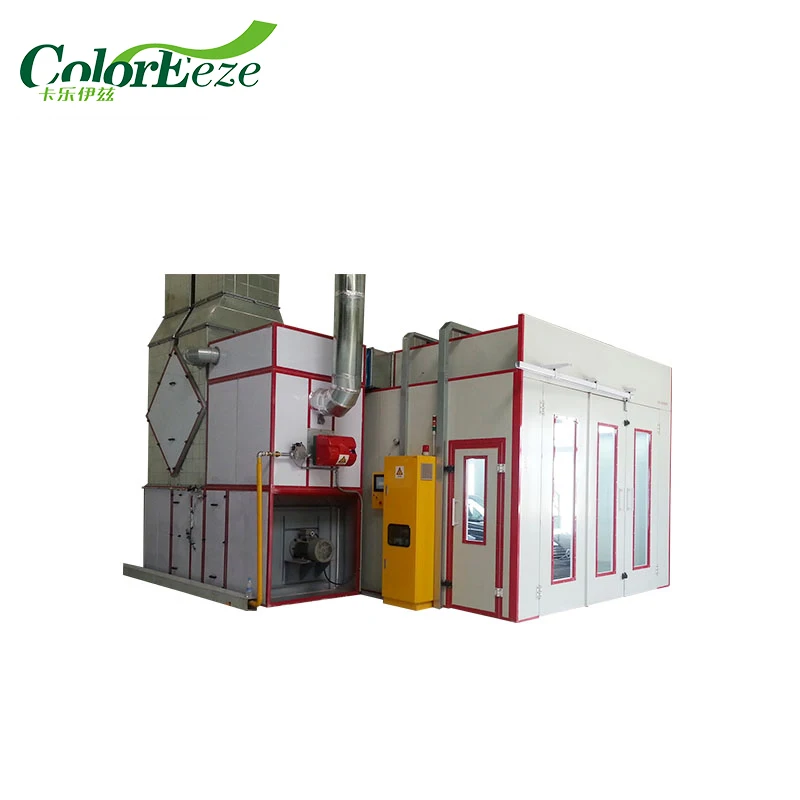

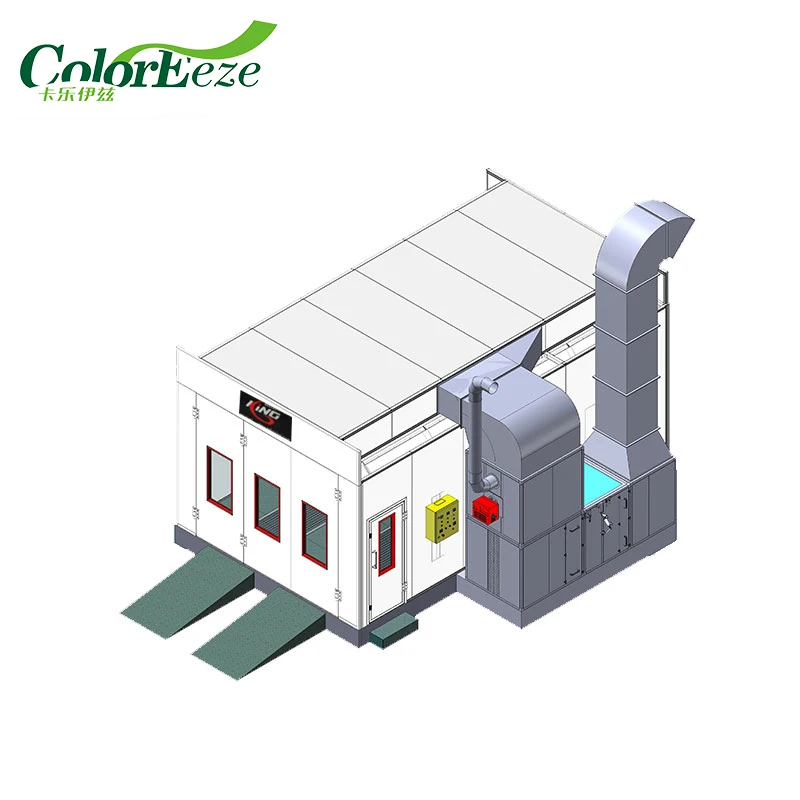

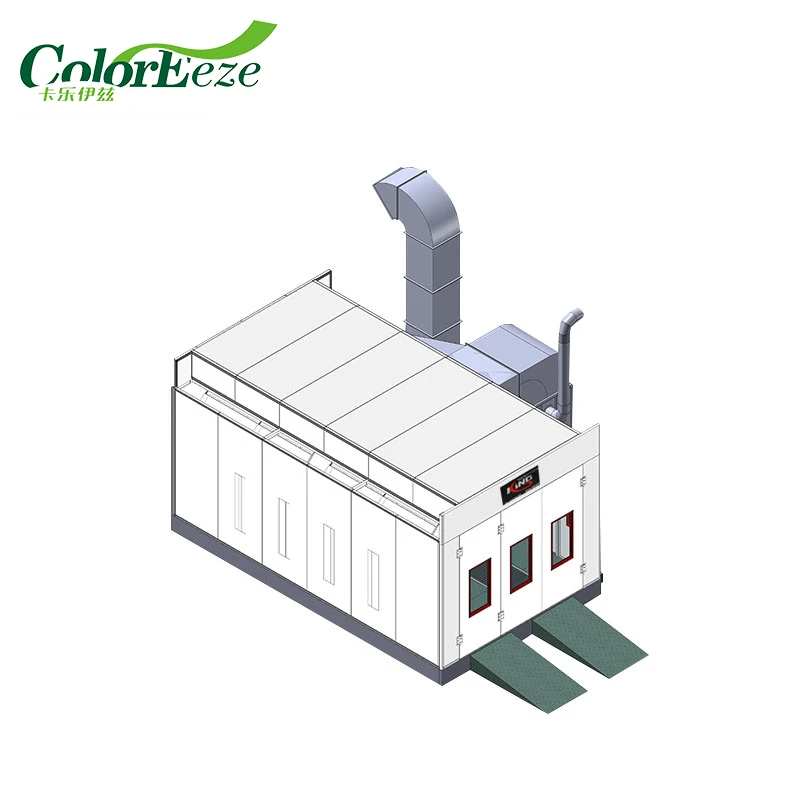

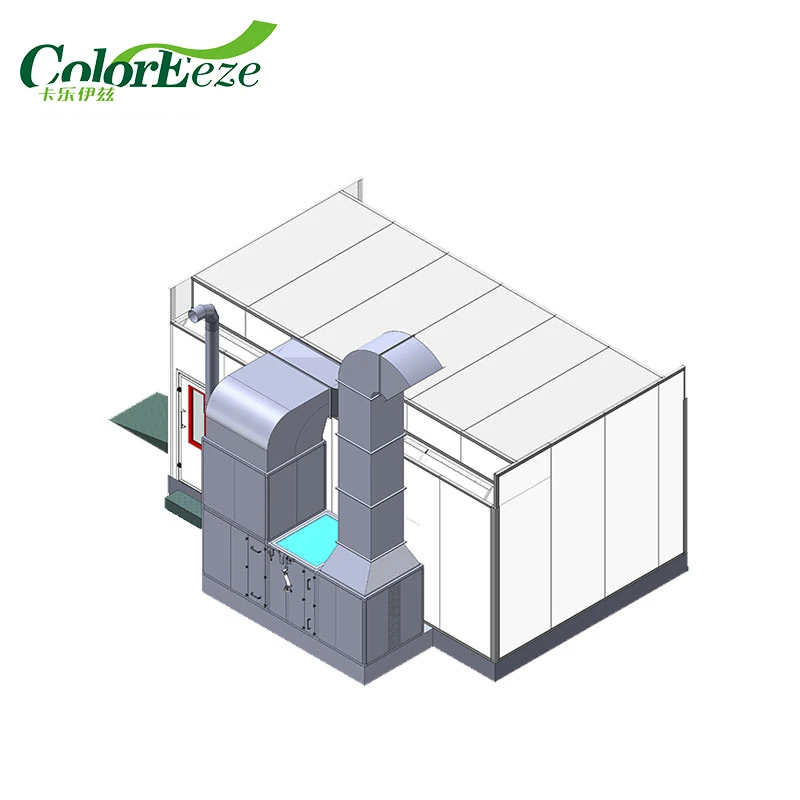

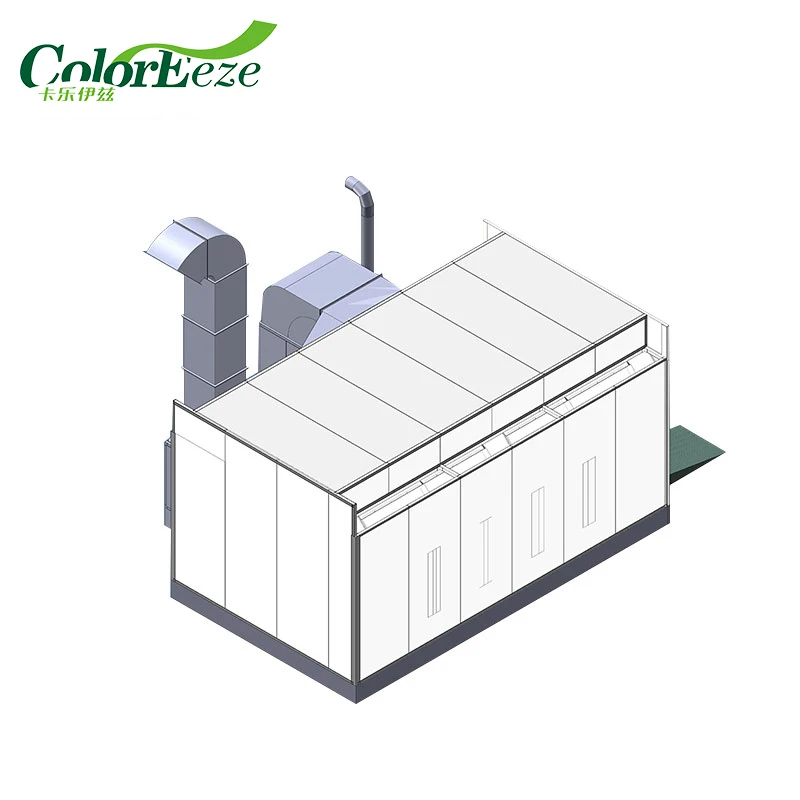

Low Price car care products small paint spray booth
| Design standard | BS EN 13355:2004+A1:2009 |
| BS EN 60204:2006+A1:2009 | |
| Size | |
| Internal size | 6900*4000*2800mm (L*W*H) |
| Outside size | 7010*5570*3810mm (L*W*H) |
| Basement | |
| Basement model | Galvanized, Full grid.Height :350mm |
| Gird capacity | 700 kg/wheel |
| Filter areas | 27m2 |
| Slope | 2 Pieces;Size:2000*1030*320, pattern type |
| Specification for grid | Dimensions: 997*756mm, 40*3mm. The grille uses a pressed steel grating ins- tead of a traditional twisted steel for the steel grating of the crossbar. Beautiful appearance, durability, and good stress are the most important features of this type of steel grating. |
| Cabin | |
| Cabin structure | Vertical |
| Static pressure chamber | Height :600mm |
| Wall board | |
| Wall board | 50mm wallboard, wallboard filler material high temperature resistant rock wool. |
| Ceiling material | 50mm thick plate, wallboard filler material high temperature resistant rock wool. |
| Wrapping material | 1.2mm galvanized sheet bending forming |
| Door | |
| Model | The handmade gate, 2+1 structure |
| Size | 3200*2700 mm (W*H) |
| Quantity | 1 set |
| Description | Contains a skeleton and is filled with high-temperature EPS |
| Safe door | |
| Model | Frame structure door |
| Size | 800*2000 mm (W*H) |
| Quantity | 1set |
| Description | With safety glass observation window |
| Side light | |
| Quantity and power | 8 sets of light boxes, each set 2*16W, LED lights |
| Lighting distribution | On both sides |
| Ceiling light | |
| Quantity, Power | 8 sets of light boxes, 4*16W/set |
| Lighting system | On both sides |
| Description | Protection level IP55,LED lights |
| Illuminance | >1000Lux |
| Filter system | |
| Pre-filter | G2 bag filter |
| Top filter | F5 grade filter, model SP-600G |
| Bottom filter | Glass Fiber Blanket Cotton Blanket Filter |
| Exhaust air filter | Fiberglass paint impregnated cotton blanket with a large amount of ventilation, resistance and flame resistance. |
| Intake system | |
| Air blower type | Directly connected turbine fan |
Blower Power and Motor Description | 7.5KW,970 rpm, 380 V, 50 Hz, Chinese Motor |
| Parameters | 25000m3/h ,650pa |
| Exhaust system | |
| Air blower type | Directly connected turbine fan |
Blower Power and Motor Description | 7.5KW,970 rpm, 380 V, 50 Hz, Chinese Motor |
| Parameters | 25000M3/h ,650pa |
Equipment no load wind speed | +/- 0.24m |
| Noise | <78db |
| Heating system | |
| Heat exchanger material | SUS 1Gr18Ni9Ti(SUS304) |
| Heat exchanger power | 158KW |
| ΔT temperature rise | 20°C(from-10°C to 10°C) |
Maximum operating temperature | 80°C |
| Heating time | 5-8 mins (from 20°C to 60°C) |
| Burner model | G20 oil burner |
| Pipe | |
| Vertical pipe | 4 Piece |
| Rainproof cap | 1 Piece |
| Change | 1 Piece |
| Manual damper | 1 Piece |
| Automatic damper | 1 Piece |
| Control system | |
| Start method | Pressure dropping start |
| Function | Spray paint, warm spray paint, leveling, paint, fault indication, emergency stop switch,over temperature alarm indication, delay time for paint stall protection. |
| Special instructions | Power:15KW |
