Высококачественная машина для шитья проволоки и седла
US $2000-$3100
Система нагрева ИК-лампы YFMB380B полуавтоматическая ламинирующая
- Категория: Оборудование для пресса >>>
- Поставщик: Zhejiang,Fengming,Industrial,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 7021.88 $* | 7372.55 $* |
| Aug-16-2025 | 6962.71 $* | 7310.85 $* |
| Jul-16-2025 | 5841.31 $* | 6133.0 $* |
| Jun-16-2025 | 6844.88 $* | 7186.47 $* |
| May-16-2025 | 5959.22 $* | 6257.97 $* |
| Apr-16-2025 | 6726.73 $* | 7062.71 $* |
| Mar-16-2025 | 6667.3 $* | 7000.18 $* |
| Feb-16-2025 | 6608.61 $* | 6938.17 $* |
| Jan-16-2025 | 6549.52 $* | 6876.41 $* |
Характеристики

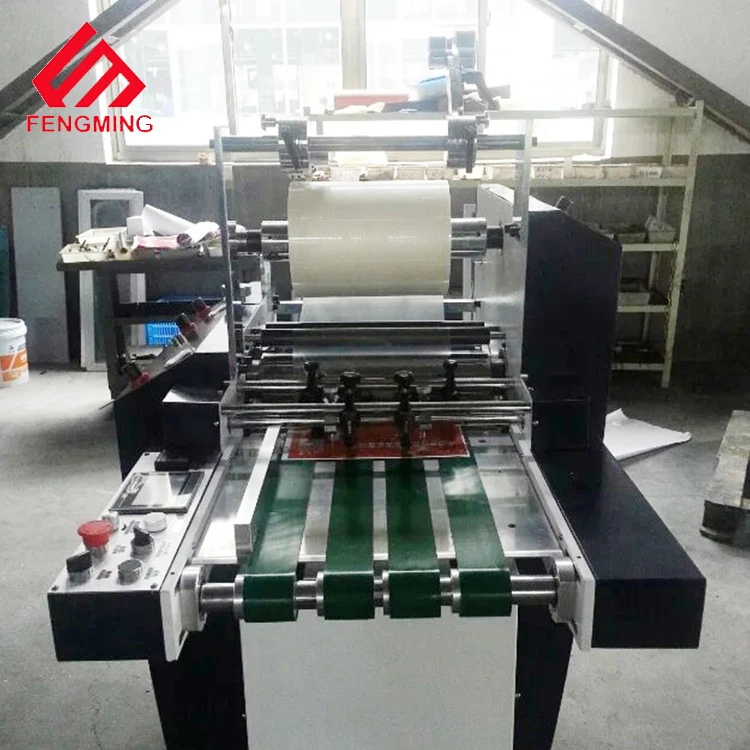

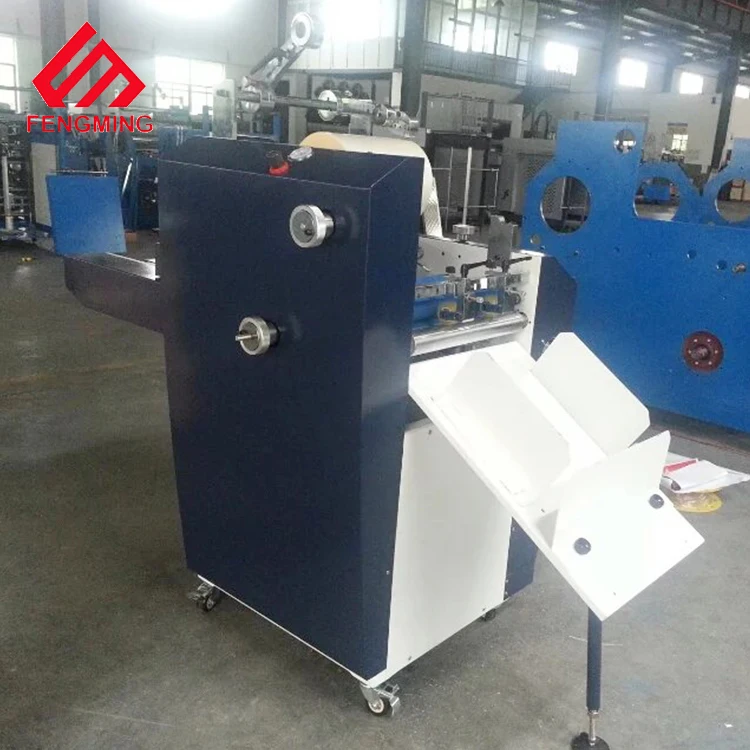

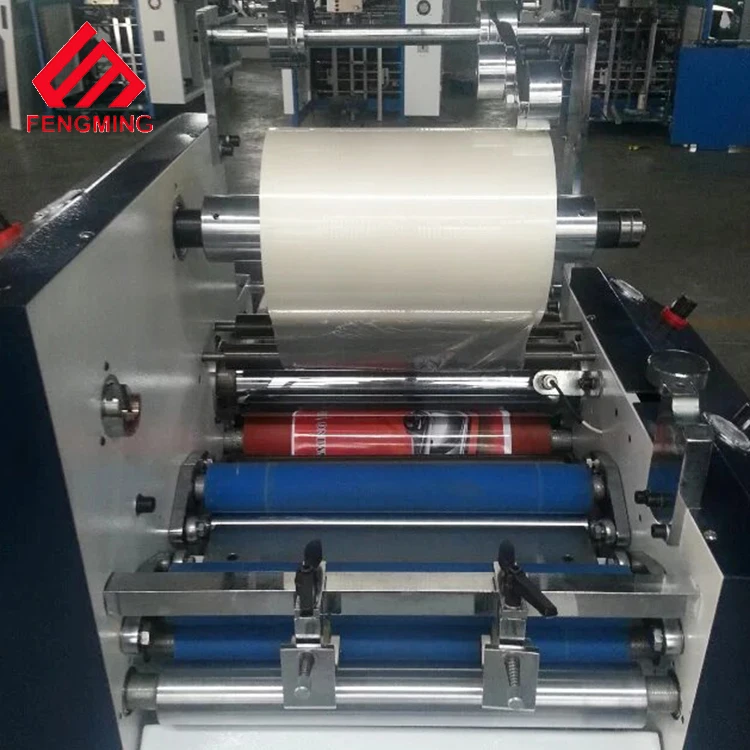

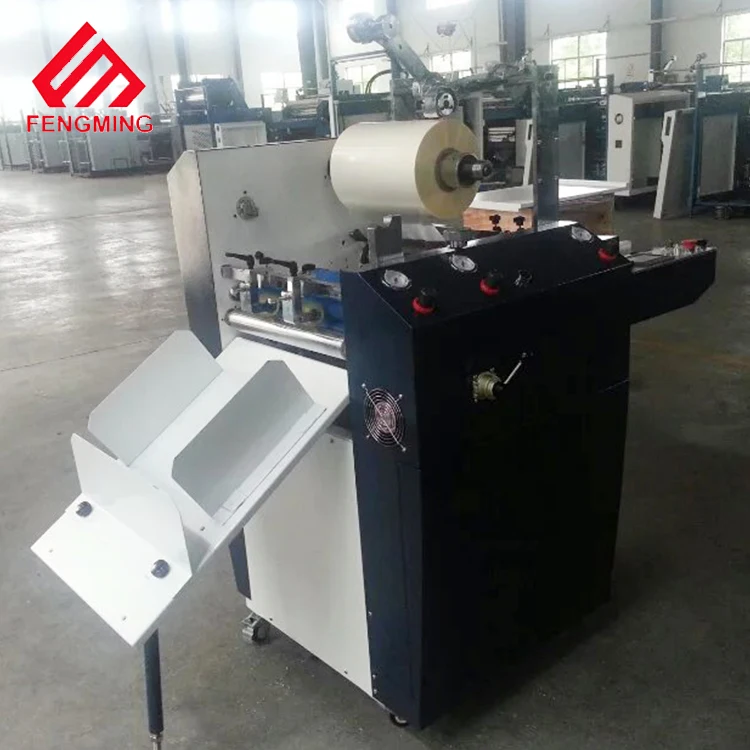

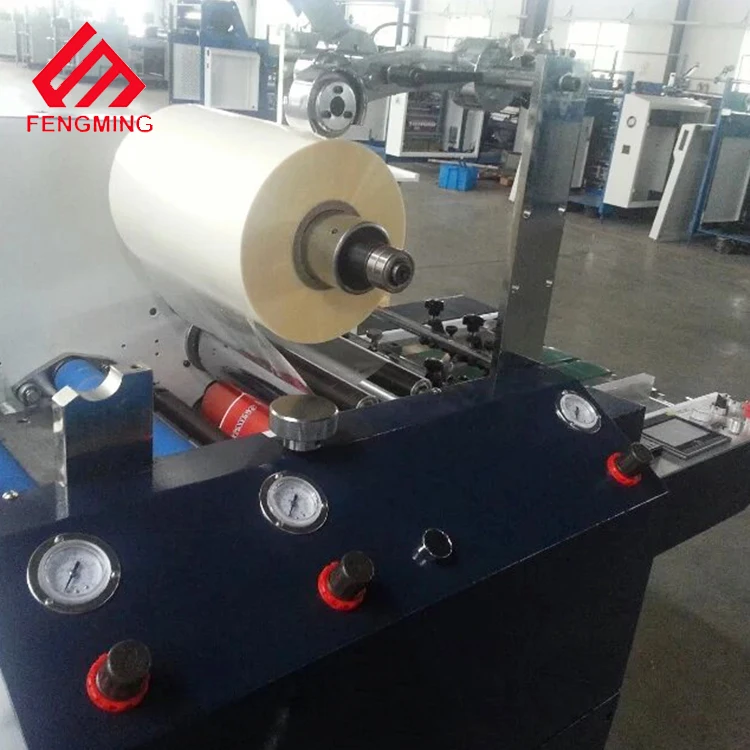

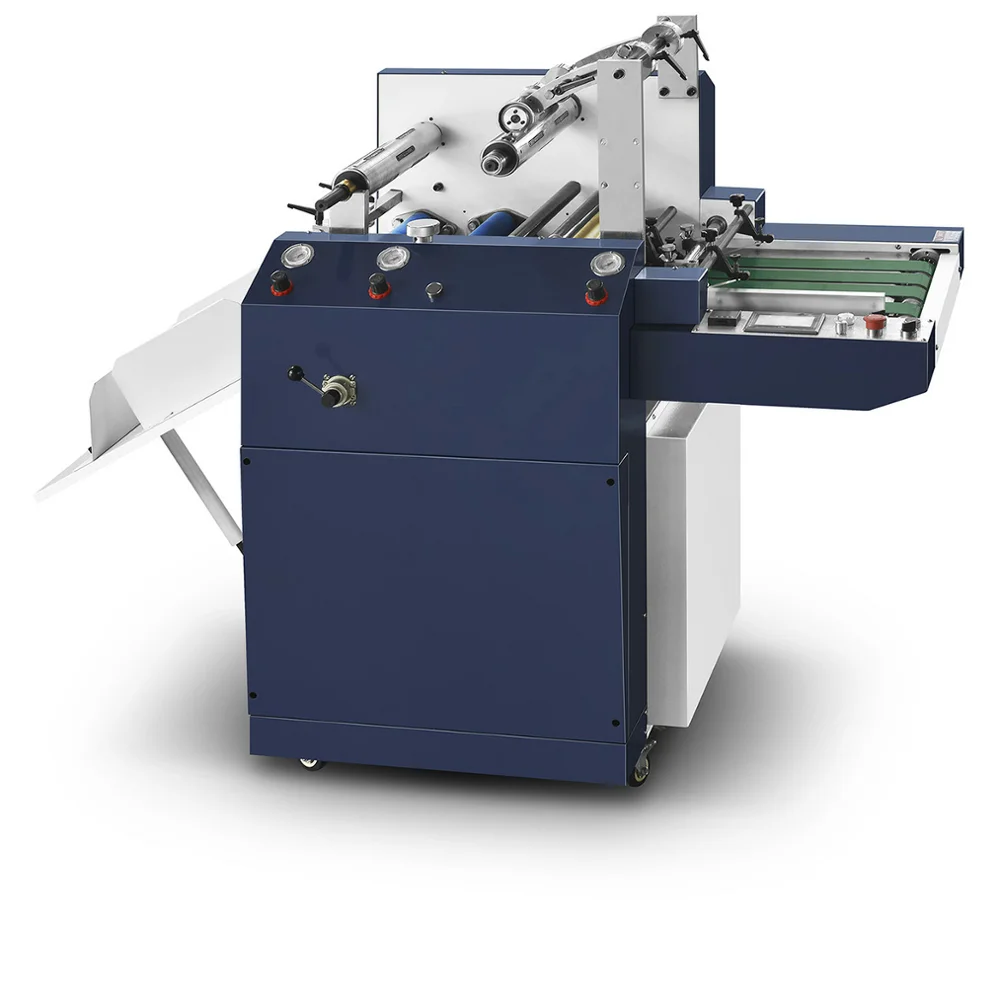

YFMB380B IR lamp Heating System Semi-auto Laminating Machine
Mode | YFMB380B |
Max speed | 53m/min |
Laminating temperature | normal-130°C |
Paper Thickness | 80-500g/m2 |
Power | 1.5kw(normal is a half) |
Voltage | 220/380V |
Diameter of Heating Roller | IR lamp inside |
Diameter of Film Paper core | ≤76mm(3 inch) |
Total Weight | 1600kg |
Overall Dimensions | 1300*1500*1550mm |
1.Product Features:
Pneumatic cutting (equip with Air compressor )
Pull guide
IR lamp Heating System(because heating roller is too small)
Gas Expanded Shaft(with Tension System)
Film Cutter and Film Puncher
Operation Plater and Date Inputting Device
Automatic hydraulic pressure (Automatic adjustment pressure )
Anti-Curve Device
Electric box (some part from Janpan and Taiwan, other from biggest supplier in China, they cooperate with Germay)
Vibration Table
PS: Using glueless and thermal film to laminate paper
2.Technical Specification:
Model: YFMB380B
Max.Laminating Width: 380mm
Laminating Temperature: ≤130℃
Paper Thickness: 80-500g/m²
Laminating Speed: 35m/min(machine speed is 53m/min)
Total power: 1.5kwVoltage: 220/380V
Diameter of Heating Roller (IR lamp inside)
Diameter of Film Paper core: ≤76mm(3 inch)
Dimension: 1300mm*1500mm*1550mm
