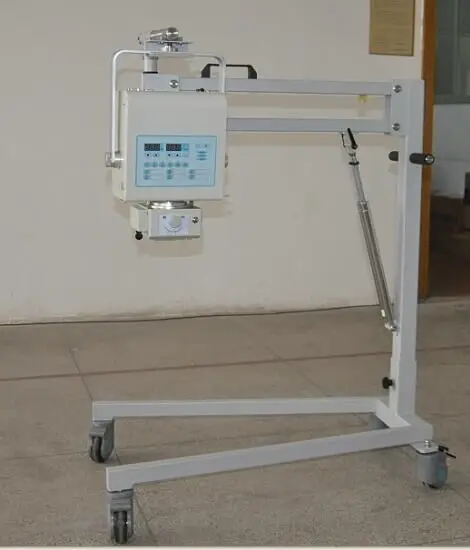

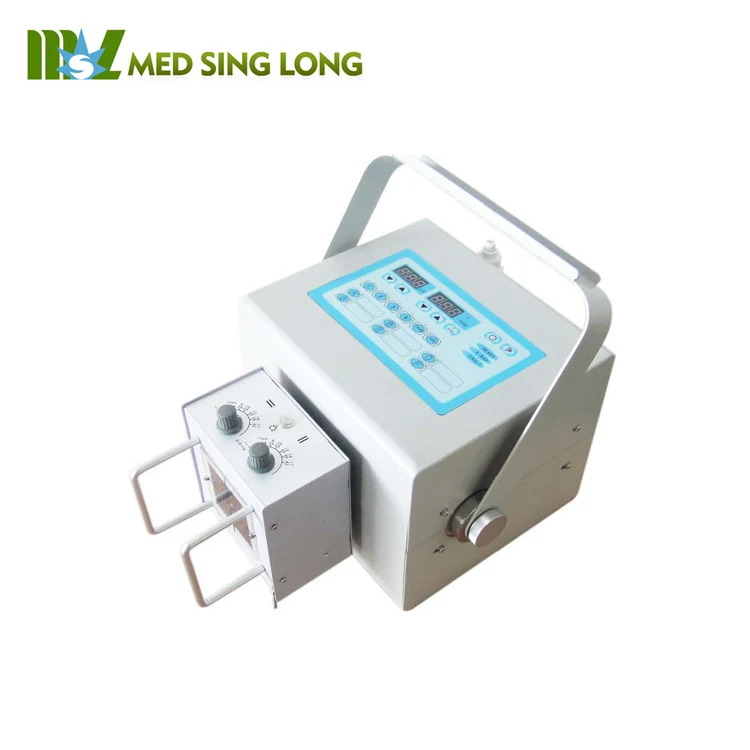

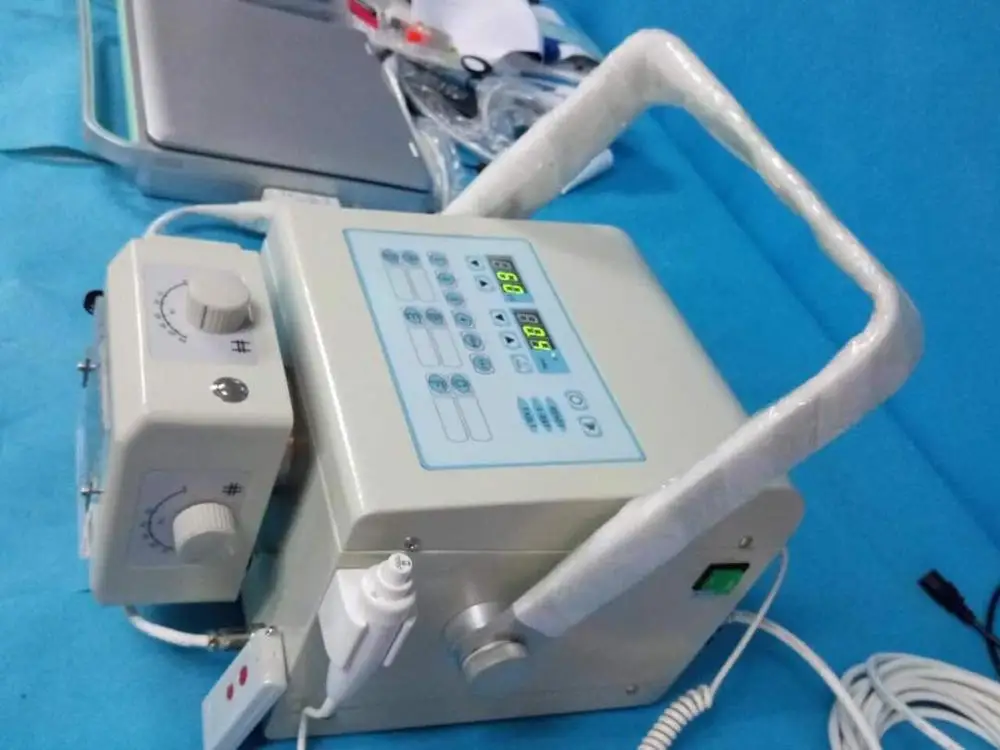

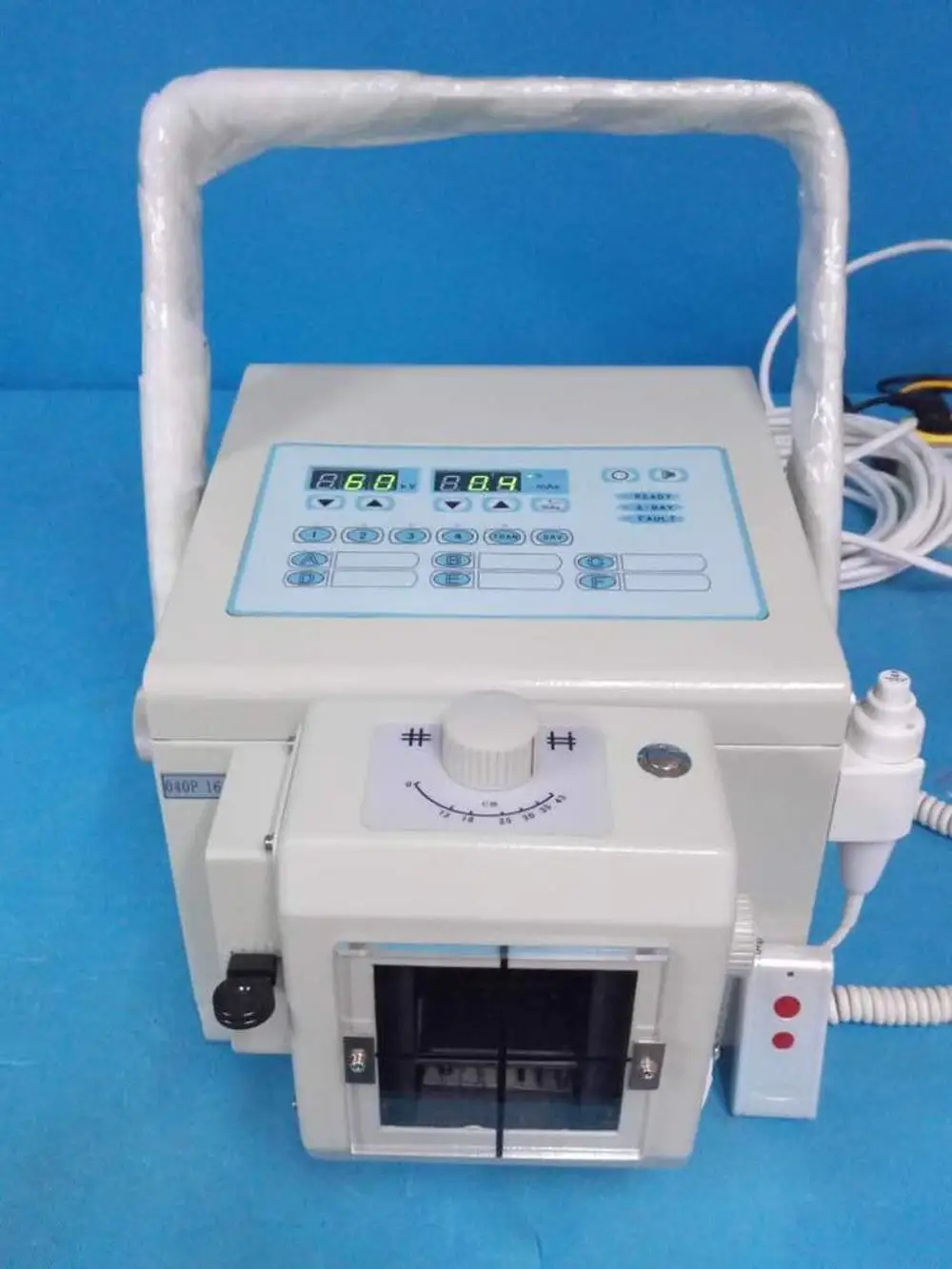

1.Item photo

2.  Product Structure

2.1 Model name: MSLPX02

2.2  Structure and composition

The main compositions show in figure 1, diagram show in figure 1

1 Collimator

2  Operation control panel

3  Portable high frequency x-ray machine for medical diagnosis

4  Machine frame

3  Applicable scope

Apply to human limbs checking, diagnosing, especially in the wild places, battlefield flow, playground, such as pet clinic, rescue diagnosis etc.

4  Technical characteristics of equipment

4.1  X-ray machine

4.1.1 Working conditions

a) Environment temperature:+10℃ ~ +40℃;

b) Relative humidity:30% ~ 75%;

c) Atmospheric pressure:70kPa ~ 106kPa

4.1.2  Conditions of transportation and storage

a) Environment temperature:-20℃~ +70℃;

b) Relative humidity:10% ~ 100% (Including condensing);

c) Atmospheric pressure:50kPa ~ 106kPa

4.1.3 Power requirements

a) Power voltage:220V±22V;

b) Phase number: single-phase three wires (Fire wire;Null wire;safety grounding wire)

c) Power  frequency:50Hz±1Hz;

d) Power inner resistance:less than 0.5Ω;

e) Power capacity≥5kW

4.1.4  Working character

Working character: Intermittent load and run continuously

4.1.5  Input power:≤5kVA

4.1.6 Maximum output power

P=  110kV×36mA = 4kW.

4.1.7  Nominal power

100kV,40mA,0.1s,4kW.

4.1.8 Adjusting range of tube voltage and tube current

a) Radiography tube voltage:40kV ~ 110kV;

b) Radiography tube current:36mA ~ 70mA;

4.1.9  Range of current time product: 1mAs ~ 200mAs

4.1.10  Adjusting range of loading time

Radiography loading time:0.04s ~ 3.2s

4.3  X-ray tube

4.3.1  X-ray tube model:GF181-0.6/1.5-125-60
