Гидравлический автомобильный подъемник smart garage решение для парковки на открытом
- Категория: Оборудование для автомобиля >>>
- Поставщик: Dayang,Parking,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.63 $* | 0.1 $* |
| Aug-20-2025 | 0.90 $* | 0.36 $* |
| Jul-20-2025 | 0.89 $* | 0.5 $* |
| Jun-20-2025 | 0.2 $* | 0.21 $* |
| May-20-2025 | 0.86 $* | 0.19 $* |
| Apr-20-2025 | 0.33 $* | 0.30 $* |
| Mar-20-2025 | 0.70 $* | 0.5 $* |
| Feb-20-2025 | 0.99 $* | 0.34 $* |
| Jan-20-2025 | 0.38 $* | 0.85 $* |
Характеристики
Products Description
smart garage hydraulic car lift outdoors parking solution
How it works：

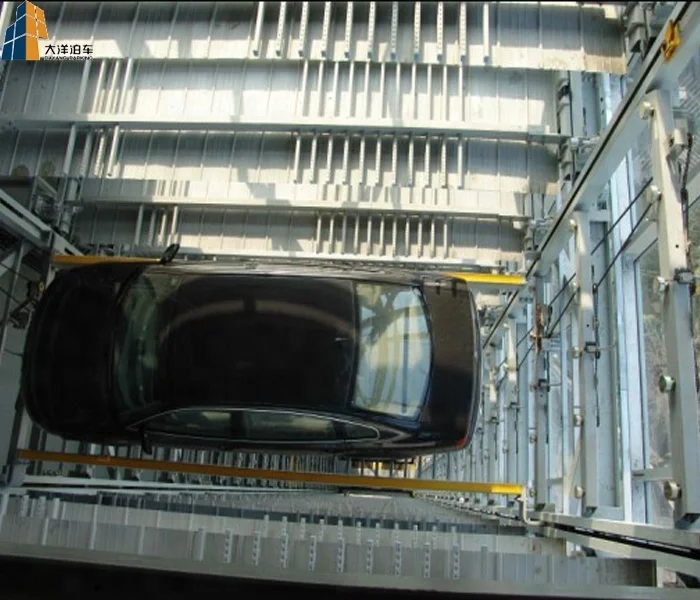

Every independent comb type tower garage consists of one lifting channel and two rows of parking spaces. There are 3 steps when
saving the cars.
First, the carrier lifts the car up to the position that one level higher than the aim level through the lifting channel.Second,
the pallet of the aim parking space comes out to the lifting channel.Third, the carrier goes down which will let the car park on
the aim pallet. Then both the parking pallet and carrier move back to the initial position.Turntable is used in this kind of comb
type parking system to make cars get in and out easier.
saving the cars.
First, the carrier lifts the car up to the position that one level higher than the aim level through the lifting channel.Second,
the pallet of the aim parking space comes out to the lifting channel.Third, the carrier goes down which will let the car park on
the aim pallet. Then both the parking pallet and carrier move back to the initial position.Turntable is used in this kind of comb
type parking system to make cars get in and out easier.
Drive mode | hydraulic / traction | ||
Car available | large cars | ||
Levels of system | 35 levels max | ||
Car size(L*W*H) | 5300*1900*1550mm | ||
Car weight | 2350kg | ||
Mode of operation | automatic / manual | ||
Speed of operation | Lift | hydraulic:60m/min traction:120m/min | |
Slide | 7.5m/min | ||
Turning | 4rpm | ||
Motor power | Lift | 30kw | |
Slide | 0.2kw | ||
Turning | 1.5kw | ||
Power of electricity | For motor | 380V/50HZ 3phase 5wires | |
For control | 220V/50HZ 2phase 3wires | ||
Number of cars | based on customer requirements | ||
\t\t\t\t\t\t\t\t\tDetailed Images \t\t\t\t\t\t\t
Other Products
Why choose us?
Every year we entertain many foreign customers, and led them to visit factories and projects. We participate in many large foreign exhibitions, such as Dubai exhibition and Thailand exhibition.
Company Profile
Dayang Parking CO.,LTD was established in 2001, has over 20 years experience in parking equipments designing, manufacturing, installation and maintenance.
1. 20 years of production experience, industry and trade integration;
2. Own more than 300 patents;
3. Own CE & ISO certificates, special equipment manufacturing license;
4. Delivery time is within 60 days;
5. One year after-sales service.
2. Own more than 300 patents;
3. Own CE & ISO certificates, special equipment manufacturing license;
4. Delivery time is within 60 days;
5. One year after-sales service.
Our workshop
We have our own workshop,and have four main production lines: covers painting production line, welding production line, punch forming production line and drilling production line.
Workflow for production.
333
We have our own warehouse,
some spare parts are in there.
So we will never be out of stock.
How to order
Our production is customized，and the steps to order are as follow:
1. Customers offer detailed project site layout and requirements;
2. Our designer will make a professional drawing according to your layout and requirements;
3. After your confirmation of the drawing, we will do quote(our quote is based on every specific project);
4.Note: Customers can order the equipment we put or you can also have your own idea, as we are custom-made product supplier,so different colors and types are available.
1. Customers offer detailed project site layout and requirements;
2. Our designer will make a professional drawing according to your layout and requirements;
3. After your confirmation of the drawing, we will do quote(our quote is based on every specific project);
4.Note: Customers can order the equipment we put or you can also have your own idea, as we are custom-made product supplier,so different colors and types are available.
Packing & Shipping
Packing：
Four-step packing to make sure safe transport.
1)Iron frame to fix equipment;
2)All structures fixed on the frame by screws;
3)All electric wires and motor are put into iron box;
4)Iron frame and box will be covered by stretch film;
1)Iron frame to fix equipment;
2)All structures fixed on the frame by screws;
3)All electric wires and motor are put into iron box;
4)Iron frame and box will be covered by stretch film;
Shipping：
2) Shipping time: Within 60 days after receive deposit.
Our service
"First Management, Super technology, advanced equipment excellent talents and Best service" is our principle;
"Unity Creation, Innovation and Devotion" is our spirit and"Satisfying customers" is our final aim.
Quality Commitment:
B.we guarantee our euqipments are new, not used. Produced from good material by first-class technic.
A.In one year warranty, If there is loss because of design or producing ,we will be responsible for it.
B.we guarantee our euqipments are new, not used. Produced from good material by first-class technic.
Customer service:
I. Lifetime Service (Total one year warranty for free, lifetime provide accessories);
II. Provide one set of spare parts for free.
III.Provide engineer to guide installation work for free.
IV.Provide technology consulting and design for free.
II. Provide one set of spare parts for free.
III.Provide engineer to guide installation work for free.
IV.Provide technology consulting and design for free.
FAQ
Q1. What is your terms of packing?
Four step packing to make sure safe transport.
1)Iron frame to fix equipment;
2)All structures fixed on the frame by screws;
3)All electric wires and motor are put into iron box;
4)Iron frame and box will be covered by stretch film;
Q2. What is your terms of payment?
We supports L/C,T/T,Western union payments for offline orders.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q4. How about your delivery time?
Within 60 days after payment.
Q5: How do you make our business long-term and good relationship?
1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
Four step packing to make sure safe transport.
1)Iron frame to fix equipment;
2)All structures fixed on the frame by screws;
3)All electric wires and motor are put into iron box;
4)Iron frame and box will be covered by stretch film;
Q2. What is your terms of payment?
We supports L/C,T/T,Western union payments for offline orders.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q4. How about your delivery time?
Within 60 days after payment.
Q5: How do you make our business long-term and good relationship?
1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
