Характеристики
Product Description

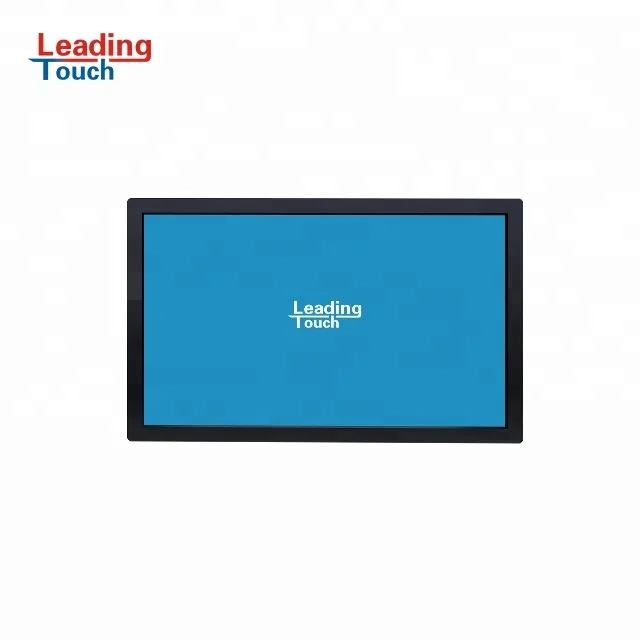

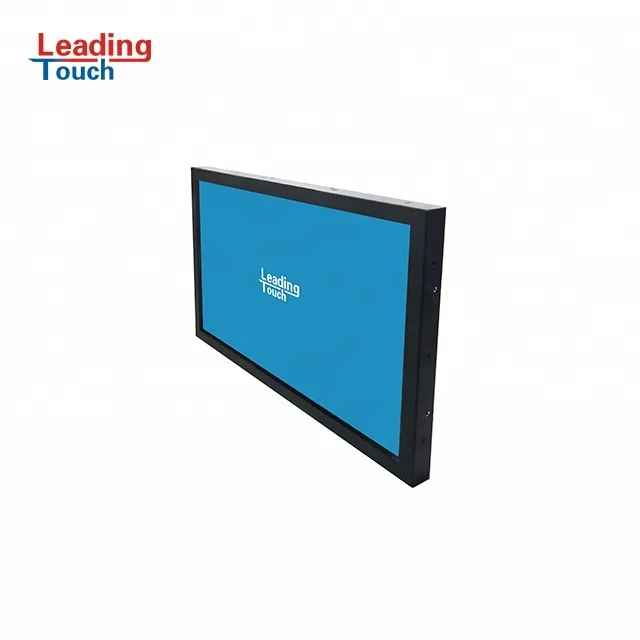

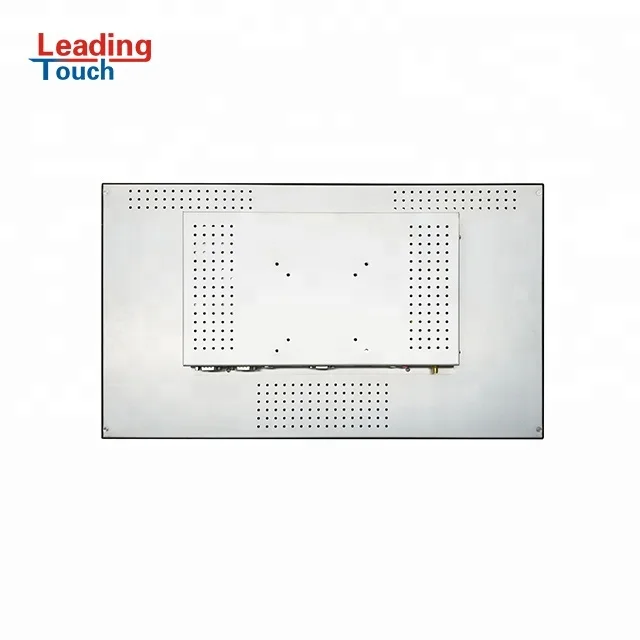

21.5” All-in-one Infrared Multitouch Touch Computer
LeadingTouch's TC-2168 is 21.5inch Infrared All-in-one touch computer delivers a professional-grade, extra-large format touchscreen in a slim, integrated package. Designed for retail, hospitality, enterprise, commercial real estate, education, corporate meeting rooms, lobbies and other commercial applications.
Features
Economy choice, Reliable quality, Easy operation
4Point infrared multitouch, IP65 front bezel
High-performance computer module
Full HD 1920 1080 2K-display
Anti-vandal and anti-sunlight technology
Flexible mounting in portrait, landscape and table-top orientation
Combinations of features indicate that LeadingTouch All-in-One Infrared Touch Computer is the best choice for you.
Product Model | TC-2168-G31J1900 | ||
Product Description | 21.5” All-in-One Infrared Touch Computer | ||
Display | Display | 16:9 Active Matrix TFT LCD | |
Useful Screen Area | 477.5mmX269mm | ||
Optimal Resolution | 1920 x 1080 | ||
Number of colors | 16.7 million | ||
Brightness | 250 cd/m² | ||
Contrast Ratio | 1000:1 (Typical) | ||
Response Time | 5ms (Typically) | ||
Viewing Angle | Horizontal: ±89°or 178°total Vertical: ±89°or 178°total | ||
CPU | Celeron J1900 1.99GHz (i3,i5,i7 options) | ||
RAM | 4G | ||
Hard disk | 128 SSD or 500G STAT | ||
USB and COM Port | 2 x USB 3.0, 2 x USB 2.0,2 x COM(RS232) port | ||
Ethernet Port | 1 x LAN RJ45(Gigabit) | ||
Additional Video Out | 1 x HDMI and 1 x VGA out | ||
Wireless | Wi-Fi 802.11 a/b/g/n/ac | ||
Bluetooth | Bluetooth 4.0 | ||
Audio and Microphone | 1 x 3.5mm line out, and 1 x microphone out | ||
Speaker | 2x 12W internal speakers | ||
Touch | Touch Technology | Infrared Technology, True 4point multitouch | |
Response Time | 3ms | ||
Touch Resolution | 32767 x 32767 | ||
Touch Protected | IP65 front bezel, anti-sunlight any angle | ||
Touch Glass | 3mm Anti-vandal tempered glass | ||
MTBF | 50,000 hours demonstrated | ||
Mounting Options | VESA Mount 600 x 1200mm , Back bracket option | ||
Power Supply | 100-240VAC, 50-60Hz | ||
Temperature Range | Operating: 0℃ to 50℃; Storage: -20℃ to 60℃ | ||
Humidity Range (no condensing) | Operating: 20%-80%; Storage: 10%-90% | ||
Product Dimension | 519.5mmX311mmX56.8mm | ||
Warranty | 1 year | ||
Packing & Delivery
Related Products
PCAP (Project Capacitive)
Open Frame Touch Monitor
Infrared (IR)
Open Frame Touch Monitor
Resistive
Open Frame Touch Monitor
Certifications
Our Company
Founded in 2001, LeadingTouch, the global leader in touch technology, develops, manufactures and markets a complete line of touch screen and touch monitor products, with PCAP, SAW, Infrared, Resistive touch technology. LeadingTouch offers the largest selection of touch screen technologies and LCD touch monitors and carefully designs each product for the demanding requirements of diverse applications, such as Industrial, Medical, POS, Kiosks, Retail, Hospital, Transportation, Office Automation, and Gaming.
FAQ
Q: How to calibrate touchscreen
1. Finish driver installation and click LeadingTouchSetup icon in desk, then select calibration menu and do
4points calibration.
2. Enter "Start"-"Program"-“leadingtouch”—“touchsetup”— “Caliberate”, then touch the 4points shown in
screen to finish calibration.
Q: How to uninstall driver?
1. Enter “Start”----“programmer”----“Leadingtouch” ----“Uninstall” to uninstall driver and restart computer
to effective your operation.
2. Enter “Start”----“Settings”----“Control panel” ----“Add/Delete Program”----“Leadingtouch Driver for
windows” to uninstall driver and restart computer to effective your operation.
