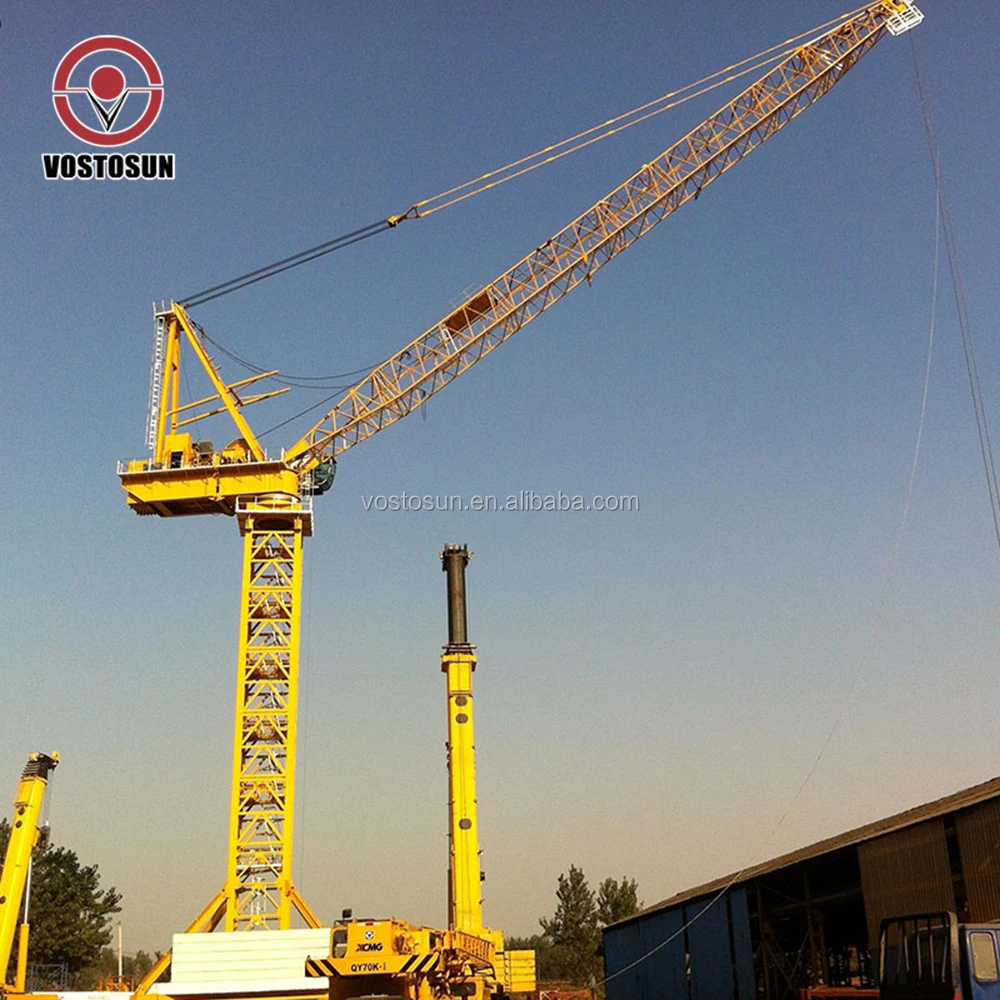

Башенный кран luffing jib XGTL1600 от ведущей китайской технологии 100
- Категория: Tower Cranes >>>
- Поставщик: Shanghai,Vostosun,Industrial,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.92 $* | 0.51 $* |
| Aug-17-2025 | 0.43 $* | 0.79 $* |
| Jul-17-2025 | 0.60 $* | 0.16 $* |
| Jun-17-2025 | 0.97 $* | 0.57 $* |
| May-17-2025 | 0.18 $* | 0.68 $* |
| Apr-17-2025 | 0.52 $* | 0.39 $* |
| Mar-17-2025 | 0.88 $* | 0.9 $* |
| Feb-17-2025 | 0.95 $* | 0.23 $* |
| Jan-17-2025 | 0.6 $* | 0.27 $* |
Характеристики
Product Description
Type | XGTL1600 |
Basic height | 60M |
Max height | Consult us |
Length | 76/71.2/66.3/61.5/56.7/51.8/47/42.2/37.4/32.5 |
Max load | 100t |
Tip load | 6/7.2/11/13/16.5/21/25/30/35.4/41.5 |
Section size | 3500×3500×4000 |
Section material | H type steel/Fixed |
XGTL1600 | |||||
Items | Mechanism | Speed(m/min) | Rope capacity | Motor(Kw) | |
Hoist mechanism | 1 multiplying power | 0-110 | 714M >714M* | 450(Diesel) | |
|
| 2 multiplying power | 0-55 |
|
|
Luffing mechanism | ≤3min |
| |||
Slewing mechanism | 0-0.7r/min |
| |||
Travelling | RT | 0-16m/min | 8×11 | ||
Gross Power(Nominal Rated Power Of Diesel Generator):450Kw | |||||
Product Advantages
1. Performance parameters and technical indexes reach both domestic and international advanced level.
2. Max. jib length: 78m; Jib length under different assembling modes can decrease progressively by 5 meters and the Min. jib length is 33 meters.
3. Gross Power: 417Kw.
4. The crane features high working speed and excellent speed regulation performance. Stepless speed regulation by frequency control, the world's most advanced solution, is adopted for the trolleying mechanism and slewing mechanism, thus ensuring more stable and reliable operation.
5. The cab is independently installed externally with good vision and large inner space, thus offering a good working environment for operators.
Our Service
Ø Open and transparent one-stop centralized procurement;
Ø International standard purchase supply process management;
Ø Expert technical solution for production process;
Ø Display, storage and after-sales service ;
Ø International financing and insurance.
More
Company Information
Why Choose Us
Ø CORE VALUE:
Integrity, Profession, Efficiency, Gratitude, and Responsibility
Ø GOAL AND VISION:
Committed To Becoming a Professional Solution Provider For Centralized Procurement And Supply Of
Engineering, Mining And Mineral Powder Processing Projects.
Ø OUR MISSION:
Your Requirements For Equipment Selection, Quality, Cost, Delivery, Risk Control And After-Sales Service,
Your Service Requirements For Overseas Markets,They Are Our Existing Value And Unremitting Pursuit!
FAQ
Q:What's your payment term?
A: We accept T/T(30% down payment and balance before shipping) and L/C mostly. But if you prefer other payment terms please contact us for further information.
Q: Whats's the warranty time?
A:From the date of shipment,1 year or 1500 working hours,whichever comes first.
Q:What`s the international project experience?
A: Kazakhstan Astana Capital Moving Projuct,
Russia Voronezh Nuclear Power Station,
Shanghai Pengxin Mining Congo(Gold) Copper Project,
Equatorial Guinea National Highway Equipment General Contracting
Q:What`s the technical support or partnership?
A: Institute of Powder Engineering, Tsinghua University.
Chinese Academy of Geological Sciences.
China Academy of Building Research
