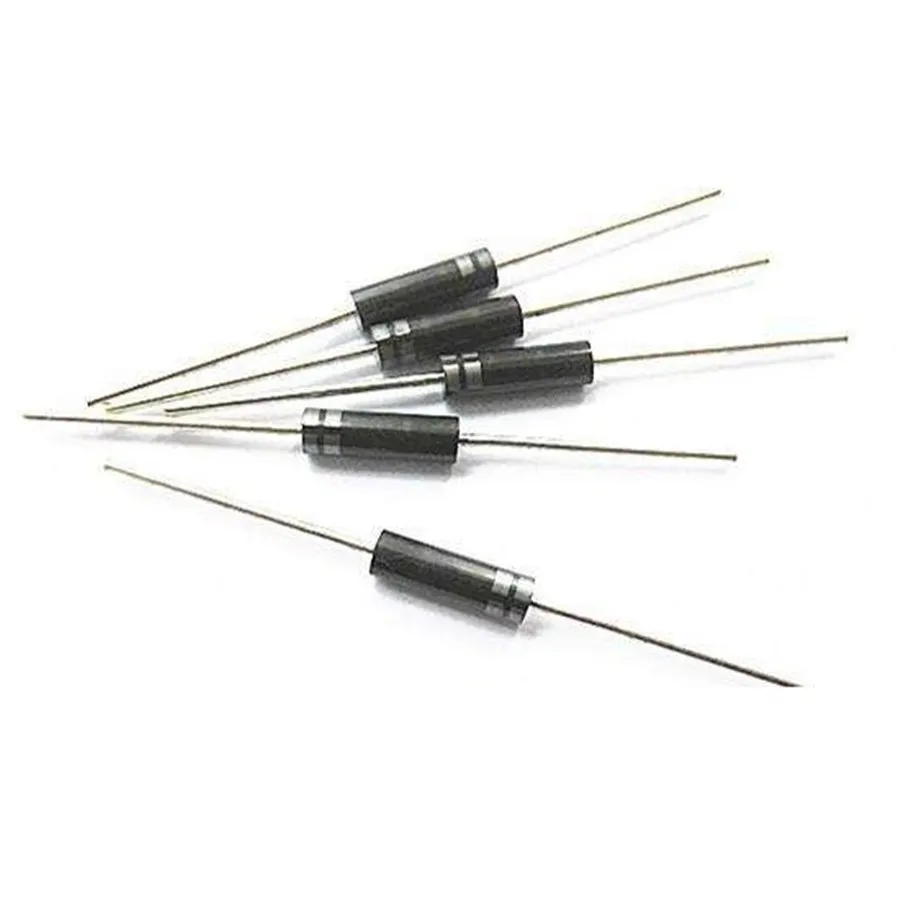

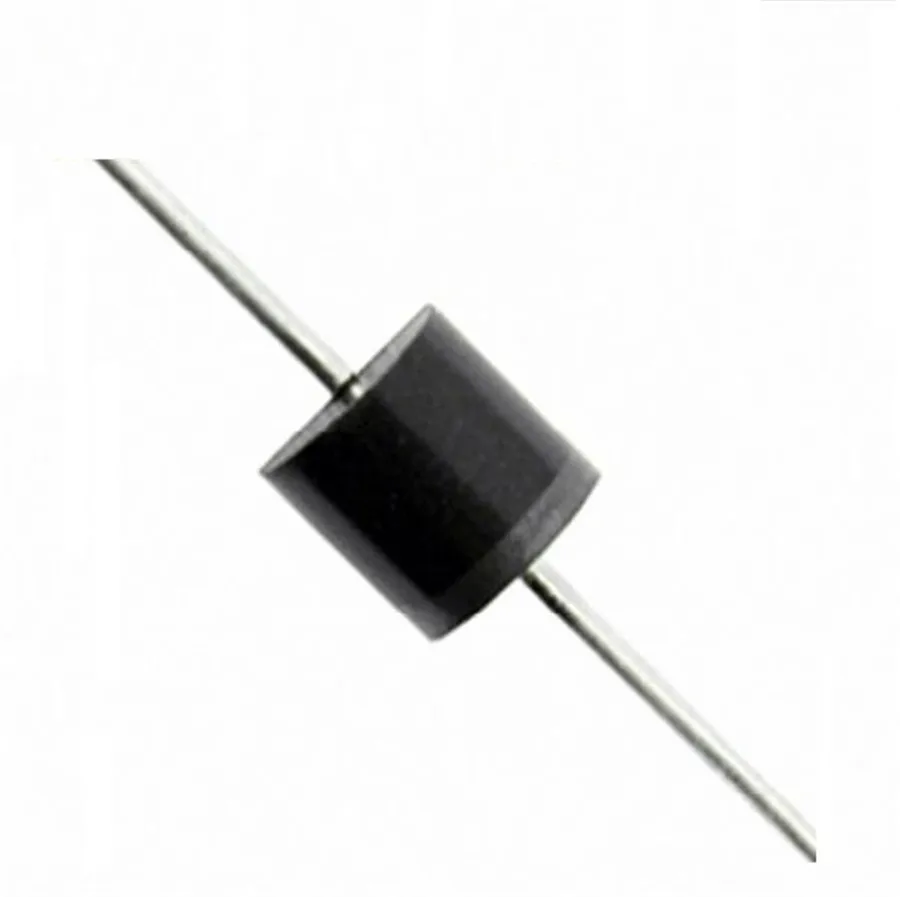

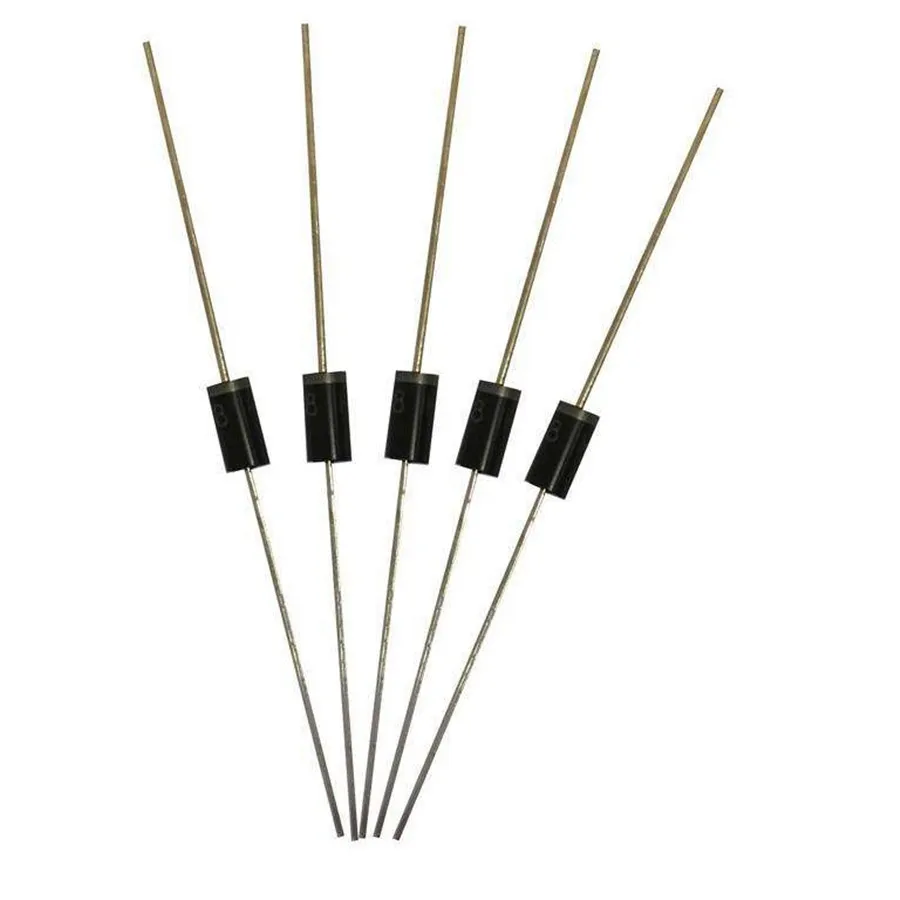

LED Light usage DIODES in5402 diodes 1N4007 Rotating diode



We set all the products price between USD0.002 to USD0.025/Piece for convenience, if you want to get the best price, pls contact us directly. Thank you!

Products apply to energy-saving lamps, chargers, switching power supplies, household appliances, electric equipment .
Products are divided into bulk and braid.
Bulk: a case of 50000, braid: a case of 50000.
Packing: normal packing is carton packing.
Delivery time: one week.
Wire specifications: 0.6 * 58    \\    0.7 * 58.





MECHANICAL DATA

•Case: Transfer molded plastic

•Epoxy: UL94V-0 rate flame retardant.

•Polarity: Color band denotes cathode end.

•Lead: Plated axial lead, solderable per MIL-STD-202E

Method 208C

•Mounting position: Any

•Weight:0.012 ounce, 0.33grames



MAXIMUM RATINGES AND ELECTRICAL CHARACTER

•Ratings at 25°C ambient temperature unless otherwise specified

•Single phase, half wave, 60HZ, resistive or inductive load.

•For capacitive load derate current by 20%



TYPE	I(AV)	VRRM	IFSM	VFM		IRM@VRRM		Case Style
		@IRM		VFM	I(AV)	TA=25°c	TA=100°c
	A	V	A	V	A	μA	μA
1N4001	1.0	50	30	1.0	1.0	5.0	50	DO-41
1N4002	1.0	100	30	1.0	1.0	5.0	50	DO-41
1N4003	1.0	200	30	1.0	1.0	5.0	50	DO-41
1N4004	1.0	400	30	1.0	1.0	5.0	50	DO-41
1N4005	1.0	600	30	1.0	1.0	5.0	50	DO-41
1N4006	1.0	800	30	1.0	1.0	5.0	50	DO-41
1N4007	1.0	1000	30	1.0	1.0	5.0	50	DO-41
1N4007*	1.0	1200	30	1.0	1.0	5.0	50	DO-41
