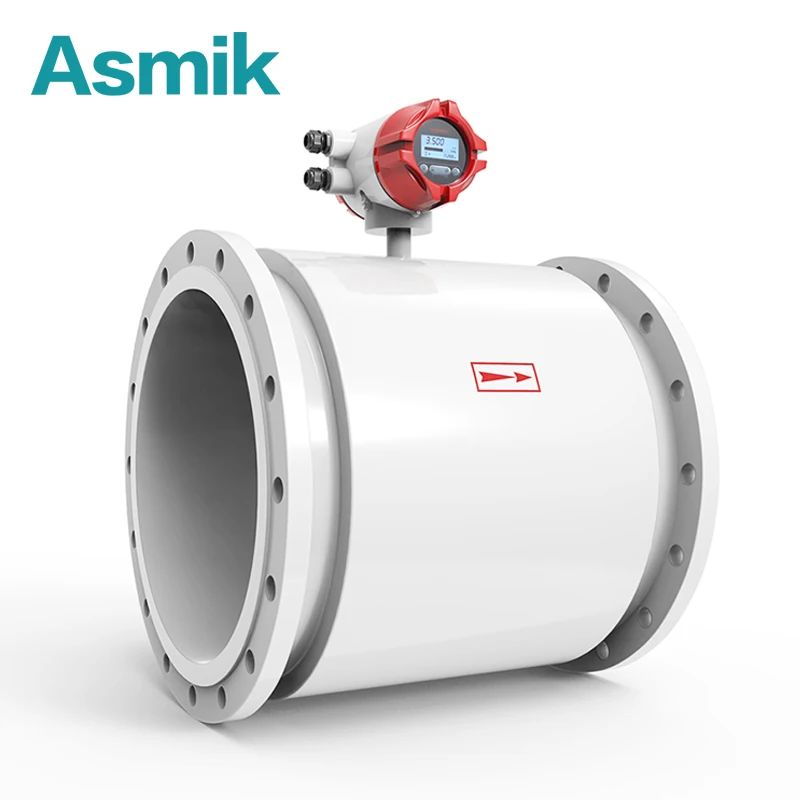

Низкая цена цифровой морской воды электро магнитный расходомер/магнитный
- Категория: Расходомер >>>
- Поставщик: Hangzhou,Asmik,Sensors,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 311.77 $* | 317.43 $* |
| Jul-19-2025 | 252.8 $* | 257.41 $* |
| Jun-19-2025 | 306.97 $* | 312.56 $* |
| May-19-2025 | 304.19 $* | 310.13 $* |
| Apr-19-2025 | 243.23 $* | 248.84 $* |
| Mar-19-2025 | 299.52 $* | 305.28 $* |
| Feb-19-2025 | 296.54 $* | 302.3 $* |
| Jan-19-2025 | 294.29 $* | 300.65 $* |
Характеристики
Products Description
Model | Economy type | Standard type | Upgrade type |
Accuracy | ±0.5% | ±0.5% | ±0.3% |
Display | Cumulative flow: 9 digits Instantaneous flow: 5 digits | Cumulative flow: 9 digits Instantaneous flow: 5 digits | Cumulative flow: 10 digits Instantaneous flow: 5 digits |
Alarm | Empty pipe alarm Flow upper/lower limit alarm | Empty pipe alarm Flow upper/lower limit alarm | Empty pipe alarm Flow upper/lower limit alarm Excitation limit alarm |
Power failure record | - | - | YES |
Configuration | Button | Button | Infrared remote/Button |
Communication | RS485 Modbus RTU | RS485 Modbus RTU | RS485 with lighting protection HART/Profibus/Modbus optional |
Converter | ||||
Compact Type | IP65 | |||
Remote Type | IP65(IP68 optional) | |||
Measurement sensor | ||||
Nominal Diameter | DN15-DN1000 | |||
Pressure rating (High pressure can be customized) | DN6 - DN80, PN<4.0MPa | |||
DN100 - DN150, PN<1.6MPa | ||||
DN200 – DN1000, PN<1.0MPa | ||||
DN1200 – DN2000, PN<0.6MPa | ||||
Lining Material | Chloroprene rubber (CR), Polytetrafluoroethylene (PTFE/F4), Fluorinated ethylene propylene (FEP/F46), Teflon(PFA) | |||
Electrode Material | 316L Stainless Steel, Hastelloy C, Hastelloy B, Ti, Ta, Pt | |||
Ingress protection | IP68 | IP65 | ||
Medium temperature | -25 – 180℃ | -10 – 80℃ | ||
Serial communications | RS-485 | |||
Output | Current (4-20 mA) , pulse , frequency , state switch | |||
Max measuring error | Measurement value ±0.5%（Flow speed > 1m/s）； Measurement value ±0.5% ±2mm/s（Flow speed <1m/s） | |||
Repetitiveness | 0.15% | |||
Power supply | 100-240VAC，50/60Hz, 22VDC—26VDC | |||
Power consumption | Max 15VA | |||
Signal cable | Apply only to remote type | |||
Shielded cable | Signal section，wire: 0.5mm2 Cu /AWG20 | |||
Why Choose Us
Packing&Delivery
FAQ
1. Q: DO you have branch overseas?
A: Yes,we have established several partners overseas in the past few years.And our headquarters will provide overseas services frequently.
2. Q: Where is your compamy located?Could I visit your factory?
A:Our company is located in Hangzhou, zhejiang province, China.Sincerely invite you to visit our factory.
3. Q: How can I get some samples? Is it free?
A: Welcome to contact us by e-mail or alibaba for your requirement
4. Q: How does your factory do regarding QC?
A:Quality is priority. We always consider quality as the most important thing during the whole production process. Our factory has gained ISO9001 and CE certificate.
5. Q: What is your after-sale service? How about the warranty?
A: We offer guarantee on our product for 12 months and we have the special After-sales service team.
6.Q:Can you offer OEM or design services?
A:Yes, We design and manufacture our products by ourselves.We can make OEM according to your requirements,including packing,Logo print etc.
7. Q: What about your delivery time? And how do you delivery the goods?
A: Once getting your prepayment,the production will be started immediately.It is about 5-7 working days since payment and we usually deliver by DHL, UPS, FedEx or TNT, Airline and sea shipping also optional.For urgent orders, please contact us to inquire about the stock situation.
8. Q: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%. Secondly, during the guarantee period, we will send new parts with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
A: Yes,we have established several partners overseas in the past few years.And our headquarters will provide overseas services frequently.
2. Q: Where is your compamy located?Could I visit your factory?
A:Our company is located in Hangzhou, zhejiang province, China.Sincerely invite you to visit our factory.
3. Q: How can I get some samples? Is it free?
A: Welcome to contact us by e-mail or alibaba for your requirement
4. Q: How does your factory do regarding QC?
A:Quality is priority. We always consider quality as the most important thing during the whole production process. Our factory has gained ISO9001 and CE certificate.
5. Q: What is your after-sale service? How about the warranty?
A: We offer guarantee on our product for 12 months and we have the special After-sales service team.
6.Q:Can you offer OEM or design services?
A:Yes, We design and manufacture our products by ourselves.We can make OEM according to your requirements,including packing,Logo print etc.
7. Q: What about your delivery time? And how do you delivery the goods?
A: Once getting your prepayment,the production will be started immediately.It is about 5-7 working days since payment and we usually deliver by DHL, UPS, FedEx or TNT, Airline and sea shipping also optional.For urgent orders, please contact us to inquire about the stock situation.
8. Q: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%. Secondly, during the guarantee period, we will send new parts with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
