Product Description
Product Description

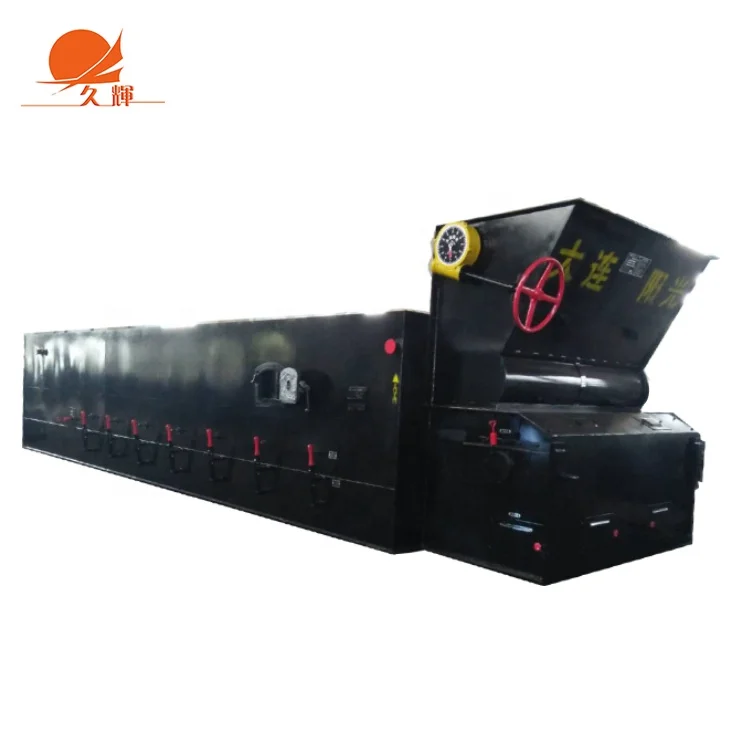

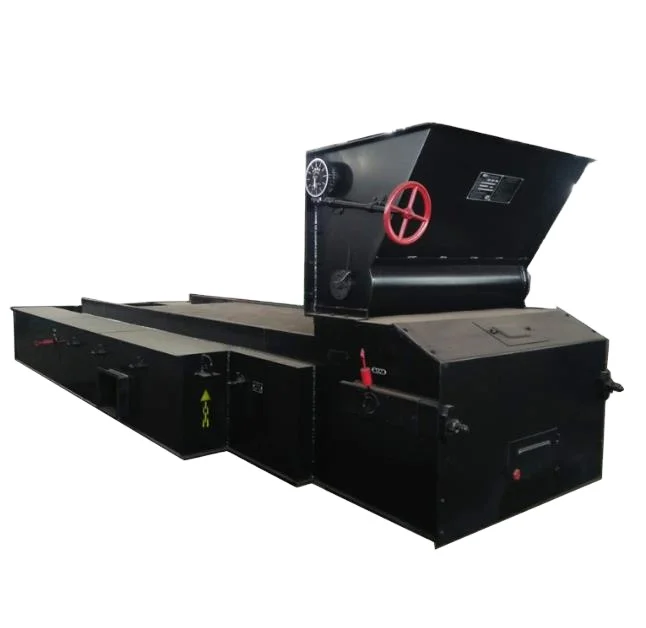

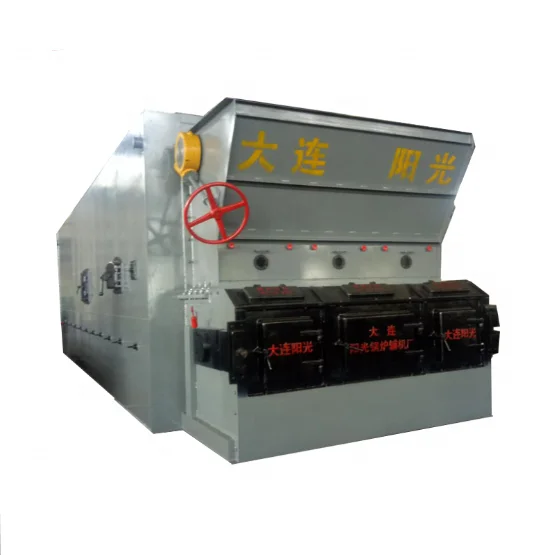

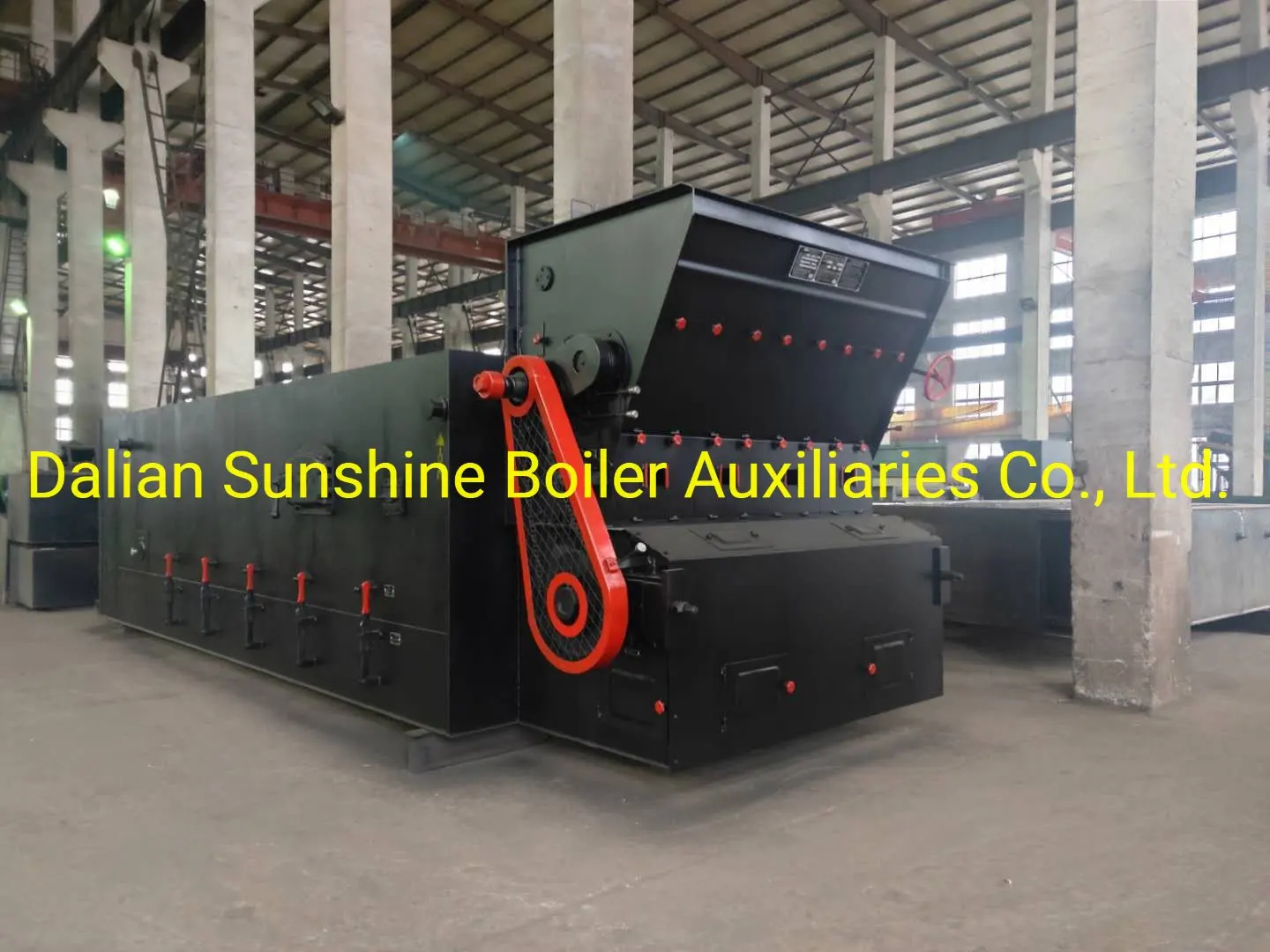

Flaked Chain type grate stoker
The coal seam is in contact with the entire grate surface, and the chain is not directly heated, the operation is safe and reliable, the grate gap is very small, the coal leakage is small, the grate piece is thin and the cooling condition is good, and the furnace can be replaced without stopping the furnace, because the chain is a flexible structure, when When the tooth shape of the sprocket on the drive shaft is slightly
staggered, the tightness can be adjusted by itself to keep the meshing good.
Advantages And Features:
1. Operation is stable and reliable.
2. Don't leak coal , increase the combustion efficiency.
3. Bulk transportation and installation.
The coal seam is in contact with the entire grate surface, and the chain is not directly heated, the operation is safe and reliable, the grate gap is very small, the coal leakage is small, the grate piece is thin and the cooling condition is good, and the furnace can be replaced without stopping the furnace, because the chain is a flexible structure, when When the tooth shape of the sprocket on the drive shaft is slightly
staggered, the tightness can be adjusted by itself to keep the meshing good.
Advantages And Features:
1. Operation is stable and reliable.
2. Don't leak coal , increase the combustion efficiency.
3. Bulk transportation and installation.
Technical Parameter
Capacity (T/H) | Effective Area | Length (mm) | Width (mm) | Output Shaft to Center of Grate(mm) | Output Shaft Diameter (mm) | Nos of Air Chamber |
10 t/h | 12.54 | 6000 | 2334 | 1630 | 100 | 5 |
15 t/h | 17.39 | 6500 | 3074 | 2120 | 130 | 6 |
20 t/h | 20.7 | 7500 | 3444 | 2205 | 130 | 6 |
30 t/h | 27.54 | 8000 | 3814 | 2570 | 130 | 7 |
40 t/h | 35.38 | 8500 | 4554 | 2770 | 130 | 7 |
60 t/h | 56.15 | 10035 | 6034 | 3950 | 180 | 8 |
75 t/h | 68.51 | 8900 | 8386 | 4935 | 200 | 8 |
100 t/h | 95.2 | 10165 | 10144 | 5585 | 200 | Big |
160 t/h | 153.7 | 10600 | 15800 | 8550 | 220 | Big |
220 t/h | 212.6 | 12400 | 18260 | 9860 | 250 | Big |
Company Vision:To become A World-class Energy-saving Combustion Enterprise.
Dalian Sunshine Boiler Auxiliaries Co., Ltd is located in Dalian City. Our branch is located in Wafangdian City,is now one of the largest boiler auxiliary manufacturers in China.
Our company has five workshops and three casting plant,well-equipped,with various auxiliary components can ensure the casting.precision machining,welding equipment more than 200 sets.Our company hhave been cooperated with tsinghua university.Peking University Peking University Professors for years to keep us in a leading position.
Name: Coal feeder/ fuel loader for boiler chain grate
Width: 1200mm, Height: Customized according to Chain Grate.
Capacity: 1ton/h~20t/h
Advantages： Small but convenient, Suitable for 1t/h-30t/h chain grate boiler.
Advantages： Small but convenient, Suitable for 1t/h-30t/h chain grate boiler.
Fuel Feed Equipment / Conveyors
Advantages:
This machine is an efficient, fast and stable feeding equipment without vibration. As a bulk material continuous conveying
equipment. Feeder is widely used in coal, metallurgy, electric power, and other industries
This machine is an efficient, fast and stable feeding equipment without vibration. As a bulk material continuous conveying
equipment. Feeder is widely used in coal, metallurgy, electric power, and other industries
Grate parts
.Grate bar for different type of grate, including travelling grate (aka. Flake Type Grate, Chain Grate,Cross-beam Grate), step
grate (Reciprocating Grate),etc
grate (Reciprocating Grate),etc
