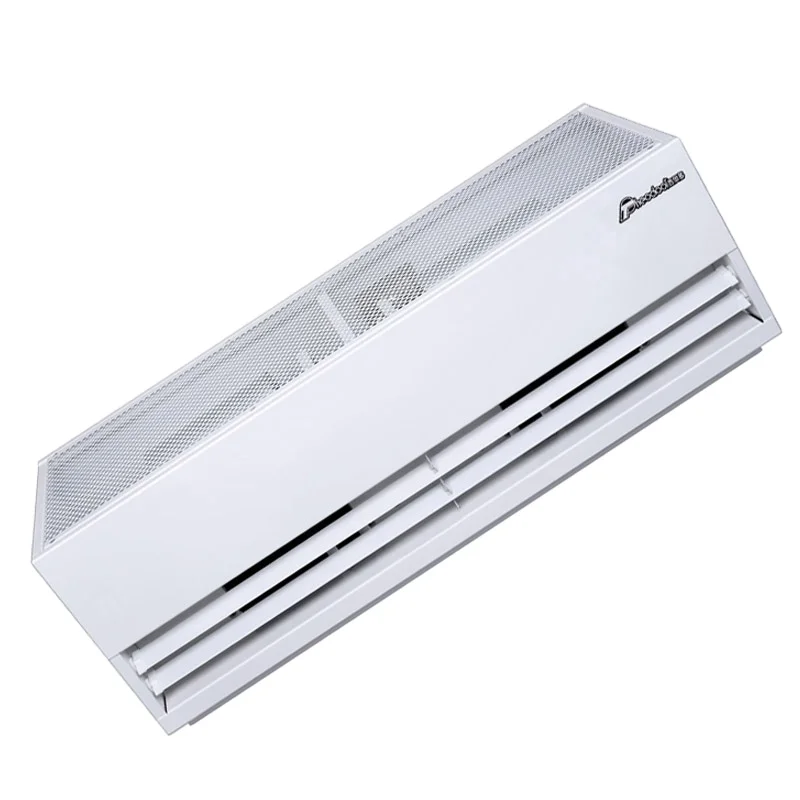

25m/s Heavy Duty Industrial Air Curtain For Storage Room/ Factory Warehouse



Fine workmanship

The square reinforced structure is made from galvanized steel with powder coated, sturdy and durable which is never being deformed.



Powerful airflow

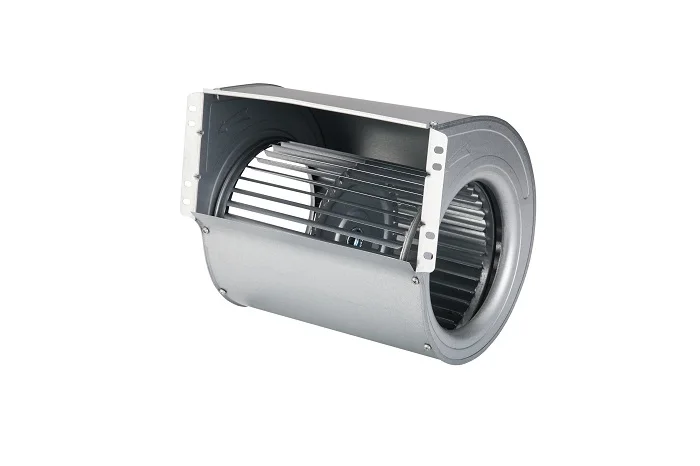

Centrifugal Metal fan blower (Fan diameter Φ145) supply powerful airflow. Large air outlet and higher air velocity reach up to 25m/s create more sufficient air volume.



Stable performance

The centrifugal turbine fan is made from steel which is safe and durable. The high velocity powerful motor can meet the higher installation and special environments.



Extra wind force Air Curtain for special situations.



Application: installation in plant, cold storage, garage, workshop and other industrial use.



Specifications:



Model	Dimension (mm)	Frquency (Hz)	Voltage (V~)	Motor power H / L	Air volume H / L	Air velocity H / L	(dB) Noise
FM-6009A	900*350*300	50	220	1300	3760/3000	25/20	66
FM-6010A	1000*350*300	50	220	1400	4150/3300	25/20	66
FM-6012A	1200*350*300	50	220	2000	5640/4510	25/20	69
FM-6015A	1500*350*300	50	220	2600	7520/6010	25/20	70
FM-6018A	1800*350*300	50	220	2800	8500/6800	25/20	70
FM-6020A	2000*350*300	50	220	3300	9400/7520	25/20	72
FM-6009A	900*350*300	50	380	1300	3760	25	66
FM-6010A	1000*350*300	50	380	1400	4150	25	66
FM-6012A	1200*350*300	50	380	2000	5640	25	69
FM-6015A	1500*350*300	50	380	2600	7520	25	70
FM-6018A	1800*350*300	50	380	2800	8500	25	70
FM-6020A	2000*350*300	50	380	3300	9400	25	72
