SRA-14411 STAS-14411T DCR 14411 s VS14411 VS14411S C-14411-G жидкости и всасывающий трубопровод сменный сердечник

SRA-14411 STAS-14411T DCR 14411 s VS14411 VS14411S C-14411-G жидкости и всасывающий трубопровод сменный сердечник

Категория: Air Conditioner Parts >>>
Поставщик: XCL,HVACR,INDUSTRIES,CO.,LTD.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-15-2025	0.12 $*	0.57 $*
Aug-15-2025	0.30 $*	0.52 $*
Jul-15-2025	0.77 $*	0.52 $*
Jun-15-2025	0.4 $*	0.43 $*
May-15-2025	0.66 $*	0.1 $*
Apr-15-2025	0.89 $*	0.47 $*
Mar-15-2025	0.92 $*	0.10 $*
Feb-15-2025	0.5 $*	0.37 $*
Jan-15-2025	0.31 $*	0.92 $*

Характеристики

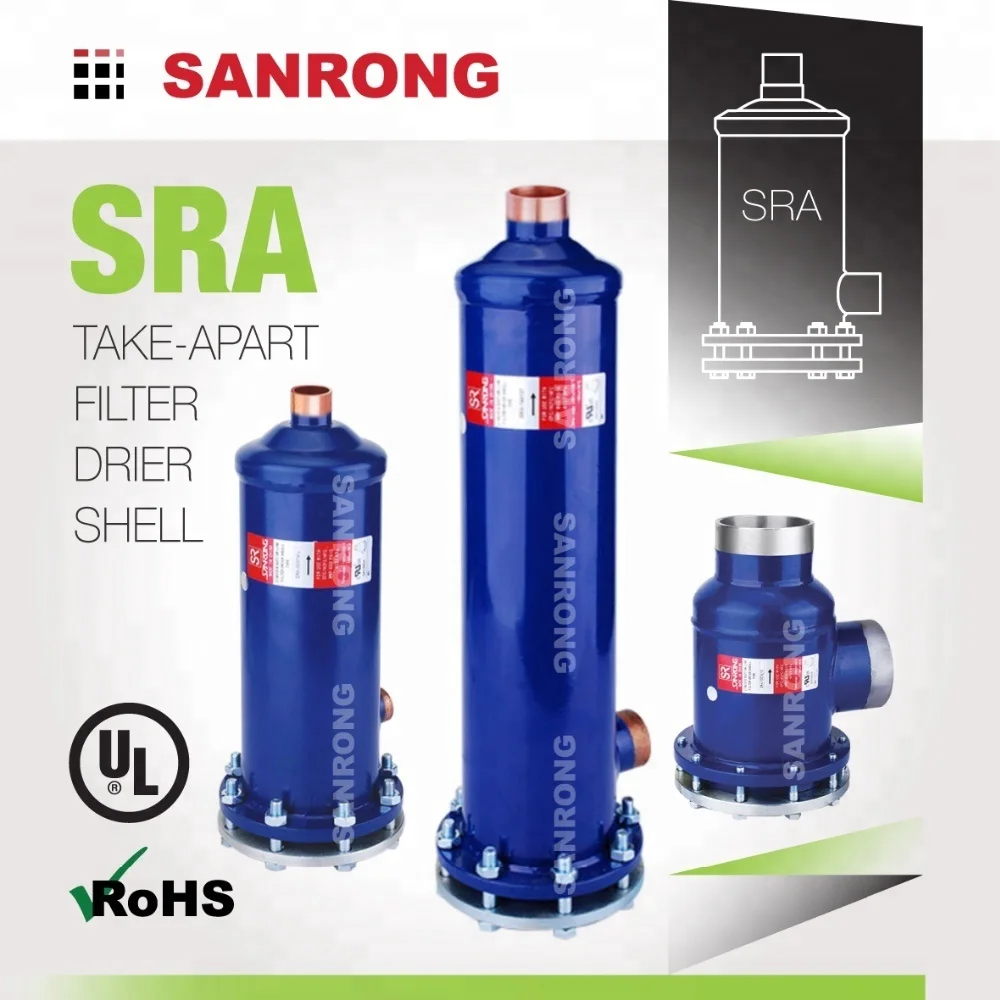

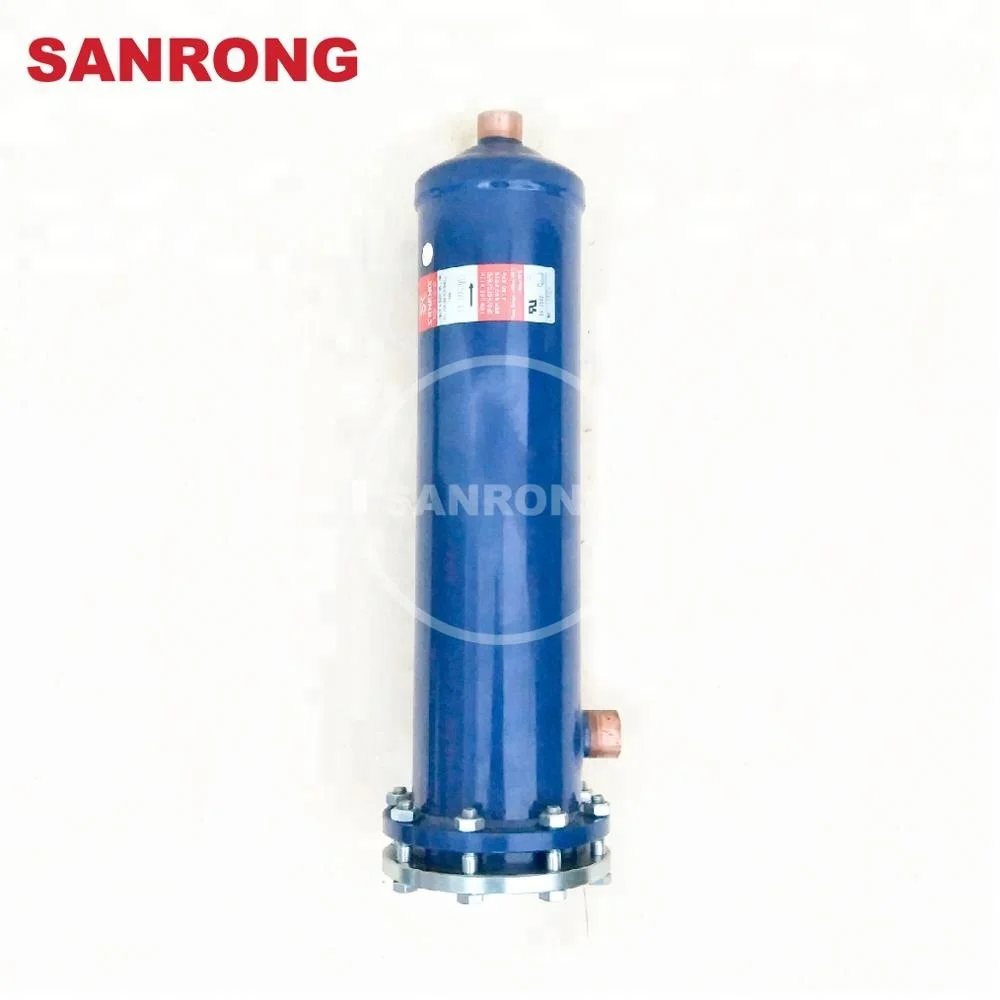

Sanrong SRA Take-Apart Filter Drier Shell for Liquid Line & Suction Line

designed for commercial refrigeration & air conditioning systems with CFC, HCFC, and HFC refrigerants

PRODUCT DESCRIOTION

The SRA is a replacable core filter drier shell for use in large commercial air conditioning and refrigeration systems. The internal assembly allows the use of all kinds of Sanrong’s replacable cores depending on the system requirements or application. SRA series filter drier shell can replace STAS, ADKS, VS, DCR and Catch-All take-apart shells.

FEATURES

Compatible to R22, R134a, R410A, R407C, etc.;
Wide range of connection sizes
High moisture absorption, acid removal and filtering capacity;
Power paint exterior coating surpasses 500-hour ASTM neutral salt spray test to resist corrosion;
Slotted cover and unique internal hardware for hassle-free installation;
Sturdy steel shells for long service life;
Carbon finer reinforced PTFE gasket;
Solid copper full-flow connections for low pressure drop;
Optional 1/4” NPT pressure tapping;
Max. working pressure of 4.5MPa / 650psig;

PRODUCTS DISPLAY

Models	Conn. Size (inches)	No. of Cores	Dimensions (inches)				Liquid Flow Capacity (tons @ 1psi ΔP)
		No. of Cores	Dimensions (inches)				Liquid Flow Capacity (tons @ 1psi ΔP)
		Qty x Size	A	B	C	D	R22	R134a	R404A	R407C
SRA-485	5/8 ODF	1 x 48in³	8.82	5.41	3.15	4.49	21	21	15	21
SRA-487	7/8 ODF		8.98	5.57	3.31		41	38	27	39
SRA-489	1 1/8 ODF		8.94	5.53	3.27		58	53	38	56
SRA-4811	1 3/8 ODF		9.19	5.79	3.52		81	75	53	78
SRA-4813	1 5/8 ODF		9.21	5.81	3.54		89	81	58	85
SRA-4817	2 1/8 ODF		9.41	6.12	3.50		101	93	66	97
SRA-4821	2 5/8 ODF		9.53	5.65	4.21		105	97	68	101
SRA-4825	3 1/8 ODF		10.00	5.85	4.21		119	110	77	114
SRA-967	7/8 ODF	2x48in³	14.69	11.28	3.31		45	42	27	43
SRA-969	1 1/8 ODF		14.65	11.24	3.27		71	65	42	68
SRA-9611	1 3/8 ODF		14.90	11.50	3.52		87	80	54	83
SRA-9613	1 5/8 ODF		14.92	11.52	3.54		100	92	58	95
SRA-9617	2 1/8 ODF		15.12	11.71	3.50		104	96	68	100
SRA-9621	2 5/8 ODF		15.24	11.18	4.21		109	101	71	105
SRA-9625	3 1/8 ODF		15.35	11.20	4.21		125	116	81	120
SRA-1449	1 1/8 ODF	3x48in³	20.28	16.87	3.27		72	66	47	69
SRA-14411	1 3/8 ODF		20.53	17.13	3.52		100	92	65	96
SRA-14413	1 5/8 ODF		20.55	17.15	3.54		101	93	66	97
SRA-14417	2 1/8 ODF		20.67	17.38	3.50		120	110	78	115
SRA-19211	1 3/8 ODF	4x48in³	26.44	23.03	3.52		102	94	67	98
SRA-19213	1 5/8 ODF		26.46	23.05	3.54		113	103	74	108
SRA-19217	2 1/8 ODF		26.57	23.29	3.50		123	113	80	117
SRA-19221	2 5/8 ODF		26.85	23.44	4.21		131	121	85	126
SRA-20034	4 1/4 ODF	2x100in³	17.95	12.64	5.28	6	149	138	98	146
SRA-30013	1 5/8 ODF	3x100in³	23.98	19.25	4.30		110	102	73	108
SRA-30017	2 1/8 ODF		24.13	19.41	4.50		160	148	107	157
SRA-30021	2 5/8 ODF		24.57	19.88	4.97		168	155	111	165
SRA-30025	3 1/8 ODF		24.57	19.88	4.97		182	168	120	178
SRA-30034	4 1/4 ODF		24.25	18.94	5.28		198	183	131	194
SRA-40017	2 1/8 ODF	4x100in³	31.81	27.09	4.50		170	157	114	167
SRA-40021	2 5/8 ODF	4x100in³	32.24	27.52	4.97		180	166	120	177
