Испытательный стенд для электронного
- Категория: Испытательное оборудование >>>
- Поставщик: Jiangsu Lanmec Electromechanical Technology Co., Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-20-2025 | 2359885.43 $* | 2407083.92 $* |
| Jul-20-2025 | 1913922.74 $* | 1952200.83 $* |
| Jun-20-2025 | 2322721.29 $* | 2369175.9 $* |
| May-20-2025 | 2304139.27 $* | 2350222.82 $* |
| Apr-20-2025 | 1839595.73 $* | 1876387.58 $* |
| Mar-20-2025 | 2266976.95 $* | 2312316.81 $* |
| Feb-20-2025 | 2248394.42 $* | 2293362.62 $* |
| Jan-20-2025 | 2229812.44 $* | 2274408.36 $* |
Характеристики
Product Categories
Product Description

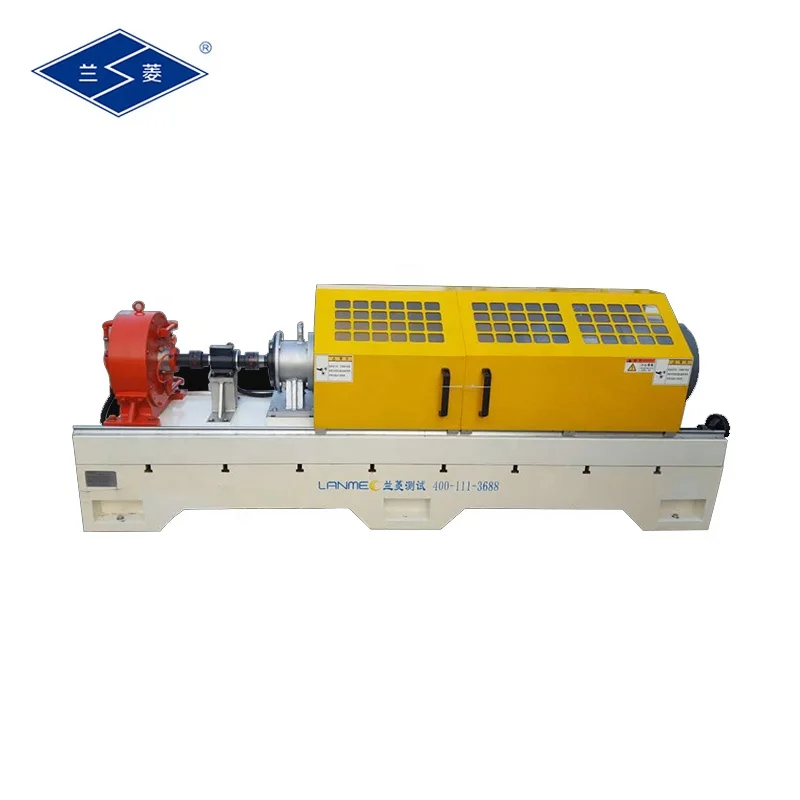

Electronic motor test bench engine
Product details
| dynamometer | DWZ/DW-160 |
| Rated absorption capacity | 160 |
| Rated torque | 600 |
| Rated speed | 2000-2600 |
| Maximum speed | 8000 |
| Moment of inertia | 0.52 |
| Maximum excitation voltage | 120 |
| Maximum excitation current | 5 |
| Cooling water pressure | 0.1~0.3 |
| Cooling water flow | 100 |
Related Products
Application
Main application
DWZ disc eddy current brake is mainly used as load in loading dynamometer equipment. it is experimental apparatus which can measure the dynamic mechanical properties, especially in dynamic loading test whose power value is small or tiny, also can be treated as suction power devices of other dynamic devices.
DW series disc eddy current dynamometer is, is that add device for measuring torque and rotational speed on DWZ series disc eddy current brake, it is experimental apparatus which can measure the dynamic mechnical properties, especial in dynamic loading test whose power value is small or tiny.
CW eddy current brake as a load is mainly used to measure the mechanical characteristics of inspection equipment, it and other control instrument (including loading apparatus, torque speed sensor and torque power acquisition instrument etc.) can be composed of eddy current dynamometer can be used for performance testing of the internal combustion engine, motor, gas turbine, automobile and its dynamic mechanical components, compared with other power measuring device, the CW series power measuring device has the advantages of reliability, high stability and practicability.
