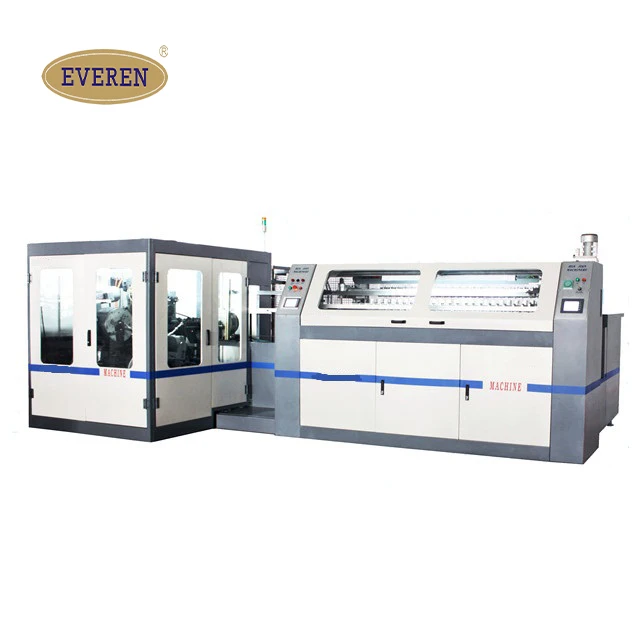

Fully Automatic mattress Bonnell Spring Units Transfer line Machine EE-820i
Product Description
Feature:
EE-820i AUTOMATIC BONELL TRANSFER MACHINE is the latest model for producing "Bonnell" type innerspring units. It can produce innerspring units directly from wire.
Firstly the steel wire is coiled to a spring, and then transferred and inserted to the assembler by the automatic feeding system.
After this, the upper and lower springs are coiled together at the same time and helical wire is coiled, cut and clamped at both ends automatically.
When a unit is finished, it could be ejected automatically.
Technical parameter:
Machine model
EES-820i
Spring Type
Bonnell
Production Capacity
80Sheets/8Hours (1800×2000mm)
Max Width
2M
Spring End Ring
Φ65-Φ72MM,Φ75-Φ90MM,Φ82-Φ92MM
Spring Steel Wire Gauge
Φ1.9-Φ2.4MM
Height Wire Gauge
Φ1.3-Φ1.5MM
Spring Height
80-200MM(<80MM on request)
Convolutions
4-7 Turns
Total Power
10KVA
Weight
5355KG
Power Requirement
380V,3 Phase,50-60HZ(Option:415V-480V, 220V)
Product Overview
FAQ
Q1:What’s the warranty year of machines?
A1: One Year, except for the wearing parts.
Q2:What’s the delivery date?
About 20 to 90 days after received the deposit.
Q3:How to guarantee the machine quality?
A3: Our professional technicians will do repeated tests and adjustments to ensure that the quality of the machine is the best.
Q4:How to install and operate the machine after received the machine?
A4: We will provide pictures, videos and manual to guide you to install and operate. We also provide the technician to door service if you need.
Q5:How to solve the problem during the use of machine?
A5: If any questions during the use, please sendus the description of problem together with pictures or videos,our professional after-sales team will reply you immediately.
