Сертифицированный IP66 взрывозащищенный светодиодный уличный фонарь IECEX И

Descriptions:

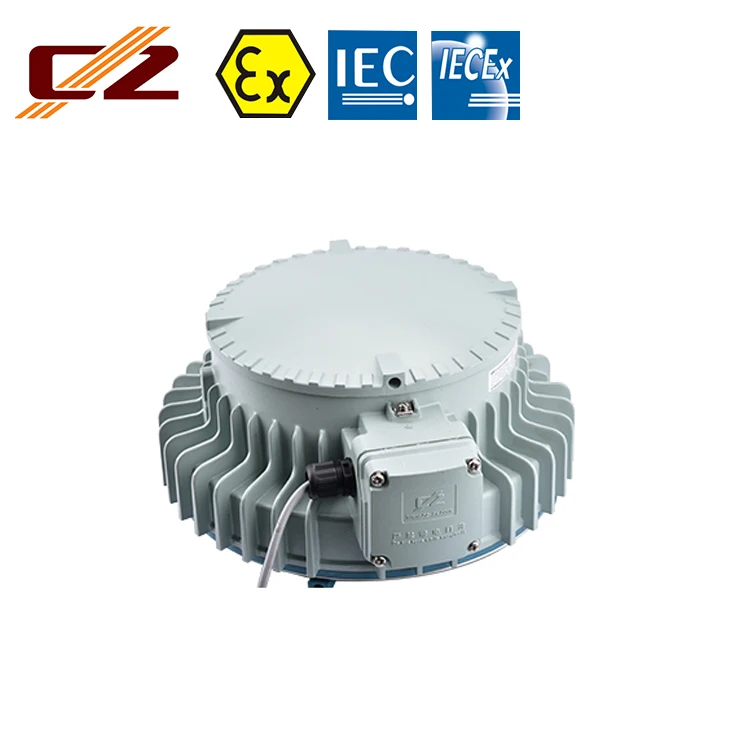

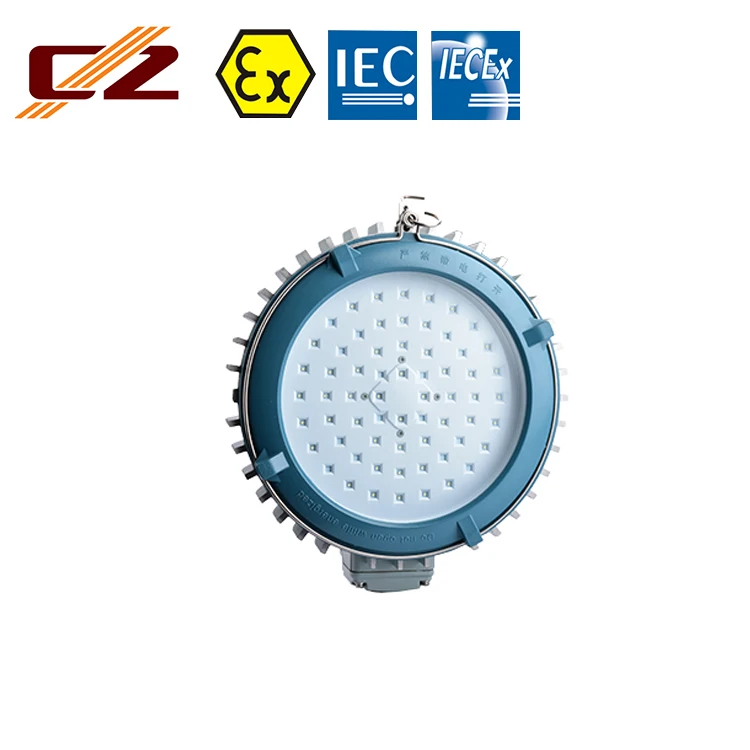

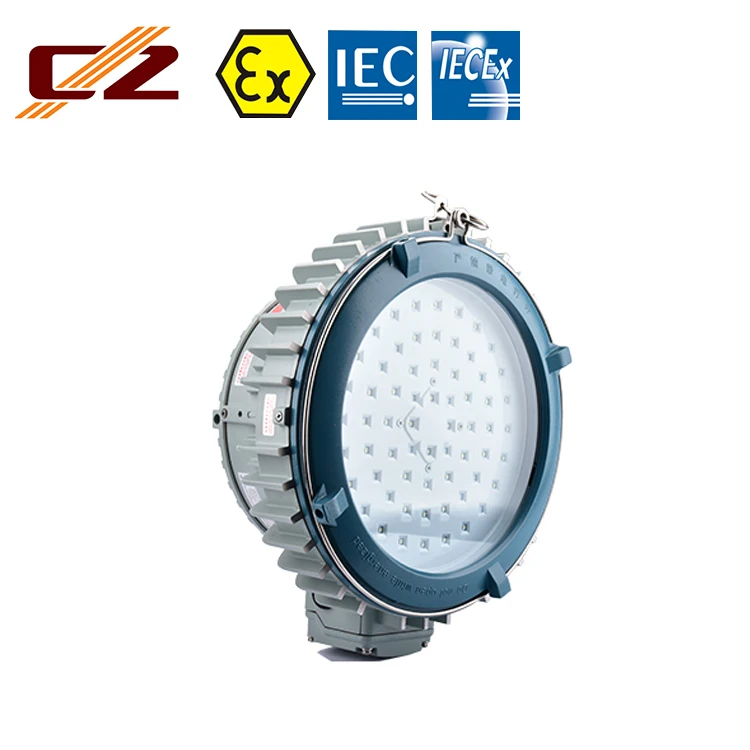

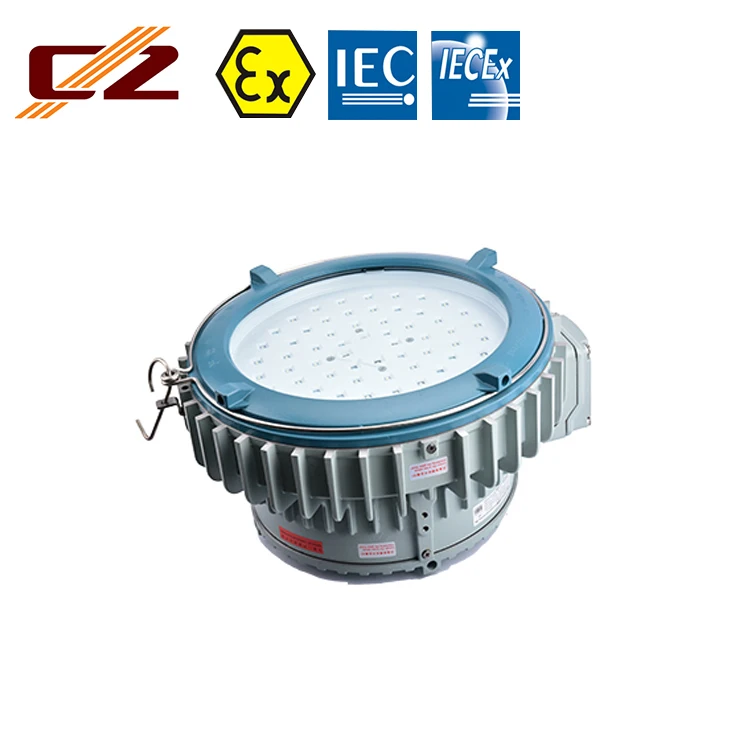

The enclosures of LED explosion-proof light fitings are manufactured by die-cast aluminum alloy, with epoxy resin powder sprayed on the surtaces. Therefore, they have good anti corrosion performance.The transparent cover is made by the toughened glass , and the exposed fasteners are made of stainless The internationally certified PHOENIX cage type terminals are selected as the internal terminals, which are convenient for the wiring. The Cree LED pellets inside form light source modules through professional optics Is equipped with three kinds of ilumination Angle to choose from. Heat disposal which is designed with thermology analysis and the heat conducting structure of specifically made aluminum base board ensure good operational heat release. It can satisfy the related requirements of illumination in petrochemical, chemical and Marine industries.

   Explosion-proof light fitingsg can be sorted as: bracket type, platform type, wall type and street type.
   The mounting ways of the explosion-proof platform light fitings C-90°C are fence type and platform flange type.

   The mounting ways of the explosion-proof platform light fitings D-25°C are fence type and platform flange type.
   There is a feature of good electromagnetic compatibility and it does not cause interference to the system power grid.

   There is a good performance of vibration due to the LED is the solid-state light source.

   The degree of protection is up to IP 66.
   It is convenient to be mounted and maintained.

Order specification:

Code of cable gland:

Outline and installation dimensions:

Mounting ways and outline dimensions:
