Высокоэффективное косметическое сырье шлифовальная мельница и дробильная машина для талькового порошка теней

Crusher is the cosmetic, pharmaceutical, food, chemical industry, scientific research, metallurgy and other industrial sectors with starch materials or ore by high-speed cutting, hammering, driven by strong turbulence, the stainless steel mesh filter and get the powder. This series of machines with low temperature, low noise, high efficiency. Suitable for grinding of chemical materials, medicines and other dry brittle materials.

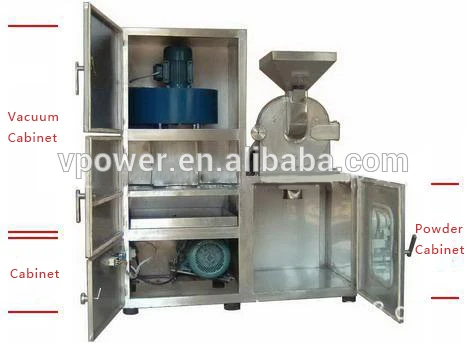

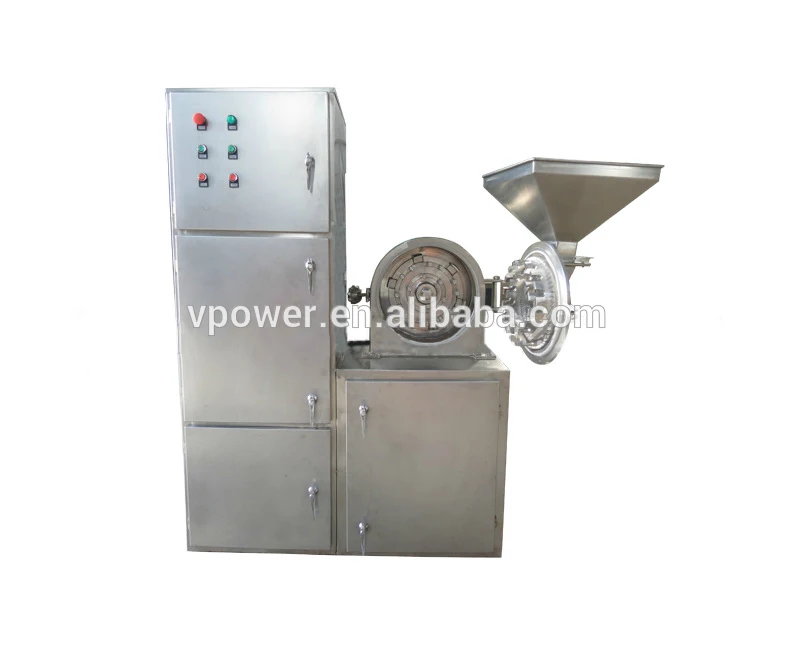

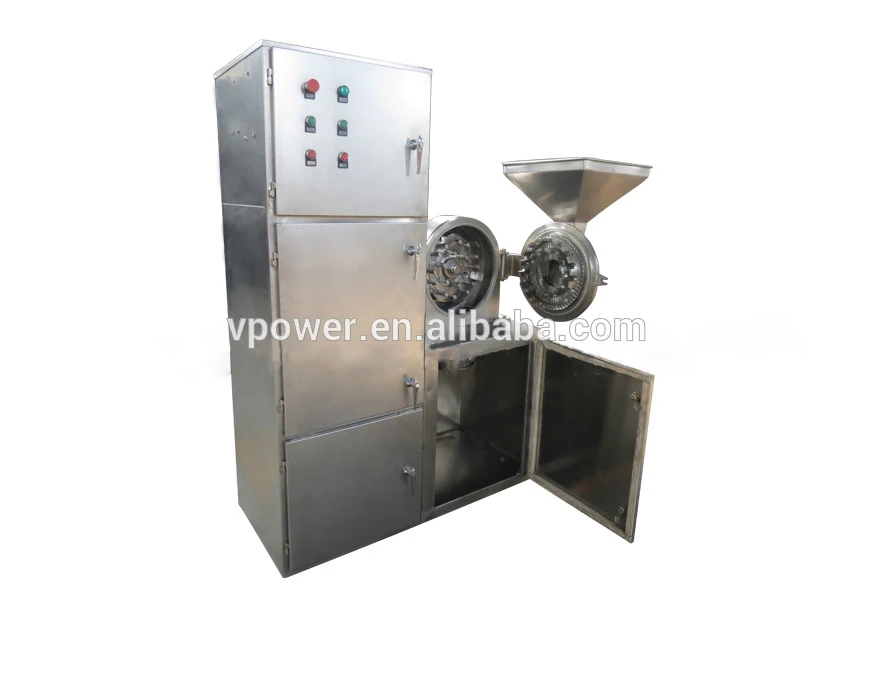

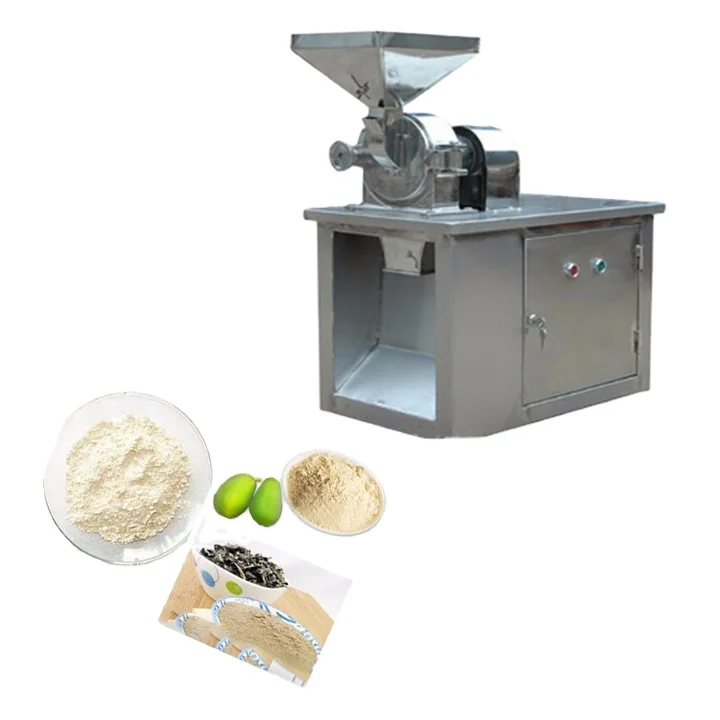

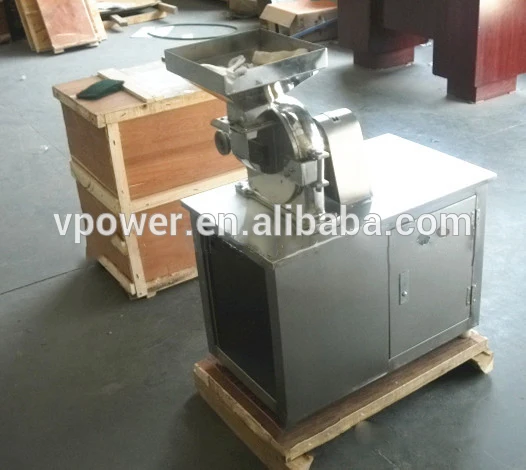

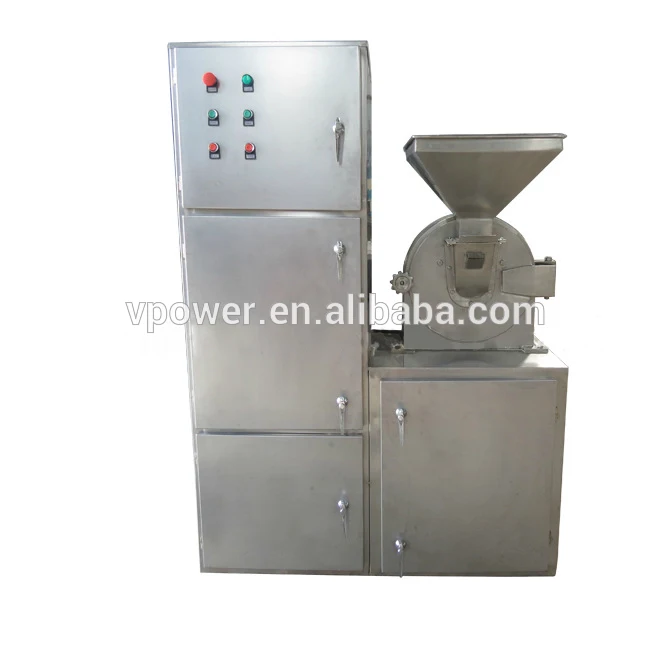

Photos:

Description:

Other methods of application:
1, in the application of cosmetics: through the crushed, absorbs short, absorbed more fully, more obvious.
2, the application in veterinary drug industry: (traditional Chinese medicine) after crushing, the veterinary drug can improve effectiveness, reduce costs and resolve drug residue, to improve security.
3, precision mixing (achieving uniformity of better than ± 1 ‰ composite precision coating)
4, for the effects of drugs (including coating)
A - for tablets and capsules, improving the dissolution rate, improving the bioavailability of improving appearance and content uniformity fiber elastic reducing easy granulating, Tablet; capsules increase specific gravity, increasing the amount of capsule filling;
B - for soft gelatin capsules, improving the pharmacokinetics and matrix mixing homogeneity, reduce settlement due to improves the pharmacokinetics of granularity, so you can reduce the amount of substrate, reducing costs; isometric particles, thixotropy, particle size distribution, compressed crushing
C - for the ointment, gel and other topical agents, improving the pharmacokinetics and matrix mixing homogeneity; improving the appearance of smoothness; particle size reduction, Percutaneous absorption, improve treatment efficacy.

Working principle and structure feature:
This machine is done by the active and fixed speed relative motion between the plates, the shredded materials are active and fixed between the impact, shear, friction and material impact integrated with each other to obtain material pieces.
This series of machines have the following characteristics:
1, the machine sports a one-way high-speed continuous rotating ¡ú tape drive speed → active plate from motor rotation along the single, rotating at high speed with the transmission.
2, the front cover of the machine must be shut down after opening for easy cleaning machine cavity to ensure cleanliness of the working face of the machine.
3, the shredded material discharged directly in the belly of the machine.
4, the thickness of the degree of grinding can be achieved by different size screen.

Operation:

(1) rotate the handwheel until the song to a certain extent, to push the handwheel gently to the left, you can open the crushing cavity door cover.
(2) unscrew grinding cavity fixing screws, remove the ring gear, remove the screen, put on the right screen, fitted with the ring gear.
(3) close the crushing cavity cover, screw the crushing cavity fixing screws.
(4) open the door cover will pick up bags in a hopper, and then tied the bag.
(5) close the discharge door cover
(6) turn on the power switch, when turned on, no-load test for 1-2 minutes, and then adjust the flow rate.

Matters needing attention:
1, check that the grinding cavity is a foreign body (before starting must be empty), power on.
2, tighten the butterfly nut cover and a crushing Chamber on.
3, start the motor, empty to turn 1-2 minutes, then gradually from the feeding disc feed materials, feed should not be too much too quickly.
4, if the material gets stuck, the motor does not turn, immediately shut down to avoid motor burn, to clear the item card, continue to be used.
5, the machine is in use during the flight recorder do not open lid by hand into the crushing cavity.
6, a native of dry mill, not crushing wet and greasy objects.
7, users under the required replacement of different screens.
8, this machine uses the overheat protector, such as the motor load is too large, it will automatically shut down if they continue to operate, please press back protector.
9, during the working process, shall not be greater than 15 amps of current.

Common malfunction causes and removal methods
Fault
The causes
Exclude method (you must cut off the power supply to the following)
After power up the motor does not rotate
1, power supply connection is bad or the plug is loose.
2, power switch connection is bad
3, microswitch contact
4, heat protection failure
Power 1, repair or replace the connector
2, repair or replace the switch
3, adjusting micro switches
4, replace Thermal Protector
After power up the motor turns too slow or not to switch to vibrate
1, mechanical part jammed (Crusher tank for objects)
2, the centrifuge is not open
3, power supply voltage is too low
1, removal of the foreign body in a crushing tank, boot again after idling for half a minute before slowly feeding
2, adjust the power supply voltage
Motor casing surface from overheating
1, overload
2: motor wet
3, power supply voltage is too low
1, reduce job stress
2, dry motor
3, adjust the power supply voltage
Commutator surface fire ring or larger sparks are generated
1, the surface of the commutator is not smooth
1, clear the commutator surface clutter

 1) Pre-sale Service:

a) Our sales will give a detailed introduction and explanation to the whole line.

b) Our engineer will design the factory layout for you.

c) We can offer you the OEM, basis on your request.

2) After-sales Service:

a) We can offer the Turkey Project at your request.

b) We offer you the whole factory design and machines' installation drawing

c) You can sell our worker to our factory for learning the goods shipping.

d) We will offer machine operation training and guidance for free when machine being installed.

e) One year warranty.
