Product Description

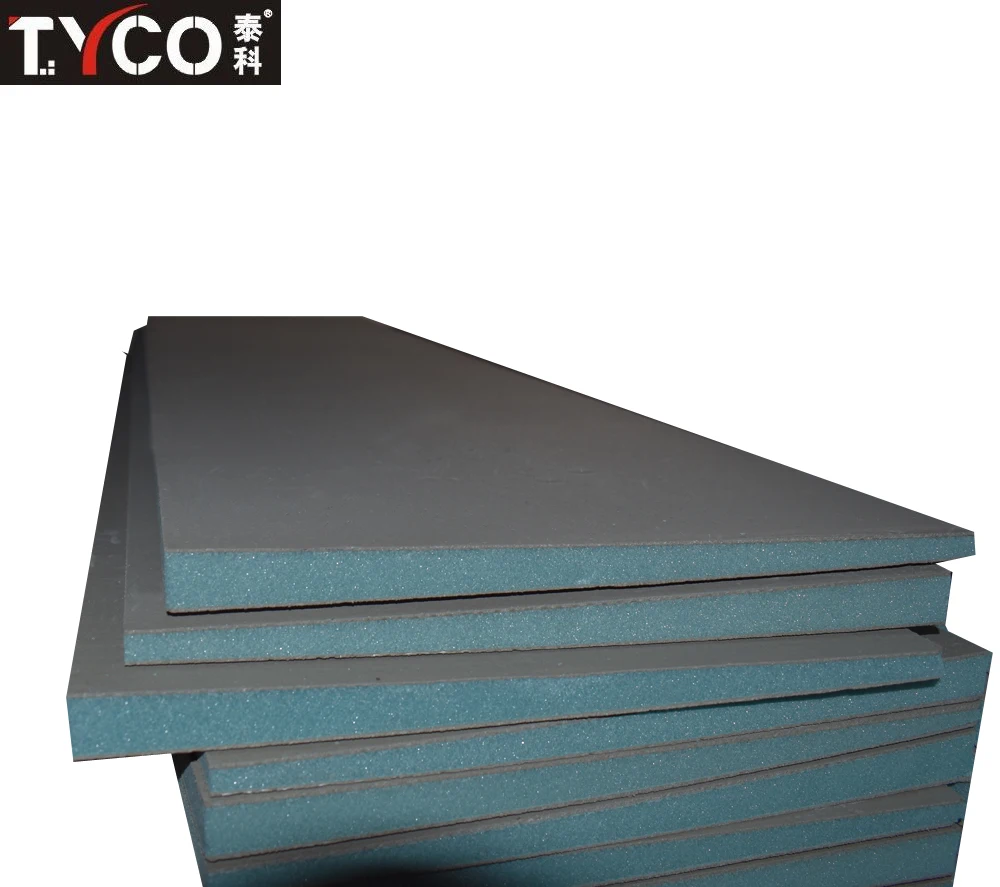

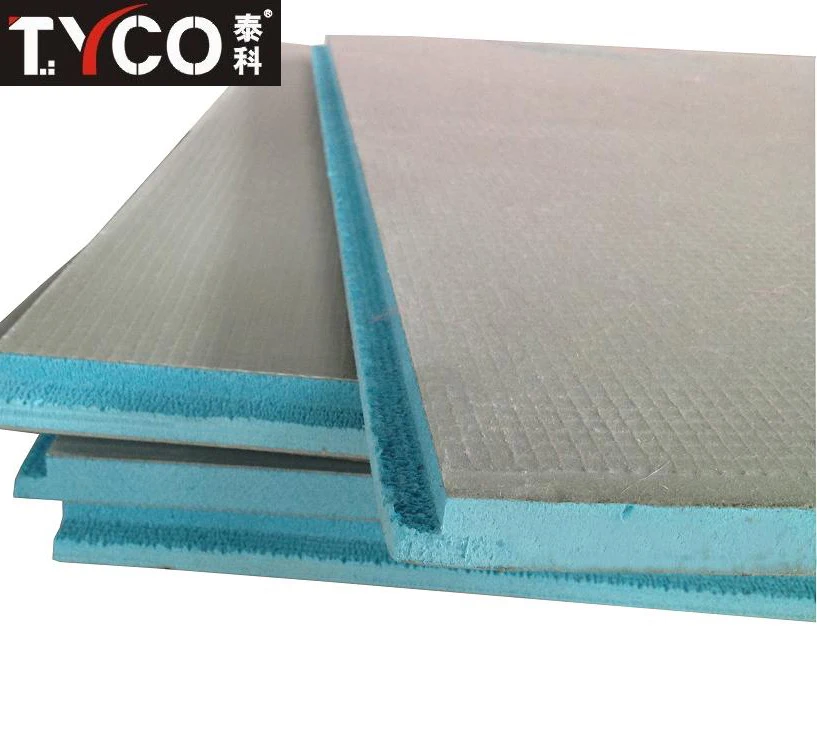

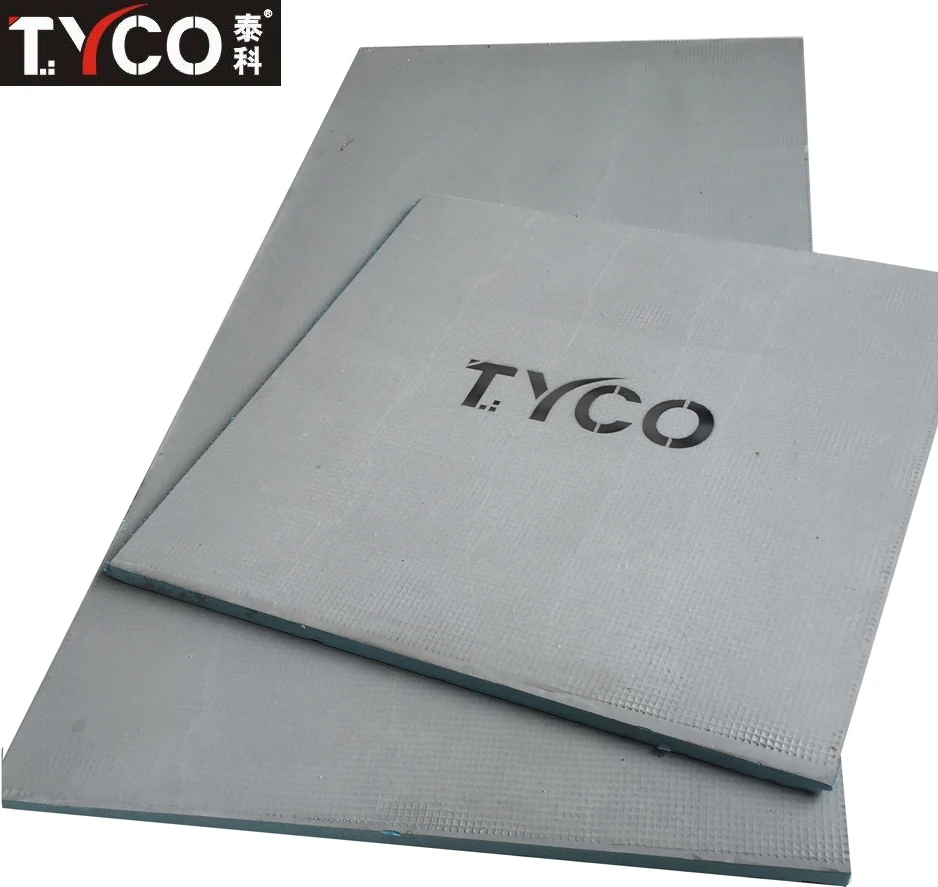

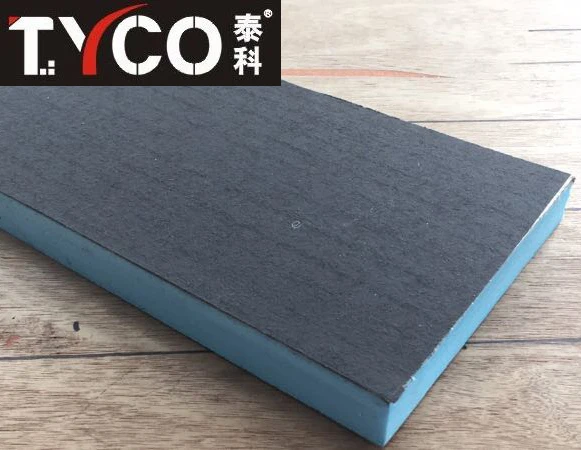

Overview of TYCO Boards
TYCO backer board is made of XPS foam board (CFC & HCFC free, blue closed cell core) in core and coated with fiberglass mesh and polymer cement mortar on both sides. It makes the backer board ideal base for setting tiles using the thinbed process. The XPS foam board in core is 100% waterproof and offers expectional resistance to water vapor. As proof, these panels meet the stringent standards of ASTM/ANSI testing for waterproofing and are suitable as part of a waterproof installation when seams and fastener heads are properly treated.
Characteristics of 10mm Insulation XPS Foam Board for Installation
* Thermally insulating
* Waterproof and dimensionally stable
* Low weight, one board(1200 x 600 x 10mm) is around 1.8kg
* Easy to cut ( by knife or saw)
* Excellent for wet rooms
* Excellent for sound insulation (12mm board,20db)
* Environment friendly (free of CFC & HCFC)
* Easy to be tiled
Density of core board | Kg/m³ | 35-45 |
Thermal conductivity, 90 days, 10°C | W/mK | 0.027-0.036 |
Compressive strength at 10% deflection or yield, (vertical) | kPa | ≥300 |
Water absorption | Vol-% | <=1.00% |
Capillarity | nil | nil |
Coefficient of linear thermal expansion | mm/mK | 0.07 |
Temperature limits | °C | -50°C, +75°C |

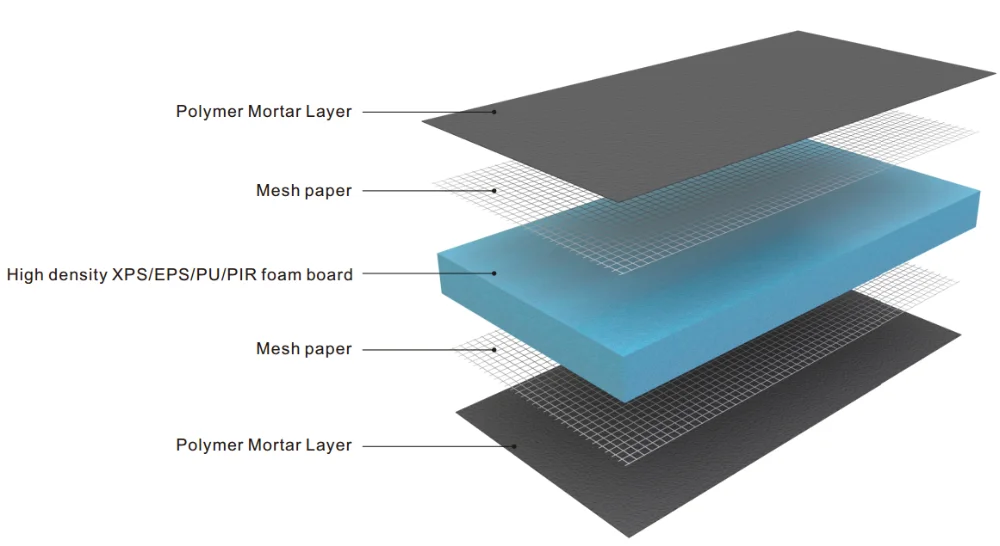

Structurer & Size
XPS Tile Backer Board Sizes
Item No. | Thickness | Width | Length |
UTB12006 | 6mm | 600mm | |
UTB12008 | 8mm | ||
UTB24410 | 10mm | ||
UTB24412 | 12mm | ||
UTB24420 | 20mm | ||
UTB24430 | 30mm | ||
UTB24450 | 50mm |
Extra Wide sizes
Item No. | Width x Lengh x Thickness |
CB53-12.7 | 3' x 5' x 1/2" (914 x1524 x 12.7 mm) |
CB83-12.7 | 3' x 8' x 1/2" (914 x 2440 x 12.7 mm) |
CB84-25 | 4' x 8' x 1" (1220 x 2440 x 25 mm) |
CB83-50 | 3' x 8' x 2" (914 x 2440 x 50 mm) |
CB84-50 | 4' x 8' x 2" ( 1220 x 2440 x 50 mm) |
Note:
1. For solid walls the minimum board thickness for mechanical fixing is 10mm
2. For stud walls, the studs at 600mm centers for 20mm or thicker boards, while for 12mm or 10mm thick boards require to be fixed at 300mm centers.
3. Use long boards or extra wide panels to reduce the requirement for noggins and taping
Application Photo

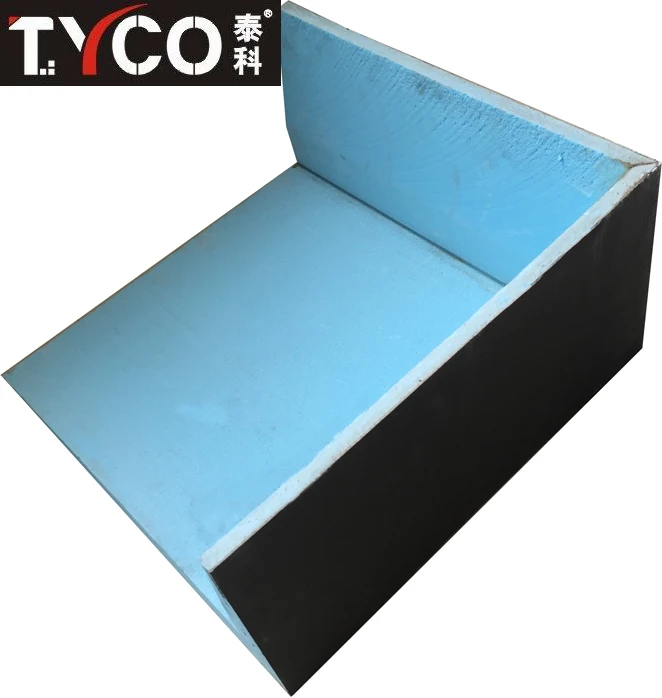

The tile backer board is widely use in wall and floor insulation in bathroom.
Also it is good used as a underlay for electric heating mat and cable.
