300 мм 3-аспект RYG мяч дорожного движения свет
- Категория: Светофор >>>
- Поставщик: Nanjing,Gaoqiao,Traffic,Signal,Project,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-15-2025 | 113.88 $* | 115.19 $* |
| Jul-15-2025 | 92.35 $* | 94.81 $* |
| Jun-15-2025 | 111.29 $* | 113.16 $* |
| May-15-2025 | 110.42 $* | 112.53 $* |
| Apr-15-2025 | 88.6 $* | 90.49 $* |
| Mar-15-2025 | 109.6 $* | 111.35 $* |
| Feb-15-2025 | 108.91 $* | 110.86 $* |
| Jan-15-2025 | 107.38 $* | 109.13 $* |
Характеристики
Product Overview
Model | NJGQ-JD-300-3Y3, NJGQ-100/200/300/400-JD/FX/DJS/CD/RX/DT-1/2/3/4/5-Y/F/YF | NJGQ-200-1/2/3/4 | NJGQ-300-1/2/3/4 | NJGQ-400-1/2/3/4 | |||||||
NJGQ | Short Form For Nanjing Gaoqiao Traffic Signal Project Co., Ltd | ||||||||||
Diameter | φ100 | φ200 | φ300 | φ400 | φ500 | Customized | |||||
Type | JD=Ball Light | FX=Arrow Light | DJS=Timer | CD=Road Line | RX=Pedestrian | DT=U-turn | |||||
SG=Flash Warning Light | DK=Outer Housing Body Part | DX=Inner LED Module Part | |||||||||
Aspect | 1=1 Aspect | 2=2 Aspects | 3=3 Apects | 4=4 Aspects | 5=5 Aspects | 6=6 Aspects | |||||
Shape | Y= Round Shape | F=Square Shape | YF=Round+Square Together | ||||||||
\t\t\t\t\t\t\t\t\tSpecification \t\t\t\t\t\t\t
Name | 300MM 3-Aspect RYG Ball |
Model | NJGQ-JD-300-3Y3 |
Meas | 400*145*1205MM/φ300+254MM |
Housing | UV PC Plastic |
Feature | Flip Door+Detachable Aspect |
LED Color | Red+Yellow+Green Balls |
LED Number | 147pcs/R+147pcs/Y+147pcs/G |
Design | 3 Aspects Into A Unit |
Communicate | Self-learn+RS485 Real-time |
2-Digit(99-1/0) 88 | No |
1-Digit(9-1/0) 8 | No |
Certificate | CE+IP65 |
Warranty | 5 Years |
\t\t\t\t\t\t\t\t\tProduct Display \t\t\t\t\t\t\t

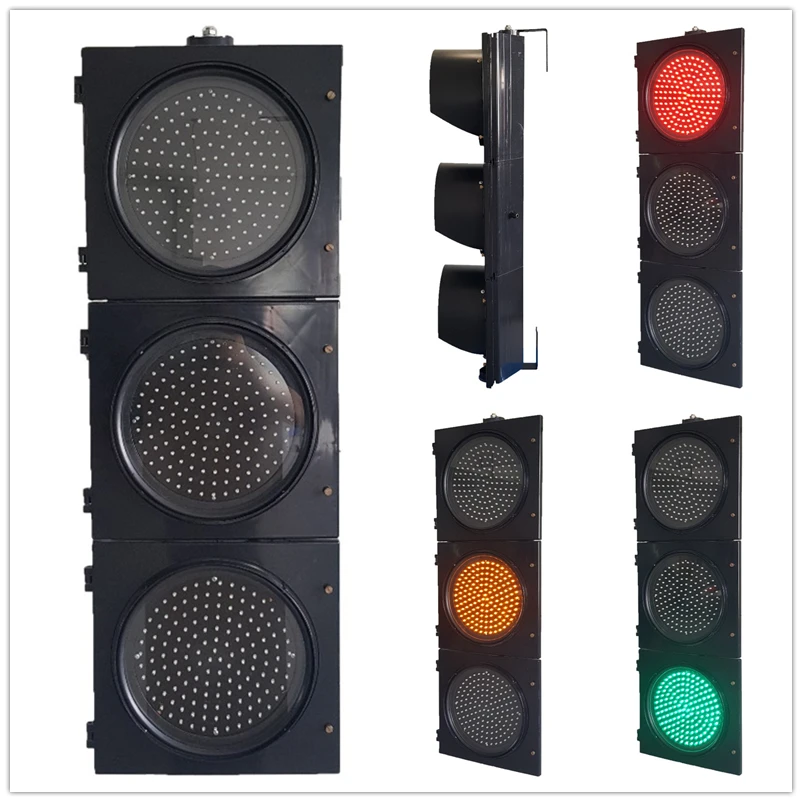

LED Module Part | Housing Body Part | Final Demo |
Installation
Certifications
CE 1: EN12368 2015
CE 2: RoHS
IP 65
Company Information
\t\t\t\t\t\t\t\t\tContact \t\t\t\t\t\t\t
Nanjing Gaoqiao Traffic Signal Project Co., Ltd | ||
Name | Sky Fishman | |
Title | Sales Manager | |
Whatsapp Wechat | +86-18805173545 | |
Skype + Facebook + Fine | +86-18805173545 or Sky Fishman | |
MP | +86-18805173545 | |
TEL | +86-025-84471080 | |
FAX | +86-025-52657890 | |
Address | No.319 ShenLuKou, Jiangning, Nanjing, China | |
\t\t\t\t\t\t\t\t\tFAQ \t\t\t\t\t\t\t
Q1. Can I have a sample order for Led Traffic Light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. Do you have any MOQ limit for Led Traffic Light order?
A: Low MOQ, 1pc for sample checking is available
Q3. Is it OK to print my logo on R+Y+G Led Traffic Light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q4: Do you offer guarantee for the products?
A: Yes, we offer 5 years warranty to our standard products.
Q5: How to deal with the faulty?
A: Firstly, our products are produced in strict quality control system and the defective rate will be less than 1%.
Secondly, we will send new ones during the guarantee period.
For defective batch products, we will repair them and resend them to you or we can discuss the solutions including re-call according to real situation.
