SX-100 F-100 RPE-100 всасывающий трубопровод фильтр-осушитель

SX-100 F-100 RPE-100 всасывающий трубопровод фильтр-осушитель

Категория: Air Conditioner Parts >>>
Поставщик: XCL,HVACR,INDUSTRIES,CO.,LTD.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-15-2025	0.59 $*	0.21 $*
Aug-15-2025	0.57 $*	0.29 $*
Jul-15-2025	0.19 $*	0.89 $*
Jun-15-2025	0.32 $*	0.36 $*
May-15-2025	0.10 $*	0.96 $*
Apr-15-2025	0.32 $*	0.49 $*
Mar-15-2025	0.50 $*	0.50 $*
Feb-15-2025	0.45 $*	0.29 $*
Jan-15-2025	0.9 $*	0.78 $*

Характеристики

PRODUCT DESCRIPTION

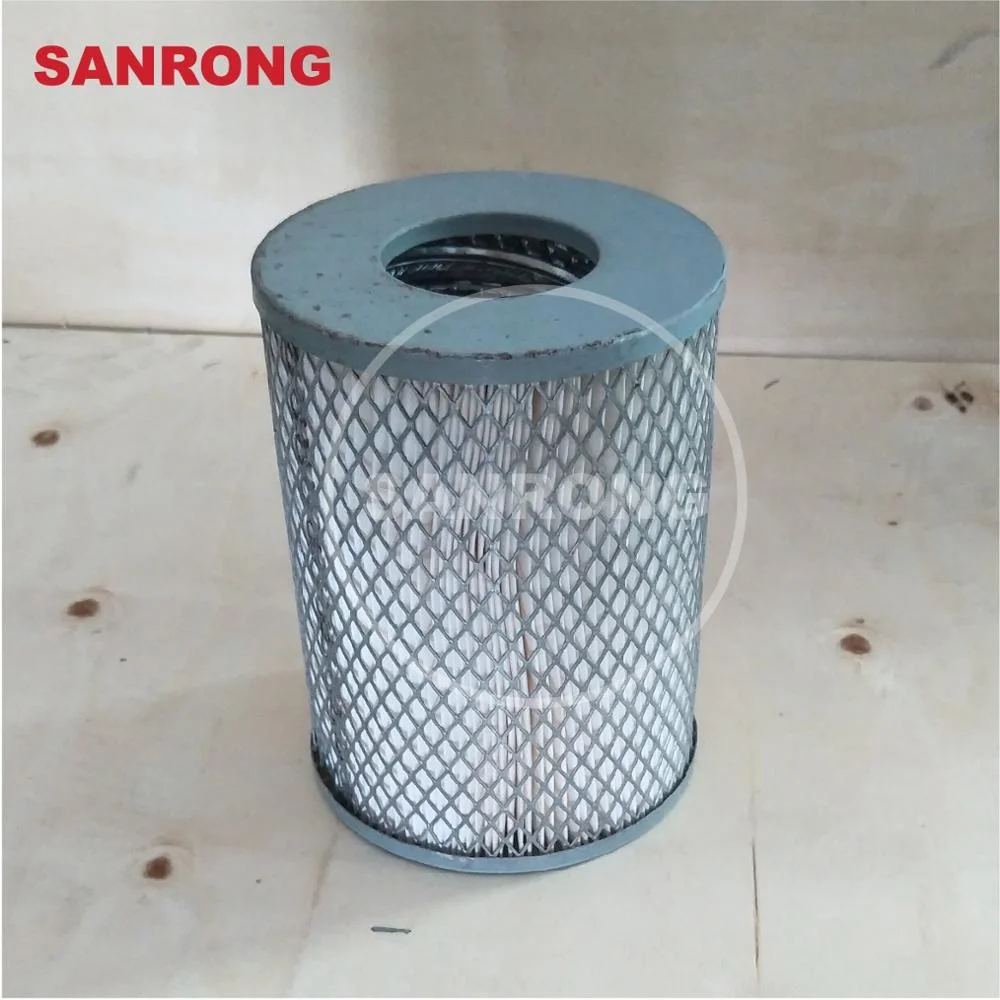

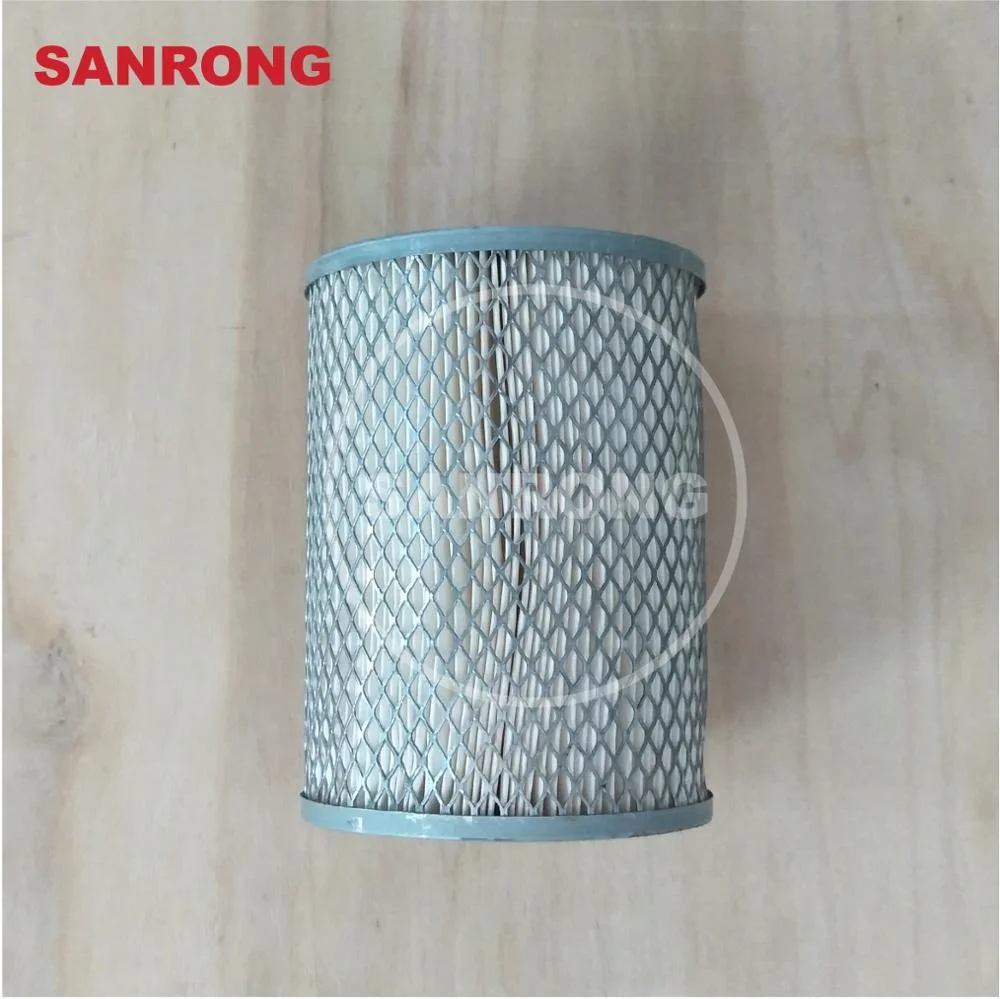

Sanrong universal replaceable filter cores can be used in SRA series filter drier shell or any similar competitive Take-Apart type shells, such as ADKS, STAS, VS, VS-HP, DCR, Sporlan Catch-All shells. Sanrong supplies different filter drier cores for different situations. Sanrong filter cores perform efffictively in removing moisture, acid, oil sludge and vanish, foreign matter and wax.

FEATURES

· Individually and hermetically packed in metal cans against dirt and moisture

· Broad range of filter material, such as molecular sieve, activated alumina, activated charcoal,

stainless steel mesh and fiber

· High efficiency in moisture, acid, solid debris and wax removal

NOMENCLATURE

BR	48
Series	Cubic Inch

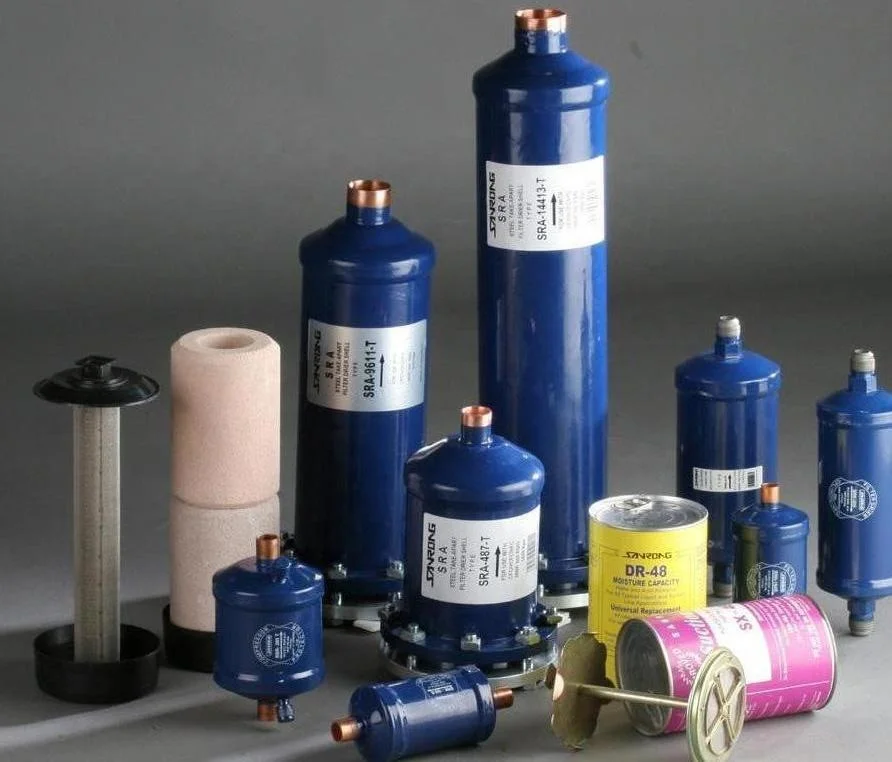

PRODUCT DISPLAY



#SX-100#3_M

Models	Conn. Size (inches)	No. of Cores	Dimensions (inches)				Liquid Flow Capacity (tons @ 1psi ΔP)
		No. of Cores	Dimensions (inches)				Liquid Flow Capacity (tons @ 1psi ΔP)
		Qty x Size	A	B	C	D	R22	R134a	R404A	R407C
SRA-485	5/8 ODF	1 x 48in³	8.82	5.41	3.15	4.49	21	21	15	21
SRA-487	7/8 ODF		8.98	5.57	3.31		41	38	27	39
SRA-489	1 1/8 ODF		8.94	5.53	3.27		58	53	38	56
SRA-4811	1 3/8 ODF		9.19	5.79	3.52		81	75	53	78
SRA-4813	1 5/8 ODF		9.21	5.81	3.54		89	81	58	85
SRA-4817	2 1/8 ODF		9.41	6.12	3.50		101	93	66	97
SRA-4821	2 5/8 ODF		9.53	5.65	4.21		105	97	68	101
SRA-4825	3 1/8 ODF		10.00	5.85	4.21		119	110	77	114
SRA-967	7/8 ODF	2x48in³	14.69	11.28	3.31		45	42	27	43
SRA-969	1 1/8 ODF		14.65	11.24	3.27		71	65	42	68
SRA-9611	1 3/8 ODF		14.90	11.50	3.52		87	80	54	83
SRA-9613	1 5/8 ODF		14.92	11.52	3.54		100	92	58	95
SRA-9617	2 1/8 ODF		15.12	11.71	3.50		104	96	68	100
SRA-9621	2 5/8 ODF		15.24	11.18	4.21		109	101	71	105
SRA-9625	3 1/8 ODF		15.35	11.20	4.21		125	116	81	120
SRA-1449	1 1/8 ODF	3x48in³	20.28	16.87	3.27		72	66	47	69
SRA-14411	1 3/8 ODF		20.53	17.13	3.52		100	92	65	96
SRA-14413	1 5/8 ODF		20.55	17.15	3.54		101	93	66	97
SRA-14417	2 1/8 ODF		20.67	17.38	3.50		120	110	78	115
SRA-19211	1 3/8 ODF	4x48in³	26.44	23.03	3.52		102	94	67	98
SRA-19213	1 5/8 ODF		26.46	23.05	3.54		113	103	74	108
SRA-19217	2 1/8 ODF		26.57	23.29	3.50		123	113	80	117
SRA-19221	2 5/8 ODF		26.85	23.44	4.21		131	121	85	126
SRA-20034	4 1/4 ODF	2x100in³	17.95	12.64	5.28	6	149	138	98	146
SRA-30013	1 5/8 ODF	3x100in³	23.98	19.25	4.30		110	102	73	108
SRA-30017	2 1/8 ODF		24.13	19.41	4.50		160	148	107	157
SRA-30021	2 5/8 ODF		24.57	19.88	4.97		168	155	111	165
SRA-30025	3 1/8 ODF		24.57	19.88	4.97		182	168	120	178
SRA-30034	4 1/4 ODF		24.25	18.94	5.28		198	183	131	194
SRA-40017	2 1/8 ODF	4x100in³	31.81	27.09	4.50		170	157	114	167
SRA-40021	2 5/8 ODF	4x100in³	32.24	27.52	4.97		180	166	120	177
