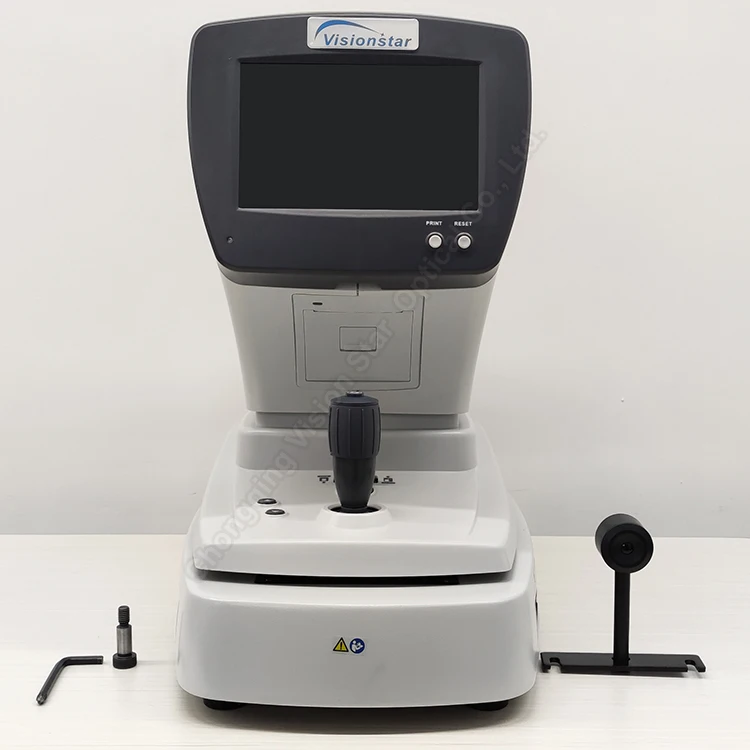

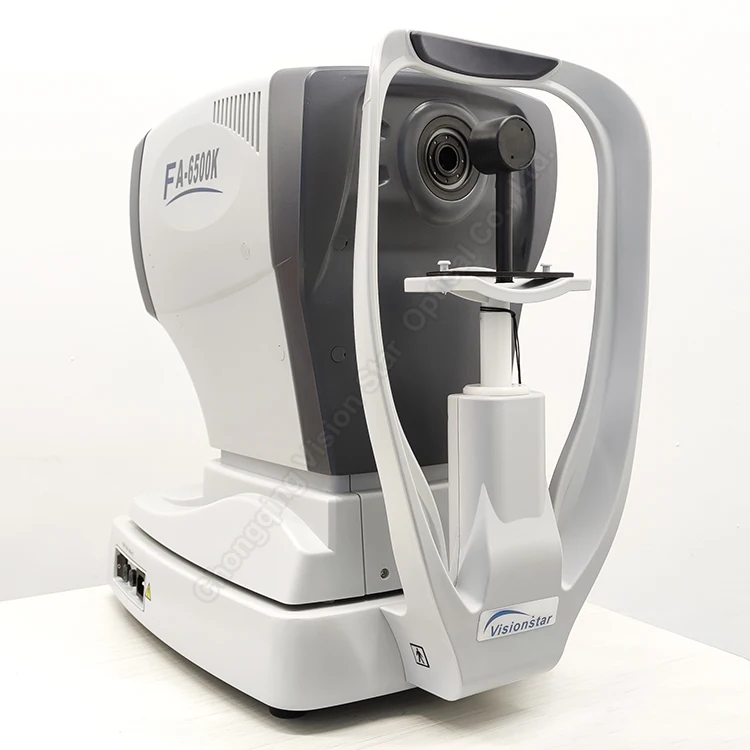

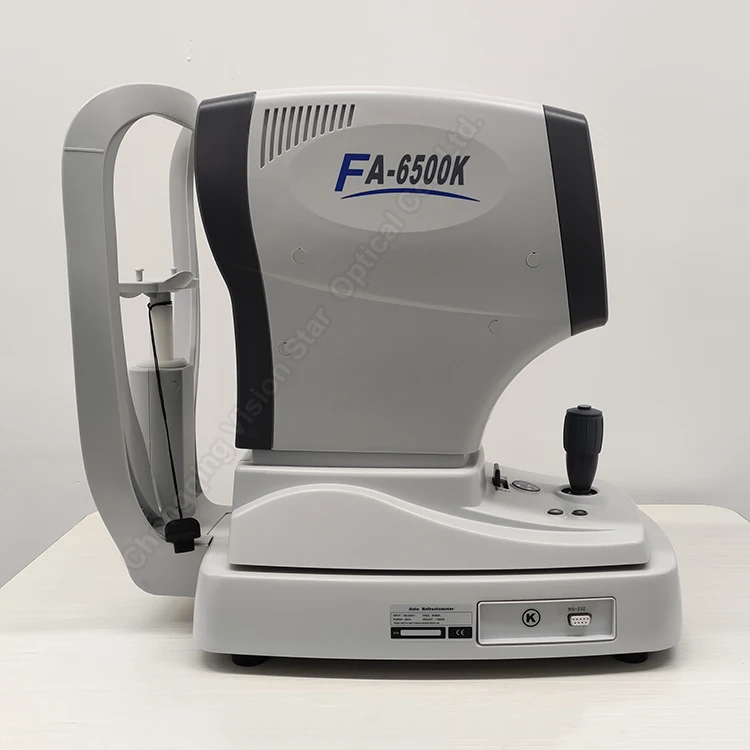

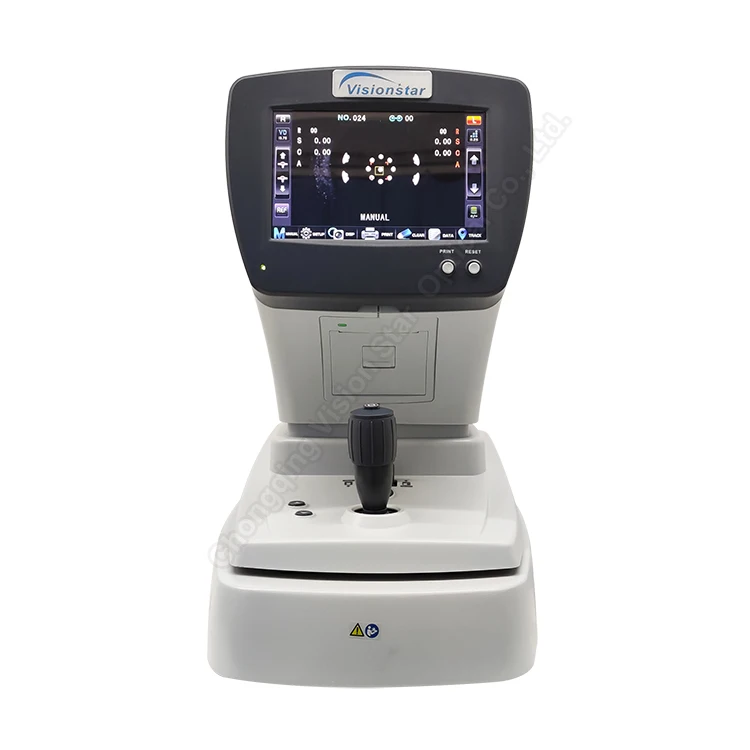

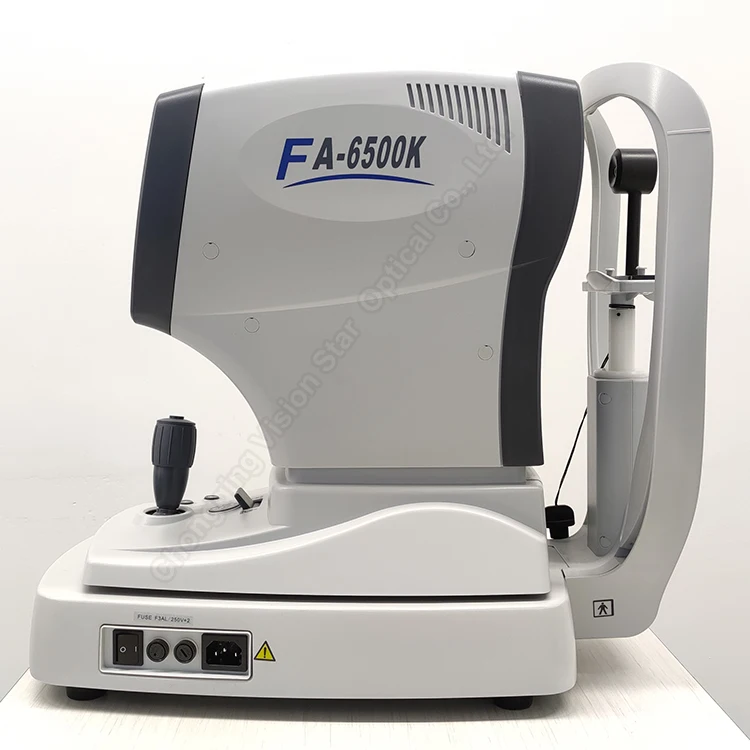

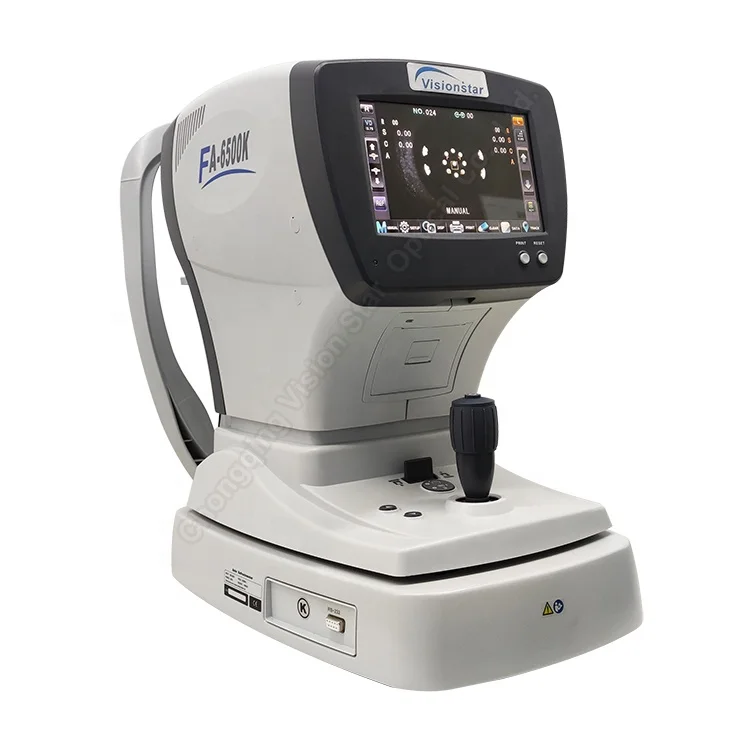

FA-6500 Auto Refractometer Keratometer



FA-6500 auto refractometer keratometer is a professional vision test machine. Otometrist can measure refractive errors, including sphere, cylinder, corneal curvature and so on. It is designed to be accurate, and easy to operate.



Features:

1. 7'' TFT LCD monitor;
2. Bigger better monitor, icon display,menu for easier operation and setting;
3. Motorized joystick: A Motorized joystick with auto-tracing mode is adopted, so operation is easier;
4. New designed bracket, Attractive and durable.
5. Tilting screen function that allows wide variance of access.
6. Auto focus function,Just move, it will automatically focus the eye and get the value.
7. Refractive measurement with hexagon prism,with high quality of hexagon prism and highly senstive CCD, it provides unmathced accuracy and reliability.



Pictures:





Chinrest Adjustment Buttons	Motorized Chinrest
Smooth Motorized Joystick	Platform Lock and Lock Screw for Transportation Protection
Tilting 7″ TFT LCD Color Monitor	Advanced Optical System
Built-in Thermal Printer	RS-232 Terminal





Test Result Report



Specifications

Technical Specification
Refractometer
Spherical	-20 - +20D (VD=12) 0.125D Step
Cylinder	-8 - +8D 0.125D step
Axis	0-180° 1° step
Pupil distance	45-88mm, 1mm step
VD	0mm,12mm, 13.75mm
Min. pupil size	2.0mm
Keratometry
Radius of curvature	5.0-10mm (increment:0.01mm)
Corneal Power	33.75-67.50D (when corner equivalent refractive index is 1.337)
	Increment selectable from 0.12,0.25D
Corneal astigmatism	0.00-8.00D (Increment selectable from 0.12,0.25D)
Axis	1-180D (increment :1°)
Corneal diameter	2.0 -14mm (increment:0.1mm)
Memory of data	10 measure value for each right and left eye
Others
Chart	Follow-up Colorful Fogging Chart System
Display	7” TFT LCD
Print	Thermal printer
Power supply	100 – 240V 50/60HZ
Dimension	476x268x472mm
Weight	20kg (44lb)
