OPENSAT блюдо ТВ универсальный ku band quad lnb 2020 горячий сильный сигнал
- Категория: Спутниковый ТВ-приемник >>>
- Поставщик: Zhongshan,Opensat,Electronic,Technology,Company,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 2.47 $* | 2.93 $* |
| Aug-15-2025 | 2.21 $* | 2.8 $* |
| Jul-15-2025 | 2.60 $* | 2.8 $* |
| Jun-15-2025 | 2.83 $* | 2.91 $* |
| May-15-2025 | 2.56 $* | 2.61 $* |
| Apr-15-2025 | 2.66 $* | 2.20 $* |
| Mar-15-2025 | 2.90 $* | 2.91 $* |
| Feb-15-2025 | 2.22 $* | 2.47 $* |
| Jan-15-2025 | 2.23 $* | 2.6 $* |
Характеристики

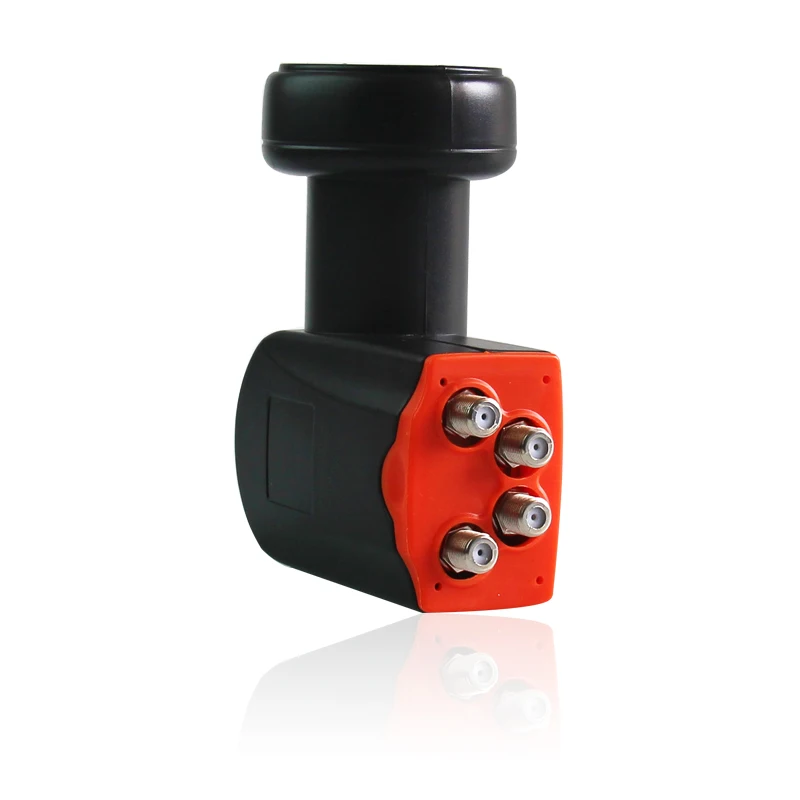

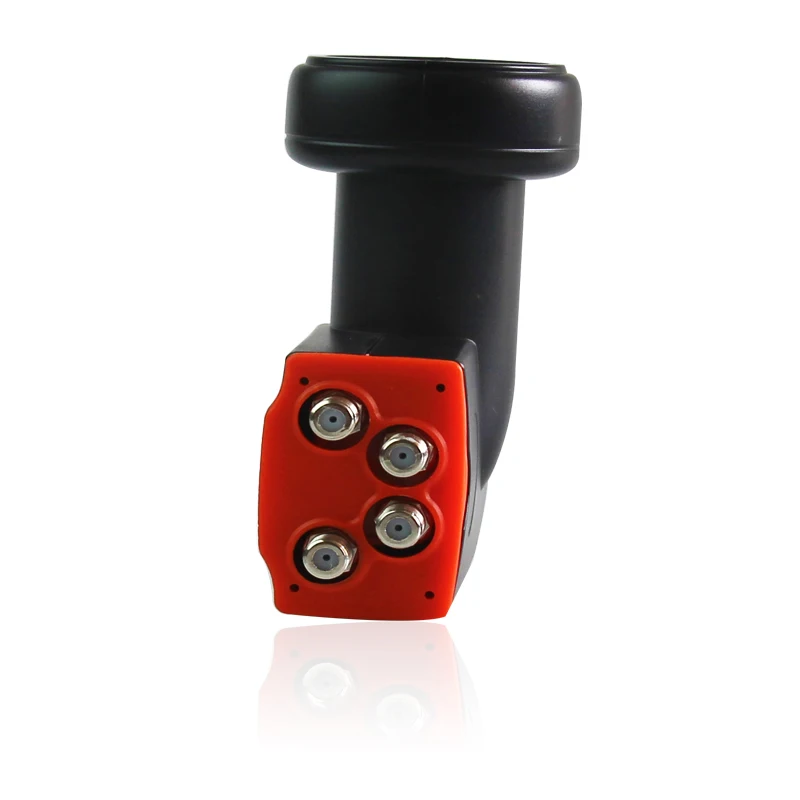

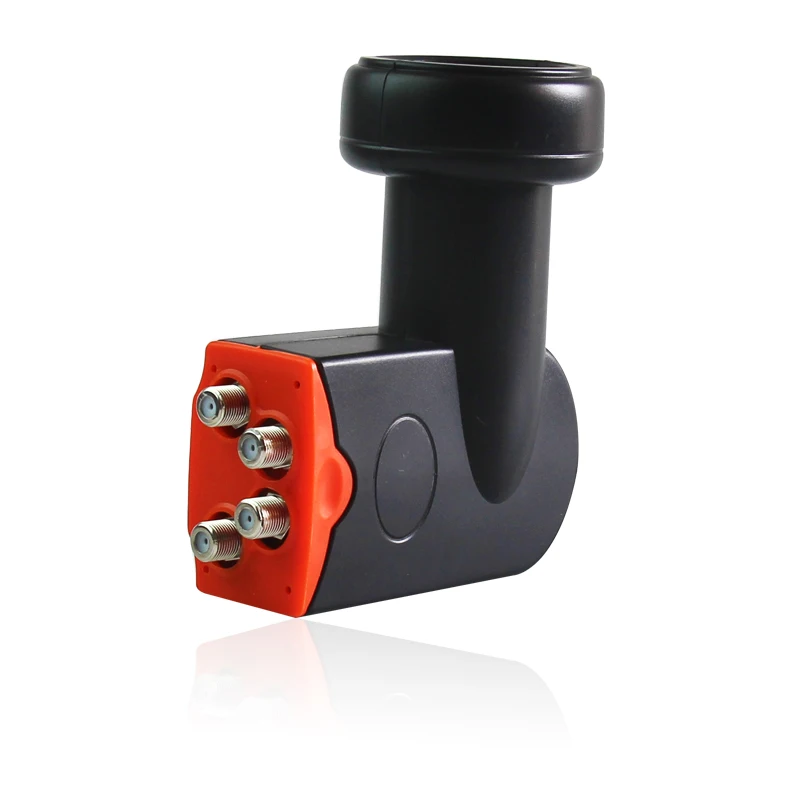

OPENSAT dish tv universal ku band quad lnb, 2020 hot lnb strong signal quad LNB
Product Description
Specifications.
Product Name | Ku-Band Universal LNBF |
Material | Plastic, Aluminum alloy, Electronic components |
Function | Receive satellite TV signals |
Package | Color box ,Giftbox, Carton |
Input Freq. Range | Low-Band Min: 10.7GHz Max: 11.7GHz |
High Band Min: 11.7GHz Max: 12.75GHz | |
Output Freq. Range | Low-Band Min: 950MHz Max: 1950MHz |
High Band Min:1100MHz Max:2150MHz | |
Output VSWR | Typical ratio: 2.0 : 1 |
Local Oscillator | Low-Band Typical: 9.75GHz |
High Band Typical: 10.6GHz | |
Conversion gain | 50-62dB |
Gain Flatness over full band | `+/-3 dB p-p |
Noise Figure | 0.2dB |
Operating Temperature | Min: -30℃ Max: 60℃ |
Storage Temperature | Min: -55℃ Max: 80℃ |
Relative Humidity | Tested up to 95% |
Rain water & ice protection | all units fully weatherproofed |
Cover material | Aluminium plus ABS plastic |
Connector material | zinc |
Connector Coating | Ni |
Connector face (Machine milled/die Casted) | die Casted |
Center conductor contact Type (Duck Bill / 360 degree continuous) | duck bill |
Center conductor contact coating | Sn |
Production capacity/Month | Min: 1000K/Month |
Size of LNBF | < 105.5mmx57.1mmx51.2mm |
Weight of LNBF | < 130g |
Details Images

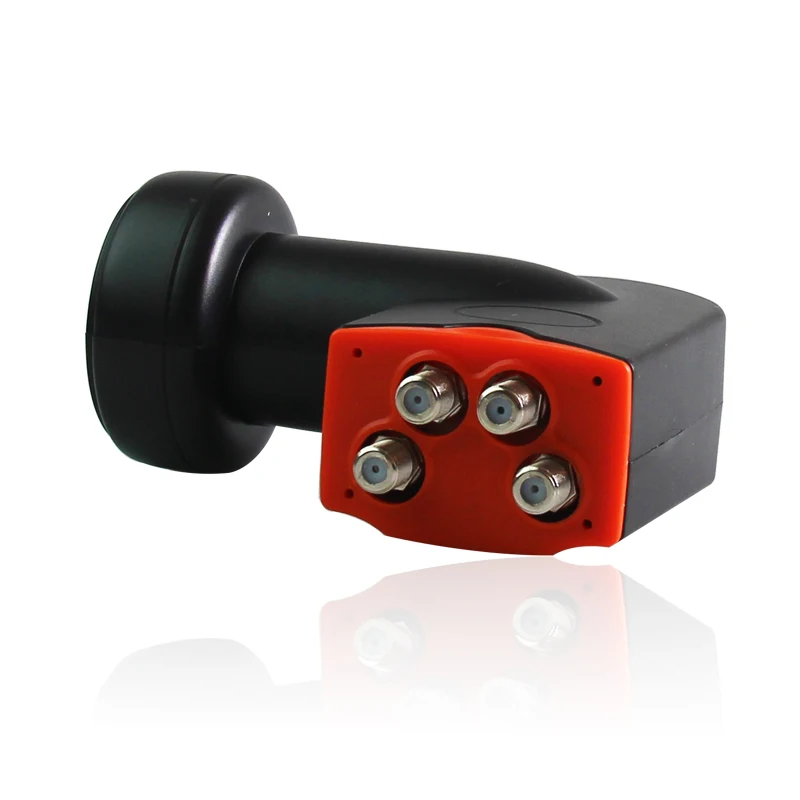

F type connector is connected by cable satellite TV receiver joint, are made of galvanized anti-rust measures

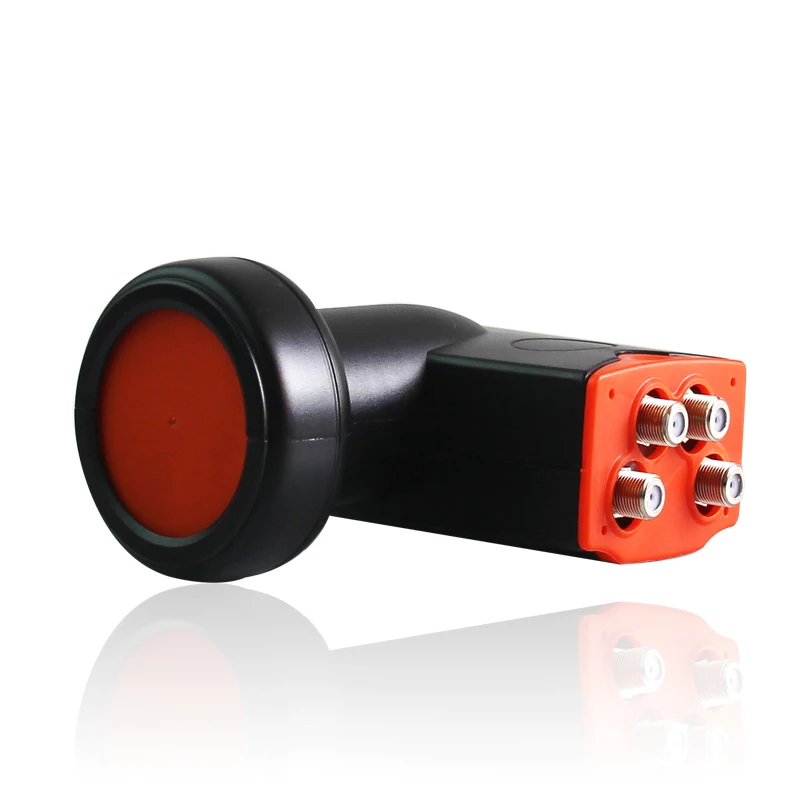

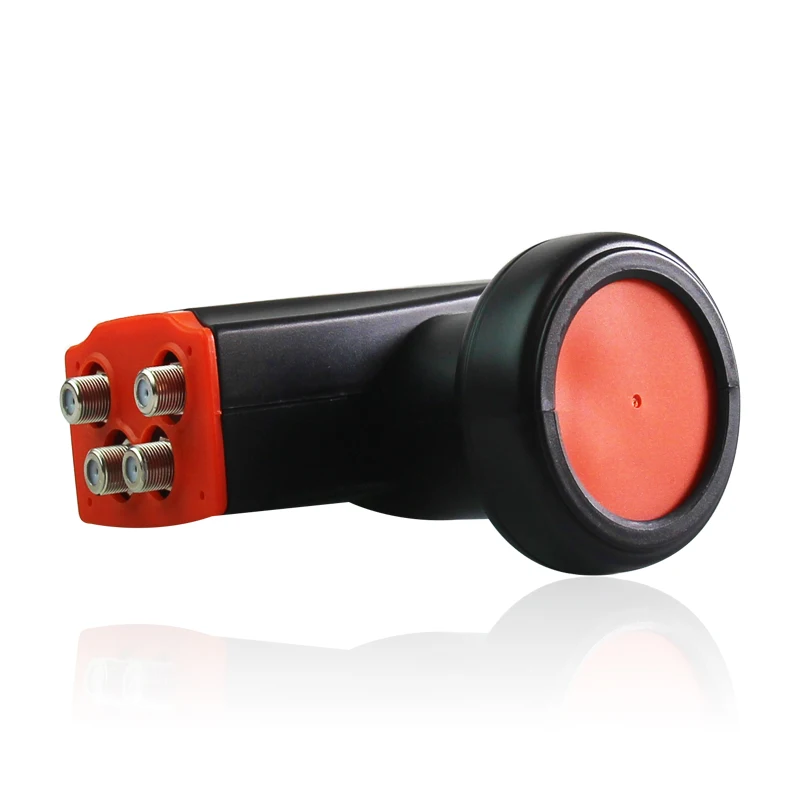

The round cap can effectively prevent dust and tiny insects from entering. It is made of ABS material and has strong oxidation resistance
The length of the adjustment is 30mm, which can accept the adjustment of most satellites when receiving. It is suitable for the public.
Product Usage
Product usage introduction.
(1) insert LNBF into the large round hole in the center of the feed plate;
(2) according to the antenna parameter F/D value, the end face of the feed plate flange is aligned to the corresponding scale of F/D on the side of LNBF;
(3) make the "0" scale on the end face of LNBF frequency perpendicular to the horizontal plane;
(4) tighten the tightening screw on the flange side of the feed plate slightly;
(5) connect the IF output cable of LNBF with the LNBF input port of the receiver.
(2) according to the antenna parameter F/D value, the end face of the feed plate flange is aligned to the corresponding scale of F/D on the side of LNBF;
(3) make the "0" scale on the end face of LNBF frequency perpendicular to the horizontal plane;
(4) tighten the tightening screw on the flange side of the feed plate slightly;
(5) connect the IF output cable of LNBF with the LNBF input port of the receiver.
Description of product use effect.
Receive all horizontal and vertical polarized Ku band satellite signals;
High reliability, ultra-low noise, small volume;
Can be used in all kinds of harsh conditions around the world;
Excellent gain flatness;
Applicable to single family individual reception.
High reliability, ultra-low noise, small volume;
Can be used in all kinds of harsh conditions around the world;
Excellent gain flatness;
Applicable to single family individual reception.
Related Products
Company Introduction
Certifications
Packing&Shipping
Packing specifications.
100 Pcs / Case (Single) or 50 pcs / Case (Twin ,Quad, Oct )
Case size:
65 CM * 34.5 CM * 24.5 CM (Single)
53.2 CM * 35.2 CM * 26.2 CM (Twin , Quad)
20" GP Load : About 50,000 Pcs (Single) 27,000 Pcs ( Twin , Quad)
40" GP Load: About 110,000 Pcs (Single) 57,000 Pcs ( Twin , Quad)
40" HQ Load: About 120,000 Pcs (Single) 68,000 Pcs ( Twin , Quad)
Delivery Time: Generally 30 Days after deposit received
Packaging Details Inner gift box packing and outer carton
Case size:
65 CM * 34.5 CM * 24.5 CM (Single)
53.2 CM * 35.2 CM * 26.2 CM (Twin , Quad)
20" GP Load : About 50,000 Pcs (Single) 27,000 Pcs ( Twin , Quad)
40" GP Load: About 110,000 Pcs (Single) 57,000 Pcs ( Twin , Quad)
40" HQ Load: About 120,000 Pcs (Single) 68,000 Pcs ( Twin , Quad)
Delivery Time: Generally 30 Days after deposit received
Packaging Details Inner gift box packing and outer carton
FAQ
What's the quantity for OEM service ?
5000PCS
2.What OEM term we can provide ?
Customized color box design and LOGO print on the housing, housing color with different options
3.How long is our guarantee period ?
12 months after goods shipped on board .
4.What's payment term ?
30% deposit in advance and balance against B/L copy.
5.Where is our factory ?
Zhongshan city ,Guangdong province .
6.Which main port we deliver goods ?
ZHONGSHAN Port
7.Is this LNB support waterproof ?
Yes,our LNB have waterproof on the cap design and each screw injection on the mental body glued .
8.How about our LNB performance temperature ?
-30 ℃ to 80℃ ,each LNB have tested both temperature for 24H before delivery.
5000PCS
2.What OEM term we can provide ?
Customized color box design and LOGO print on the housing, housing color with different options
3.How long is our guarantee period ?
12 months after goods shipped on board .
4.What's payment term ?
30% deposit in advance and balance against B/L copy.
5.Where is our factory ?
Zhongshan city ,Guangdong province .
6.Which main port we deliver goods ?
ZHONGSHAN Port
7.Is this LNB support waterproof ?
Yes,our LNB have waterproof on the cap design and each screw injection on the mental body glued .
8.How about our LNB performance temperature ?
-30 ℃ to 80℃ ,each LNB have tested both temperature for 24H before delivery.
