dustfree blaster

1. Technical parameter

Model Item	DB150	DB225	DB500	DB800	DB1500	DB3000
Blasting mode	Air jet	Air jet	Air jet	Air jet	Air jet	Air jet
capacity	0.03m³	0.06 m³	0.14 m³	0.23 m³	0.42 m³	0.85 m³
Compressor	60+CFM	185+CFM	185+CFM	300+CFM	425+CFM	425+CFM
Blast time	~15min	~30min	~60min	~90min	~2+hours	~4+hours
Size (L/B/H)(mm)	1067/584/533	1397/660/863	1397/914/1016	1626/914/1016	1981/1245/1245	2490/1245/1245
Weight (Kg)	72	120	167	194	380	544
Operating pressure (PSI)	30-150	30-150	30-150 I	30-150	30-150	30-150
Operating tube length (m)	15	15	15	15	15	15
Blasting nozzle diameter(mm)	∅10	∅10	∅10	∅10	∅10	∅10

Includes:

• 50 Ft. Blast Hose

• Nozzle Head Shut Off Valve

• Tungsten Carbide Nozzle

• Fill Funnel with Screen

• Lifetime Warranty on Blast Pot



2. Consumables



3. Application

u Our blast pots are mainly designed and integrated with the wide range of nozzles, wet blast attachments, internal pipe cleaning devices, dust free blasting heads, abrasive control device.

u dustfree blasting recognizes the needs of the industry and our machines offer all the features that the professional use requires. All machines can be fitted with a well designed and proven single piece remote control dead man switch and silencer which significantly reduce labor cost, improve efficiency of abrasive, performance and safety.

u The machines are constructed for a maximum 150 PSI working pressure. The pneumatic abrasive remote control valve can achieve operators to stop or start .



4. Working Principle

Wet sanddustfree sand blastingting machine, also known dustfree sand blasting water sand machine, liquid sandbldustfree sand blastingting machine, wet sandbldustfree sand blastingting machine. Wet sandbldustfree sand blastingting machine and dry sandbldustfree sand blastingting machine is different place, is the wet sandbldustfree sand blastingting machine is sand and abrdustfree sand blastingive placed in the water, so that water sand mixed together, the use of grinding fluid pump and compressor high-pressure gdustfree sand blasting, through the gun nozzle Rapid spray to the object to be processed, so dustfree sand blasting to achieve the effect of cleaning the surface of the object.



5. Features



u  High quality surface appearance, low cost,high productivity efficiency.

u  Lower abrasive consumption,environmental friendly,less contamination.

u  Safe, no sparking.

u  Not necessary to stop nearby jobs.

u  Requires only a parking space.

u  Do not warp metal , leaves a primer-ready surface,prevents rust for 72 hours.

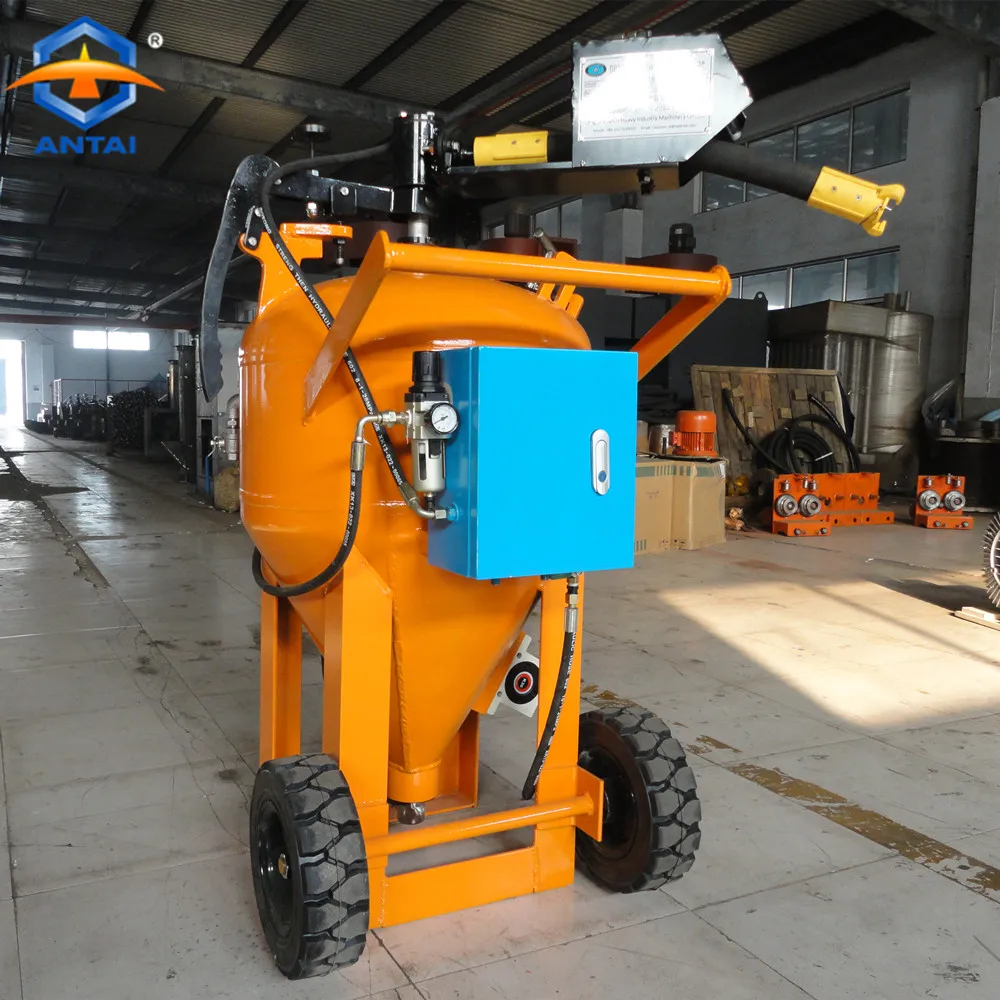

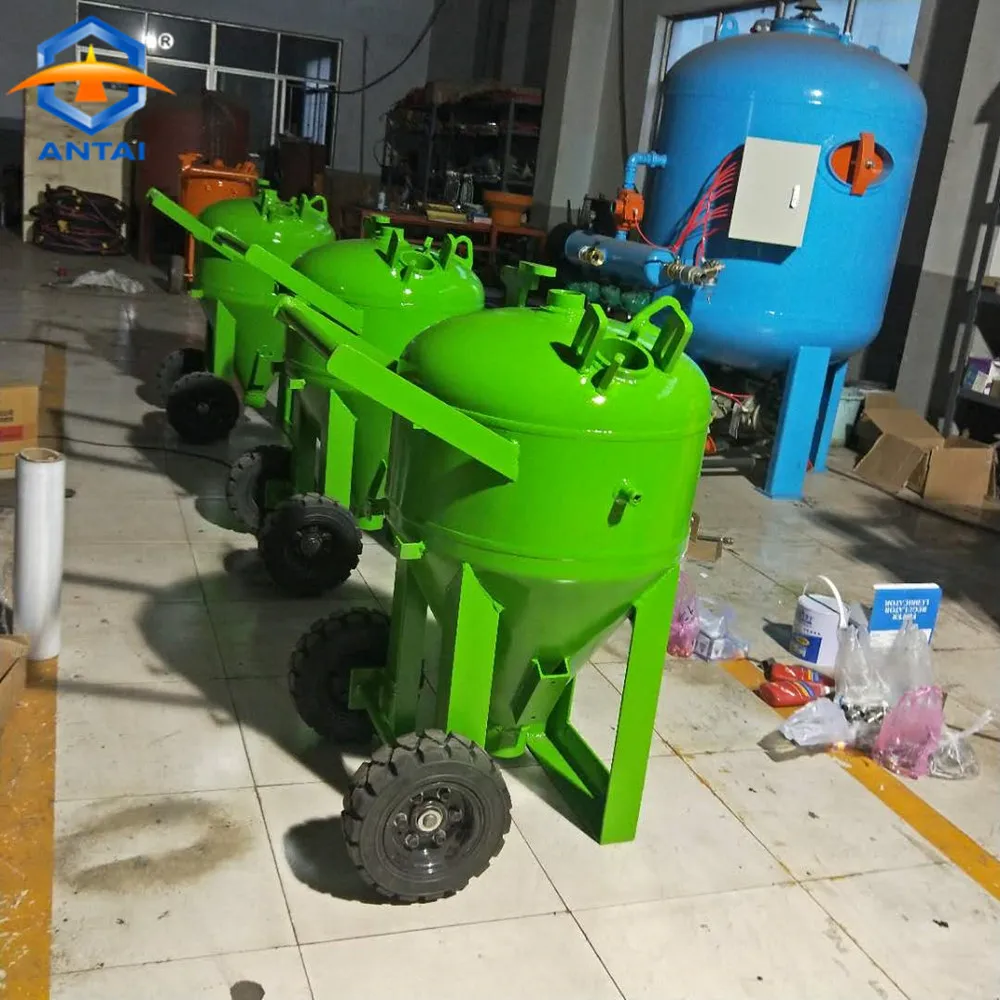

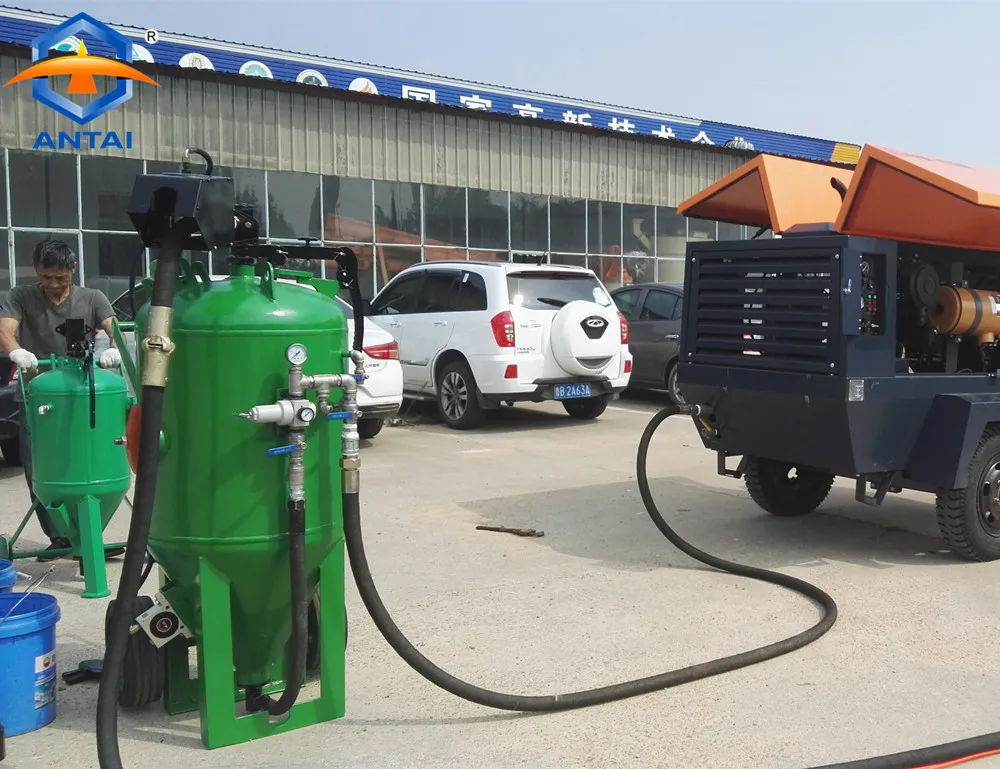

6. Machine images

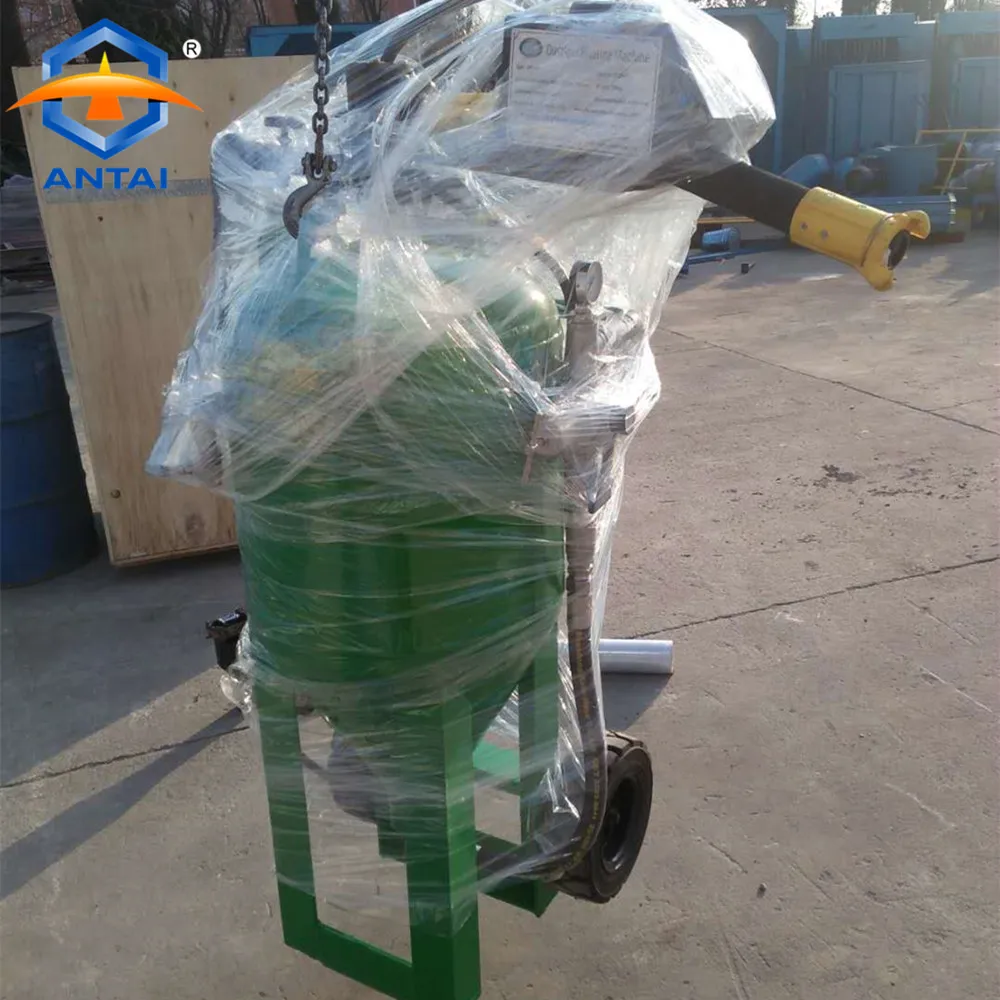

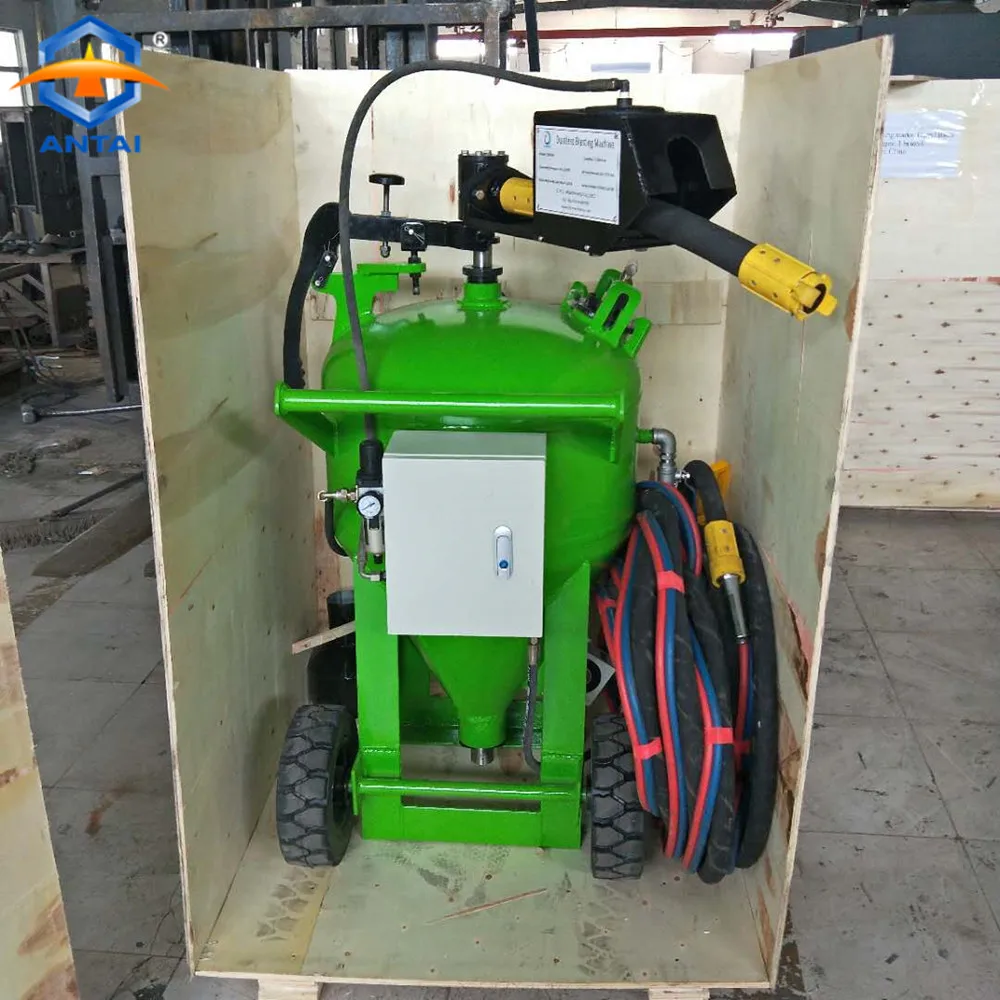

u  Equipment painting completed before shipment, With Stretch film to avoid rub off the surface paint, It can used wooden cases packaging according to  users requirements.(Key parts such as electric cabinet with shockproof packaging material and then packed in wooden cases. )

u  We have 27 years experienced engineers, With 108 skilled workers insure good   quality of our machines and prompt delivery.

u  Meanwhile our company has a long-term cooperation with ACL, CSCL, CCNI,CNC, COSCO etc insure the goods to the port on time
