Оцинкованная прицеп для легковых автомобилей

Описание и отзывы

Трекер стоимости

Характеристики

Spec. of car trailer



1.

Surface treatment	Hot-dipped galvanized
Loading capacity	3500KG
Floor size	15x6.5ft (4.5x2m)

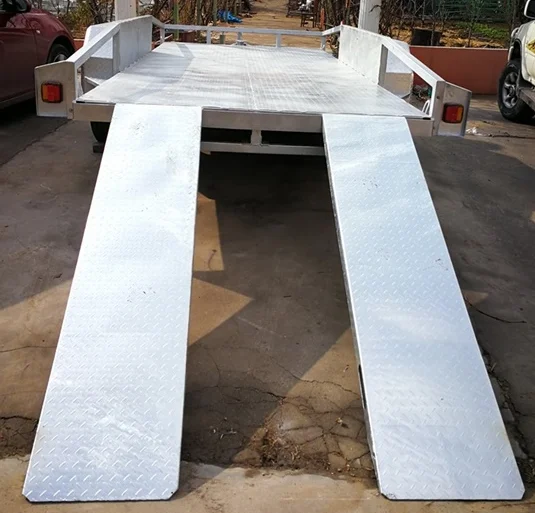

Easy loading & unloading	with 2 checker plated loading ramps (3mm thick), size of each loading ramp: 450mm wide and 2000mm long

Size can be also tailor made according to customers’ requirements.





2. Material & construction:

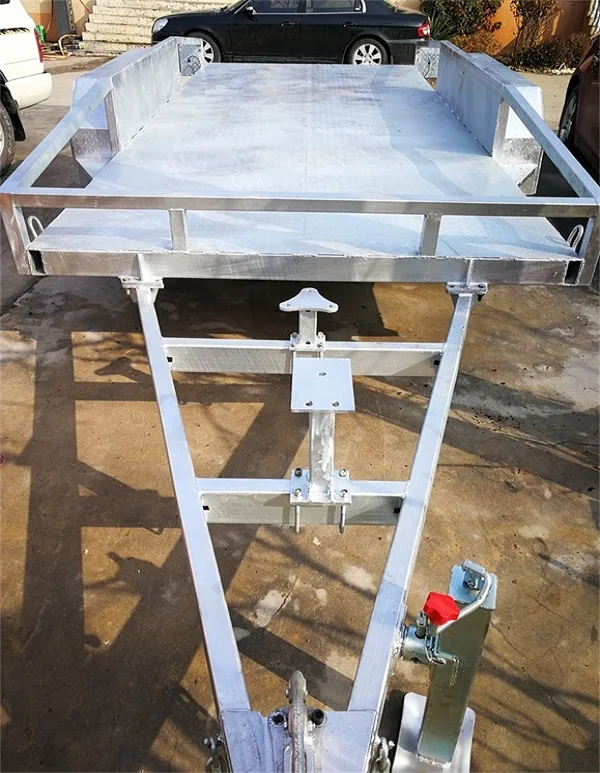

Bolted on drawbar, RHS tube: 100*50*4mm

Trailer chassis RHS tube: 100*50*4mm

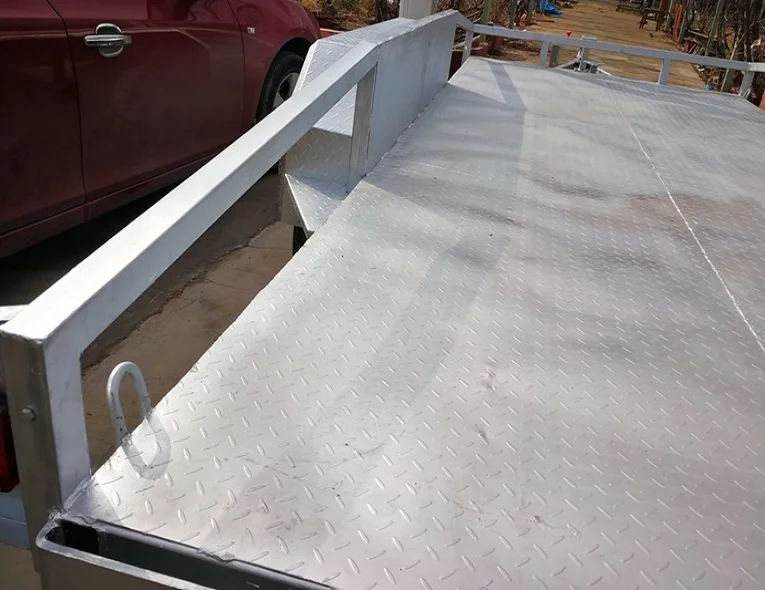

Floor: 2.5mm steel checker plate

Mudguards: 2.5mm steel checker plates

Side steps: 2.5mm steel checker plates

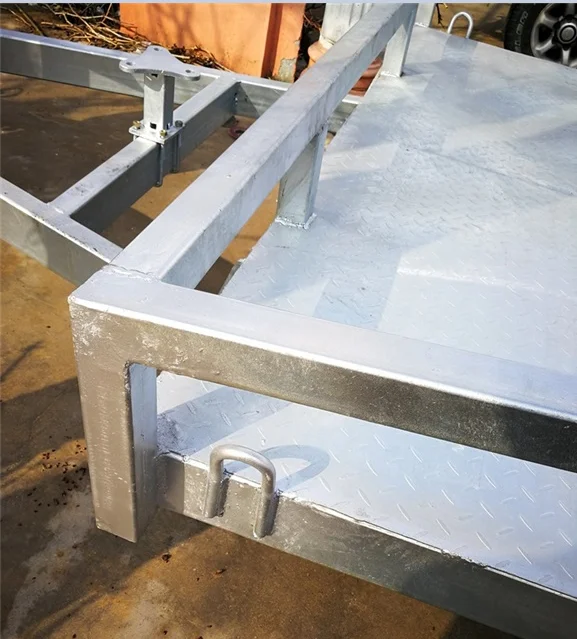

With square bar on the front & sides: 16" high at its highest point,

Square bar size: 50*50*2.5mm





3. Suspension system:

With 2 painted Axle: 50x50mm square axle, with 2 sets of 12" electric brake

Hydraulic brake is optional

Painted Leaf spring: 8-leaf eye-to-eye springs

Wheel: 4*15" wheel (powder coated steel rim+ DOT certified tire), tire size: 195R15C

Spare wheel can be supplied at extra cost upon request



4. Standard trailer parts and accessories:

Coupling: Australian standard 50mm ball coupler, or any other type/s of coupling according to locations & requirements of overseas customers

Winch and winch bracket is optional

Safety chain: heavy duty 13mm diameter in compliance with Australian standard, or to be made according to requirements of other countries’ standards

Jockey wheel: heavy duty single jack up leg, loading capacity: 7000 lbs



5. Electric Set-up

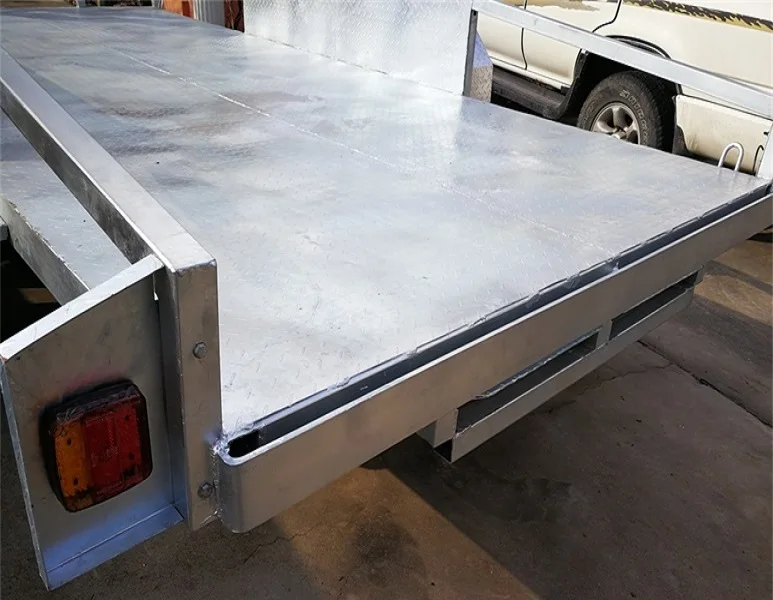

With LED tail lights (ADR certified or E-marked)

With number plate light (ADR certified or E-marked)

With wirings and 7-pin plug
