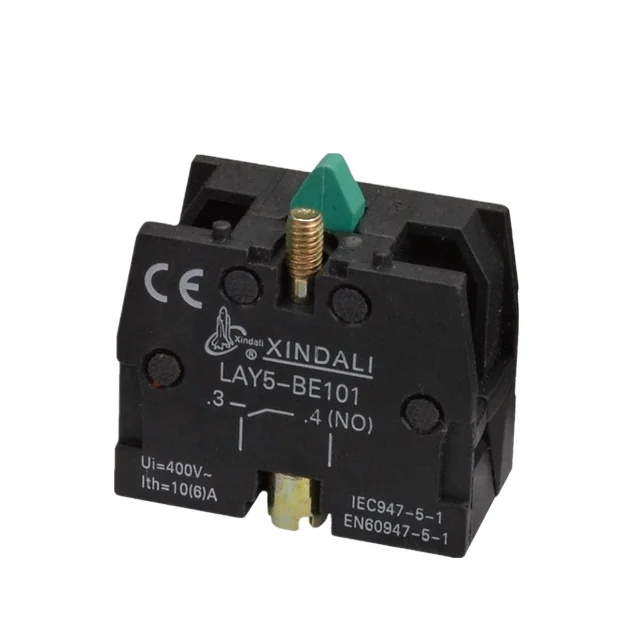

LAY5-BE101 кнопочный переключатель контактный номер блок
- Категория: Push Button Switches >>>
- Поставщик: XINDALI,INDUSTRIES,CO.,LTD.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.69 $* | 0.91 $* |
| Aug-15-2025 | 0.67 $* | 0.10 $* |
| Jul-15-2025 | 0.4 $* | 0.46 $* |
| Jun-15-2025 | 0.20 $* | 0.61 $* |
| May-15-2025 | 0.2 $* | 0.67 $* |
| Apr-15-2025 | 0.86 $* | 0.76 $* |
| Mar-15-2025 | 0.18 $* | 0.54 $* |
| Feb-15-2025 | 0.21 $* | 0.74 $* |
| Jan-15-2025 | 0.17 $* | 0.89 $* |
Характеристики
Product Description
Product Application
The push button series are used in controlling circuit of AC voltage up to 660V/AC50Hz or 60Hz,and DC voltgae below 400V.It is used for controlling signal and interlocking purposes.The main body of the push buttons adopts zinc alloy and high-grade anti-flam plastic.The contact adopts special silver alloy in order to enjoy the benefit of high anti-electrical erosion.The signal lamp series are suitable for electrical appliances circuit of AC voltage up to 380V/50Hz,and DC voltage below 380V.It is ideal for using as indicating signals,warning signal,emergency signal,etc.Our products comply with GB/T14048.1 and IEC60947-5-1,all prouducts are CE,IOS9001,ROHS and UL certified.
Main technical parameter | ||||||||
Basic technical parameter of button | Basic technical parameter of signal lamp | |||||||
Rated insulation | AC 600V(50Hz/60Hz) | Insulation resistance | ≥50MΩ | |||||
Conventional heating current | 10A | Contact resistance | ≤25MinΩ | |||||
Insulation resistance | ≥50MΩ | Pf withstand voltage | AC 2.5KV/min | |||||
Contact resistance | ≤25MinΩ | Voltage wave | ±20% | |||||
Mechanical life | 100x10000 pushbutton | 50x10000 selector switch | Brightness | 60cd/m2 | ||||
Electrical life | 500x10000 pushbutton | 25x10000 Selector switch | Continuous working life | 10x10000h | ||||
Main Features
1)Surrounding temperature:-25℃~+55℃
2) Air relative humidity:≤85%
3) It can be normally work under following condition:
Vibration frequency is 2~80Hz and acceleration speed is 0.7g/h:
4) Pollution grade is III,installation sort is III,protection grade is up to IP65.
2) Air relative humidity:≤85%
3) It can be normally work under following condition:
Vibration frequency is 2~80Hz and acceleration speed is 0.7g/h:
4) Pollution grade is III,installation sort is III,protection grade is up to IP65.
5) Altitude:≤2000m.
