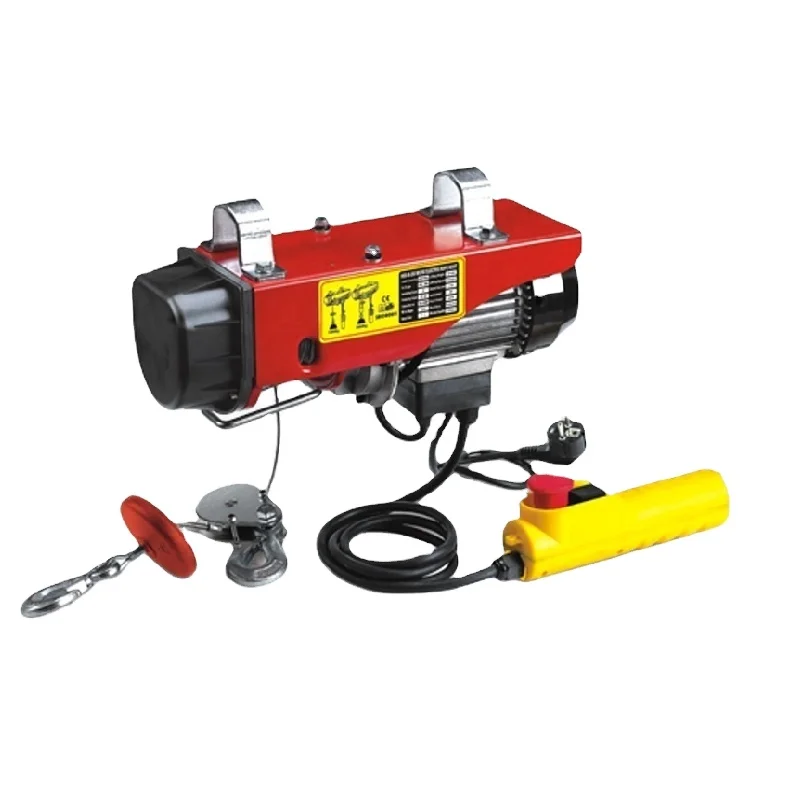

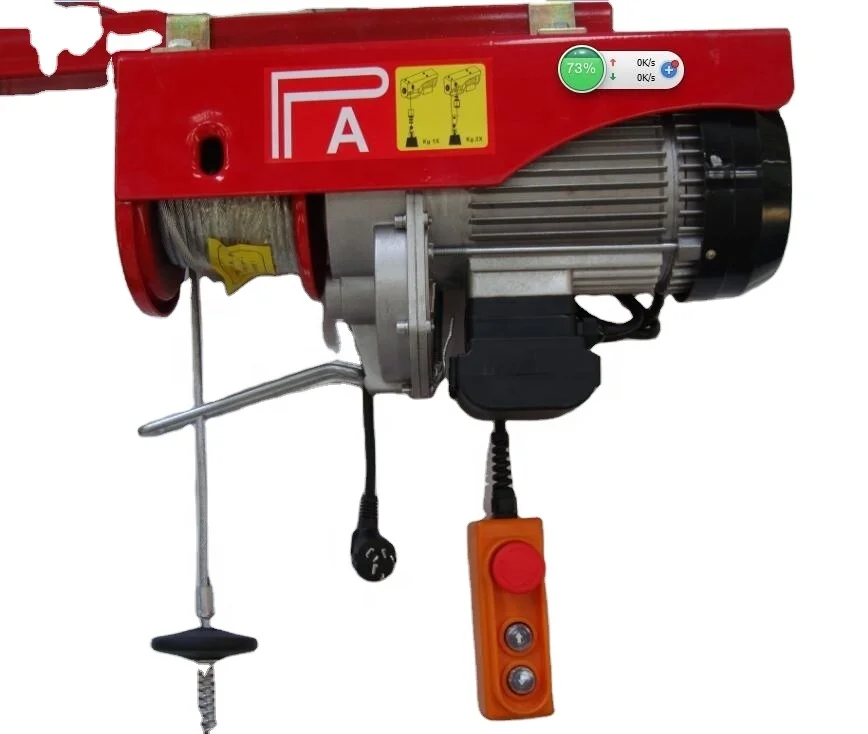

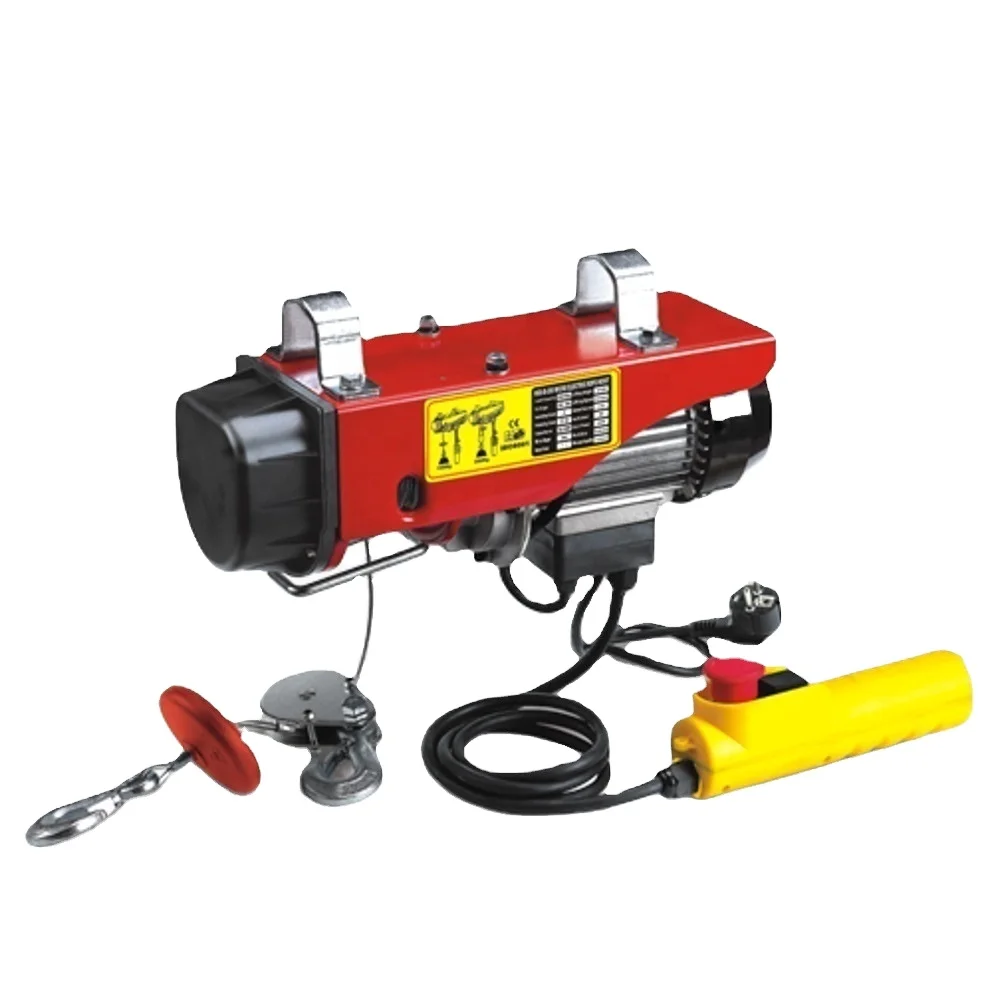

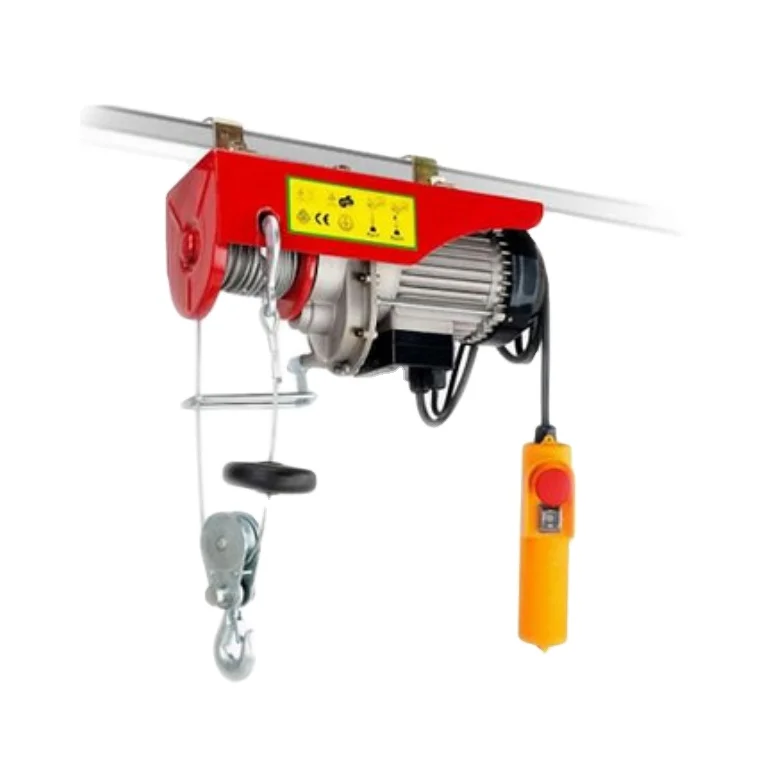

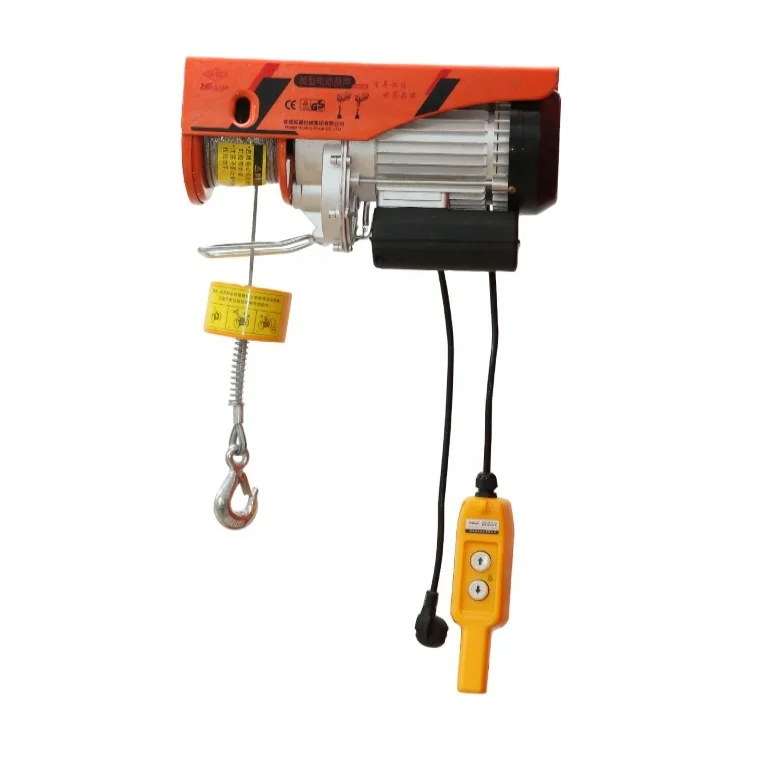

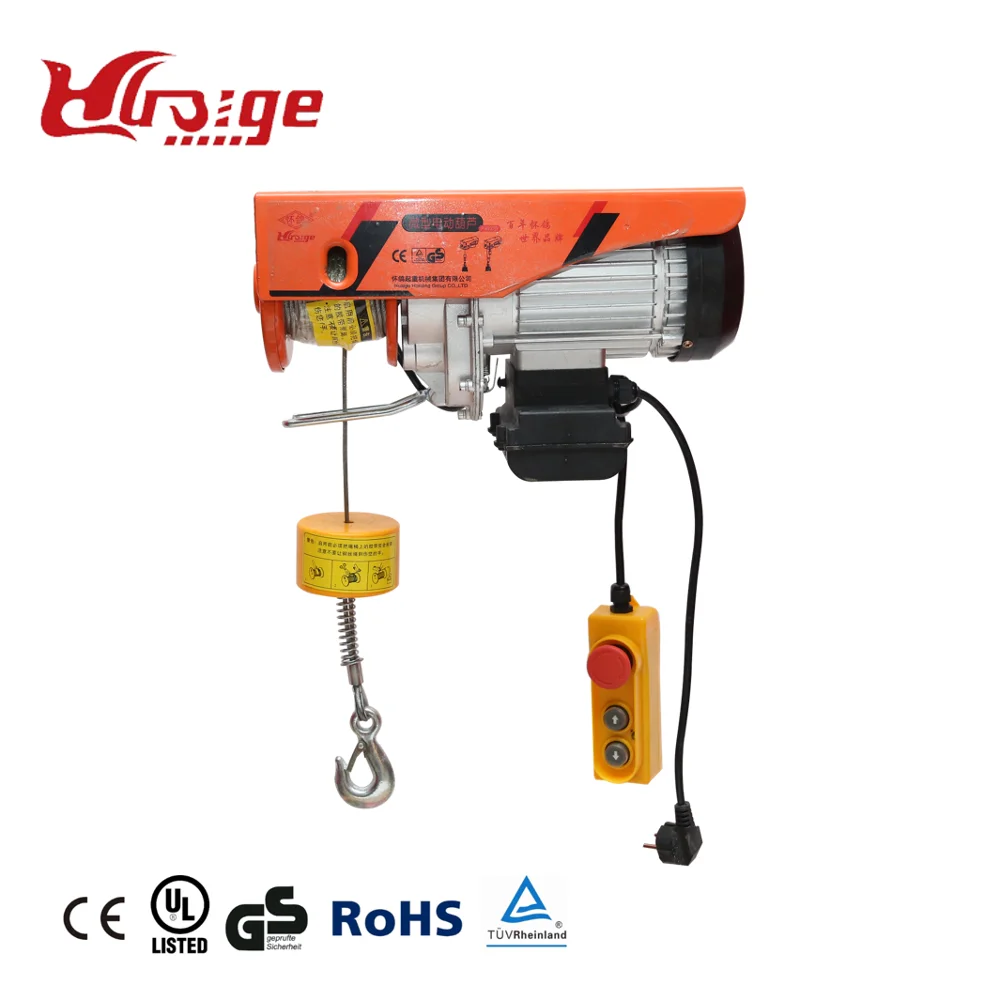

200/400KG Electric Hoist Winch



1.Capacity: ranges from 200kg-1200kg
2.Small, convenient hoist for lifting often used for home, mall, construction, warehouse, workshop, harbors, airport and so on
3.100% pure copper motor, good cooling and durable
4.With emergency knob for the handle
5.With upper limit and lower limit
6.Anti-rotary wire rope
7.Longer stator and rotor
8.Thick shell to protect the mini hoist
9.CE certificate available





1000kg mini electric winch CE certificate





Features and Advantages for the electric winch
1. The construction small lifting equipment have the features of compact, light, small-sized shape and smooth operation can be safely used with good quality, long life-span, high efficiency.
2. It can be applied in all kinds of locations in industry, business, handicraft industry and service industry.
3. not only on the overhead rails, but also be used in conjunction with many types of electric or manual cranes such as the single-girder crane, the double-girder crane, the cantilever crane and the gantry crane.
4. It is an ideal device to improve work efficiency and working conditions.







High Quality Accurate electric winch Equipment







100 % High quality Pure Copper Motor



















Huaige electric hoist PA mini electric winch

Model	PA200	PA250	PA400	PA500	PA600	PA800	PA1000
Rated Volt(V)	230-50hz S3 20% 10 min
Input Power (w)	450	500	750	900	1050	1300	1600
Rate Lifting(kg)	100/200	125/250	200/400	250/500	300/600	400/800	500/1000
Lifting height(m)	12/6	12/6	12/6	12/6	12/6	12/6	12/6
Lifting speed(m/min)	10/5	10/5	10/5	10/5	10/5	10/5	10/5
packing dimensions(cm)	44*38*20	44*37*25	44*37*25	44*37*25	53*45*19	53*28*35	53*28*35
G.W/N.W	24/22	25/24	25/33	36/34	41/38	38/36	40/38
qty/ctn(pcs)	2	2	2	2	2	1	1





H200/400KG Electric Hoist Winch











Hebei Huaige Hoisting Machinery Group Co.,Ltd. was founded in 1999 in Baoding. Today, the Huaige is a global player. Its main development and production facility in China, offers future-oriented solutions with various hoists and other lifting tools for a wide range of applications.

As a famous hoisting tools manufacturer, we have assembled the most complete & professional Testing Line in hoisting field in China. Every product will be perfact both in performance and appearance.

For hoisting, moving, pulling, driving and conveying, our Huaige lifting means, Huaige Electric Hoists, Manual Hoist, Lever Hoists, Chain, Transportation trolleys also other hoisting tools are a guarantee of quality, innovation and safety. Each product we produced was inspected by our experienced technician who had over 30 years research and producing experience, and we also use strict quality control testing system to ensure the products' stability and durability.
