Y-образная термофьюзионная Сварка пластиковых труб ppr pe в турецком

Описание и отзывы

Трекер стоимости

Характеристики

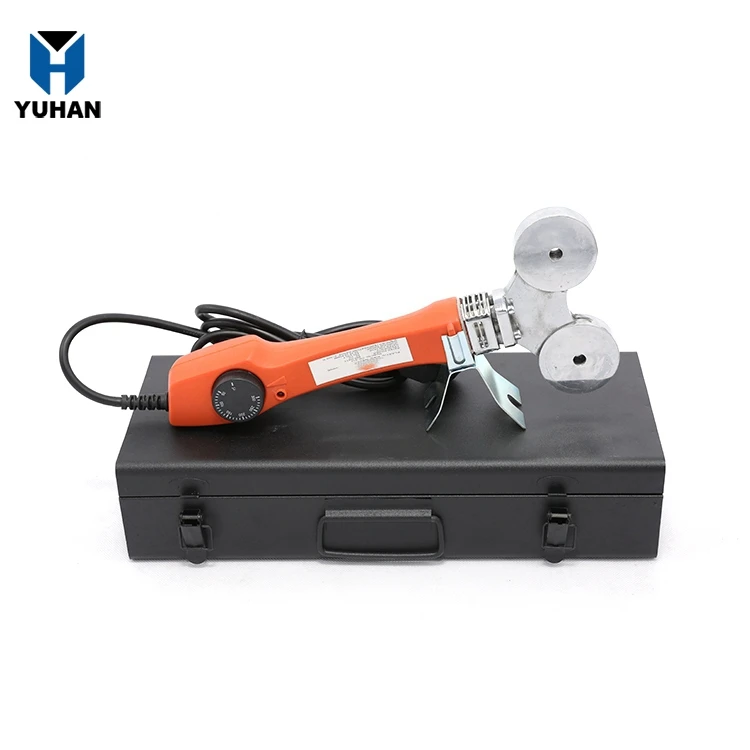

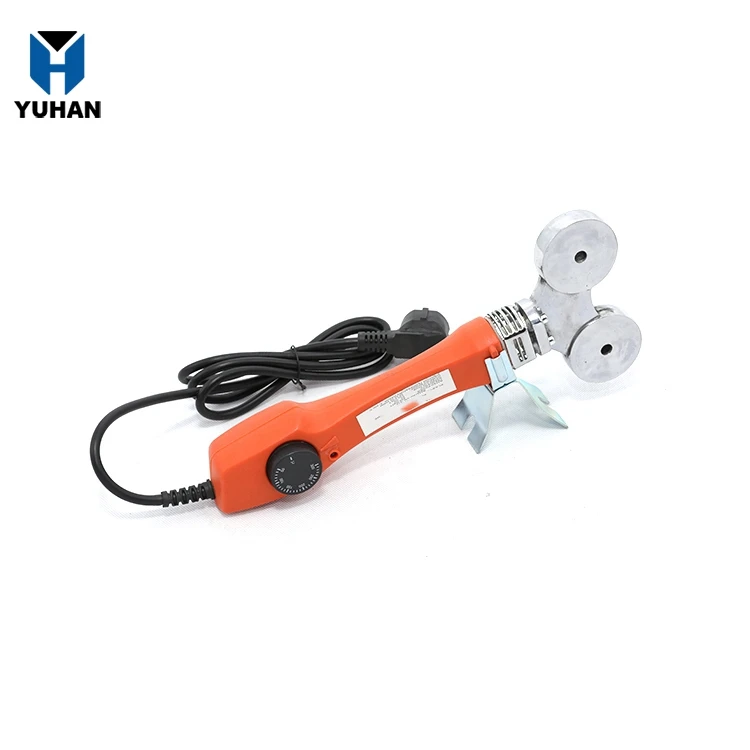

ppr plastic tube pipe welding machine
Model Number:	YH-PW-013	Voltage:	220V&110V
Power:	800w	Frequency:	50/60HZ
Carton Dimensions:	47*38*38cm	Weight: G/N(Carton):	21.5/20KGS
Usage:	welding ppr and pipe fittings,PPR PE PB PEX PE-RT	Welding Diameter:	20-40mm
Working temperature:	0-300°C	Packing Color:	As request, OEM
Certification:	CE	MOQ:	100pcs
Get Latest Price Now		Ask for OEM service

 How to use
1. Apply die head
Place the welding machine on the stander, chose die head according to pipe’s diameter, and fix it on the machine. In regular, the small end is at the front, the bigger end at the back.
2. Power on
Power on (make sure the power should be with leakage current protector) , the green light and the red light on, wait till the red light off and keep greenlight on, which indicates the machine enter into auto temperature control mode and the machine can be used.
Note: during the auto temperature control mode, the red and the green light will be on and off alternatively, this indicates that the machine is under control and it will not affect operating.
3. Fusion pipes
Using cutter to cut pipe vertically, push the pipe and fitting into die head without any rotation. Take them off immediately when heating time reached (see the table below) and insert



Normal Diameter(mm)	heating depth(mm)	Heat Time(s)	process time(s)	Cooling Time(s)
20	14	5	4	3
25	16	7	4	3
32	18.1	8	4	4
40	20.5	12	6	4
50	23.3	18	6	5
63	27.4	24	6	6
75	31	30	10	8
90	35.5	40	10	8
110	41.5	50	15	10

















Type	Size	Power	Voltage frequency	Temperature	Packing	Qty in carton	G.W	Carton Size
Digital display type	20-32	800w	220V/50HZ	0-300℃	metal box+carton	5	14	430*190*470
	20-63	1000w	220V/50HZ	0-300℃	metal box+carton	2	17	460*260*260
	75-110	1200w	220V/50HZ	0-300℃	metal box+carton	5	24	450*260*470
double temperature control type	20-63	1500w	220V/50HZ	0-300℃	metal box+carton	5	28	530*300*520
	75-110	1800w	220V/50HZ	0-300℃	metal box+carton	5	28	530*300*465
Y-type	16-32	1200w	220V/50HZ	0-300℃	metal box+carton	10	26.5	470*380*380
	20-40	800w	220V/50HZ	0-300℃	metal box+carton	10	21.5	470*380*380
Thermostat type	20-32	600w	220V/50HZ	0-300℃	plastic box+carton	10	16.5	535*355*490
	20-63	800w	220V/50HZ	0-300℃	plastic box+carton	10	21	535*355*490
	75-110	1200w	220V/50HZ	0-300℃	metal box+carton	5	21	490*280*410















PACKING

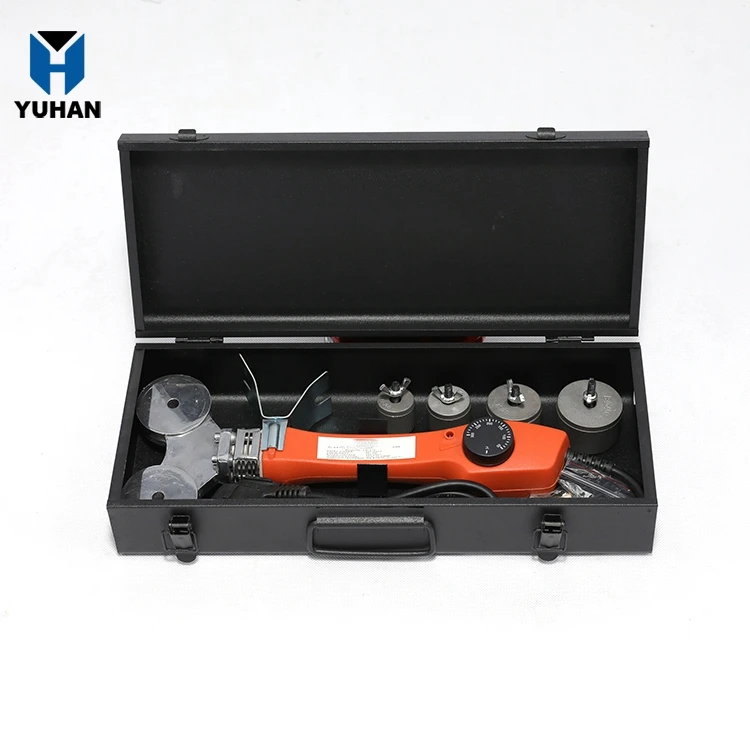

We put ppr pipe welding machines into metal or plastic box then small box and then cartons outside.

SHIPPING:
For sample orders, we can ship it by international express ,such as DHL ,FEDEX ,TNT and China EMS.
For bulk orders, we support air cargo and sea shipping ,our factory are near from Shanghai port and Ningbo port, we can transfer goods to port
within 24 hours.







Zhuji Yuhan Pipe Industry Co.,ltd was founded in 2015.The main products are all related to the plastic pipe welding equipment and plastic pipes,such as hdpe pipe welding machine and electrofusion welding machinesand pe pipes and fittings.We have a professional production. research and development base both in China. Yuhan has won the acceptance of global user, with the excellent quality , practical performance, and perfect after-sales service.Because our faith is one sales with long life service.Incerely wish to cooperate with you.

VIEW MORE



1.What is your payment term ?
Sample order . 100% in advance by T / T , Western Union , Paypal or Trade assurance.
Bulk order : T / T , 30% deposit , 70% against copy of B / L.

2. Do you have stock for sample ?
Yes, you can get available samples in our stock. Free for the samples, as long as you afford the express freight cost.

3. How long can I expect to get the sample?
After confirmed orders, the samples will be sent to you via express and arrive in 5-7 days

4. What about the lead time?
Usually within 20 days.

5. Do you have stock for sample ?
Yes, you can get available samples in our stock. Free for the samples, as long as you afford the express freight cost.
