New plastic sheet/film surface corona treatment

Model:FR-32
1.In the front of corona roller there is epoxy platform,material can be put on the it,easy for operating.
2.At the behind there is oblique phatform,materials can be collected automatically.
3.Machine corona discharge gap can be automatic adjust,won't be scrape material.
4.Can be choosed one group/two groups/three groups discharge,enhancement surface treatment
intensity.
5.Corona power can be adjusted,according to the material adopt the suitable power.
6.Optional electrostatic eliminator or exhaust blower,reserve extracter outlet.

Sheet corona treater is widely used to treat PP,PVC,PET,ABS,Glass,wooden,rubber sheets to increase surface tension and gives better printing and adhesion .water-based and UV inks printed on plastic films and other substrates create a need for the substrate to be treated prior to printing.
Corona treating is a very effective way to increase the adhesion of virtually any plastic material. Corona treatment increases the surface tension of the Sheet / Fabrics receptive to inks by inducing molecular changes in the surface of the films/sheets.
Conventional method of roll to roll treatment is standard practice, but in Offset, Sheet corona treatment is required to increase surface tension or improve the printability. Some substrates are corona-treated when they are manufactured. Many of these substrates require a surface energy
boost to match a particular ink or coating. This is done with corona pretreaters on the press just prior to the coating application point.
PVC, PP, LD, Foam, Flex, metallized polyester, PE, OPP and other high-low density plastic materials should particularly be Corona treated to enhance the quality of the final product.

Machine installed size

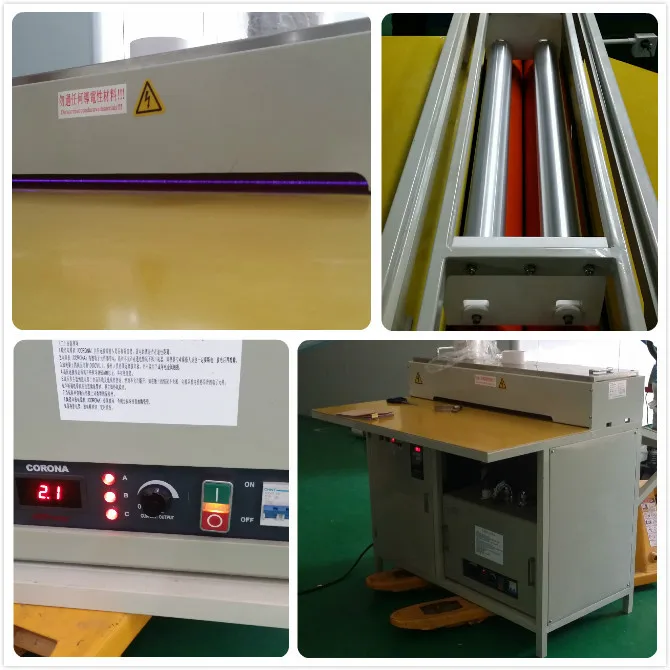

Detailed Images

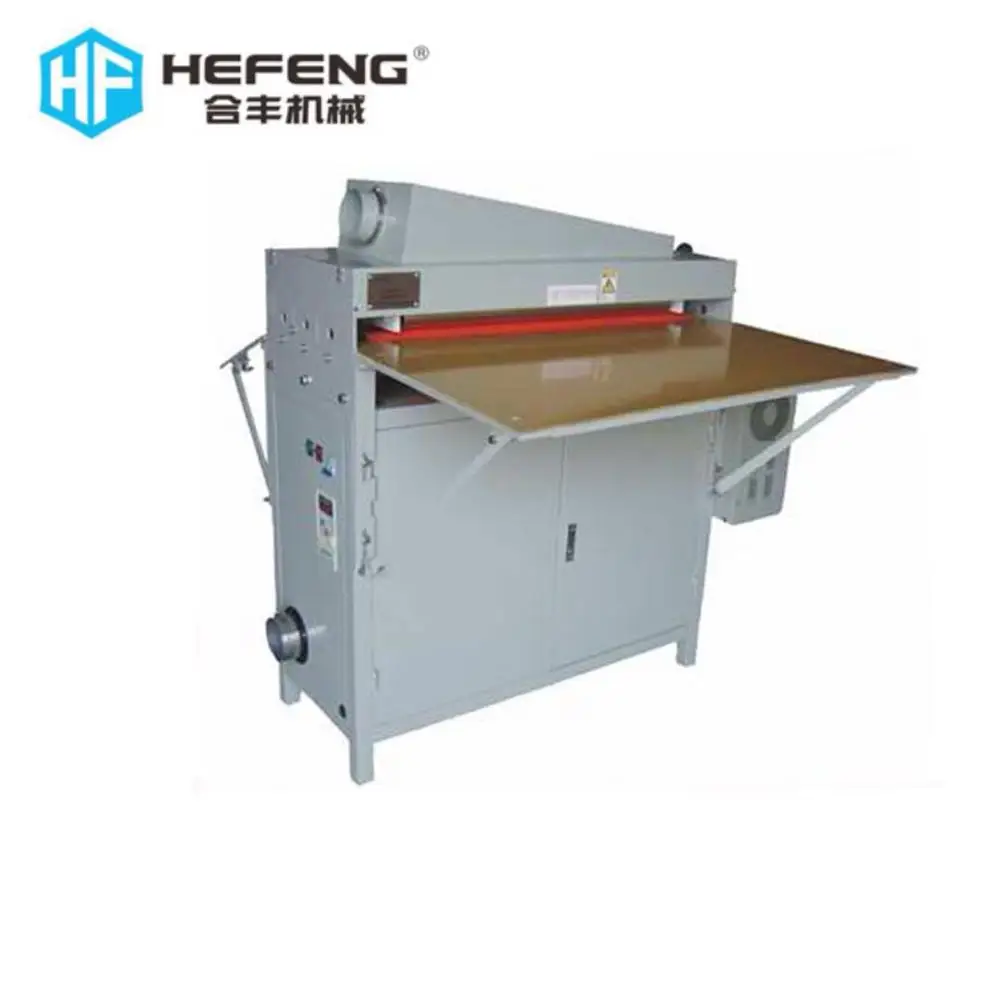

Plastic sheet corona treating machine
Suitable for: PP、BOPP、LDPE、HDPE、PET、PS、PC、PA、PVC、ABS、synthetic paper and all kinds of non conductive sheet

Regular treating width:600/800/1000mm(customized)

Features:

Epoxy board platform in front,behind diagonal loading,facilitate direct manual operation.

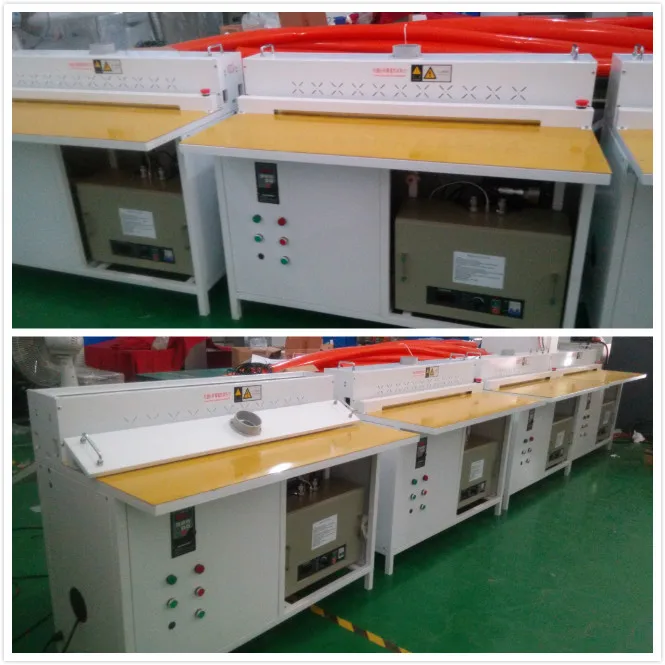

Installation Case:

Certifications

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

Packaging
Size	depends on the corona size
Weight	30-100KG
Packaging Details	The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Packaging
Size	73(L) * 38 (W) * 49(D)CM
Weight	23
Packaging Details	The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
