LNBF SPACE SINGLE C BAND LNB 13K специально
- Категория: Satellite TV Receivers >>>
- Поставщик: Anhui,Bowei,Electronics,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.98 $* | 0.12 $* |
| Aug-16-2025 | 0.61 $* | 0.88 $* |
| Jul-16-2025 | 0.56 $* | 0.39 $* |
| Jun-16-2025 | 0.26 $* | 0.47 $* |
| May-16-2025 | 0.64 $* | 0.42 $* |
| Apr-16-2025 | 0.36 $* | 0.31 $* |
| Mar-16-2025 | 0.87 $* | 0.89 $* |
| Feb-16-2025 | 0.88 $* | 0.31 $* |
| Jan-16-2025 | 0.87 $* | 0.75 $* |
Характеристики

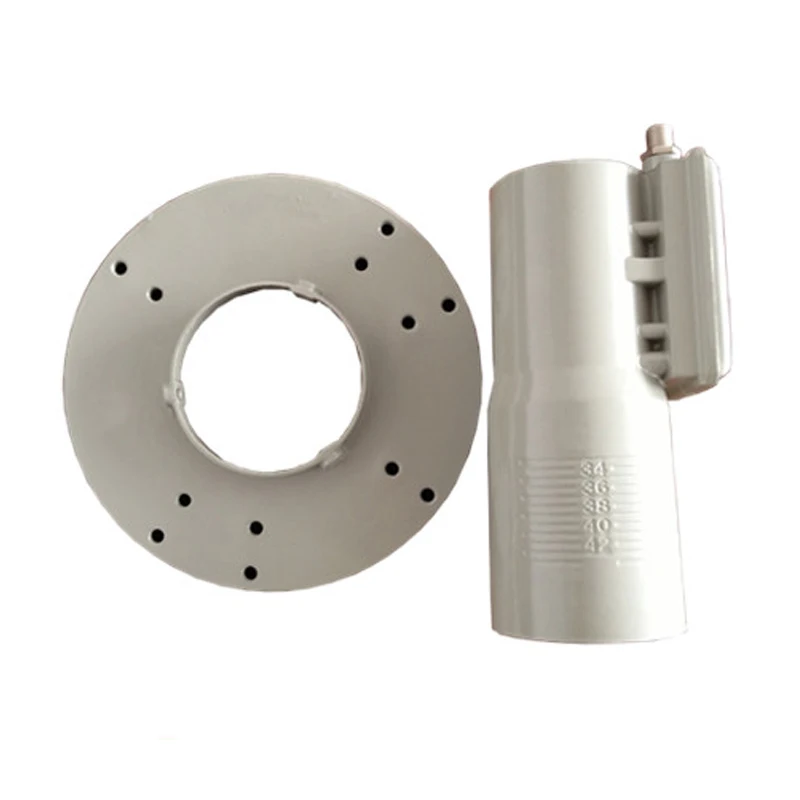

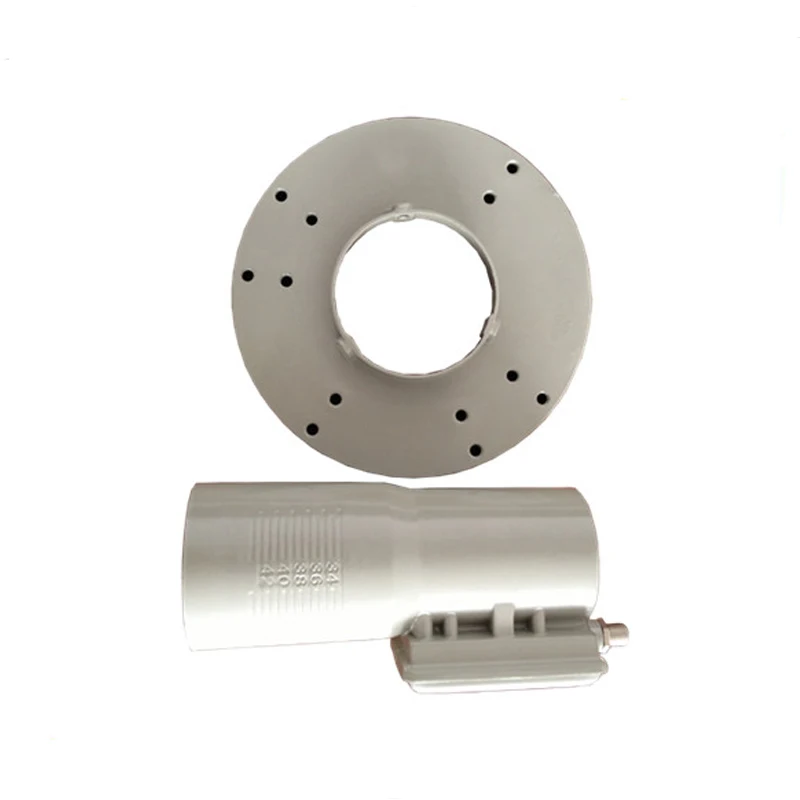

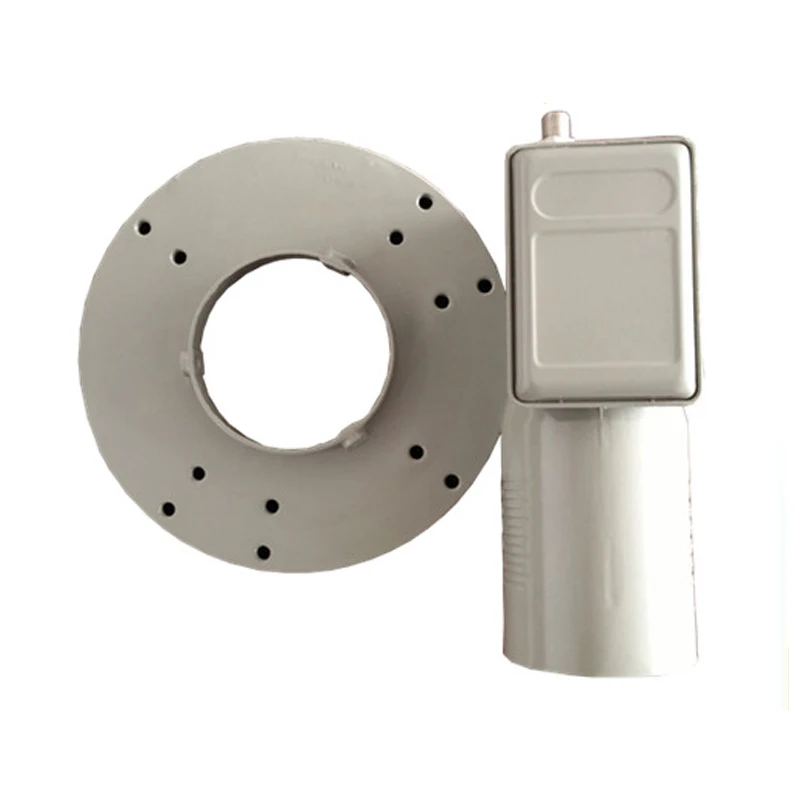

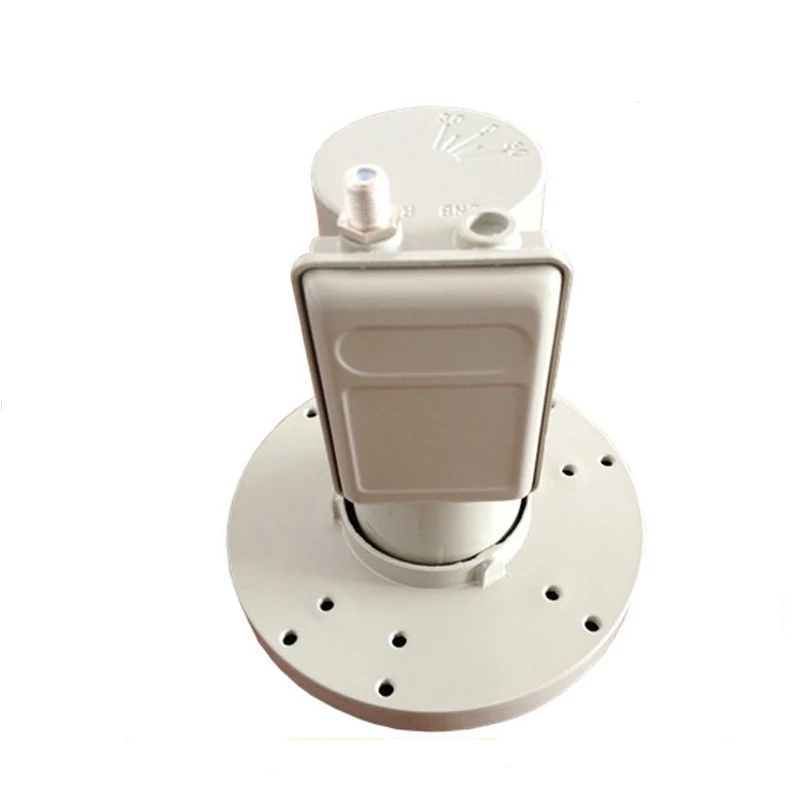

LNBF SPACE SINGLE C BAND LNB 13K Special for Thailand
Input Frequency: | 3.4 to 4.2GHz |
L.O. Frequency: | 5150MHz(±500 MHz@25centigrade) |
Output Frequency: | 950 to 1750 MHz |
L.O. Leakage Input Port: | 45dBm |
L.O. Stability: | ±1.5MHz(-40centigrade to +70centigrade) |
Noise Figure): | <17°K typ |
Conversion Gain: | 65dB typ |
Gain Flatness: | ±1 dBm(max) |
Intput VSWR: | 2.5:1(max) |
Output VSWR: | 2.0:1(max) |
Output Connector: | F-female Connector |
Output Impedance: | 75Ω |
Cross Polar Isolation: | 20dB(min) |
Image Rejection: | 45 dB (min) |
Phase Noise: | -75dBc/Hz@10kHz(max) |
Supply Voltage:
| 11.5-14.0v(Vertical Polarization) 16.0-19.0v(Horizontal Polarization) |
Operating Temperature: | -40centigrade to +70centigrade |
Storage Temperature: | -40centigrade to+80centigrade |
Relative Humidity: | 0%-95% |
Company Information
Factory Show:
certifications:
FAQ
1. Are you a factory or trading company?
Re: We are a factory of satellite receiving products(mmds downconverter, lnbf, yagi antenna, receiver etc.) for more than 20 years .
2. What's the Material of your products?
Re: The materials are all Aluminum.
3. Can you make products as our specification?
Re: Yes. Our Company has a professional engineering team,who can design the products as you required.
4. Can get samples before production?
Re: Yes, preproduction samples will be available.
5 How does your factory do regarding about quality control?
Re: Quality is priority. The products will be checked many times before final packaging.
6. What about your services?
Re: Factory supply directly, OEM service available, supply high quality after sale services.
