Китайский сварочный аппарат с автоматической подачей
- Категория: Аппарат для шовной сварки >>>
- Поставщик: Chengdu Xingweihan Welding Equipment Co., Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 51904.40 $* | 52942.72 $* |
| Jul-16-2025 | 42095.46 $* | 42937.76 $* |
| Jun-16-2025 | 51086.60 $* | 52108.55 $* |
| May-16-2025 | 50678.30 $* | 51692.42 $* |
| Apr-16-2025 | 40460.40 $* | 41269.7 $* |
| Mar-16-2025 | 49860.59 $* | 50857.19 $* |
| Feb-16-2025 | 49451.33 $* | 50440.92 $* |
| Jan-16-2025 | 49043.30 $* | 50024.72 $* |
Характеристики

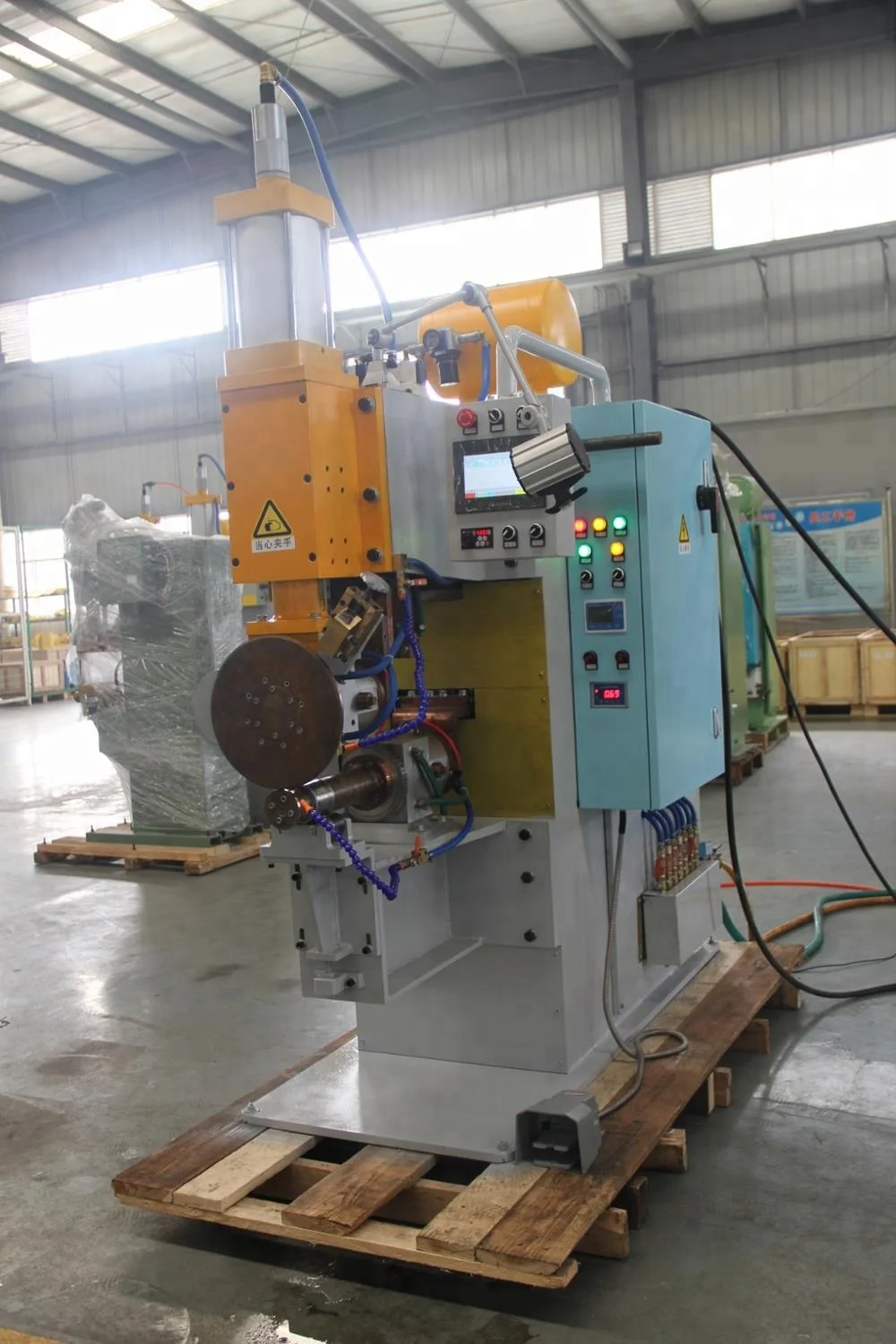

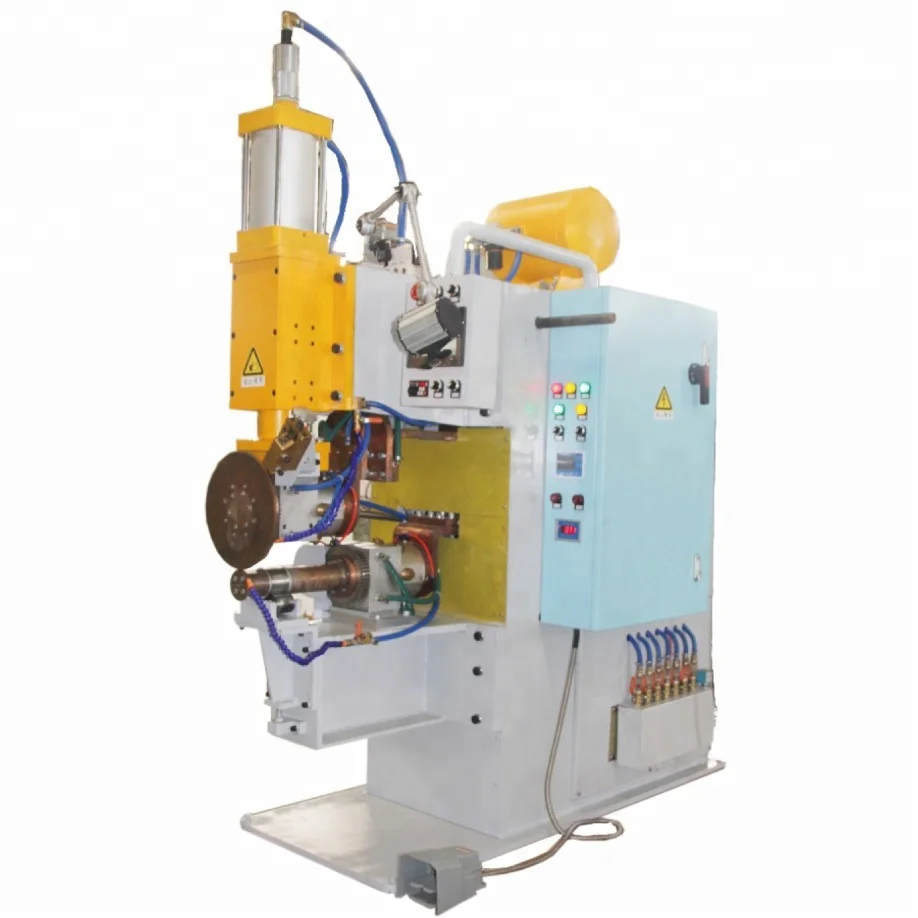

Chinese Rolling Seam welding machine with automatic feeding system 2018![_01_01.jpg]()
Product Description
"ALL SPOT WELDING MACHINE CAN BE CUSTOMIZED."
FEATURES:
Item | UNIT | FN-40 | FN-80-H | FN-100-H | FN-160-H | FN-100-E | FN-160-E |
Rated power | KVA | 40 | 80 | 100 | 160 | 100 | 160 |
Voltage input | V | 380 | 380 | 380 | 380 | 380 | 380 |
Frequency | Hz | 50Hz | 50 | 50 | 50 | 50 | 50 |
Max. short circuit current | KA | 26 | 30 | 40 | 30 | 40 | |
Working Stroke | mm | 100 | 100 | 100 | 100 | 100 | |
Welding Efficinecy | m/min | 0.7-3.9 | 0.7-3.9 | 0.7-3.9 | 0.7-3.9 | 0.7-3.9 | |
Max. Force | N | 6000 | 6000 | 7800 | 6000 | 7800 | |
Max. Welding Capacity | mm | 1.2+1.2 | 1.5+1.5 | 2.0+2.0 | 1.5+1.5 | 2.0+2.0 | |
Motor Power | W | 550 | 750 | 750 | 750 | 400 | |
Cooling Consumption | L/min | 8 | 8 | 10 | 8 | 10 | |
Weight | Kg | 380 | 510 | 630 | 530 | 700 |
ADVANTAGES:
1,Stable and easy to adjust.
2,Internal cooling used in the welder, while external cooling of the welding wheel.
3,The rotating part is embedded silver tile structure, the conductive seat is fully sealed and lubricating.
4,Two kinds of welding modes: Horizontal and Vertical.
USAGE:
Widely used in hardware fittings, electrical, automobile, fuel tank and other manufacturing industries industry.
