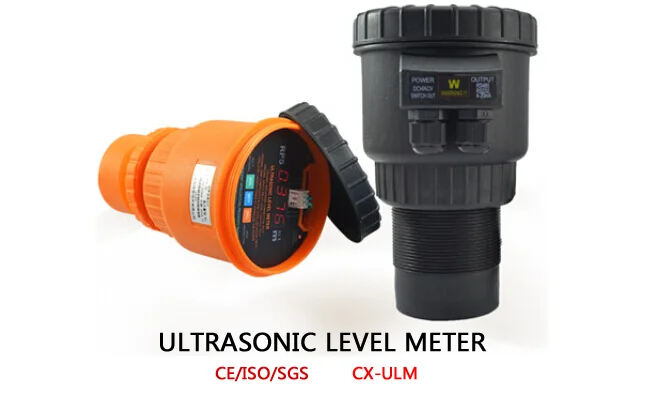

Milk Tank Level Measurement Ultrasonic Level Sensor



A.[Features of Plastic Material Water Level Indicator ]



Widely Applications of level meter

The Ultrasonic Digital Waster Water Acid Fuel Level Sensor's measuring can not be influenced by foam,power,steam and etc...



Various Type for Various Conditions

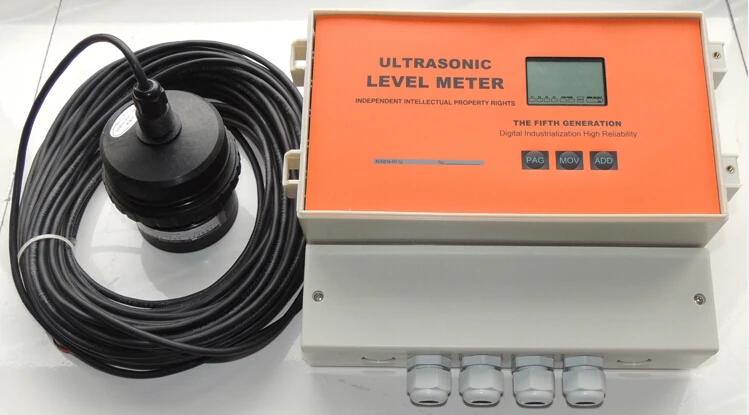

The level meter with Two-wires,Three-wires,Split type and Without display type and etc...for you reference...



Applications of level meter

The well depth,Power station,Stirred tank,Sewage tank,Biogas tank,Swinning pool and more...



Various Output of Ultrasonic Digital Waster Water Acid Fuel Level Sensor

The 4~20mA,Hart,Modbus,for you reference.



B.[Parameter]

Plastic Material Water Level Indicator ---Basic Production Information
Measuring Range	Min:0.06  ;   Max:30.0meter
Types	Three wires;Two wires;
Output	4~20mA or Relay(Optional)
Connector material	ABS or other material

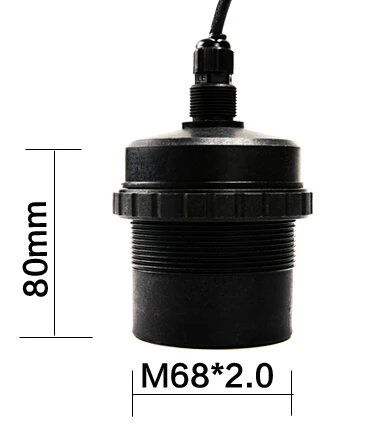

Connection	G1 1/2 Thread;M60*2ABS ;M30*1.5;or M20*1.5; Customized for you
Protection class	IP65
Power supply	12~24V;220V(Optional)
Display	LED ,LCD Display or without display
Communication	Hart or RS485 Optional
Explosion Proof	Optional
Temperature	-40~70℃
Accuracy	+/-0.3%
Blind zone	<0.4-0.5m (Different for range)
Operating surroundings	normal temperature and normal pressure





C.[Installation]

1. Sensor should be placed where there is no obstacle between emission surface and measured liquid,it also should be far away from feeding throats;


2. Tank shape should be considered.some type of container will bring second echo,expecially conical and spherical tank,a good installation place will solve the problem;


3. Plastic Material Water Level Indicator can be installed by flange or thread,whatever installation way,make sure the sensor bottom through the installation hole or flange.


4. If the liquid to be measured has sewage,a float impurities or flunctuation .use a wave guide and the diameter of the waveguide should over 120mm.



D.[Company Info]

• Our Company is Top 10 Manufacture on Alibaba;


• We have about 30 years of experience in Manufacture;


• Our products have been exported to more 100 coutries and area;


• ISO,CE and more ceterficates for you reference;


• Patent technology and more than 3 years working life
