Product Name - waterproof xps foam fiberglass square shower tray board/shower base for wetroom bathroom
Sanyi shower tray, also known as waterproof shower base, shower pan, shower lay, waterproof wetroom floor insulation board. Structure 1. Extruded polystyrene sheet(XPS) as a core 2. Glass fiber mesh and polymer cement coated on both sides 3. Pre-sloped to fall Introduction Sanyi XPS shower base is a low-cost, easy-to-install waterproof base, used in the design of a wet room for the home and suitable to be fixed to both timber and concrete floor. The tray is easily cut into any size or shape and forms a floor level, barrier- free panel ready to receive tiles with a preformed slope to the drain.
Specification
32″ x 60″ x 1.5"(813mmx1524mmx38.1mm)
3x5ftx 1.5" (914mmx1524mmx38.1mm)
4'x5'x1.5"(1219mmx1524mmx38.1mm)
5'x5'x1 1/2" (1524mmx1524mmx38.1mm)
4'x6'x1 1/2"(1219mmx1830mmx38.1mm)
shower pan -Specification
4'x4'x1.5"(1219mmx1219mmx38.1mm)
3'x5'x1.5"(914mmx1524mmx38.1mm)
4'x5'x1.5"(1219mmx1524mmx38.1mm)
4'x6'x1.5"(1219mmx1830mmx38.1mm)
5'x5'x1.5"(1524mmx1524mmx38.1mm)
Size Customized
800x800x20mm
900x900x20mm
1000x1000x20
900x750x20
800 x1200 x 20
900x1200x20
Linear Tray 900x900x25mm
Linear Tray 900x1200x25mm
Linear Tray 900x1500x25mm
Linear Tray 900x1200x25mm (Side Linear)
Linear Tray 900x1500x25mm(Side Linear)
Linear Tray 900x1800x25mm
Detailed Images
xps deep bathroom Shower base Tray board underlayment tile

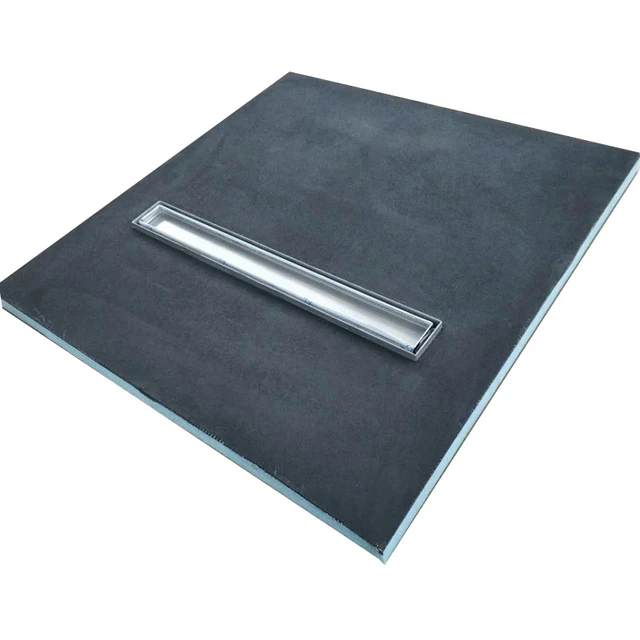

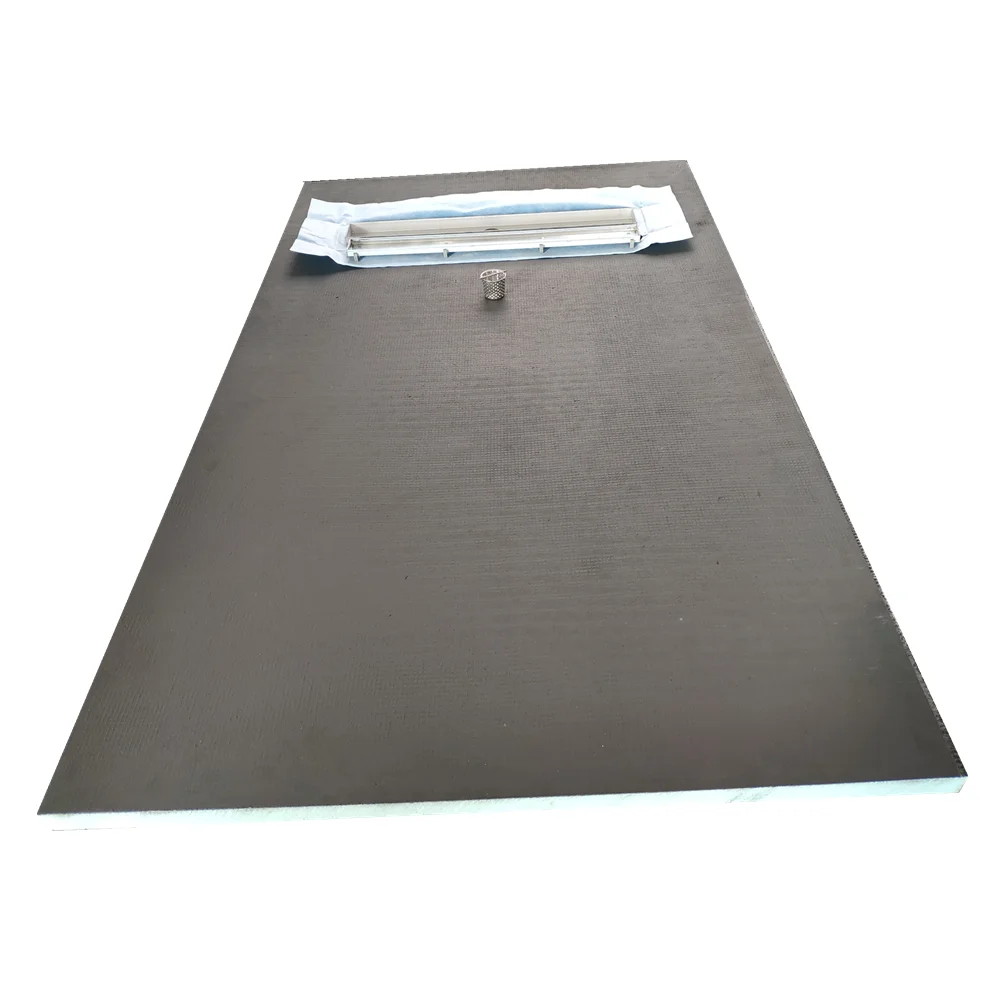

Linear Wetroom Trays
Shower tray are specifically designed to help you create a contemporary wetroom design.

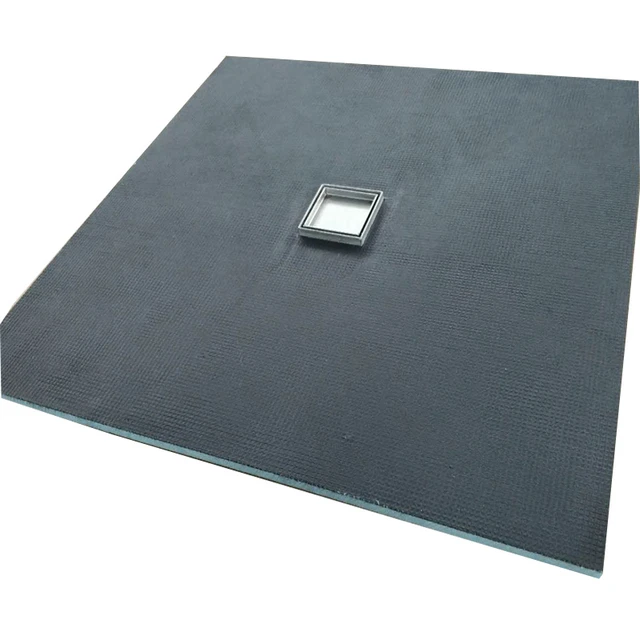

Shower Pan
Shower pan are specifically designed to help you create a contemporary wetroom design.
Shower pan are specifically designed to help you create a contemporary wetroom design.

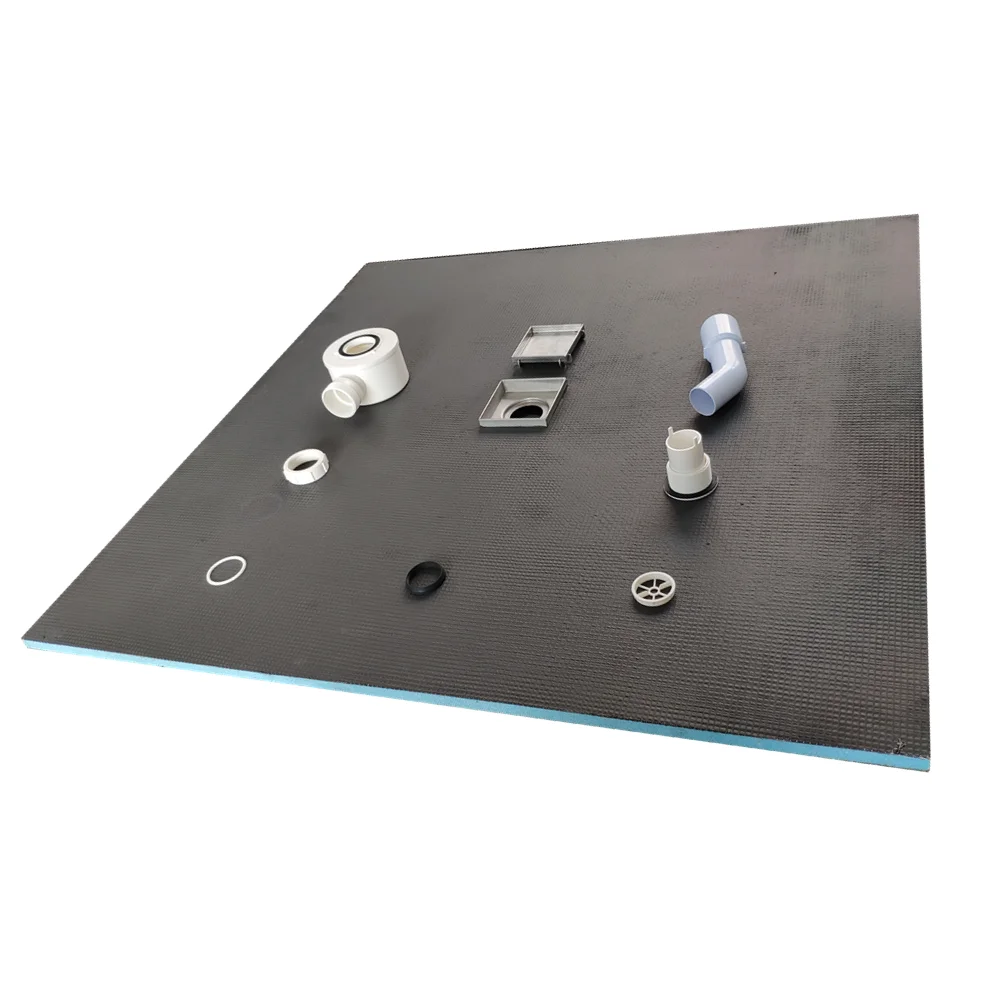

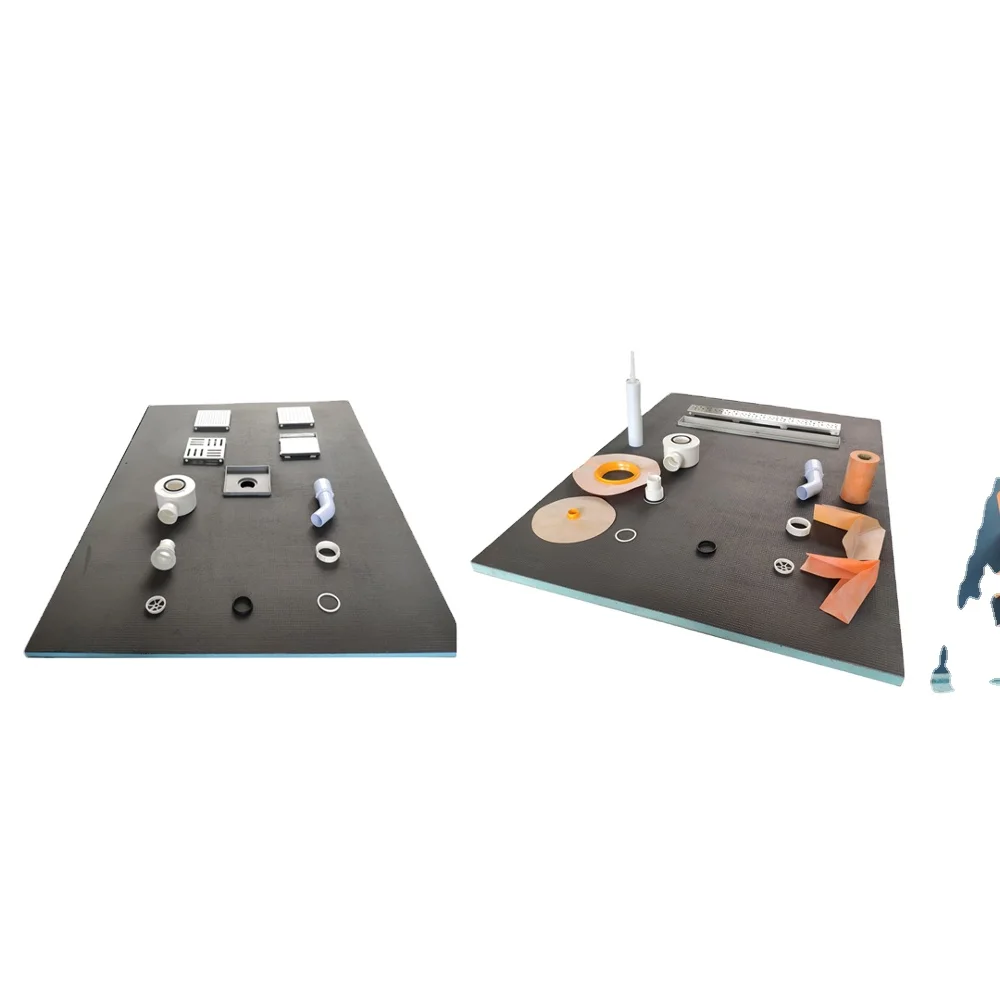

Accessories
xps deep bathroom Shower base Tray board underlayment tile
11Pipe collars Mixing Valve Seal 12.Screws and fasterner with box
13. Curb for shower tray
underlay wetroom electric underfloor central heating mat kit system with cable thermostat insulation board

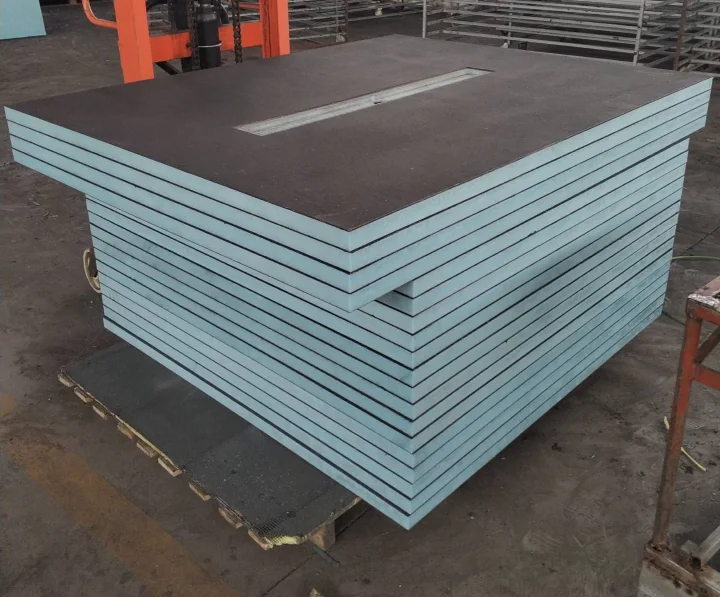

Packing & Delivery
xps deep bathroom Shower base Tray board underlayment tile
Our Service
xps deep bathroom Shower base Tray board underlayment tile
1 .Product Development and design 2. Fast production and delivery 3. After Sales Service with quality and quantity 4. Sample making and testing 5. Packaging design and adjustment 6. Local distributor agent service oversea i.e oversea warehouse etc 7. Localized advertisement activities
FAQ 1. Could you develop some certain product with tile backer board and shower tray for us? Answer: Yes, we have strong R&D Capability, we are welcome you to discuss the new idea with us. 2. Do you have any product certification for your tile backer board and shower tray ? Answer: Our Shower system have certain CE Certification, also our certain product tested in USA with good performance in TCNA and IAPMO. If you need the SINTEF OR SONAP, we could apply the certification together. 3. How is your production time ? Answer: Normally it take 15-25 days and it vary according to the product quantity. 4. How many countries and areas have your product shipped? Answer: We have shopped our shower system to United States, United Kingdom, Ireland, Canada, Russia, Netherland, Nigeria, Sweden, Republic of Lithuania etc. 5. Do you provide OEM/ODM service? Answer: Yes, we could produce the product with private labeled.
Product installation
shower tray installation
xps deep bathroom Shower base Tray board underlayment tile
XPS insulation board installation
Lots of modern buildings are made using timber or metal stud frames that are lining with plaster board or wooden panels. Basicinno board is the ideal alternative for lining such walls because unlike wood or plaster, our boards are fully waterproof making them perfect for wetrooms, bathrooms, laundries, kitchens and high traffic abuse areas. Basicinno boards also offer high thermal insulation that can benefit every room in the house by significantly reducing your heating loss. Basicinno boards are suitable for plastering, tiling or even wallpapering when thick lining paper is used. STEP1: This system uses timer or metal studding designed to provide rigid support for the board. The unsupported span of the frame work depends on the thickness of the board to be affixed. All board edges must be supported (Recessed edges for flush jointing optional). Please note the following guide for thickness relating to stud work. l 600 centres use 20mm board (or thicker) l 400 centres use 12mm board. l 300 centres use 10mm board (no thinner suggested) STEP2: Align the tile backer board on the stud , make sure it is flat and there is 2 mm gap between boards. Step3: Use a steel screw and washer to fix the board to the framework at every 300mm l 600 centre use 2 rows of 5 fixing (short board) l 300 centre use 3 rows of 4 fixing(short board) l Check all boards are on a level an tightly fix to the framework
