Features of metallized film
By adopting the design of electrician homo-polypropylene with ultra-high purity, the film is made by biaxial extention through a flat membrane process. It features good thickness and uniformity and high mechanical strength. The winded capacitors take on the characteristics of low dielectric dissipation and high insulation resistance.

Types of metallized film
1. Aluminum metalized polypropylene film.
2. Aluminum metallized polypropylene safety film
3. Zinc-aluminum alloy metalized polypropylene film with heavy edge.
4.Zinc-aluminum alloy metallized polypropylene safety film with heavy edge.
5. Zinc-aluminum alloy metallized polypropylene film with heavy edge and slop metallized film
6.Aluminum metalized polyester film.
7.Aluminum-Zinc alloy metalized polyester film with heavy edge.

Properties polypropylene film	Unit	Requirements
Density	g/c m³	0.905±0.005
Thickness	µm	3~12
Tensile Strength	MD(MPa)	≥100
Elongation at Break	MD(%)	40~200
Heat Shrinkage	MD(%)	≤5 ( 120℃, 10min)( 120℃ , 10 min )
Break-dowm Voltage	V/µm	≥350 ( 23℃, DC )
Coating Square Resistance	Ω/	With heavy-edge:Heavy-edge area:3±1                                Non heavy-edge area:7.5±2.5 Without heavy-edge: 2~4
Dissipation Factor		≤4×10-4 (20℃,1KHz )
RC	ΩF	≥5×104

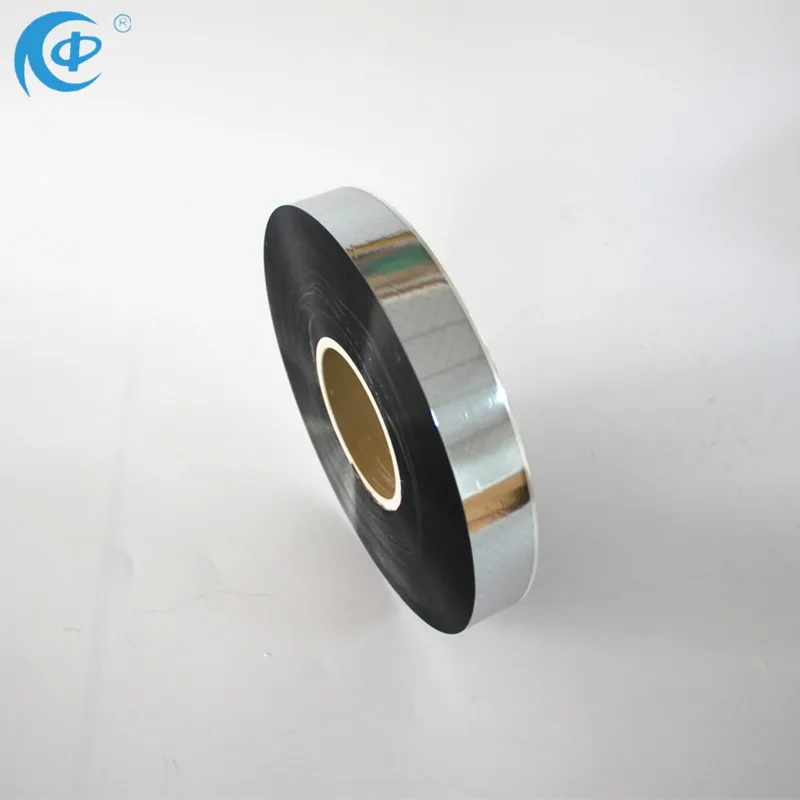

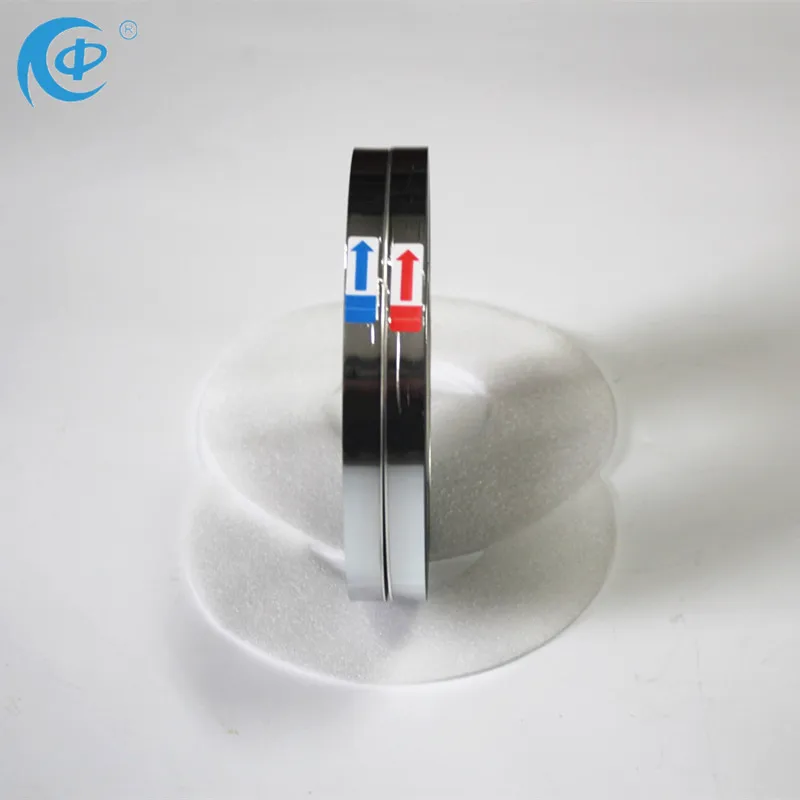

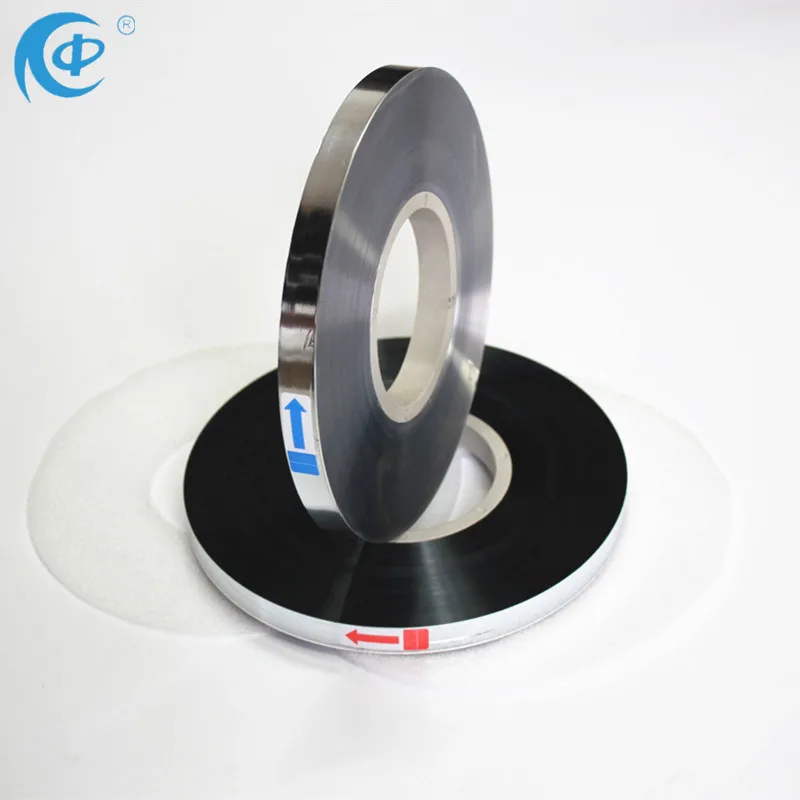

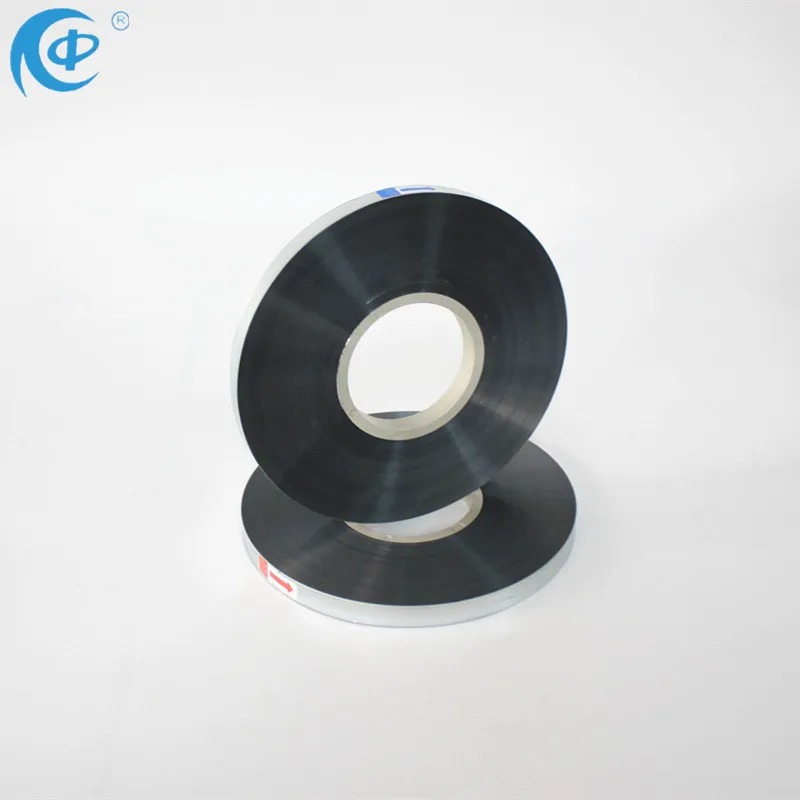

Detailed Image

Related Products

CBB16 CAPACITOR

DC LINK CAPACITOR

CBB15 CAPACITOR

Our Company

Anhui Zhongrong Electronics Co.,Ltd,founded in June,2015,is a professional capacitor manufacturer integrate development design,production,sales and sevice.Main products:capacitors,BOPP film,metallized film,widely used in household appliances,industrial power electronics,new energy,smart grid,lamps and lanterns(lighting),electric power grids,automation engineering and other industries.
With 3 years of export experience along with excellent quality, advanced services and competitive prices, Zhongrong electronics has won numerous customers' trust and support.

Packing & Delivery

Packing

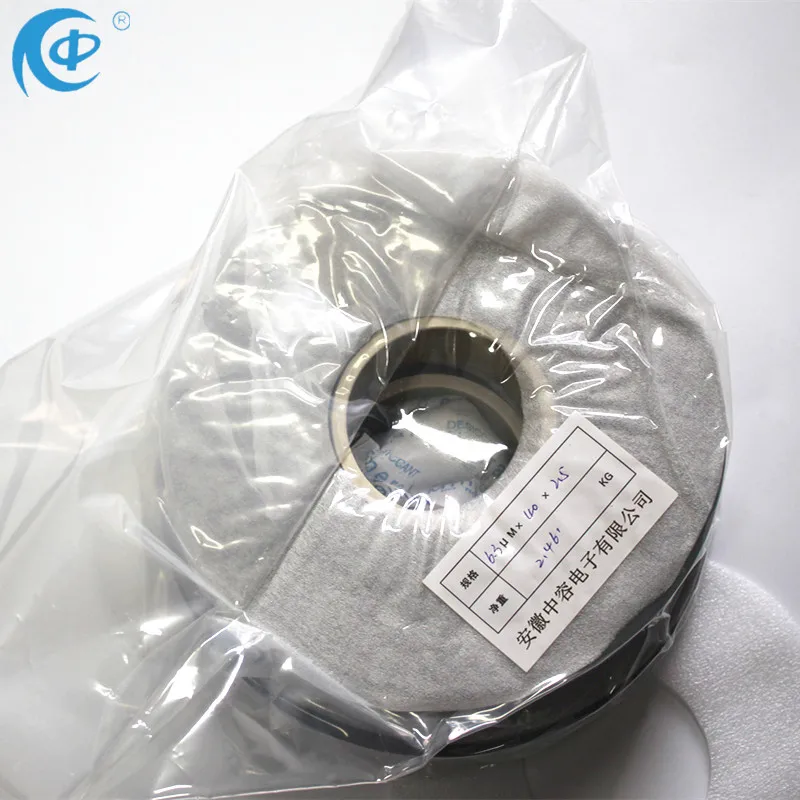

Al Zn Heavy edge metallized film are packaged in vacuum platsic bag and heat-sealed with desiccants. The bags are packed in carton cases. The cartons are wrapped in wooden cases or reinforced catron.

Delivery

Shipped in 10 days after payment.
