EATON DILM32-10 A4 244264 XTCE032C10T

Описание и отзывы

Трекер стоимости

Характеристики

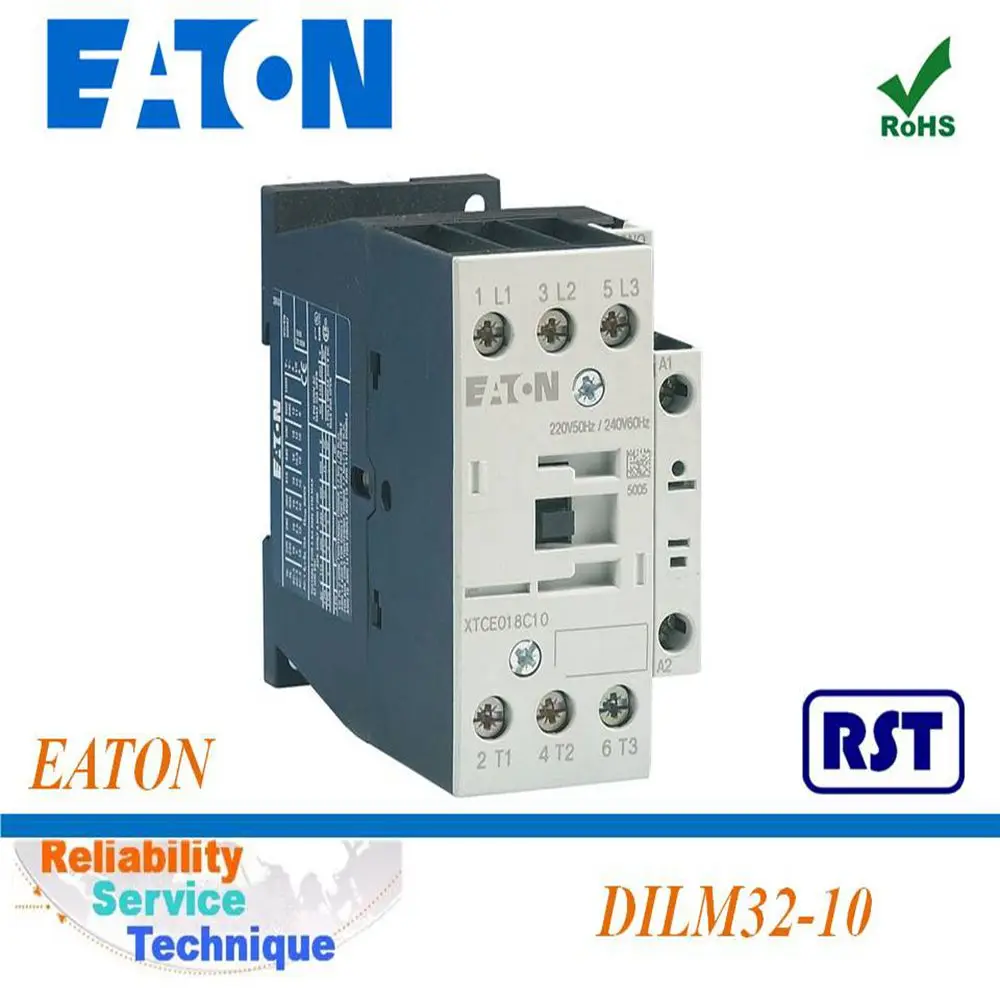

EATON DILM32-10 A4 AC24V XTCE032C10T 277264 CONTACTOR











Specification

• Relay Type: Contactor
• Coil Voltage VAC Nom: 24 V
• Contact Configuration: 1 N/O
• Contact Current AC Max: 45 A
• Contact Voltage AC Max: 400 V
• Mounting Type: DIN Rail / Panel
• No. of Poles: 3
• Approval Bodies: IEC/EN 60947, VDE 0660, UL, CSA
• Dielectric Voltage Coil to Contact: 440 V AC
• Dielectric Voltage Contact to Contact: 440 V AC
• IP / NEMA Rating: 00
• Insulation Voltage: 690 V AC
• Max Coil Voltage: 24 V DC
• Max Main Contact Current AC3: 45 A
• Power Rating: 15kW

Program

Product range			Contactors
Application			Contactors for Motors
Sub range			Complete devices up to 170 A
Connection technique			Screw terminals
Rated operational current
AC-3
380 V 400 V	Ie	A	32
AC-1
Conventional free air thermal current, 3 pole, 50   - 60 Hz
Open
at 40 °C	Ith =Ie	A	45
Max. rating for three-phase motors, 50 - 60 Hz
AC-3
220 V 230 V	P	kW	15.5
380 V 400 V	P	kW	22
660 V 690 V	P	kW	30
AC-4
220 V 230 V	P	kW	6
380 V 400 V	P	kW	10
660 V 690 V	P	kW	14



Approbationen
Product Standards	IEC/EN 60947-4-1; UL 508; CSA-C22.2 No. 14-05; CE   marking
UL File No.	E29096
UL CCN	NLDX
CSA File No.	012528
CSA Class No.	2411-03, 3211-04
NA Certification	UL Listed, CSA certified
Specially designed for NA	No
