PORCHESON PS360AM MS210A полный комплект системы управления контроллер PLC для литьевой

Описание и отзывы

Трекер стоимости

Характеристики

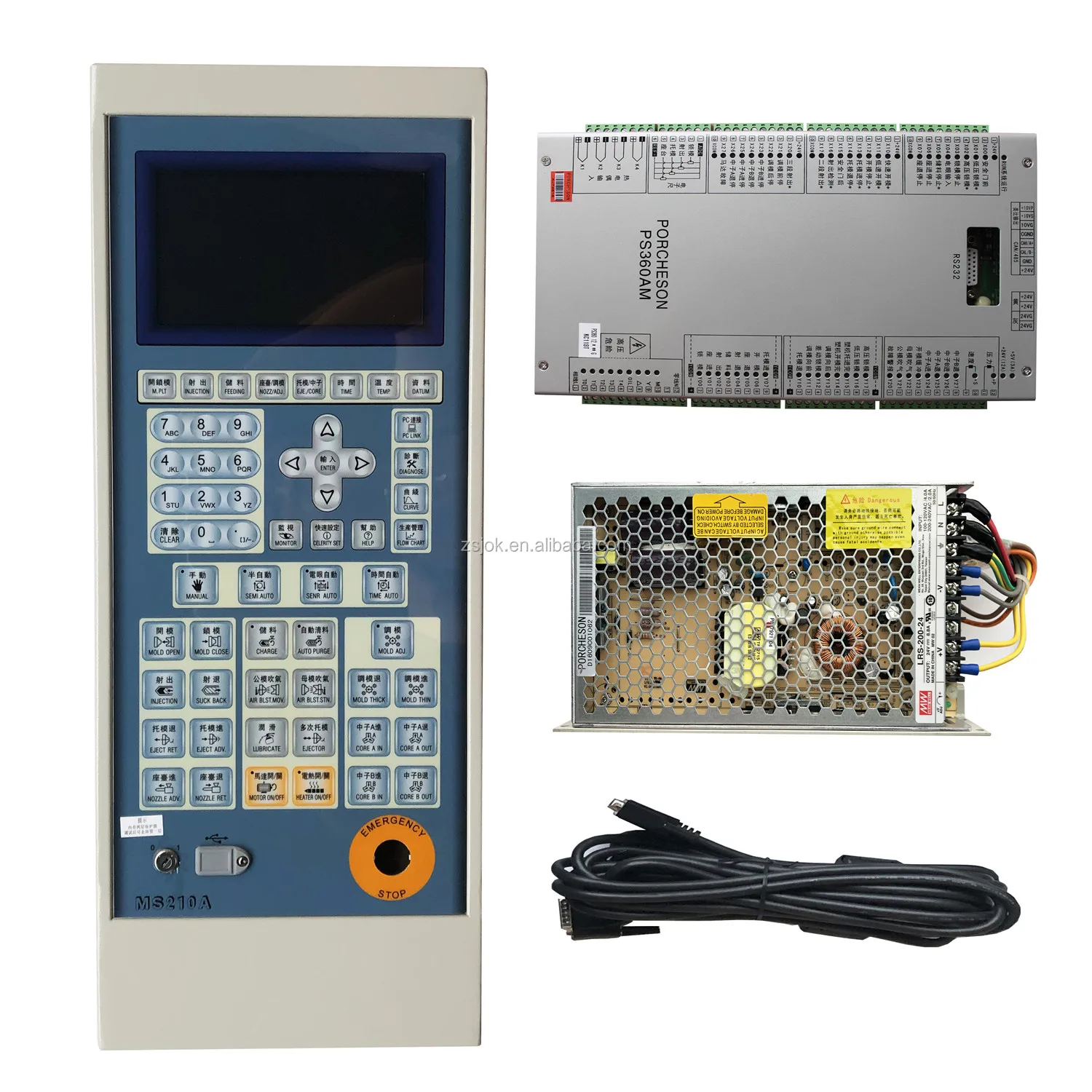

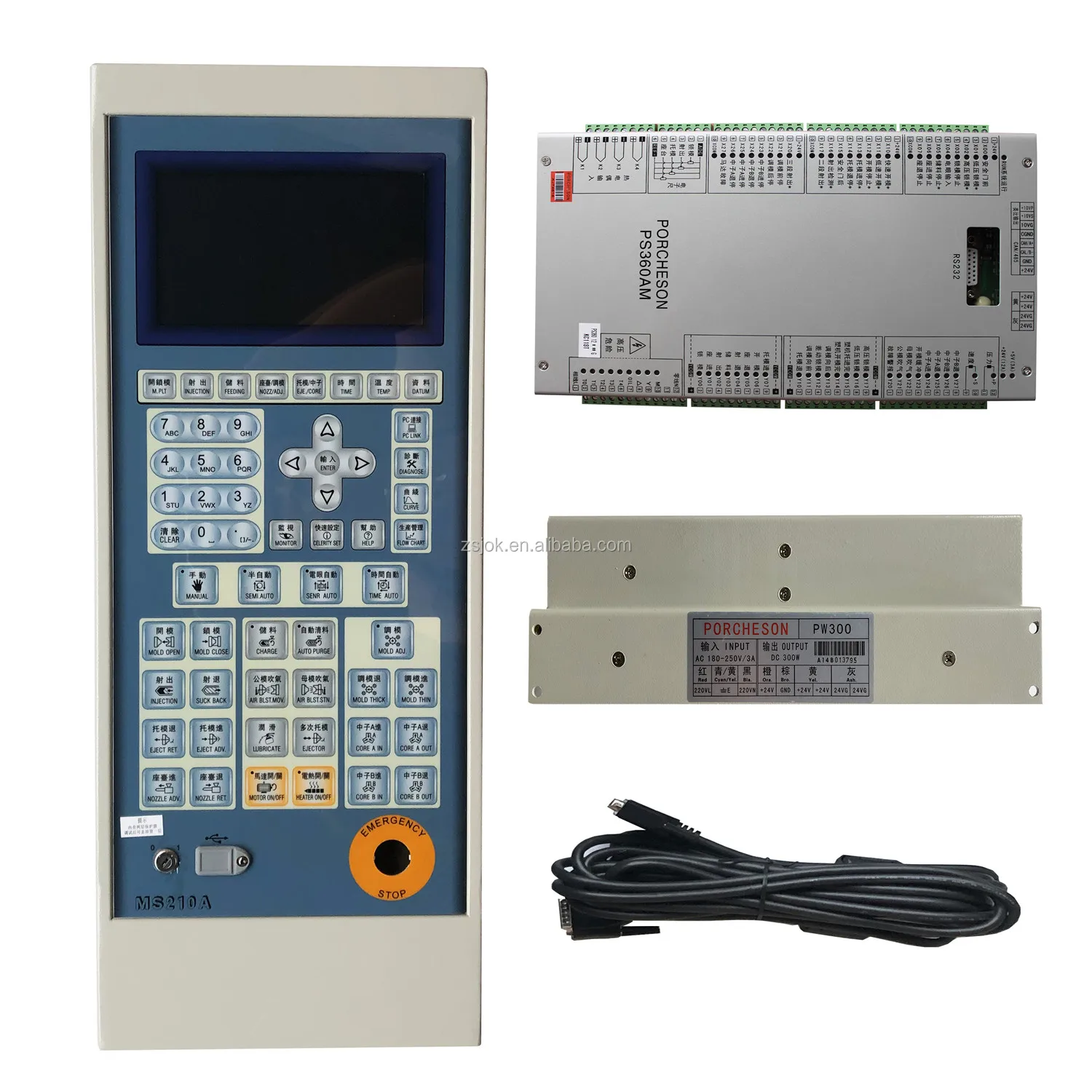

System configuration:



Host computer( I/O board), Keyboard( operation panel) , Power supply,,Message cable, user manual





PS360AM I/O board                  24/24+9+3line electronic ruler

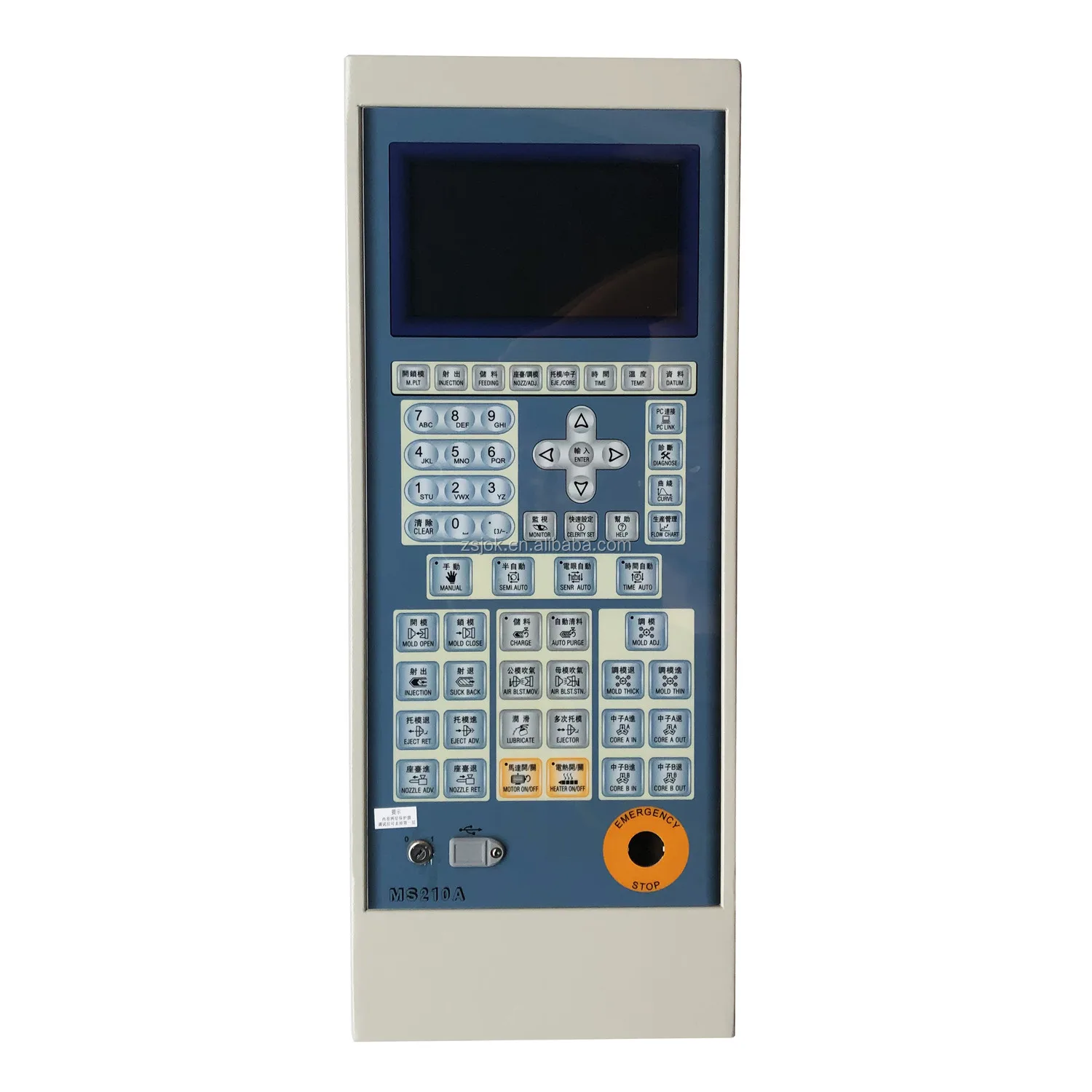

Keyboard : MS210A                   800*480TFT  7''inch LED screen

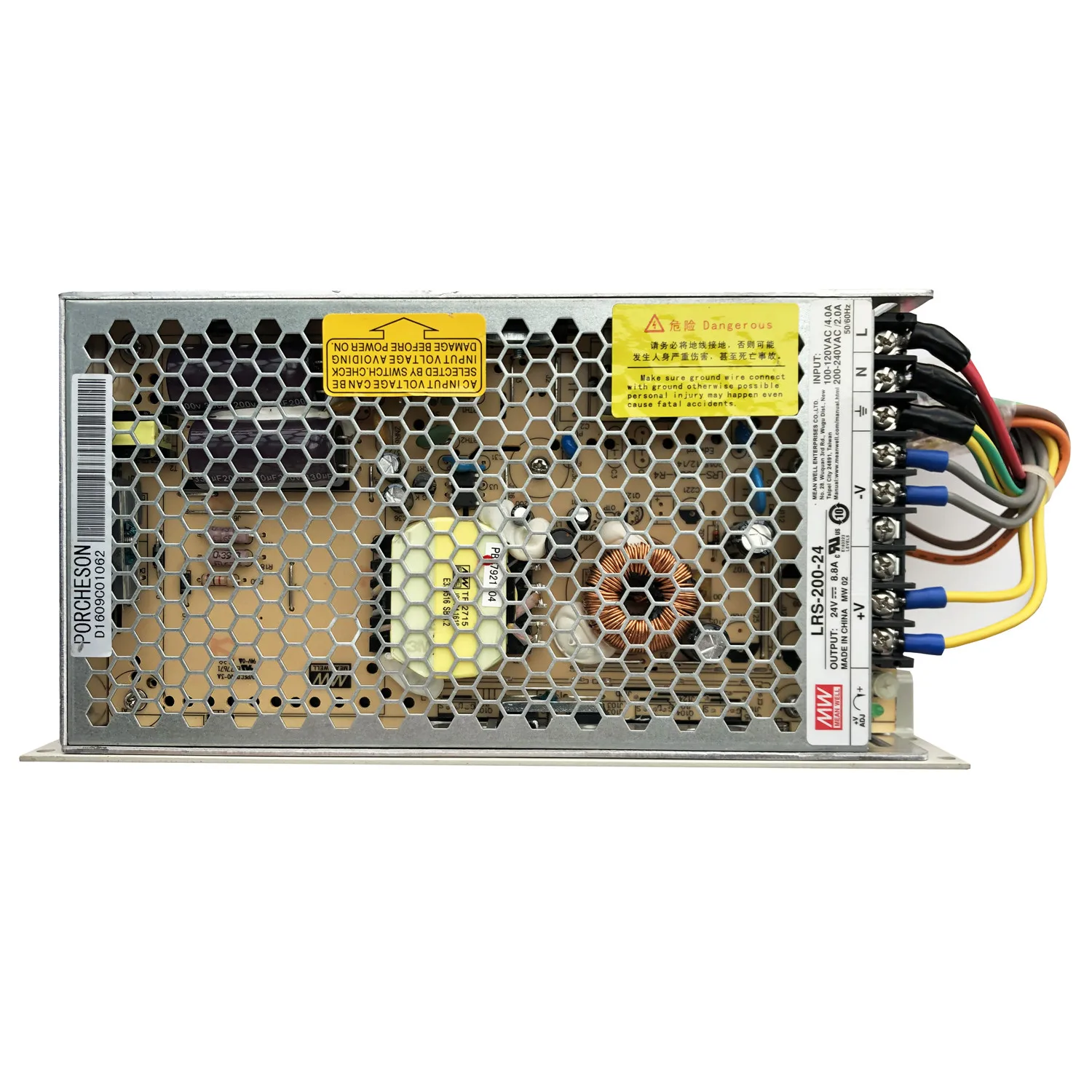

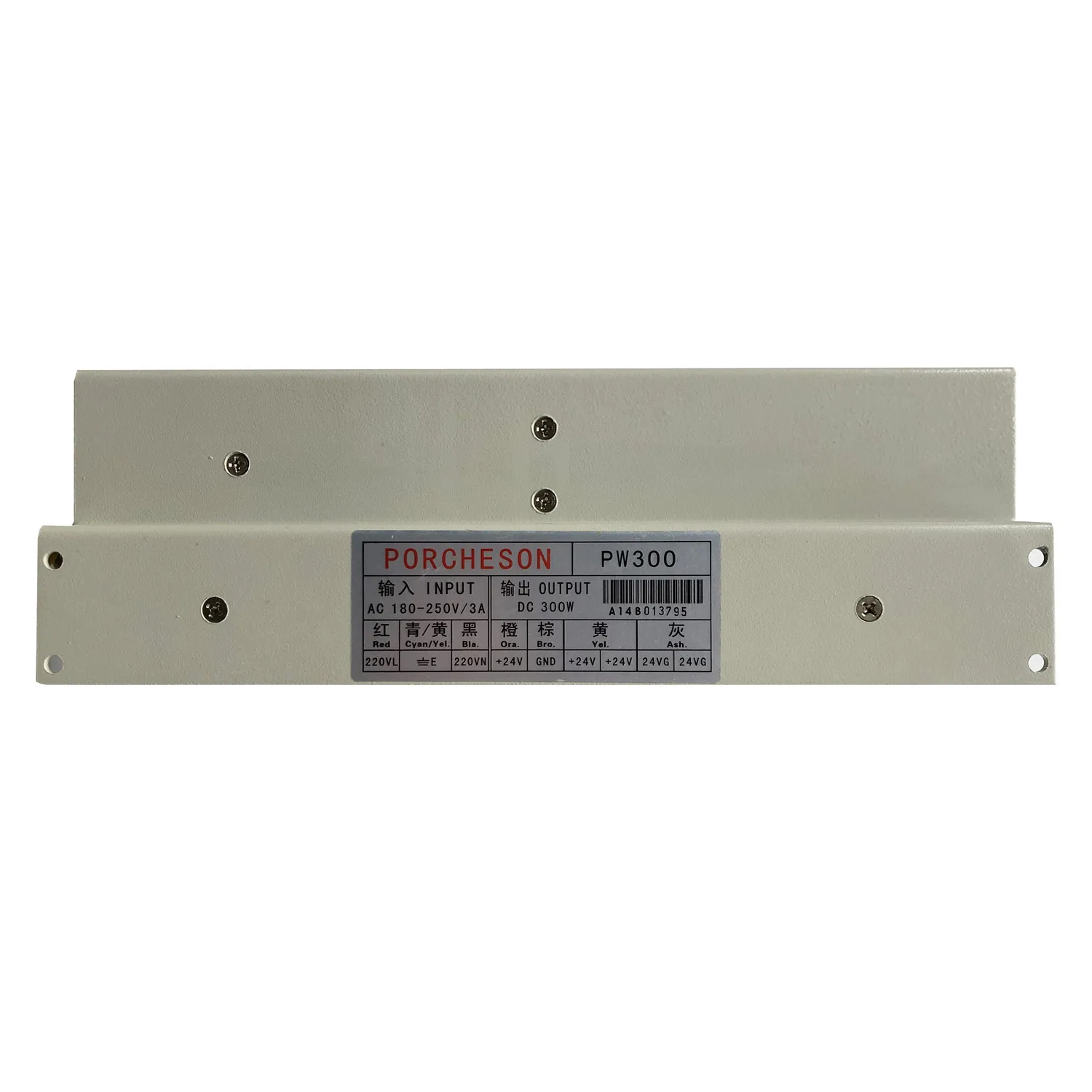

Power supply: LRS-350-24       350V

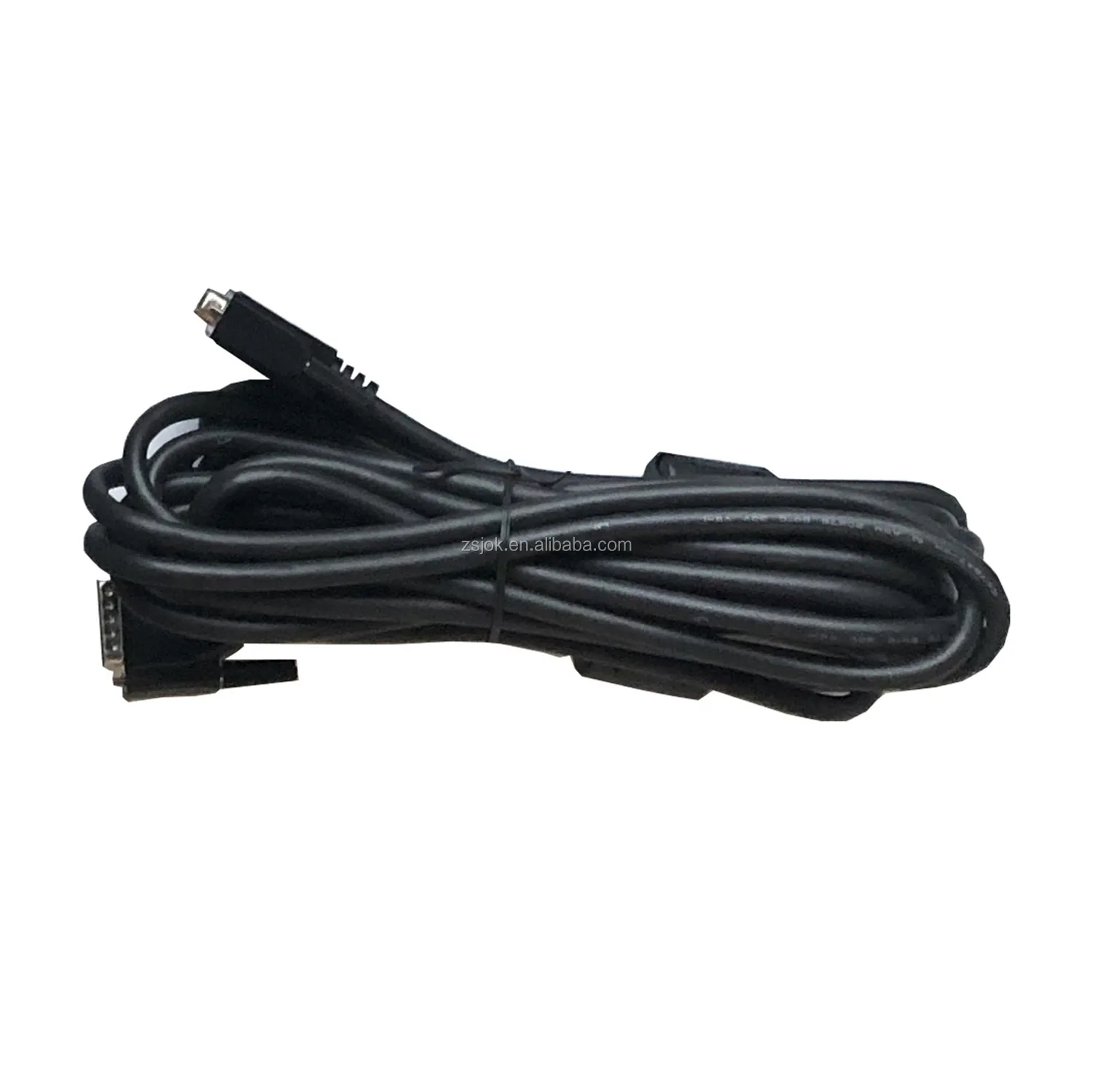

Cable: DB-15F                            1-8meter optional



PS360AM  specification :



1. PID (Proportion Integration Differentiation) self-learning temperature control, (4+1) sections of temperature



2. Multi-stroke control , position switch/3-path 12bit A/D electronic ruler input



3. 999 groups mould data storage, mold description input can adopt Chinese/English with real-time operational help



4. Multi-language selected, display dynamically in real time with 999 group SPC track record



5. Input& output point with overload and short-circuit protecting function



6. Real time dynamically observation on output values of pressure, speed and current, no need extra ammeters



7. Multi security programs protected and internal security circuit controlled



8. Failure of self-detection, alarm display and voice prompt function



9. 2 path standard 16bit D/A ratio output with max current 3000 mA



10. 2 path standard ratio output 0 ~ 10V D/A



11. DC24V input 24 point /output 24 point, relay output 9 point



12. Could configure various universal keyboards:7.0, 8.0, 10.2 inch TFT(optional)



Operate environmen

Operate temperature: -10°C ~50°C

Storage temperature: -20°C~60°C

Relative humidity: 10%~95% (non condensation state)





Thanks for your time on our products, if you interested in  ,please don’t hesitate to contact us for more details. also we offer other industrial display LCD modules.
