Грейферный захват 12 5 тонны переработанный гусеничный экскаватор апельсиновый металлический лом
- Категория: Экскаваторы >>>
- Поставщик: Quanzhou,Jingli,Engineering,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 80920.79 $* | 84966.91 $* |
| Aug-19-2025 | 80240.60 $* | 84252.97 $* |
| Jul-19-2025 | 67320.62 $* | 70686.74 $* |
| Jun-19-2025 | 78880.0 $* | 82824.46 $* |
| May-19-2025 | 68680.20 $* | 72114.82 $* |
| Apr-19-2025 | 77520.51 $* | 81396.13 $* |
| Mar-19-2025 | 76840.58 $* | 80682.97 $* |
| Feb-19-2025 | 76160.11 $* | 79968.17 $* |
| Jan-19-2025 | 75480.50 $* | 79254.31 $* |
Характеристики

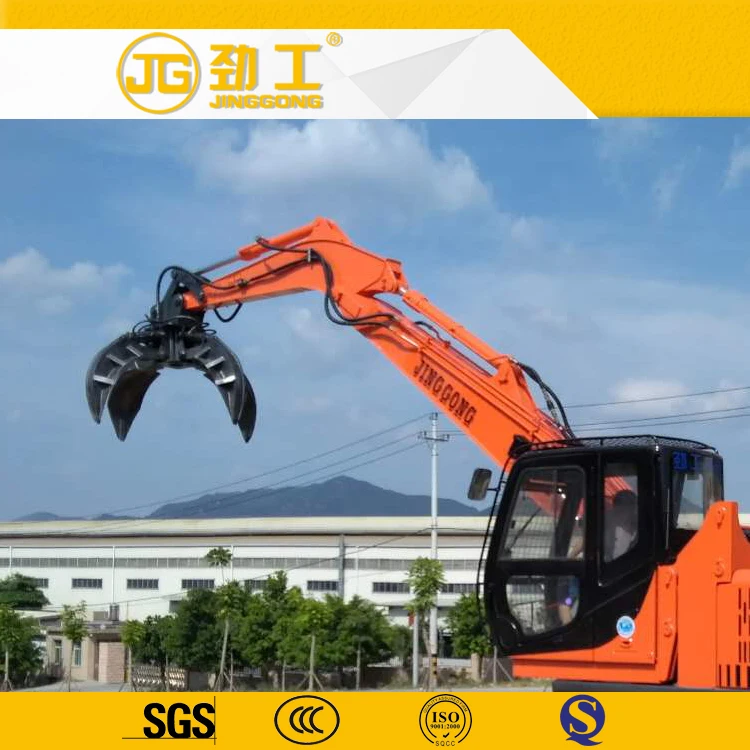

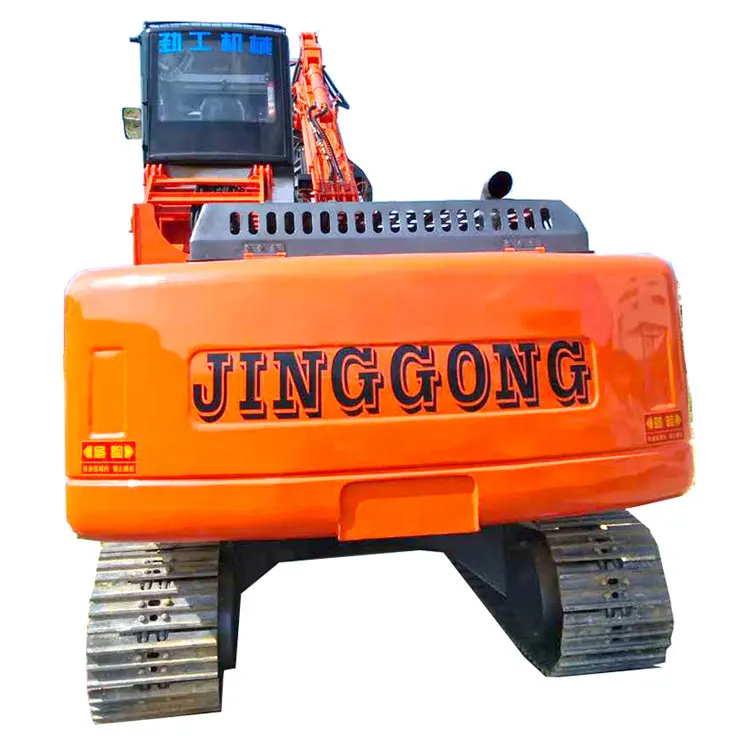

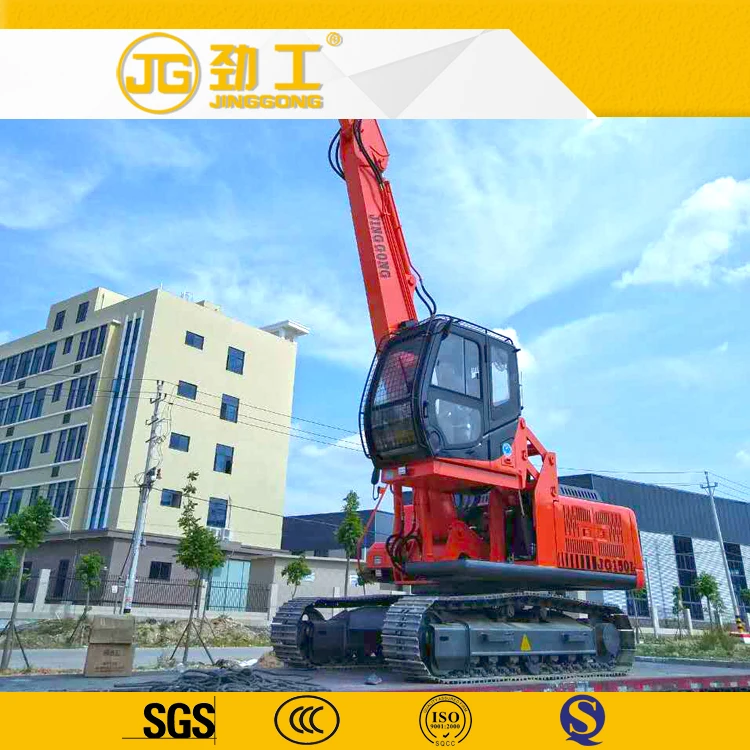

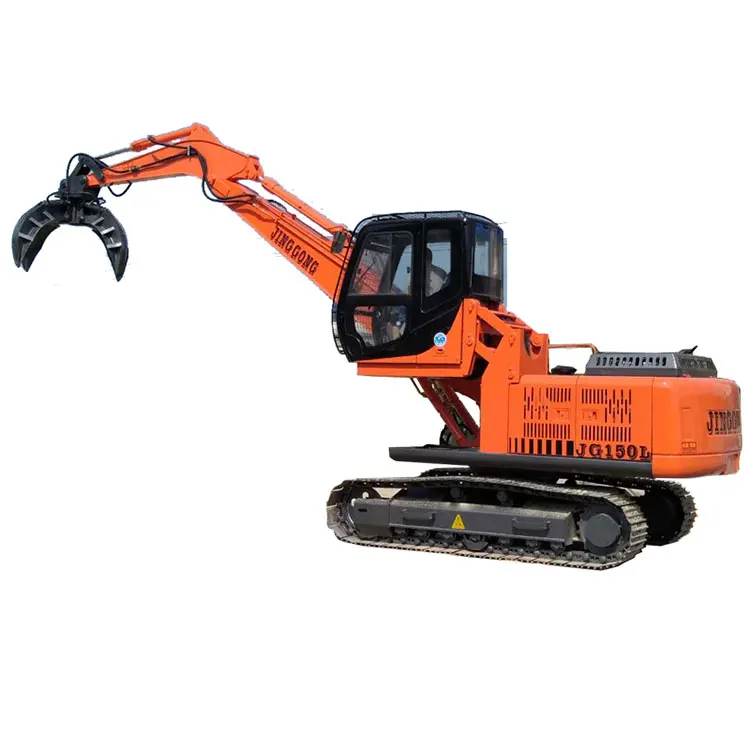

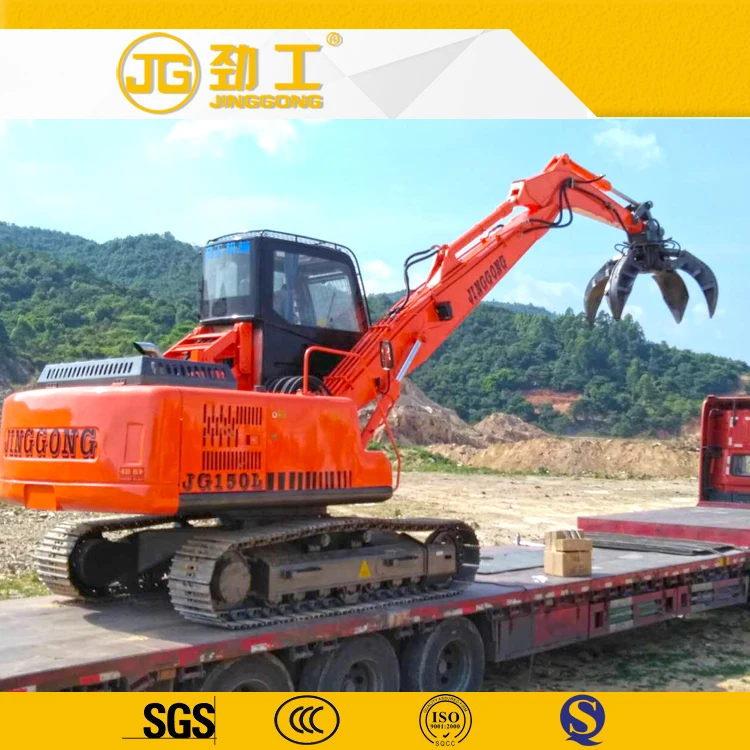

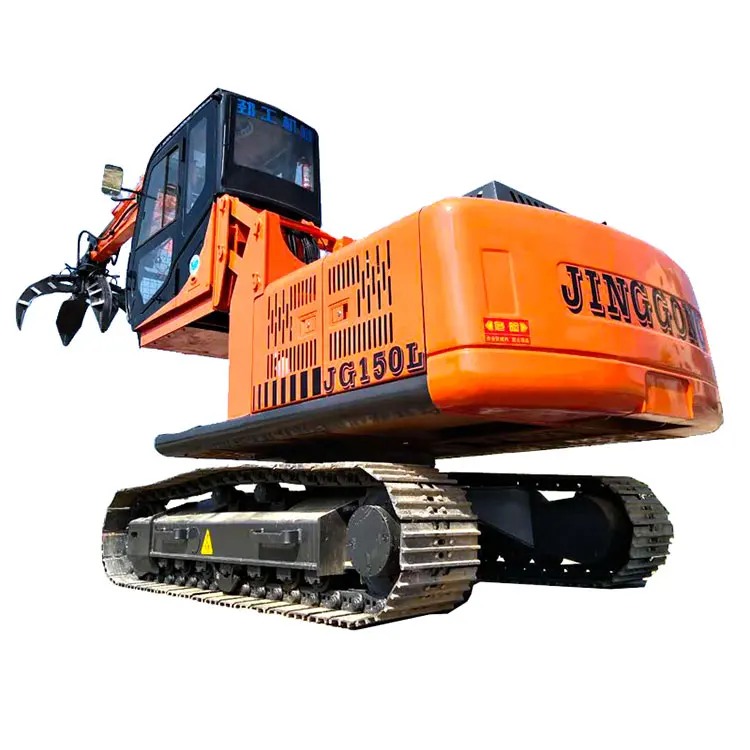

To date, JG150L crawler excavator is the largest scale machine that we offer. It has a weight of 13,500 kg and a grade climbing capacity of 70%/35°.
We introduced rotary motor, multi-tandem valve, dual-speed motor and plunger pump from South Korea to achieve smooth movement,
quick reaction and high working efficiency.
| SPECIFICATIONS OF JG150L CRAWLER EXCAVATOR | ||||||||||
| RANGE OF OPERATION | Boom length | 4200mm | ||||||||
| Arm length | 2000mm | |||||||||
| Maximum Digging Reach | 7200mm | |||||||||
| Maximum Digging Depth | 4800mm | |||||||||
| Maximum Digging Force | 90KN | |||||||||
| Maximum Digging Height | 7180mm | |||||||||
| Maximum Dumping Height | 5080mm | |||||||||
| Back-end radius of gyration | 2300mm | |||||||||
| DIMENSION | (Length*width*height) travel position | 7500*2460*2920mm | ||||||||
| Machine Height | 2730mm | |||||||||
| Wheel base | 2850mm | |||||||||
| Track Gauge | 1960mm | |||||||||
| Width Of Crawler | 500mm | |||||||||
| Width Of Platform | 2460mm | |||||||||
| Ground clearance of counterweight | 900mm | |||||||||
| Min ground clearance | 420mm | |||||||||
| TECHNICAL PARAMETERS | Angle of rotation | 360° | ||||||||
| Machine weight | 13500kg | |||||||||
| Engine model | LRM3Z-22/4BTAA3.9 | |||||||||
| Rated Power | 85KW | |||||||||
| Rated Speed | 2200r/min | |||||||||
| Hydraulic system working pressure | 26Mpa | |||||||||
| Hydraulic system flow | 270L/min | |||||||||
| Metering gear pump | 2*63ml/r | |||||||||
| Max Hauling force | 76.5KN | |||||||||
| (High speed/low speed) | 5/2.9km/h | |||||||||
| Grade Climbing ability | 70%/35° | |||||||||
| Volume Of Bucket | 0.5m3 | |||||||||
| Revolution Overdrive Pressure | 25Mpa | |||||||||
| Full circle swinging time | 5.5s | |||||||||
| Fqt Fuel Quantity | ≥8L/h | |||||||||
| Capacity Of The Fuel Tank | 226L | |||||||||
| Hydraulic Tank Capacity | 227L | |||||||||
