DIY arcade parts 2 terminals push button joystick micro switch without lever

Feature:

1.)Nice appearance,tight configuration;
2.)Characteristic:small contact clearance;
3.)Quick action,high sensitivity and small operating travel;
4.)Microswitch reliability more than 10,000 cycles;
5.)Made of high quality thermoplastic;
6.)A varity of models with low/high operating force available.

Parameters:
1.)Rated Load: 5A 125/250VAC T125; 5A 250VAC; 10A 125VAC; 10A 250VAC
2.)Contact Resistance: ≤50mΩ
3.)Insulation Resistance:≥100MΩ
4.)Actuating Force:3-8N
5.)Electrical Life: ≥ 10,000 cycles
6.)Operating Temperature:-25°C to +85°C
7.)Withstand Voltage:1500VAC(50Hz)/1min;
8.)Approvals: TUV: 5A 250VAC T125; UL: 10A 125VAC; 5A 250VAC T105; CB:5A 250VAC T125.

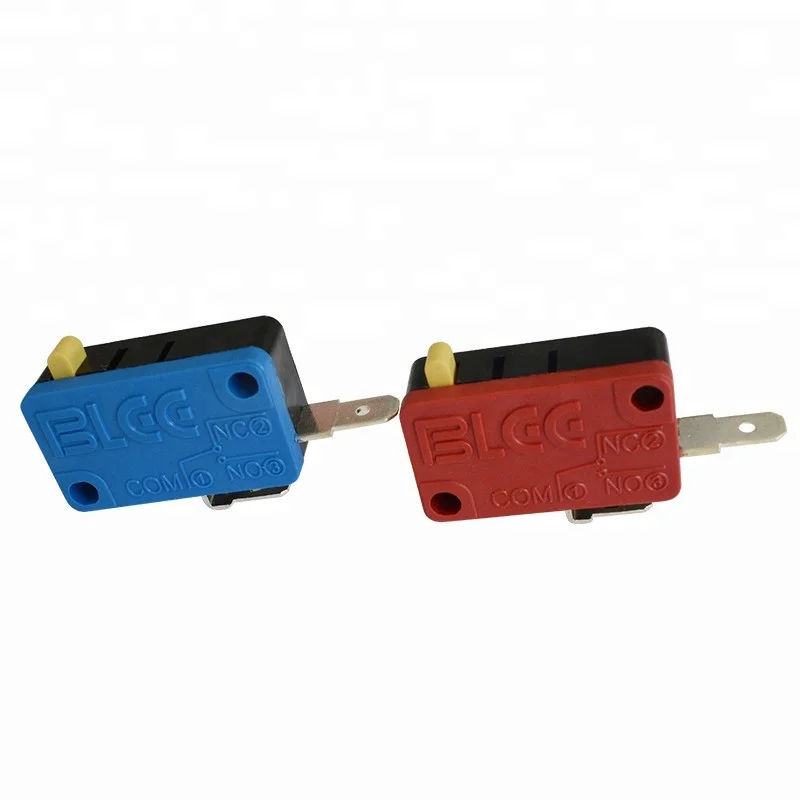

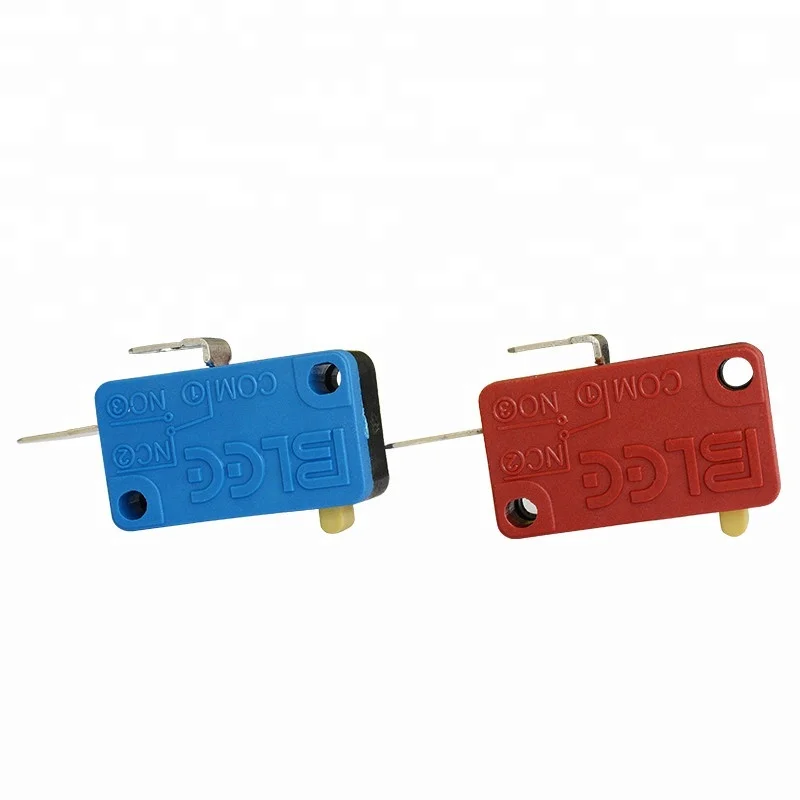

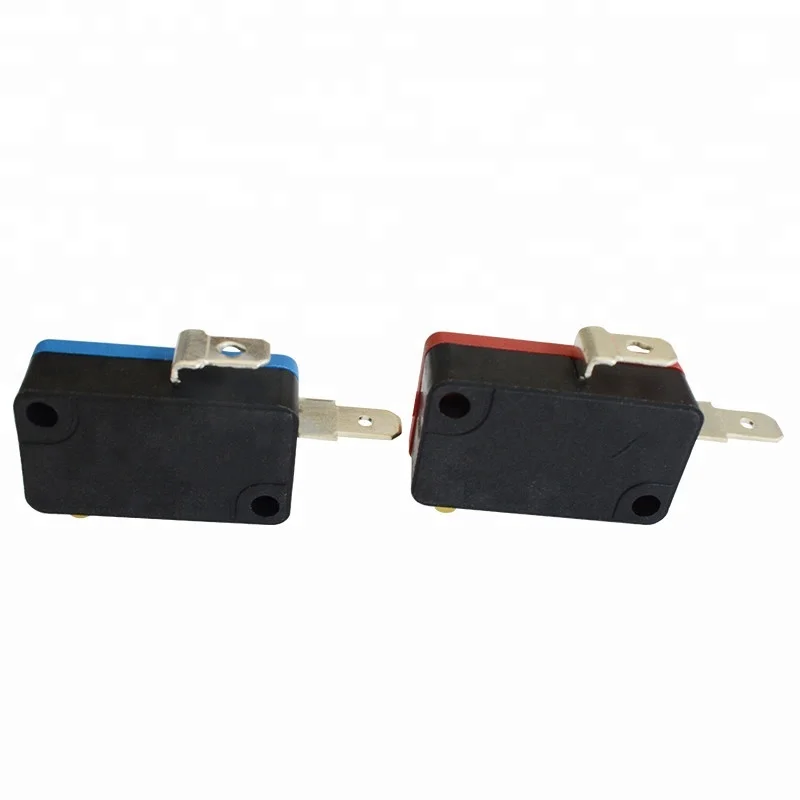

Detailed pictures of DIY arcade parts 2 terminals push button joystick micro switch without lever
