Характеристики

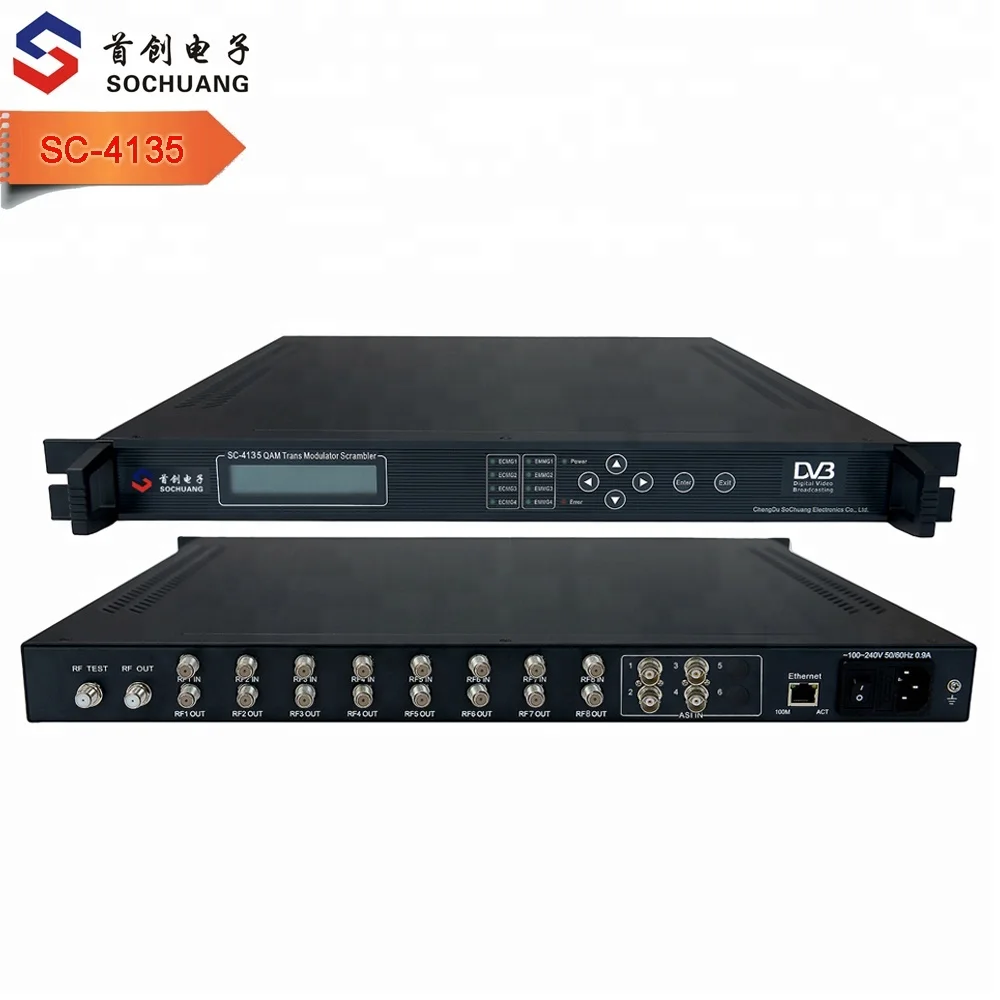

SC-4135 8DVB-S2 to 4QAM RF muxing scrambler transmodulator /DVB-S to DVB-C modulator for CATV headend /DVB-C TV broadcasting
digital tv converter/digital tv cable system/digital tv broadcasting equipment
Product Description
Overview
8×DVB-S2 to 4×QAM Trans-modulator support 8×DVB-S/S2 (QPSK/8PSK) transponders and 4×ASI input, then multiplex and scramble the input signal to output selected programs through 4×QAM RF channels. It provides a cost-effective and stable solution for TV operators to re-distribute programs via HFC network. It suits 1U rack and can be configured by front panel LCD and NMS (network management software). Its high-integrated and cost-effective design makes it widely used in varieties of digital broadcasting distribution systems.
Features
1. 8×DVB-S/S2 RF and 4×ASI input
2. Input frequency: 950~2150 MHz
3. Input symbol rate: 1~45 Msps
4. 4×QAM RF output
5. Output frequency: 47~870 MHz
6. Output symbol rate: 5~9 Msps
7. Support 4×CAS/SMS
8. LCD/Keyboard control by front panel and network management by Ethernet
Technical Specification
Input | RF | 8×tuner (DVB-S/S2) |
ASI | 4×ASI (BNC) | |
Frequency Range | 950~2150 MHz | |
Symbol Rate | 1~45 Msps | |
Output | Interface | F-head |
Impedance | 75Ω | |
Frequency Range | 47~870Mhz, 1Khz step | |
Constellation | 16, 32, 64, 128, 256 QAM | |
Standard | EN300429/ITU-T J.83A | |
Symbol Rate | 5.0~9.0Msps, 1ksps step | |
Error-Correcting Codes | RS code188/204 | |
MER | ≥40dB | |
BER | 0 | |
Output Level | 90~110dBV | |
Level Attenuation Range | 0dBm~30dBm (per carrier), 0.5dB step | |
Scrambler | support 4×CAS/SMS; head-end implementation of DVB simulcrypt (ETSI TS 103 197 V1.4.1) | |
Control | LCD/Keyboard, network management | |
Ethernet software upgrade | ||
General Features | Size | 482mm×410mm×44mm |
Temperature Range | 0~45°C (Operation); -20~80°C (Storage) | |
Power | 100-240VAC, 50Hz, 25W | |
Network Management

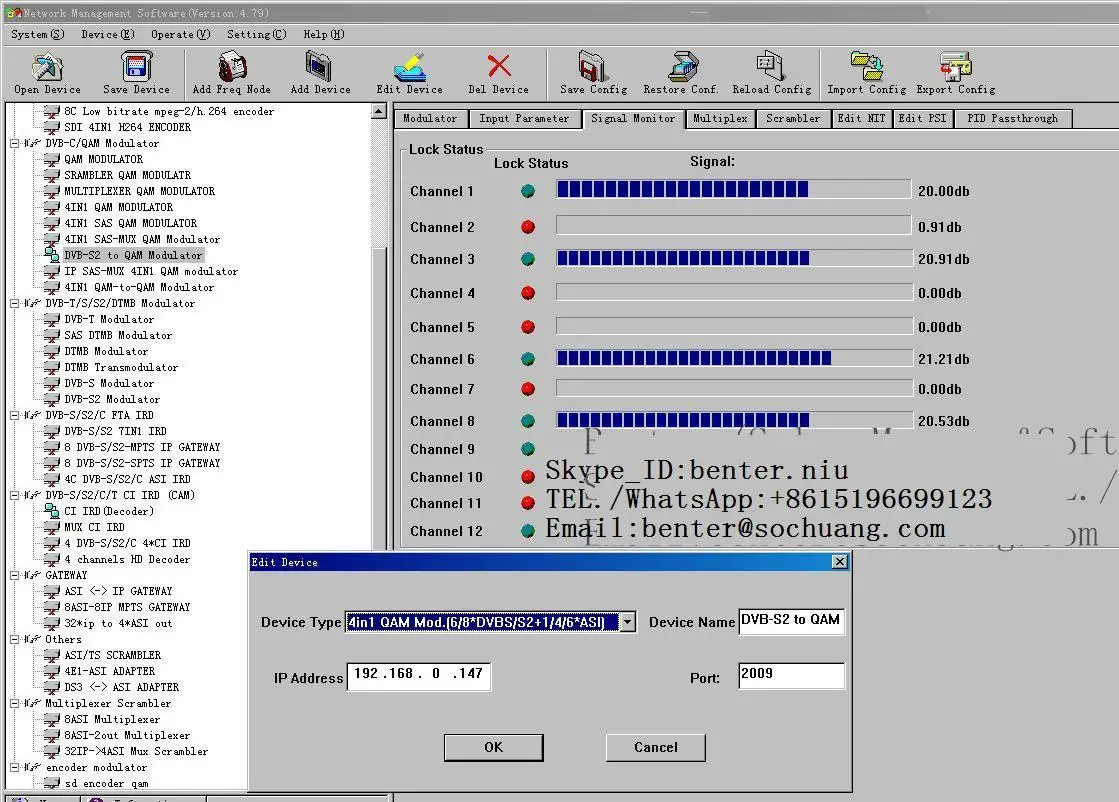

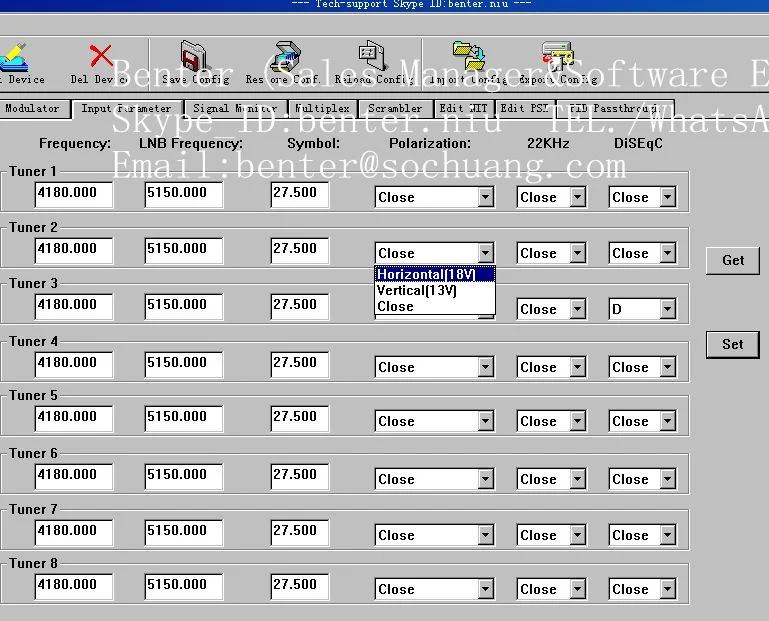

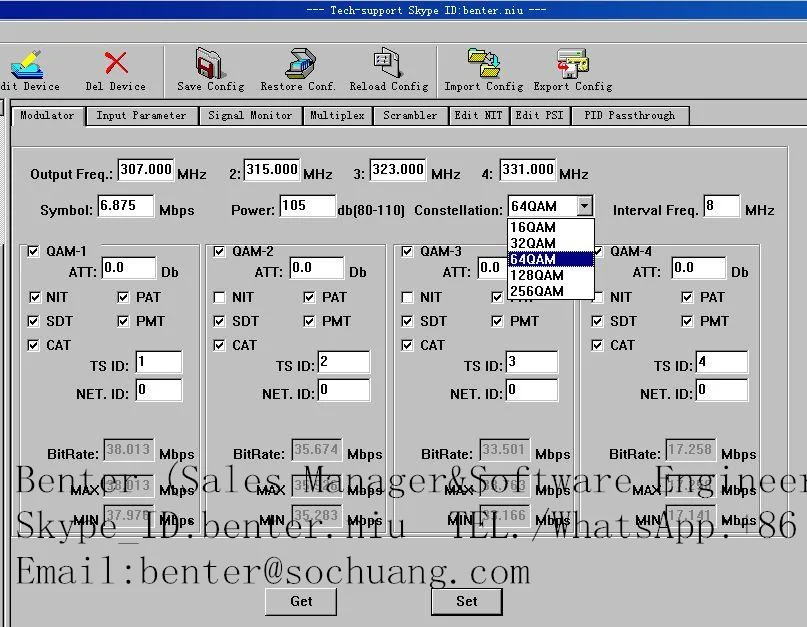

Device can be configured by Network Management Software. Below is an example of Video/Audio confirguration interface screenshot.
Network Management Software: http://211.149.232.3/download/DvbManager.exe
Related Products
Similar Products
Supporting Products
Typical Application
This product is mainly used for DVB-C System, CATV Headend Solution. It's called as 8×DVB-S2 to 4×QAM Trans-modulator support 8×DVB-S/S2 (QPSK/8PSK) transponders and 4×ASI input, then multiplex and scramble the input signal to output selected programs through 4×QAM RF channels.
